◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#9023) — 123 parça

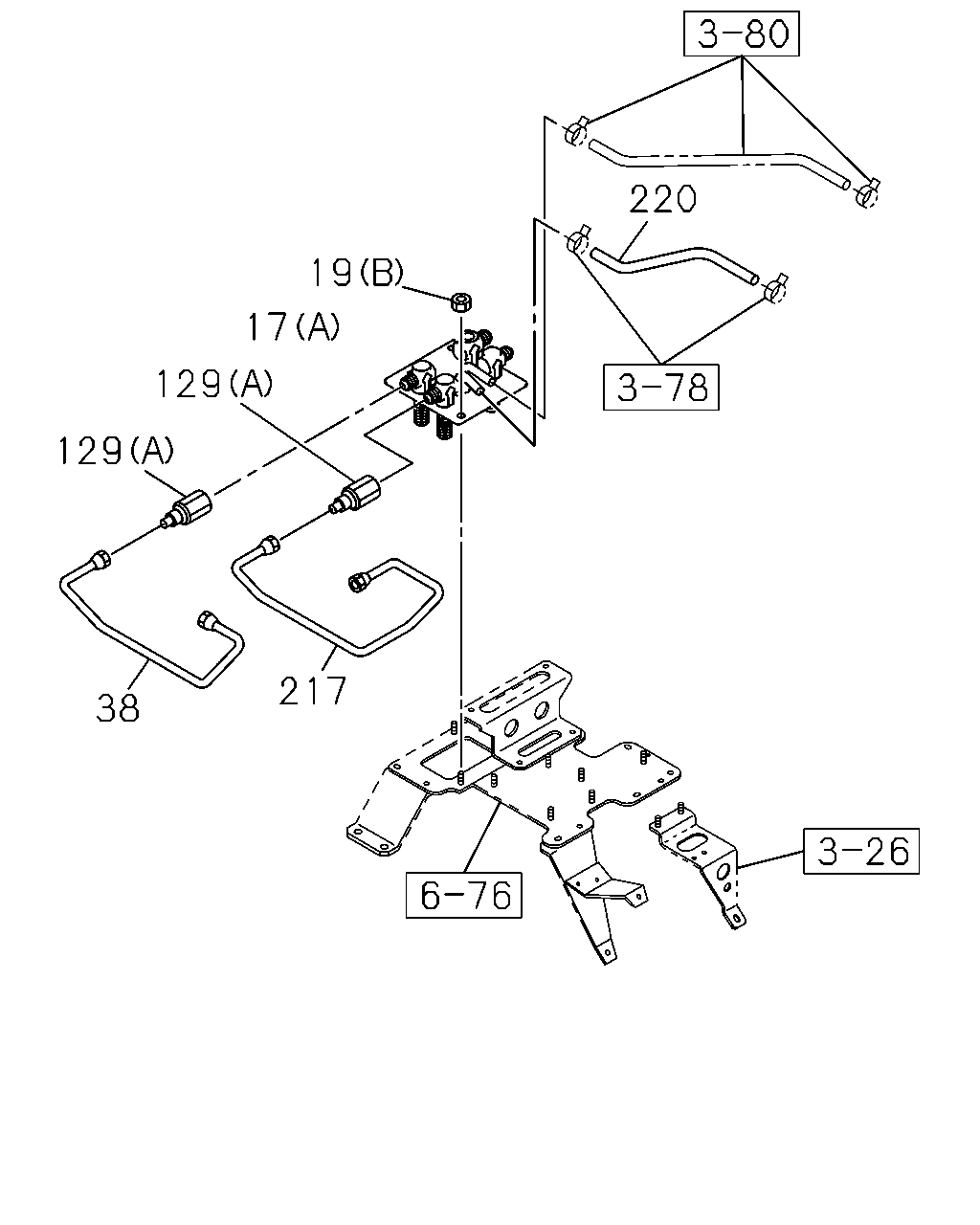

çizim 76710
220 19 17 129 129 38 217
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-493-1 01 1 0112-
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-557-0 01 1 0106-0111
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) 		1-47470-558-0 01 1 0106-
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-557-0 01 1 0112-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-47470-490-2 01 1 0106-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-493-1 01 1 0106-0111
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0106-0111
19 NUT; PIPE UNION
(A) M8 		9-09110-408-0 01 1 0106-0203
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0112-
38 PIPE; AIR,UNION TO MAG VLV
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49123-433-0 01 1 0204-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0204-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0106-0203
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0106-0203
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0204-
129 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0106-
129 CONNECTOR; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0203
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0203
129 CONNECTOR; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0204-
217 PIPE; AIR,PARKING BRK VLV TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49123-172-0 01 1 0204-
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRAILER BRAKE HAND CONTROL<NLG> L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0106-0203
220 HOSE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=350 SERVICED BY L=10000 		9-09914-701-0 01 1 0204-

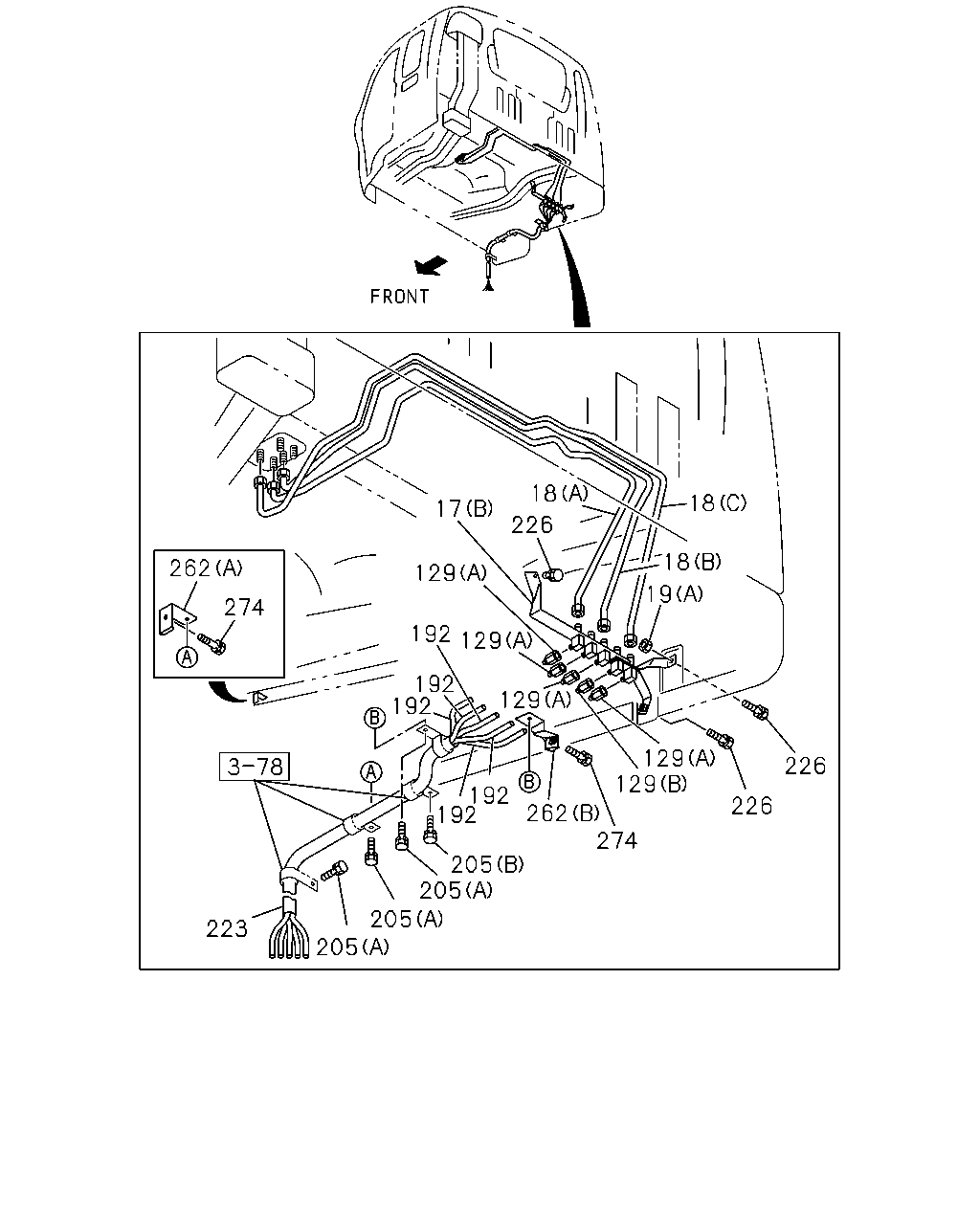

çizim 76739
18 18 17 226 18 19 129 274 262 192 129 192 192 129 129 226 226 129 262 274 192 192 205 205 205 205 223
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-493-1 01 1 0112-
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-557-0 01 1 0106-0111
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) 		1-47470-558-0 01 1 0106-
17 UNION; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) 		1-47470-557-0 01 1 0112-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-47470-490-2 01 1 0106-
17 UNION; AIR PIPE
TRAILER BRAKE HAND CONTROL<NLG> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-47470-493-1 01 1 0106-0111
18 PIPE; AIR,UNION TO UNION
PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400 		1-47426-395-0 01 1 0106-
18 PIPE; AIR,UNION TO UNION
TRAILER BRAKE HAND CONTROL<NLG> (B) L=1937 SERVICED BY L=1950 		1-47426-393-0 01 1 0106-
18 PIPE; AIR,UNION TO UNION
TRAILER BRAKE HAND CONTROL<NLG> (A) L=2108 SERVICED BY L=2500 		1-47426-423-0 01 1 0106-
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0106-0111
19 NUT; PIPE UNION
(A) M8 		9-09110-408-0 01 1 0106-0203
19 NUT; PIPE UNION
(B) M8 FLANGE 		0-91150-108-0 02 1 0112-
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0204-
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0106-0203
129 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0106-0203
129 CONNECTOR; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 02 1 0204-
129 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0106-
129 CONNECTOR; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0203
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-0203
129 CONNECTOR; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0204-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-0512
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-0512
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0601-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28080-816-0 03 1 0106-0512
205 BOLT; TUBE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
205 BOLT; TUBE CLIP
(B) M6X16 W/LK WASHER 		0-50040-616-0 01 1 0106-0211
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-0312
205 BOLT; TUBE CLIP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0401-0501
205 BOLT; TUBE CLIP
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0502-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87410-097-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0106-0106
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0601-
226 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
226 BOLT; UNION
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0106-0203
226 BOLT; UNION
PARKING BRAKE VALVE LEVER TYPE<W48> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0204-
262 BRACKET
(A) 		1-79996-143-0 01 1 0106-
262 BRACKET
(B) 		1-79996-258-1 01 1 0106-
274 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0106-0512
274 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
274 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0106-

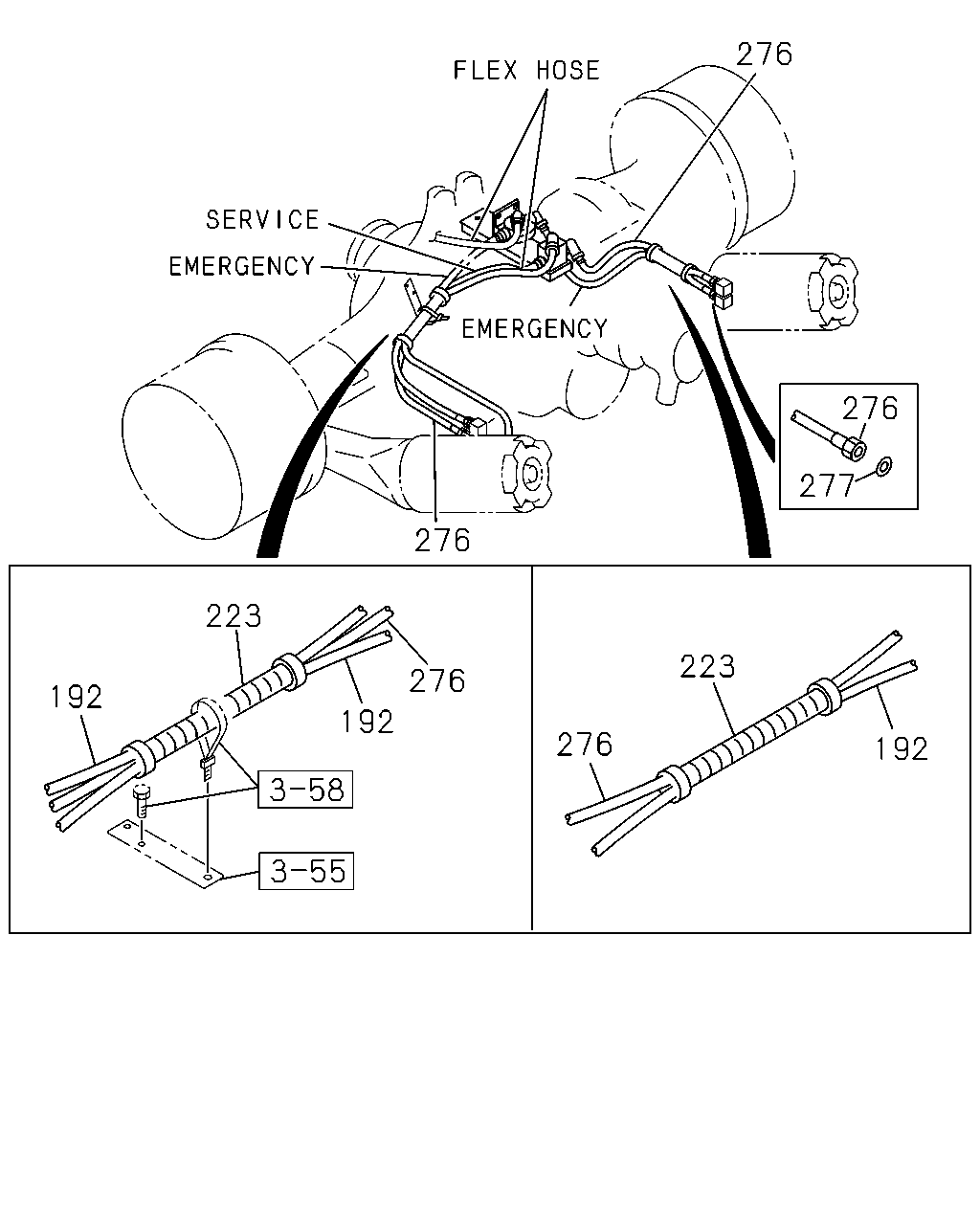

çizim 77197
276 276 277 276 223 192 276 276 223 192 192
BalonParca AdiParca NoAdetTipApplied Date
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-0512
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-0512
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0601-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87410-097-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0106-0106
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0601-
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> L=490 		0-07846-490-1 01 1 0106-0605
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> L=490 		0-57846-490-1 01 1 0606-
276 HOSE; SERVO
BRAKE SYSTEM RETARDER<RE2> L=770 		0-07846-770-1 01 1 0106-
277 GASKET; HOSE SERVO
BRAKE SYSTEM RETARDER<RE2> ID=11 OD=18 		9-09572-510-0 04 1 0106-

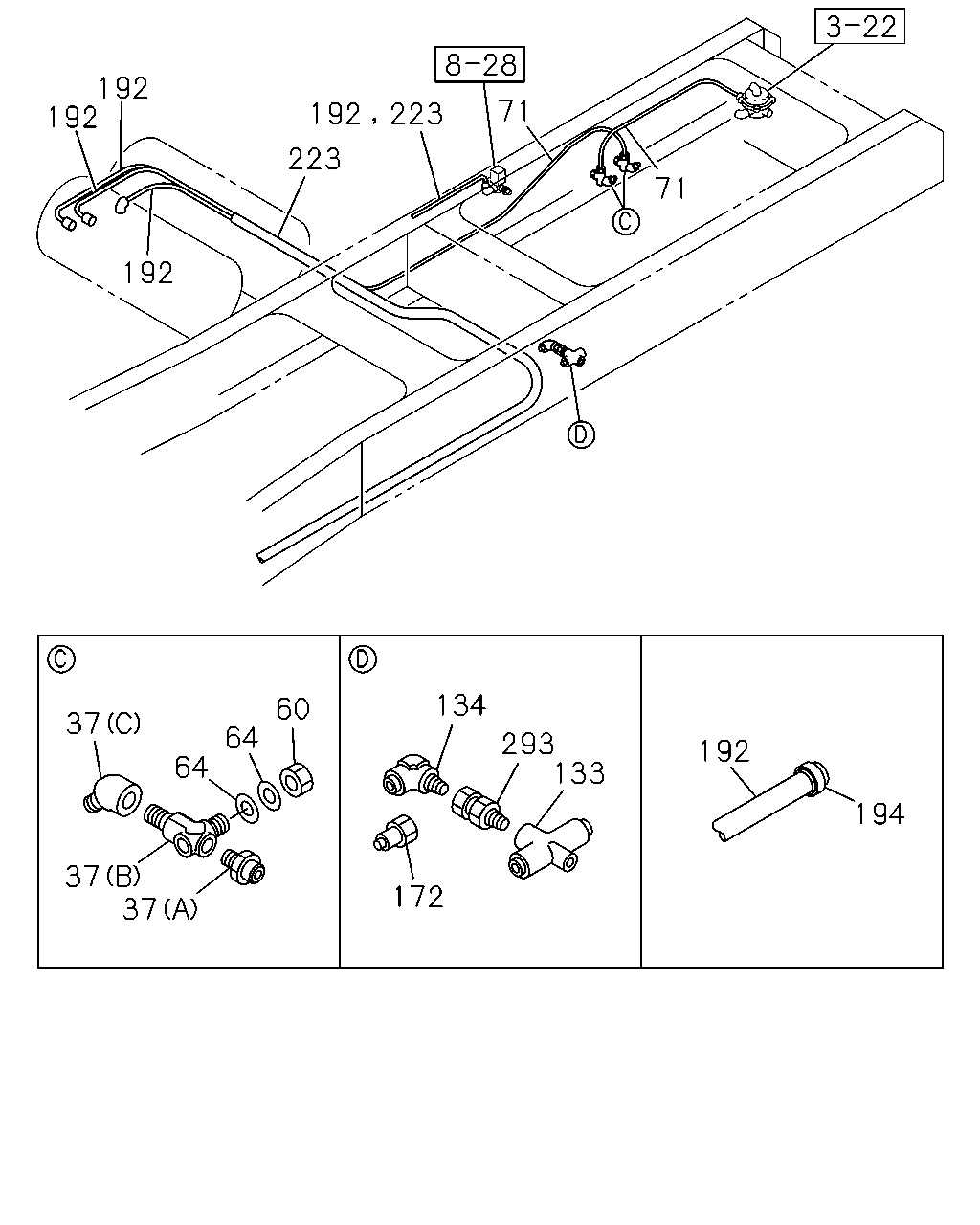

çizim 77198
71 71 223 192 223 192 192 192 194 192 133 293 134 172 60 64 64 37 37 37
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M27 & PT3/8 STRAIGHT 		1-09650-250-0 02 1 0106-
37 UNION; AIR PIPE
(B) 		1-09650-251-1 02 1 0106-
37 UNION; AIR PIPE
(C) 		1-09664-209-0 02 1 0106-
60 NUT; NIPPLE,AIR PIPE
M20 		9-99111-420-0 02 1 0106-0512
60 NUT; NIPPLE,AIR PIPE
M20 		0-91111-520-0 02 1 0601-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 02 1 0106-
64 GASKET; FLEX HOSE
ID=17.5 		9-09572-515-0 02 1 0106-
71 HOSE; FLEX,RWD RR
L=550 		0-07909-550-0 02 1 0106-0607
71 HOSE; FLEX,RWD RR
L=550 		0-57909-550-0 02 1 0608-
133 UNION; NIPPLE
DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0106-
134 CONNECTOR
TRAILER BRAKE HAND CONTROL<NLG> DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0106-
134 CONNECTOR
EXC. TRAILER BRAKE HAND CONTROL<NLG> DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
172 ADAPTER; UNION
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 0106-0512
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106-0512
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0601-
192 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0601-
194 SLEEVE; TUBE
BRAKE SYSTEM RETARDER<RE2> ID=23 OD=27 L=40 		1-09337-015-0 03 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87410-097-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0106-0106
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0106-0512
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0601-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0601-
293 VALVE; CHECK 1-48320-013-2 01 1 0106-
