Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#9021) — 345 parça

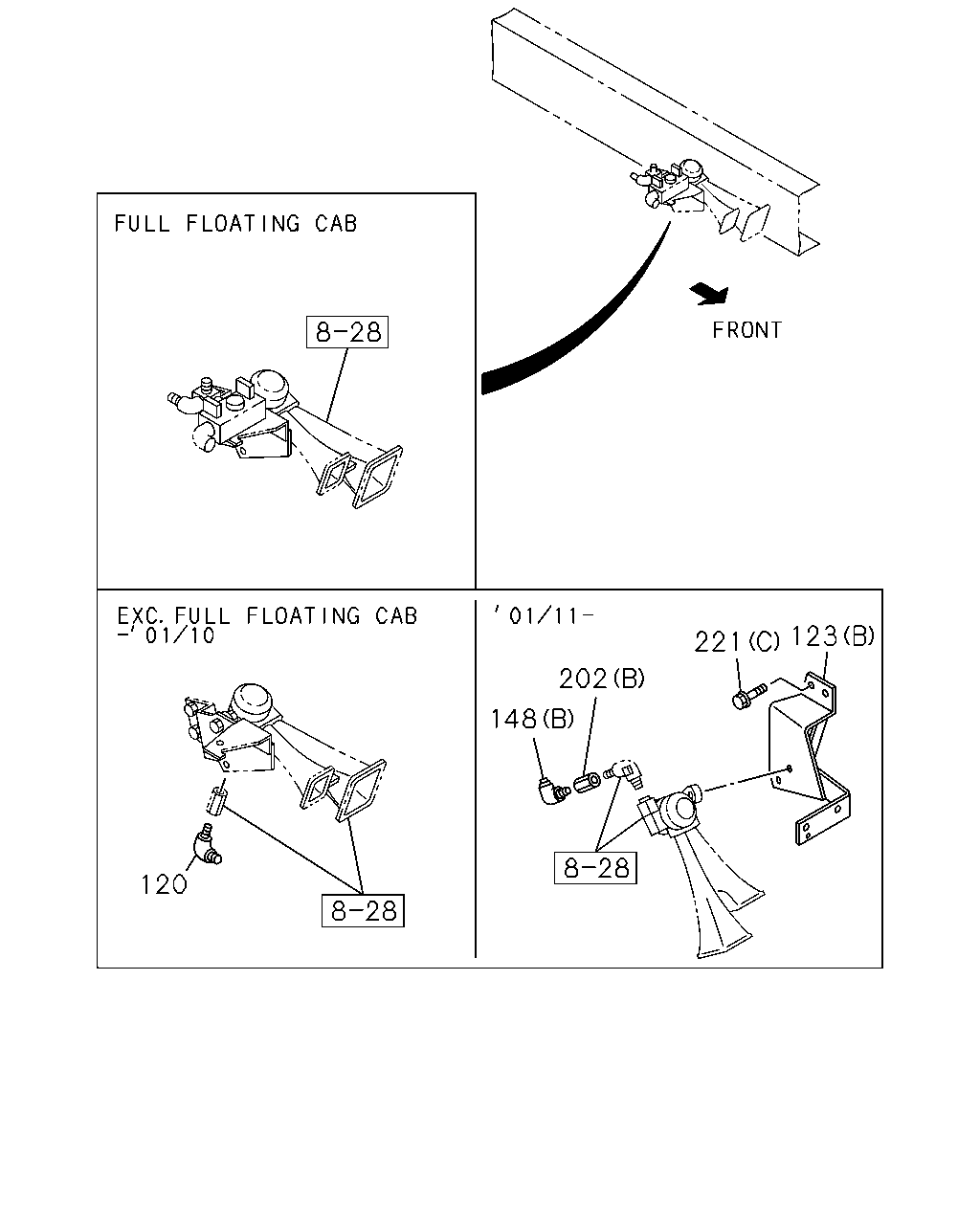

123 221 202 148 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE EXC. FULL FLOATING CAB(W16) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0106-0110
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0111-
148	CONNECTOR; UNION EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
148	CONNECTOR; UNION ZF M/T<X9E> (A)	8-94338-417-0	01	1	0106-
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0201-
202	ADAPTER ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0201-
202	ADAPTER (C)	1-09660-879-0	01	1	0201-
202	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-0305
202	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0306-
221	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
221	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-

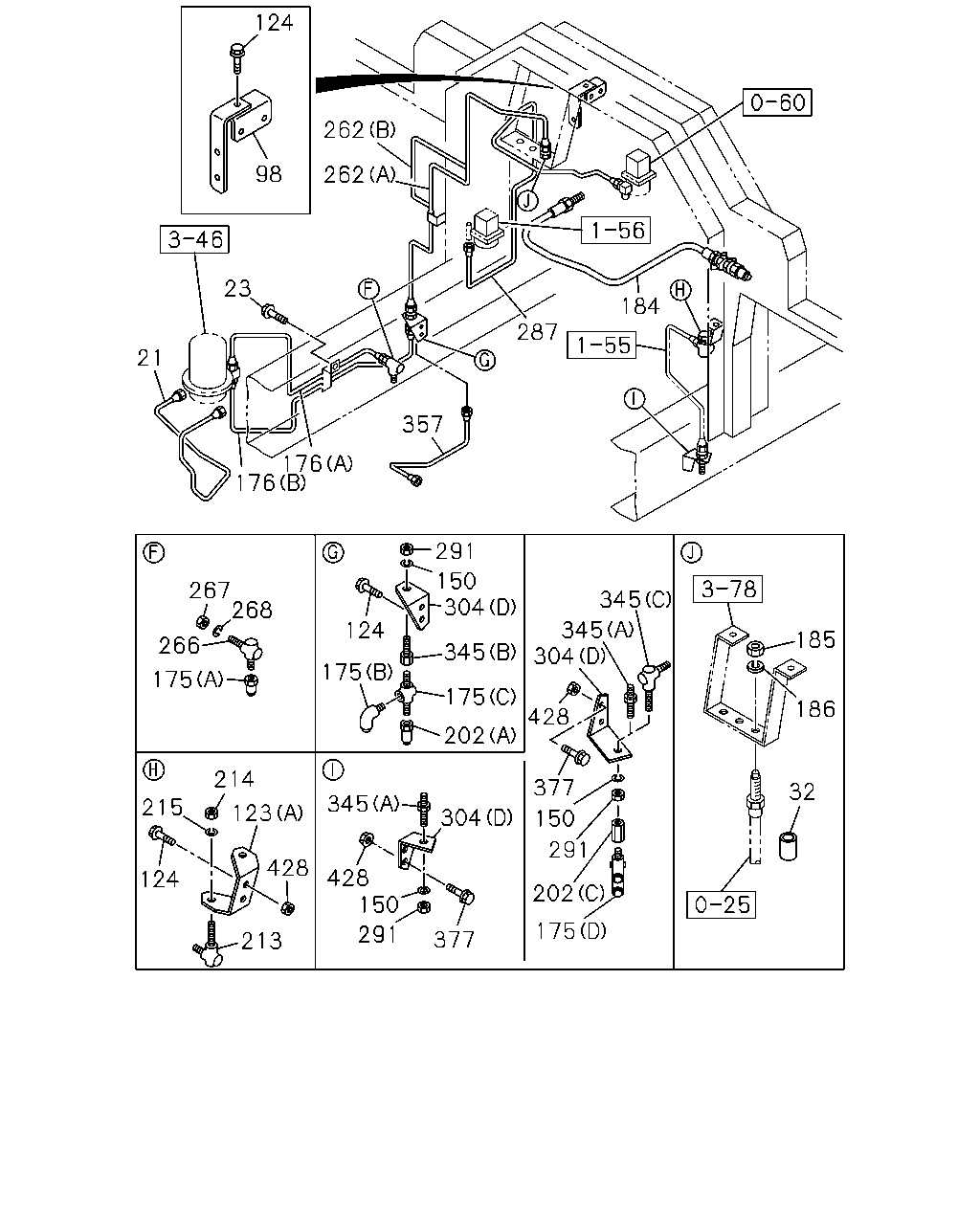

124 98 262 262 23 21 184 287 357 176 176 185 186 32 345 345 304 428 377 150 291 202 175 377 291 150 428 304 345 202 175 175 345 124 304 150 291 268 267 266 175 213 124 215 428 123 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49122-866-0	01	1	0106-0112
21	PIPE; AIR,UNION TO AIR DRYER	1-49123-375-0	01	1	0201-0302
21	PIPE; AIR,UNION TO AIR DRYER	1-49124-042-0	01	1	0303-
23	BOLT; BRKT,AIR PIPE AIR DRYER<PS7> M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
23	BOLT; BRKT,AIR PIPE M8X35 FLANGE	0-28650-835-0	01	1	0601-
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6 OD=10 L=70	1-09376-512-0	01	1	0106-0106
98	BRACKET; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L)	1-47477-471-0	01	1	0106-
123	BRACKET; UNION (A)	1-47477-045-0	01	1	0106-
123	BRACKET; UNION EXC. FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0111-
124	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
124	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
124	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
124	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
124	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
124	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
150	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0106-0603
150	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0604-
175	CONNECTOR; AIR PIPE (C)	1-09650-070-3	01	1	0106-0112
175	CONNECTOR; AIR PIPE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
175	CONNECTOR; AIR PIPE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0106-0112
175	CONNECTOR; AIR PIPE (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0201-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (B)	1-49123-083-0	01	1	0106-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> (A)	1-49123-084-0	01	1	0106-
184	HOSE; FLEX,AIR GOV 6WF1 TC-C(1B8) OD=12.7 L=450	1-09363-631-0	01	1	0106-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	0106-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	0106-0603
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	0-91510-512-0	01	1	0604-
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0201-
202	ADAPTER ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0201-
202	ADAPTER (C)	1-09660-879-0	01	1	0201-
202	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-0305
202	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0306-
213	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0106-0607
213	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0106-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	0106-0603
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	01	1	0604-
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-C(72L) (A)	1-49122-366-0	01	1	0106-0112
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-C(72L) (B)	1-49123-421-0	01	1	0201-0202
262	PIPE; AIR,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-C(72L) (B)	1-49123-506-0	01	1	0203-
262	PIPE; AIR,UNION TO FLEX 6WF1 TC-C(1B8) (A)	1-49123-026-0	01	1	0106-0112
262	PIPE; AIR,UNION TO FLEX 6WF1 TC-C(1B8) (B)	1-49123-422-0	01	1	0201-0202
262	PIPE; AIR,UNION TO FLEX 6WF1 TC-C(1B8) (B)	1-49123-507-0	01	1	0203-
266	UNION; AIR PIPE M12 ELBOW	9-09225-206-1	01	1	0106-0607
266	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	0608-
267	NUT; UNION M12	9-09840-280-0	01	1	0106-
268	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0106-0603
268	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L)	1-49122-364-0	01	1	0106-0202
287	PIPE; AIR,MAG VLV 6WA1 TC-C(55L) L=1314 SERVICED BY L=1370	1-47428-818-0	01	1	0203-
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L)	1-49122-365-0	01	1	0106-0202
287	PIPE; AIR,MAG VLV 6WG1 TC-C(72L) L=1269 SERVICED BY L=1370	1-47428-818-0	01	1	0203-
291	NUT; UNION M12	9-09840-280-0	02	1	0106-
304	BRACKET; UNION (D)	1-47476-556-0	02	1	0106-
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0106-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C)	1-47477-183-1	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (B)	1-47477-757-1	01	1	0106-
345	UNION; AIR PIPE (B)	1-09654-280-1	01	1	0106-0112
345	UNION; AIR PIPE (C) M12 2WAY	1-09654-257-1	01	1	0201-0406
345	UNION; AIR PIPE (A) M12 L=66.5	9-09223-306-1	01	1	0106-0406
345	UNION; AIR PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0407-0607
345	UNION; AIR PIPE (A) M12 L=66.5	0-92113-306-0	02	1	0608-
357	PIPE; AIR,UNION TO UNION EXC. AIR DRYER<PS7>	1-49119-840-0	01	1	0106-
377	BOLT; BRKT FIX M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
377	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	02	1	0601-
428	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0106-0602
428	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-

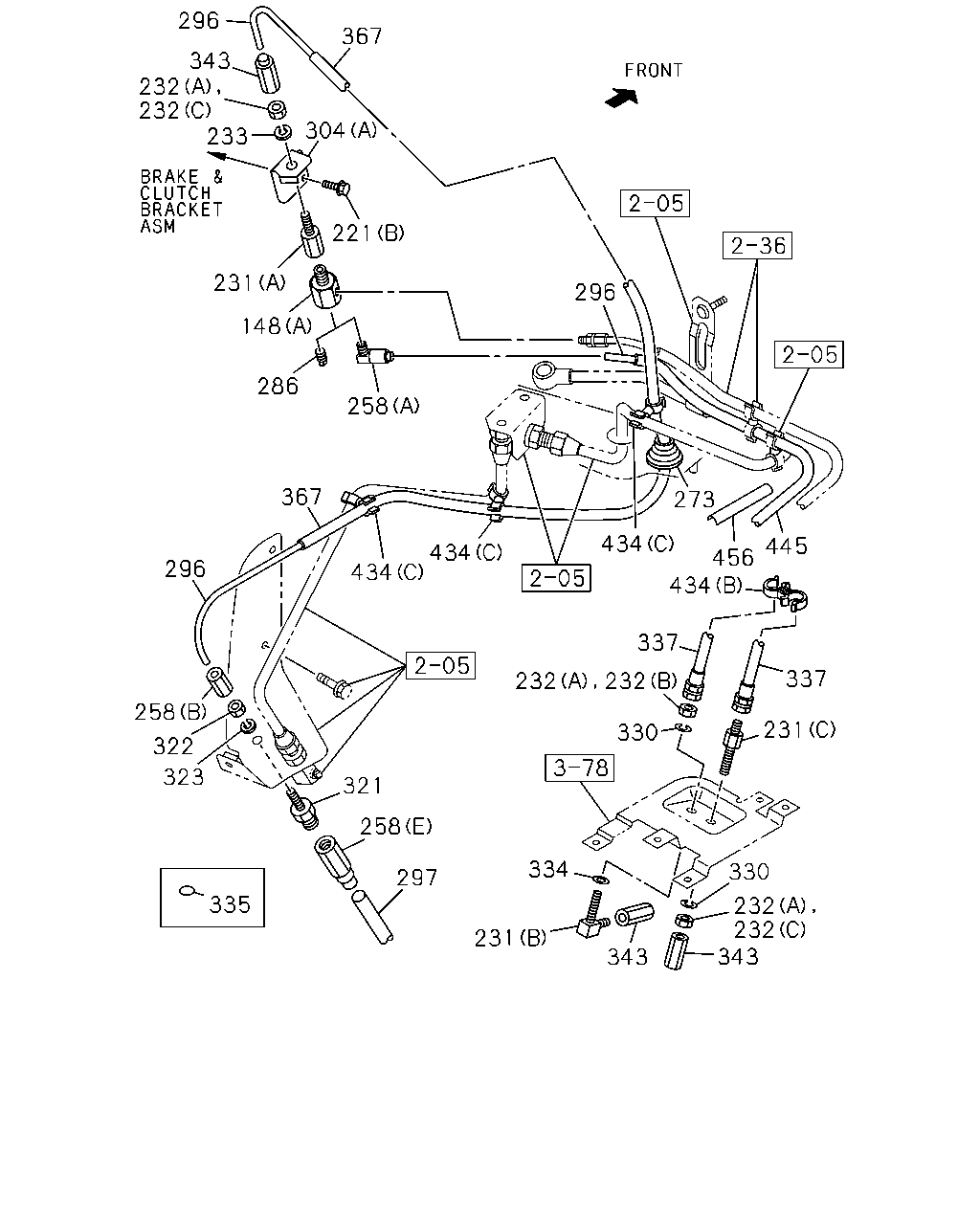

296 367 304 343 232 232 233 221 231 148 286 258 296 273 434 445 456 434 434 434 367 296 258 322 323 335 321 258 337 232 232 337 231 330 330 232 232 343 343 231 334 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
148	CONNECTOR; UNION EXC. FULL FLOATING CAB(W16) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0111-
148	CONNECTOR; UNION ZF M/T<X9E> (A)	8-94338-417-0	01	1	0106-
221	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
221	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
231	UNION; AIR PIPE (B) M10 ELBOW	1-09654-186-2	01	1	0106-
231	UNION; AIR PIPE (C) M10 STRAIGHT	1-09654-361-0	01	1	0106-
231	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0106-
231	UNION; AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09656-713-2	01	1	0106-
232	NUT; UNION,AIR PIPE (A) M10 H=8	1-09400-029-0	02	1	0106-0312
232	NUT; UNION,AIR PIPE (B) M10	9-09110-410-0	01	1	0401-0512
232	NUT; UNION,AIR PIPE (B) M10	0-91110-510-0	01	1	0601-
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0106-0312
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8	1-09400-029-0	01	1	0106-0312
232	NUT; UNION,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8	1-09400-029-0	01	1	0401-
232	NUT; UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M10 H=8	1-09400-029-0	01	1	0401-
232	NUT; UNION,AIR PIPE (C) M10 H=8	1-09400-029-0	01	1	0401-
233	WASHER; LK,UNION,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0106-0603
233	WASHER; LK,UNION,AIR PIPE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2	9-09150-510-0	01	1	0106-0603
233	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	01	1	0604-
258	CONNECTOR; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0106-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
273	GROMMET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	0106-
273	GROMMET SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09332-102-0	01	1	0106-
286	PLUG; AIR PIPE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	9-09204-510-0	01	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0106-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
304	BRACKET; UNION (D)	1-47476-556-0	02	1	0106-
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0106-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C)	1-47477-183-1	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (B)	1-47477-757-1	01	1	0106-
321	JOINT; FLEX HOSE M12 L=66.5	9-09223-306-1	01	1	0106-0203
321	JOINT; FLEX HOSE M12 L=66.5	9-09223-306-1	01	1	0204-0607
321	JOINT; FLEX HOSE M12 L=66.5	0-92113-306-0	01	1	0608-
322	NUT; JOINT,FLEX HOSE M12	9-09840-280-0	01	1	0302-
322	NUT; JOINT,FLEX HOSE M12	9-09840-280-0	01	1	0106-0301
323	WASHER; LK,JOINT ID=12.2	9-09150-512-0	01	1	0302-0603
323	WASHER; LK,JOINT ID=12.2	0-91510-512-0	01	1	0604-
323	WASHER; LK,JOINT ID=12.2	9-09150-512-0	01	1	0106-0301
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	0106-0603
330	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	02	1	0604-
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	0106-
335	SEAL; UNION ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK	1-76798-035-0	01	1	0106-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	0106-0608
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-57210-720-0	02	1	0609-
343	UNION; NYLON TUBE	1-09660-796-1	02	1	0106-
343	UNION; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0106-
343	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09660-796-1	01	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	AR	1	0106-0512
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0106-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0601-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0106-
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=300	1-09707-001-1	01	1	0106-0504
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=350	1-09707-183-0	01	1	0505-
434	CLIP TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0106-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0106-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) D=24 L=21	1-09700-380-0	01	1	0106-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0108-
434	CLIP 6WF1 TC-C(1B8) (A) D=24 L=21	1-09700-380-0	02	1	0106-
445	GUARD SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800	1-83129-031-1	01	1	0106-
456	SEAL; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40	1-72498-022-0	01	1	0106-

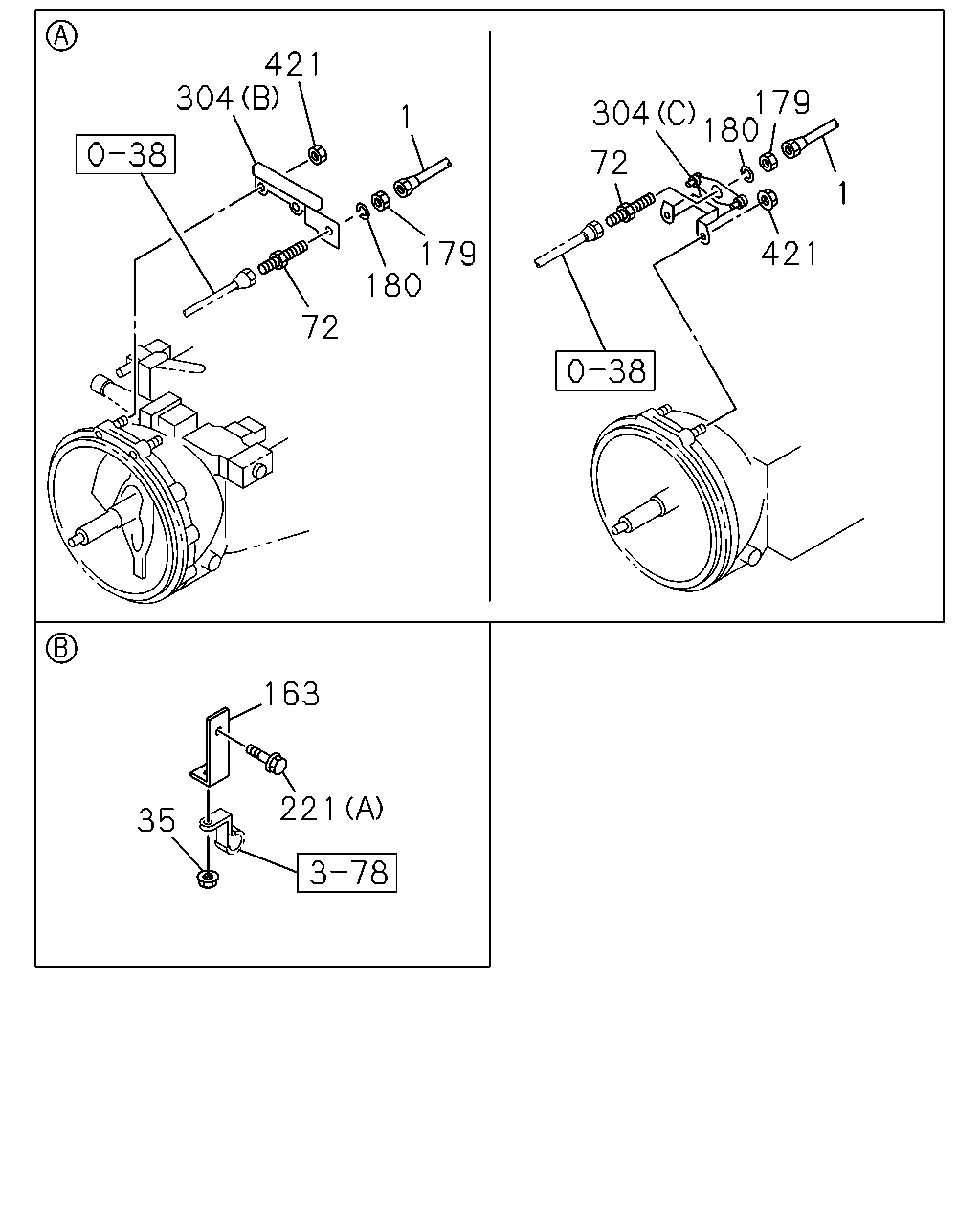

421 304 1 179 180 72 72 304 179 180 1 421 163 221 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L)	1-09363-856-0	01	1	0106-
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) L=1000	1-09363-794-0	01	1	0106-0106
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) L=1050	1-09363-789-0	01	1	0106-
35	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602
35	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
72	UNION; AIR PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09654-318-1	01	1	0106-
163	BRACKET; AIR PIPE AIR DRYER<PS7>	1-34656-009-0	01	1	0106-0109
163	BRACKET; AIR PIPE	1-34656-009-0	01	1	0110-
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=90 B=25	1-47475-530-0	01	1	0106-0109
179	NUT; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) M22	9-09111-422-0	01	1	0106-0512
179	NUT; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) M22	0-91111-522-0	01	1	0601-
180	WASHER; LK,UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=22.5	9-09150-522-0	01	1	0106-0603
180	WASHER; LK,UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=22.5	0-91510-522-0	01	1	0604-
221	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	01	1	0106-0512
221	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28681-035-0	02	1	0111-0512
221	BOLT; BRKT EXC. FULL FLOATING CAB(W16) (C) M10X35 FLANGE	0-28651-035-0	02	1	0601-
221	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
221	BOLT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
304	BRACKET; UNION (D)	1-47476-556-0	02	1	0106-
304	BRACKET; UNION TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0106-
304	BRACKET; UNION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-210-0	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> (C)	1-47477-183-1	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-47477-182-1	01	1	0106-
304	BRACKET; UNION 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (B)	1-47477-757-1	01	1	0106-
421	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10 FLANGE	0-91150-210-0	02	1	0106-0602
421	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M10 FLANGE	0-91180-210-0	02	1	0603-

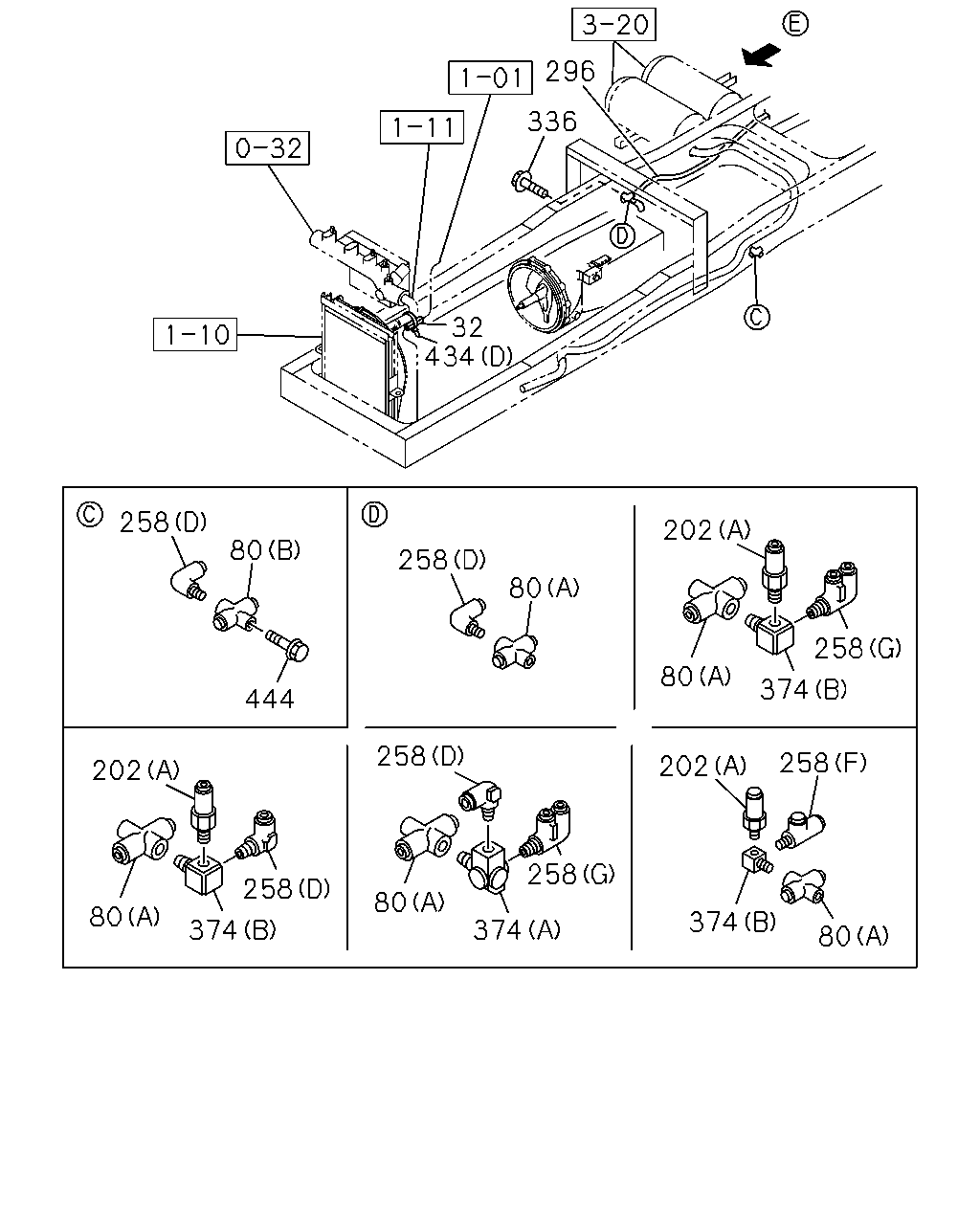

296 336 32 434 258 80 444 258 80 202 258 374 80 202 258 374 80 258 258 374 80 202 258 80 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	SLEEVE; RUBBER,AIR PIPE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6 OD=10 L=70	1-09376-512-0	01	1	0106-0106
80	UNION; 3 WAY (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-
80	UNION; 3 WAY ISUZU M/T<X9A> (A) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-
80	UNION; 3 WAY ZF M/T<X9E> (B) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0106-
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER ISUZU M/T<X9A> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0106-0112
202	ADAPTER (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0201-
202	ADAPTER ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0201-
202	ADAPTER (C)	1-09660-879-0	01	1	0201-
202	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0111-0305
202	ADAPTER EXC. FULL FLOATING CAB(W16) (B) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0306-
258	CONNECTOR; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0106-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
336	BOLT; PIPE UNION M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
336	BOLT; PIPE UNION M8X20 FLANGE	0-28650-820-0	01	1	0601-
374	CONNECTOR (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0106-0404
374	CONNECTOR ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (B) M16 PT3/8X2 3WAY	1-09656-418-2	01	1	0106-0404
374	CONNECTOR (B) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0405-
374	CONNECTOR ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (B) M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0405-
374	CONNECTOR BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09660-697-1	01	1	0106-
374	CONNECTOR BRAKE SYSTEM RETARDER<RE2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (A)	1-09660-697-1	01	1	0106-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0106-
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=300	1-09707-001-1	01	1	0106-0504
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=350	1-09707-183-0	01	1	0505-
434	CLIP TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0106-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0106-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) D=24 L=21	1-09700-380-0	01	1	0106-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0108-
434	CLIP 6WF1 TC-C(1B8) (A) D=24 L=21	1-09700-380-0	02	1	0106-
444	BOLT; UNION ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
444	BOLT; UNION ZF M/T<X9E> M8X25 FLANGE	0-28650-825-0	01	1	0601-

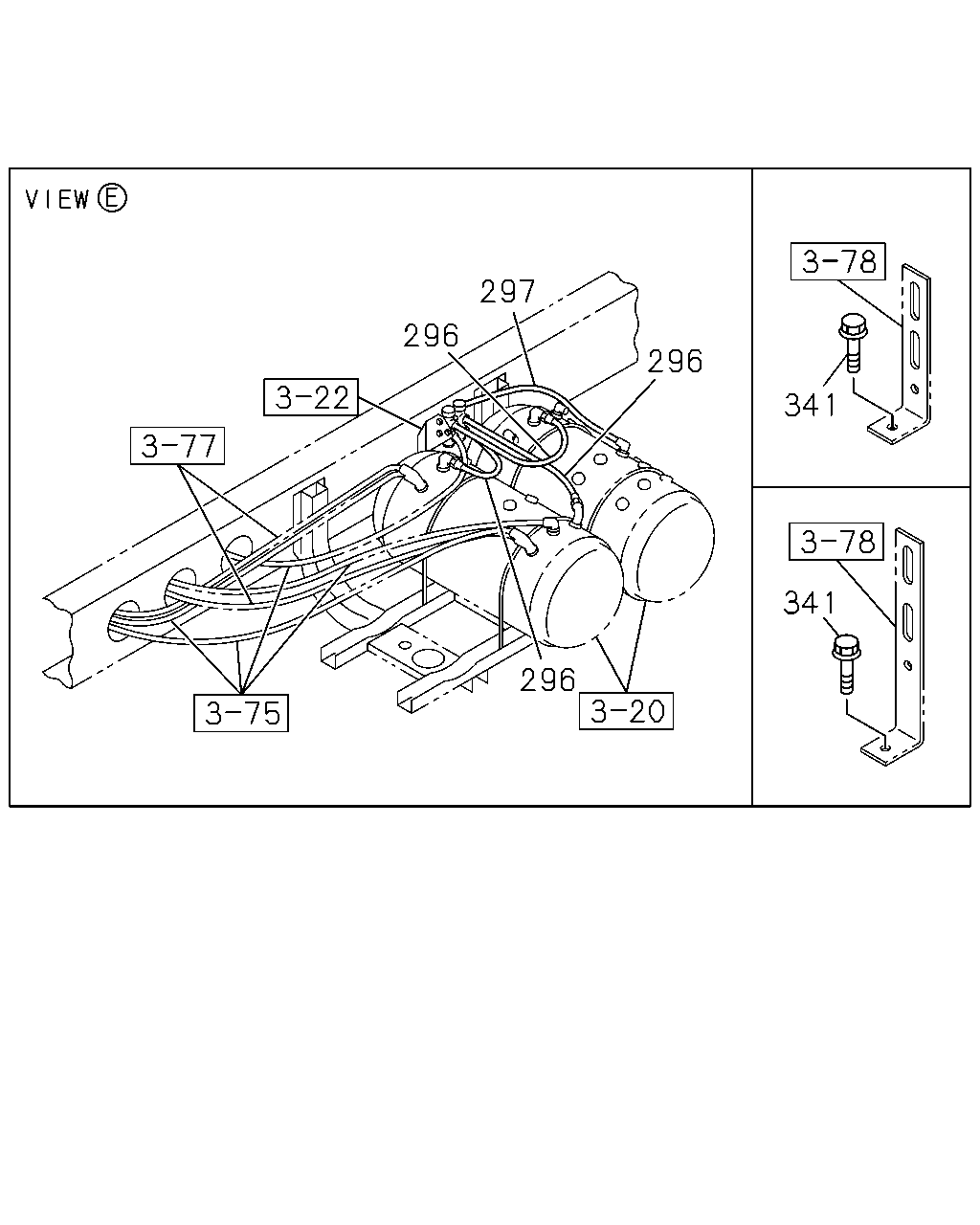

296 297 296 341 341 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
296	TUBE; NYLON L=1200 OD=6	1-09366-256-1	AR	1	0106-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0601-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0106-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
341	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
341	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-

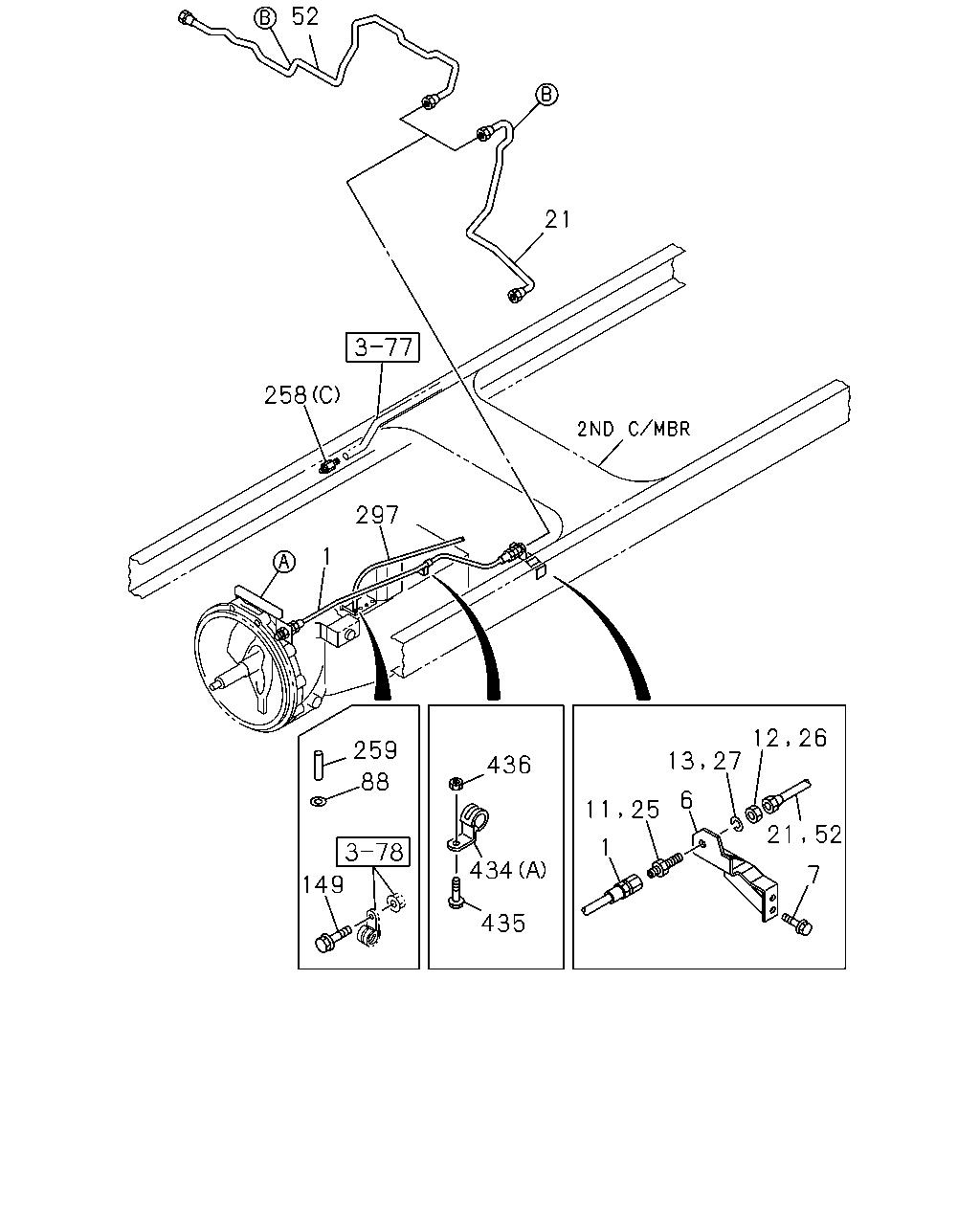

52 21 258 297 1 259 88 436 149 434 435 11 25 1 6 27 13 12 26 52 21 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6WA1 TC-C(55L),6WG1 TC-C(72L)	1-09363-856-0	01	1	0106-
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) L=1000	1-09363-794-0	01	1	0106-0106
1	HOSE; FLEX,AIR TANK 6WF1 TC-C(1B8) L=1050	1-09363-789-0	01	1	0106-
6	BRACKET; FLEX HOSE,AIR TANK	1-47478-719-1	01	1	0106-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0601-
11	UNION; AIR PIPE EXC. AIR DRYER<PS7> M22	9-09233-315-1	01	1	0106-0112
12	NUT; UNION EXC. AIR DRYER<PS7> M22	9-09111-422-0	01	1	0106-0112
13	WASHER; LK,UNION EXC. AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	0106-0112
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7>	1-49122-866-0	01	1	0106-0112
21	PIPE; AIR,UNION TO AIR DRYER	1-49123-375-0	01	1	0201-0302
21	PIPE; AIR,UNION TO AIR DRYER	1-49124-042-0	01	1	0303-
25	VALVE; CHECK AIR DRYER<PS7>	1-48320-042-0	01	1	0106-0112
25	VALVE; CHECK	1-48320-042-1	01	1	0201-0410
25	VALVE; CHECK	1-48320-057-0	01	1	0411-
26	NUT; CHECK VLV AIR DRYER<PS7> M22	9-09111-422-0	01	1	0106-0112
26	NUT; CHECK VLV M22	9-09111-422-0	01	1	0201-0512
26	NUT; CHECK VLV M22	0-91111-522-0	01	1	0601-
27	WASHER; LK,CHECK VLV AIR DRYER<PS7> ID=22.5	9-09150-522-0	01	1	0106-0112
27	WASHER; LK,CHECK VLV ID=22.5	9-09150-522-0	01	1	0201-0603
27	WASHER; LK,CHECK VLV ID=22.5	0-91510-522-0	01	1	0604-
52	PIPE; AIR,UNION TO AIR TANK EXC. AIR DRYER<PS7>	1-49122-974-0	01	1	0106-
88	GASKET; NYLON TUBE ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	01	1	0106-
149	BOLT; TUBE CLIP ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
149	BOLT; TUBE CLIP ZF M/T<X9E> M8X25 FLANGE	0-28650-825-0	01	1	0601-
258	CONNECTOR; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2> (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ISUZU M/T<X9A> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
258	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) ZF M/T<X9E> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM RETARDER<RE2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A> (G) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW	1-09660-644-1	01	1	0106-0302
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8	1-09660-760-1	01	1	0303-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
258	CONNECTOR; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0106-
258	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
258	CONNECTOR; NYLON TUBE ZF M/T<X9E> EXC. PTO ZF TRANS RR(BDM),BRAKE SYSTEM RETARDER<RE2> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> ID=23 OD=27 L=40	1-09337-015-0	02	1	0106-0108
259	SLEEVE; RUBBER,NYLON TUBE ISUZU M/T<X9A> L=175	1-09707-178-0	01	1	0109-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0106-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0106-0212
297	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0106-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-
434	CLIP (B) ID=10 & 10	1-09709-221-0	01	1	0106-
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=300	1-09707-001-1	01	1	0106-0504
434	CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) L=350	1-09707-183-0	01	1	0505-
434	CLIP TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0106-
434	CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	0106-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) D=24 L=21	1-09700-380-0	01	1	0106-
434	CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0108-
434	CLIP 6WF1 TC-C(1B8) (A) D=24 L=21	1-09700-380-0	02	1	0106-
435	BOLT; CLIP SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	0411-0512
435	BOLT; CLIP SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	01	1	0601-
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0106-0107
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0108-0602
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	01	1	0603-
436	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0106-0107
436	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0108-0602
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0108-0602
436	NUT; CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0603-
436	NUT; CLIP 6WA1 TC-C(55L),6WG1 TC-C(72L) ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
