3-45 — LOAD SENSING PROPORTIONING VALVE (#9017) — 135 parça

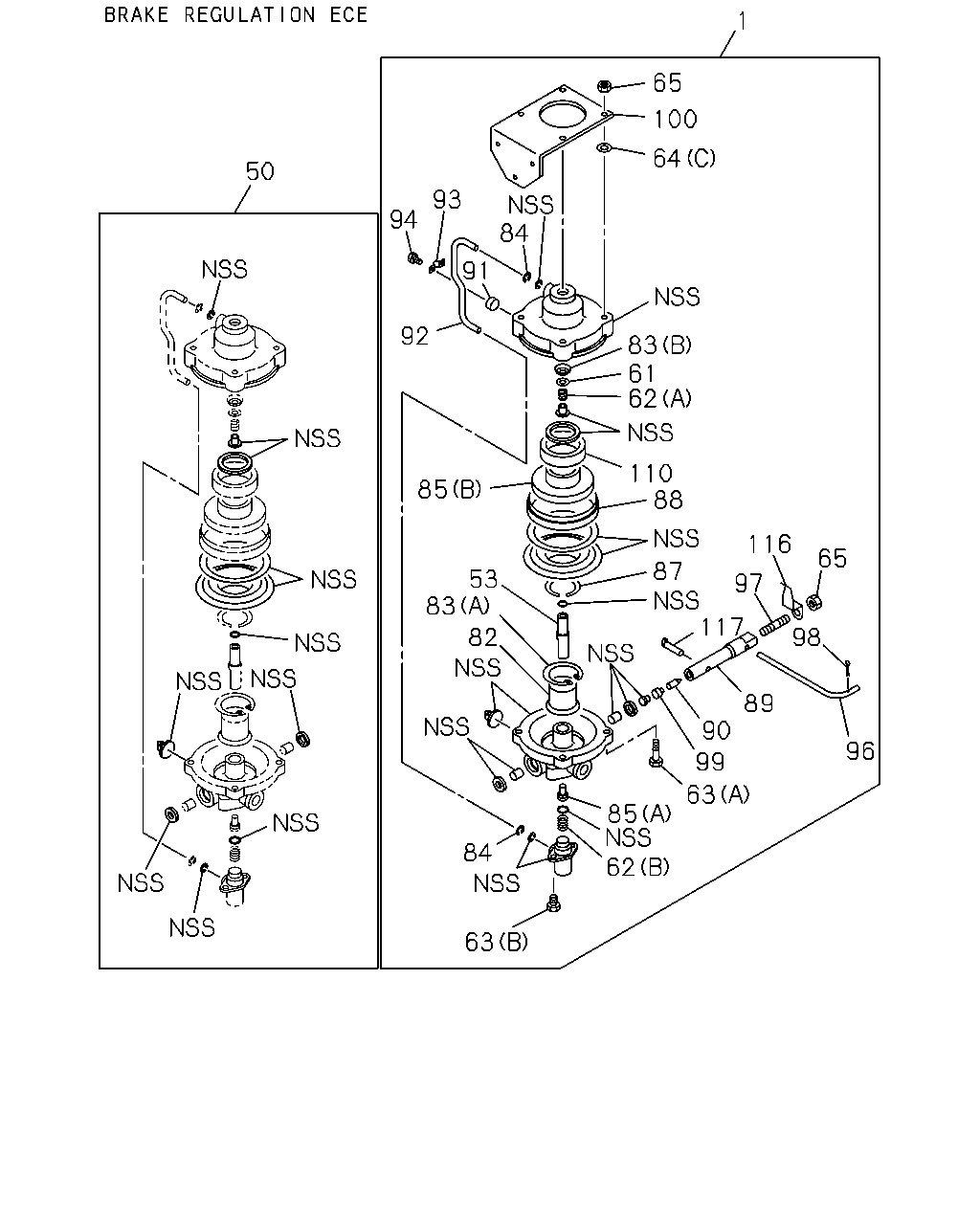

1 65 100 64 84 93 94 91 50 92 83 61 62 85 110 88 116 65 97 87 117 98 96 89 90 99 63 85 62 53 83 82 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	0106-
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0106-
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-142-0	01	1	0106-
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	0106-
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-141-0	01	1	0106-
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	0106-
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-138-0	01	1	0106-
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	0106-
62	SPRING; LSPV (A)	1-47769-025-0	01	1	0106-
62	SPRING; LSPV (B)	1-47769-042-0	01	1	0106-
63	BOLT; LSPV (A)	1-47769-094-0	04	1	0106-
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	0106-
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	0106-
64	WASHER; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47769-079-0	04	1	0106-
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	0106-
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	0106-
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	0106-
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	0106-
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	0106-
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-131-0	01	1	0106-
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	0106-
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	0106-
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-139-0	01	1	0106-
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	0106-
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	0106-
84	RETAINER; GASKET	1-47769-021-0	02	1	0106-
85	PISTON; LSPV (A)	1-47769-043-0	01	1	0106-
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-136-0	01	1	0106-
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	0106-
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	0106-
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	0106-
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	0106-
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	0106-
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	0106-
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	0106-
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	0106-
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	0106-
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	0106-
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	0106-
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	0106-
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	0106-
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	0106-
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	0106-
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-162-0	02	1	0106-
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	0106-
96	ARM; OPERATING	1-47769-110-0	01	1	0106-
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	0106-
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	0106-
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	0106-
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	0106-
99	CAP; SCREW	1-47769-055-0	01	1	0106-
100	BRACKET; LSPV	1-47769-111-0	01	1	0106-
110	BUSHING; LSPV BRAKE REGULATION ECE<TDV>	1-47769-134-0	01	1	0106-
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	0106-
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	0106-

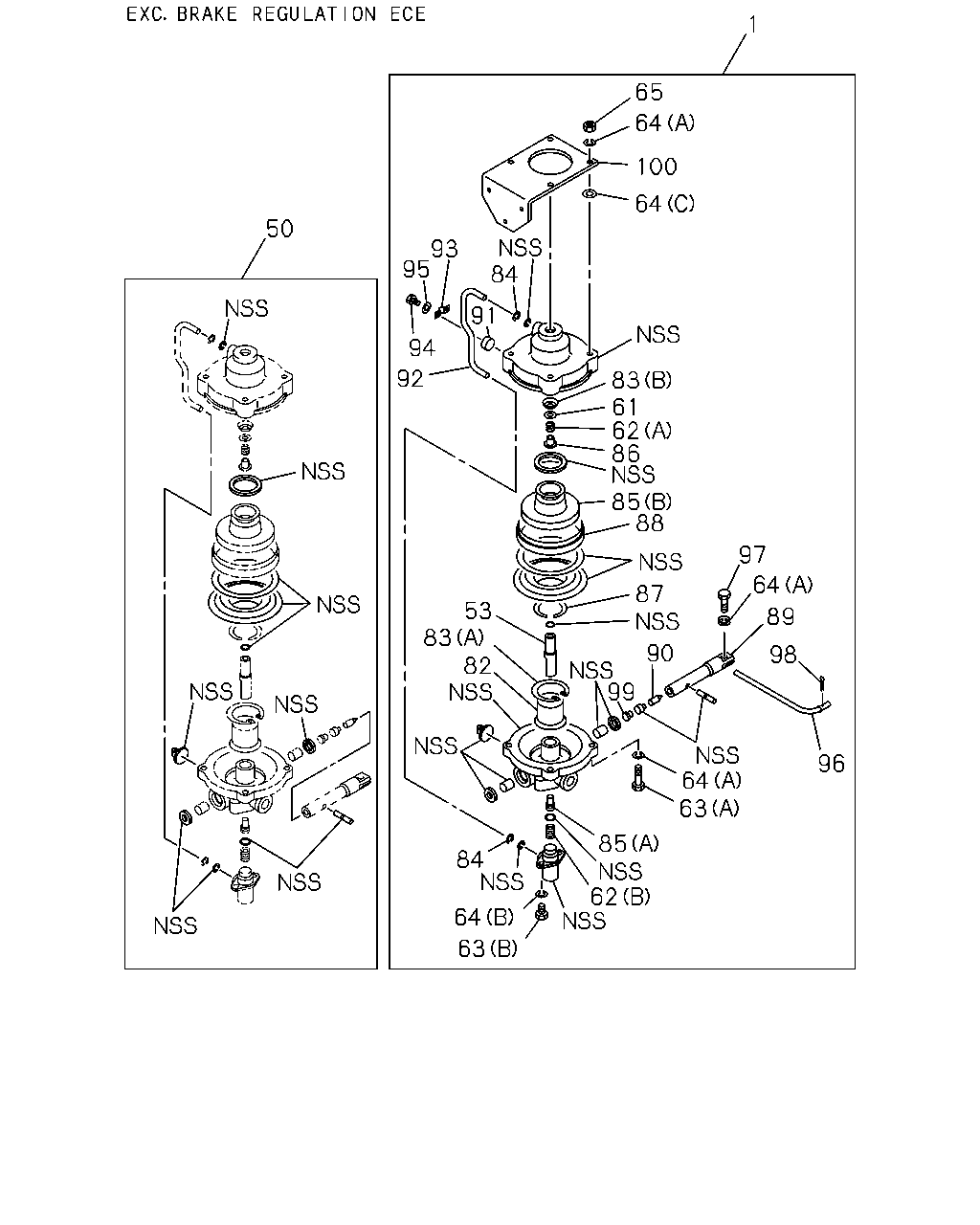

1 65 64 100 64 84 93 95 94 92 83 61 62 86 85 88 97 89 98 96 64 63 87 90 99 53 83 82 85 84 62 64 63 50 64 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	0106-
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0106-
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-142-0	01	1	0106-
50	REPAIR KIT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-87830-263-0	01	1	0106-
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-141-0	01	1	0106-
53	PLUNGER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	0106-
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-138-0	01	1	0106-
61	RETAINER; SPRING EXC. BRAKE REGULATION ECE<TDV>	1-47769-091-0	01	1	0106-
62	SPRING; LSPV (A)	1-47769-025-0	01	1	0106-
62	SPRING; LSPV (B)	1-47769-042-0	01	1	0106-
63	BOLT; LSPV (A)	1-47769-094-0	04	1	0106-
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	0106-
63	BOLT; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-098-0	02	1	0106-
64	WASHER; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47769-079-0	04	1	0106-
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-036-0	09	1	0106-
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-099-0	02	1	0106-
64	WASHER; LSPV EXC. BRAKE REGULATION ECE<TDV> (C)	1-47769-107-0	04	1	0106-
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	0106-
65	NUT; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-095-0	03	1	0106-
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-131-0	01	1	0106-
82	GUIDE; PISTON,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	0106-
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	0106-
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-139-0	01	1	0106-
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (A)	1-47769-089-0	01	1	0106-
83	RING; SNAP,RET EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-092-0	01	1	0106-
84	RETAINER; GASKET	1-47769-021-0	02	1	0106-
85	PISTON; LSPV (A)	1-47769-043-0	01	1	0106-
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-136-0	01	1	0106-
85	PISTON; LSPV EXC. BRAKE REGULATION ECE<TDV> (B)	1-47769-090-0	01	1	0106-
86	VALVE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-024-0	01	1	0106-
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	0106-
87	RETAINER; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-031-0	01	1	0106-
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	0106-
88	GUIDE; DIAPH EXC. BRAKE REGULATION ECE<TDV>	1-47769-093-0	01	1	0106-
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	0106-
89	ROD; CONN,LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-076-0	01	1	0106-
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	0106-
90	SCREW; CAM EXC. BRAKE REGULATION ECE<TDV>	1-47769-097-0	01	1	0106-
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	0106-
91	FILTER; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-100-0	01	1	0106-
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	0106-
92	PIPE; LSPV EXC. BRAKE REGULATION ECE<TDV>	1-47769-101-0	01	1	0106-
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	0106-
93	CLIP; PIPE EXC. BRAKE REGULATION ECE<TDV>	1-47769-102-0	01	1	0106-
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-162-0	02	1	0106-
94	SCREW; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-051-0	02	1	0106-
95	WASHER; CLIP EXC. BRAKE REGULATION ECE<TDV>	1-47769-052-0	02	1	0106-
96	ARM; OPERATING	1-47769-110-0	01	1	0106-
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	0106-
97	BOLT; OPERATING ARM EXC. BRAKE REGULATION ECE<TDV>	1-47769-104-0	01	1	0106-
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	0106-
98	PIN; SPLIT EXC. BRAKE REGULATION ECE<TDV>	1-47769-105-0	01	1	0106-
99	CAP; SCREW	1-47769-055-0	01	1	0106-
100	BRACKET; LSPV	1-47769-111-0	01	1	0106-

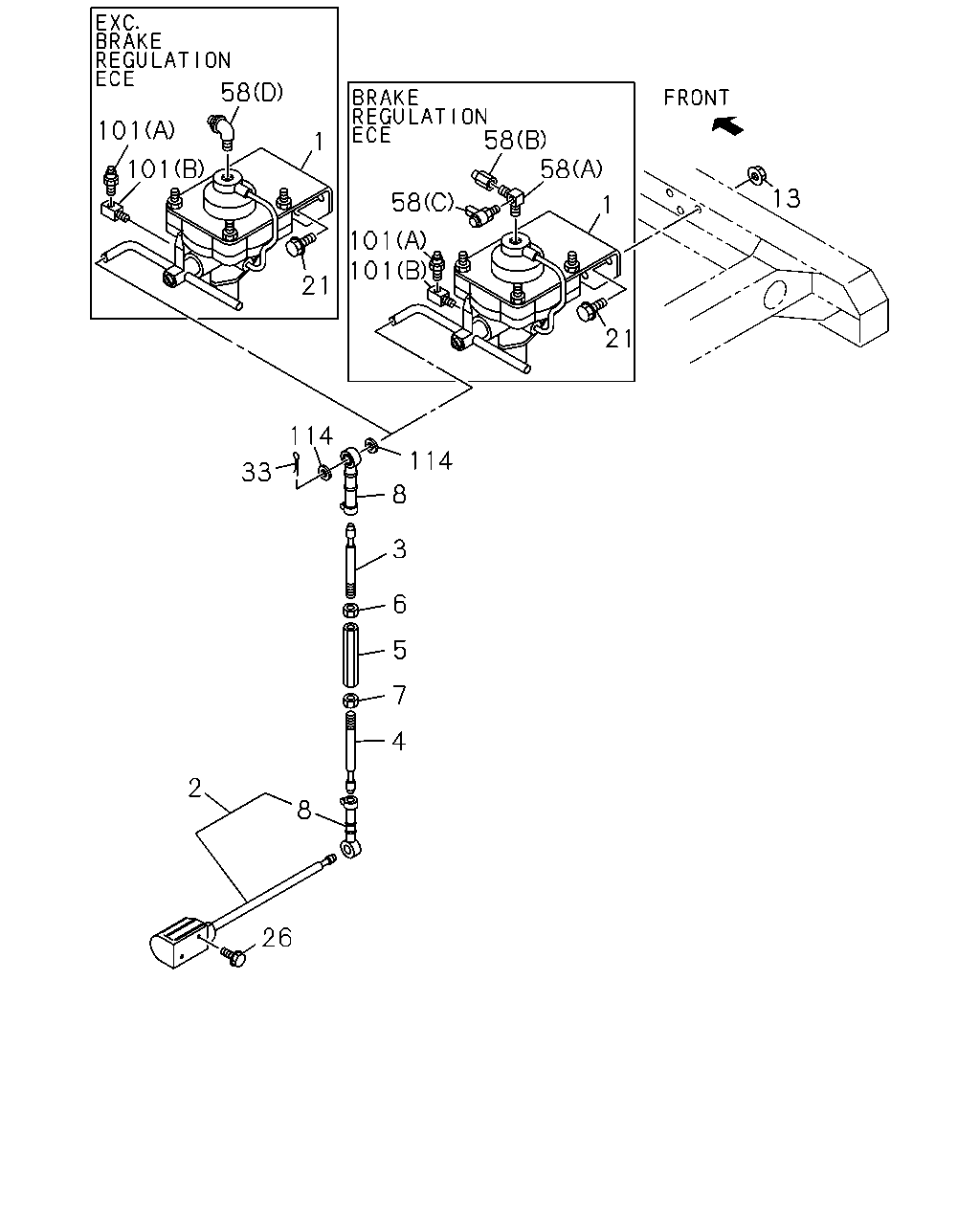

13 21 1 58 58 58 101 101 21 1 58 101 101 114 114 33 8 3 6 5 7 4 8 2 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-059-0	01	1	0106-
1	VALVE ASM; LOAD SENSING PROPORTIONING EXC. BRAKE REGULATION ECE<TDV>	1-47720-053-0	01	1	0106-
2	DAMPER	1-47725-012-0	01	1	0106-
3	ROD; UPR	1-09765-290-0	01	1	0106-
4	ROD; LWR	1-09765-283-0	01	1	0106-
5	JOINT	1-09768-091-0	01	1	0106-
6	NUT; LK,UPR M8	9-09111-408-0	01	1	0106-0512
6	NUT; LK,UPR M8	0-91111-508-0	01	1	0601-
7	NUT; LK,LWR LH THREAD	1-09409-002-0	01	1	0106-
8	ROD END	1-47723-001-0	02	1	0106-
13	NUT; LSPV TO BRKT M8 FLANGE	0-91150-108-0	03	1	0106-0602
13	NUT; LSPV TO BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
21	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	03	1	0106-0512
21	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	0601-
26	BOLT; DAMPER M8X12 FLANGE	0-28080-812-0	02	1	0106-0512
26	BOLT; DAMPER M8X12 FLANGE	0-28050-812-0	02	1	0601-
33	PIN; SPLIT OD=1.8 L=25	9-08112-025-0	01	1	0106-0606
33	PIN; SPLIT OD=1.8 L=25	0-81122-025-0	01	1	0607-
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0106-
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0106-
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47459-013-0	01	1	0106-
58	CONNECTOR; LSPV EXC. BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0106-
101	CONNECTOR; LSPV (A)	1-09660-778-1	01	1	0106-
101	CONNECTOR; LSPV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0106-
114	WASHER; PL,JOINT RUBBER ID=8.4	9-09160-508-0	02	1	0106-0605
114	WASHER; PL,JOINT RUBBER ID=8.4 OD=16	0-91610-508-0	02	1	0606-
