3-41 — REAR BRAKE POWER CHAMBER (#9016) — 102 parça

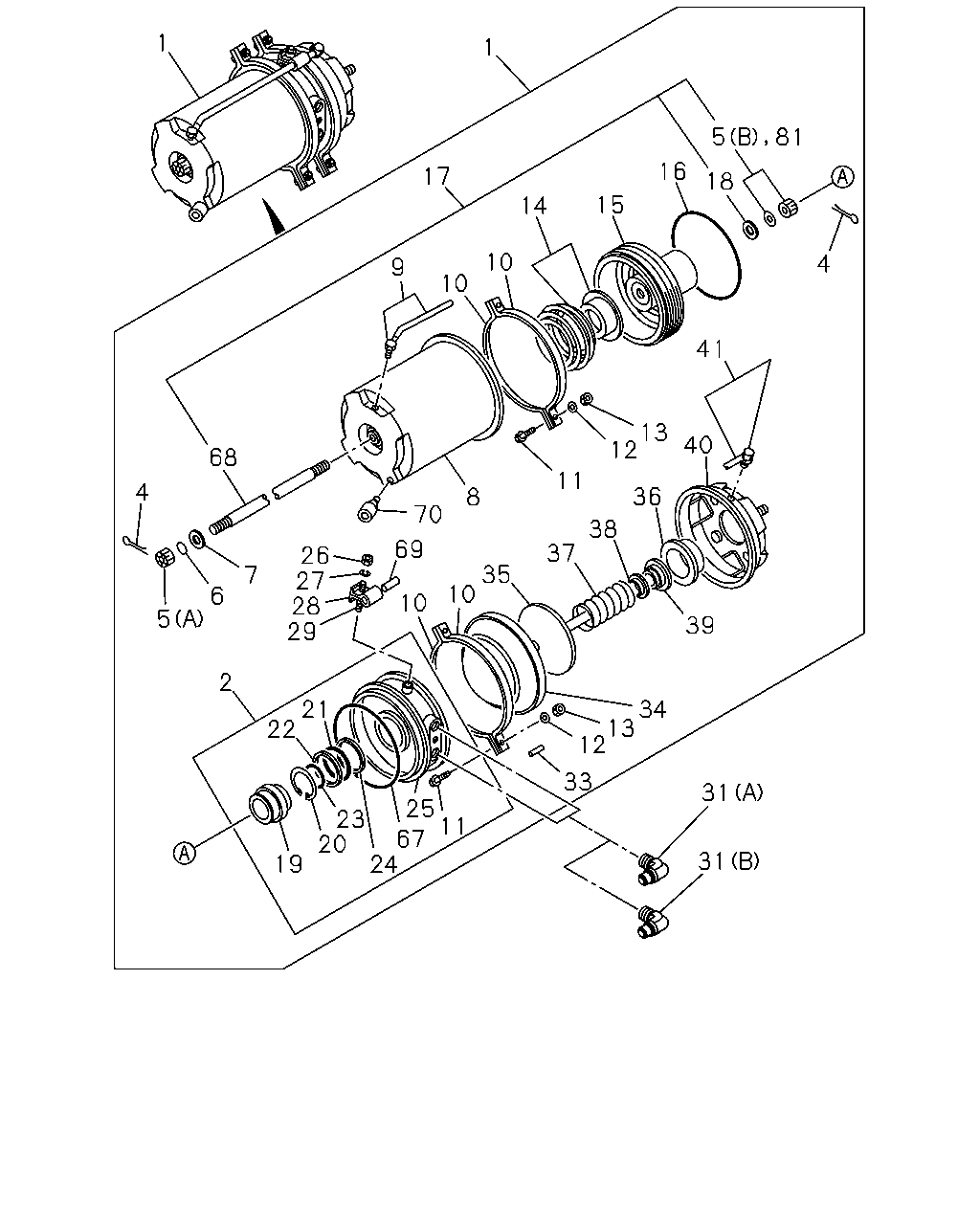

çizim 19890
1 1 17 81 5 18 16 4 15 14 10 10 9 41 40 13 12 11 36 38 37 8 68 4 7 6 5 70 69 35 10 10 26 27 28 29 2 39 34 13 12 33 31 31 11 25 67 23 24 20 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-181-2 01 1 0106-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM RETARDER<RE2> 		1-48250-664-1 01 1 0106-
1 CHAMBER ASM; SPRING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48250-180-2 01 1 0106-
2 CHAMBER; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48252-058-0 01 1 0106-
2 CHAMBER; EMERGENCY 1-48252-019-0 01 1 0106-
2 CHAMBER; EMERGENCY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48252-018-0 01 1 0106-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 02 1 0106-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 02 1 0106-
5 NUT; SHELL
(A) 		1-48259-054-0 01 1 0106-
5 NUT; SHELL
(A) 		1-48259-054-0 01 1 0106-
5 NUT; SHELL
(B) 		1-48259-074-0 01 1 0106-
5 NUT; SHELL
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-48259-074-0 01 1 0106-
6 GASKET; SHELL
BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 01 1 0106-
7 GASKET
BRAKE SYSTEM RETARDER<RE2> 		9-09920-268-0 01 1 0106-
7 GASKET 1-48259-055-0 01 1 0106-
7 GASKET
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-055-0 01 1 0106-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-1 01 1 0106-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-1 01 1 0106-
9 PIPE ASM; SHELL 1-48259-076-0 01 1 0106-
9 PIPE ASM; SHELL 1-48259-076-0 01 1 0106-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 0106-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 04 1 0106-
11 BOLT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		1-48259-092-0 04 1 0106-
11 BOLT; CLAMP RING 1-48259-035-0 04 1 0106-
11 BOLT; CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-035-0 04 1 0106-
12 WASHER; LK,CLAMP RING
BRAKE SYSTEM RETARDER<RE2> ID=10.2 		9-09150-510-0 04 1 0106-
12 WASHER; LK,CLAMP RING 1-48259-046-0 04 1 0106-
12 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-046-0 04 1 0106-
13 NUT; CLAMP RING
BRAKE SYSTEM RETARDER<RE2> 		9-83315-080-0 04 1 0106-
13 NUT; CLAMP RING
M10 		9-09110-510-0 04 1 0106-
13 NUT; CLAMP RING
EXC. BRAKE SYSTEM RETARDER<RE2> M10 		9-09110-510-0 04 1 0106-
14 SPRING & SEAT SET 1-48259-037-0 01 1 0106-
14 SPRING & SEAT SET 1-48259-037-0 01 1 0106-
15 PISTON 1-48262-005-0 01 1 0106-
15 PISTON 1-48262-005-0 01 1 0106-
16 GASKET 1-48259-048-0 01 1 0106-
16 GASKET 1-48259-048-0 01 1 0106-
17 BOLT ASM; EMERGENCY 1-48259-073-0 01 1 0106-
17 BOLT ASM; EMERGENCY 1-48259-073-0 01 1 0106-
18 WASHER; PISTON COVER,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-098-0 01 1 0106-
19 COVER; PISTON 1-48269-011-0 01 1 0106-
19 COVER; PISTON 1-48269-011-0 01 1 0106-
20 RING; RET 1-48259-060-0 01 1 0106-
20 RING; RET 1-48259-060-0 01 1 0106-
21 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 01 1 0106-
21 GASKET; SPR CHAMBER 1-48259-049-0 01 1 0106-
21 GASKET; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 01 1 0106-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 01 1 0106-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 01 1 0106-
23 GASKET; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-049-0 01 1 0106-
23 GASKET; SPR CHAMBER 1-48259-047-0 01 1 0106-
23 GASKET; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-047-0 01 1 0106-
24 BEARING; SPR CHAMBER 1-48259-020-0 01 1 0106-
24 BEARING; SPR CHAMBER 1-48259-020-0 01 1 0106-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-086-0 01 1 0106-
25 PLATE; PRESSURE,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-086-0 01 1 0106-
25 PLATE; PRESSURE,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-085-0 01 1 0106-
26 NUT; PRESSURE PLATE 1-48259-058-0 02 1 0106-
26 NUT; PRESSURE PLATE 1-48259-058-0 02 1 0106-
27 WASHER; PRESSURE PLATE
BRAKE SYSTEM RETARDER<RE2> ID=8.2 		9-09150-508-0 01 1 0106-
27 WASHER; PRESSURE PLATE 1-48259-057-0 01 1 0106-
27 WASHER; PRESSURE PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-057-0 01 1 0106-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 01 1 0106-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 01 1 0106-
29 STUD; PRESSURE PLATE 1-48259-050-0 01 1 0106-
29 STUD; PRESSURE PLATE 1-48259-050-0 01 1 0106-
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0106-
31 CONNECTOR
BRAKE REGULATION ECE<TDV> BRAKE SYSTEM RETARDER<RE2> (B) 		1-47815-034-0 01 1 0106-
31 CONNECTOR
BRAKE REGULATION ECE<TDV> EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0106-
31 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> EXC. BRAKE REGULATION ECE<TDV> (B) 		1-47815-035-0 01 1 0106-
31 CONNECTOR
EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0106-
33 RETAINER; DIAPH 1-48259-044-0 02 1 0106-
33 RETAINER; DIAPH 1-48259-044-0 02 1 0106-
34 DIAPHRAGM
BRAKE SYSTEM RETARDER<RE2> 		1-48252-056-0 01 1 0106-
34 DIAPHRAGM 1-48252-010-0 01 1 0106-
34 DIAPHRAGM
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48252-010-0 01 1 0106-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 01 1 0106-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 01 1 0106-
36 RETAINER; SPR CHAMBER 1-48259-043-0 01 1 0106-
36 RETAINER; SPR CHAMBER 1-48259-043-0 01 1 0106-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 01 1 0106-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 01 1 0106-
38 COVER; ROD & PLATE 1-48259-066-0 01 1 0106-
38 COVER; ROD & PLATE 1-48259-066-0 01 1 0106-
39 COVER; ROD & PLATE 1-48259-065-0 01 1 0106-
39 COVER; ROD & PLATE 1-48259-065-0 01 1 0106-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 0106-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2> 		1-48250-067-1 01 1 0106-
40 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-48259-067-1 01 1 0106-
41 PIPE ASM; LWR COVER 1-48259-075-0 01 1 0106-
41 PIPE ASM; LWR COVER 1-48259-075-0 01 1 0106-
67 GASKET; SPR CHAMBER 1-48259-053-0 01 1 0106-
67 GASKET; SPR CHAMBER 1-48259-053-0 01 1 0106-
68 BOLT; PISTON COVER
BRAKE SYSTEM RETARDER<RE2> 		1-48259-026-0 01 1 0106-
69 HOSE; PRESSURE PLATE 1-48259-051-0 01 1 0106-
69 HOSE; PRESSURE PLATE 1-48259-051-0 01 1 0106-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 0106-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 01 1 0106-
81 NUT ASM; EMERGENCY
BRAKE SYSTEM RETARDER<RE2> 		1-48259-074-0 01 1 0106-
çizim 21232
32 32 32
BalonParca AdiParca NoAdetTipApplied Date
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) EMERGENCY DIN8 & R3/8 ELBOW 		1-09660-652-1 02 1 0106-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) SERVICE DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0106-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (C) SERVICE DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0106-
