◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#9015) — 97 parça

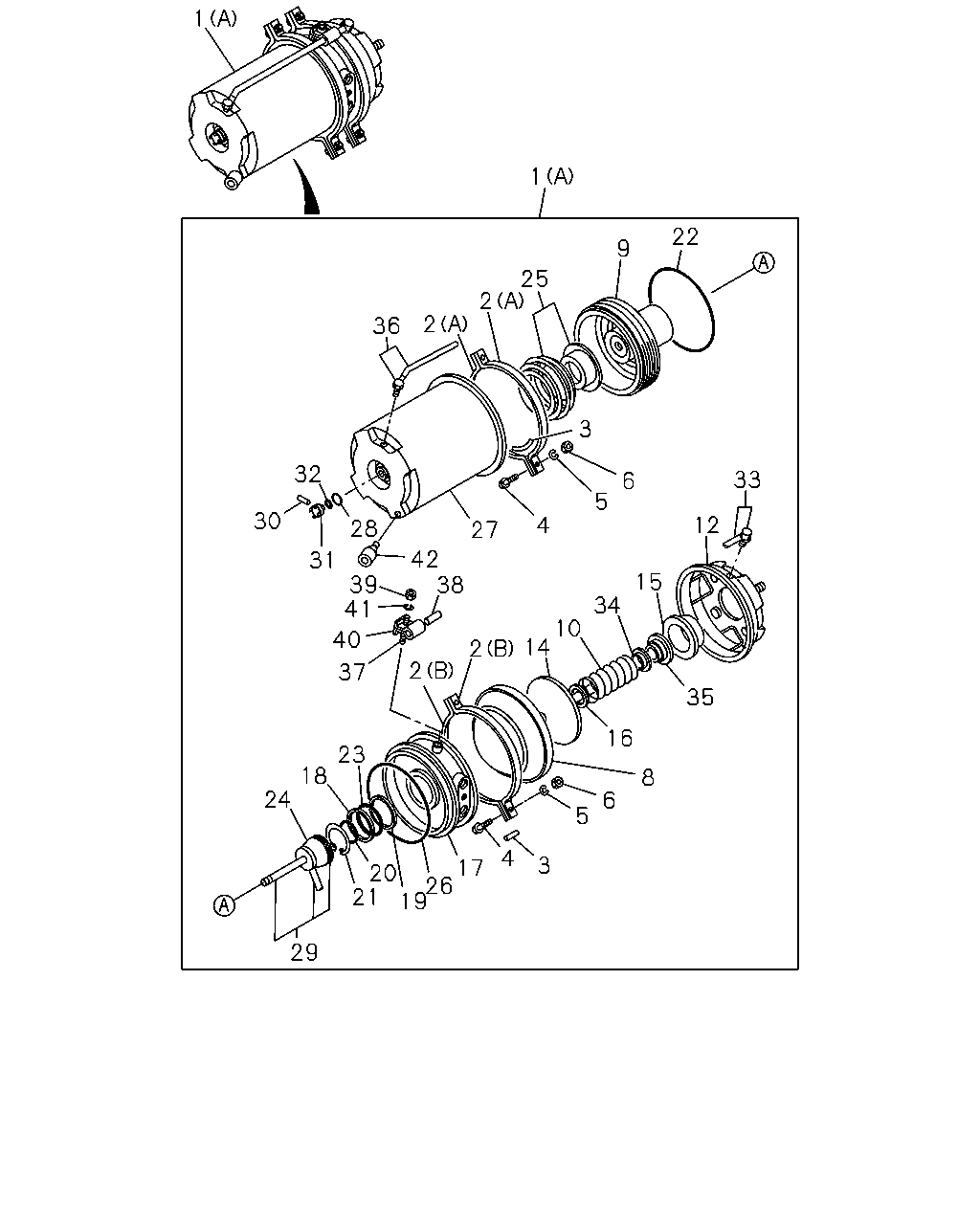

çizim 19891
1 1 22 9 25 2 2 36 3 6 5 4 27 33 12 15 34 10 14 2 38 42 28 32 30 31 39 41 40 37 2 35 16 8 6 5 3 4 17 26 19 20 21 29 23 18 24
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-523-1 01 1 0106-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-522-1 01 1 0106-
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48250-338-0 02 1 0106-0203
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48250-062-2 02 1 0204-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 04 1 0106-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 04 1 0106-
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C) 		1-48259-001-0 02 1 0106-
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 04 1 0106-
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 04 1 0106-0203
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 02 1 0204-
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 08 1 0106-0402
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-035-0 08 1 0403-
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 0106-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 0106-0402
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10 		1-09985-345-0 08 1 0403-
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0106-
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 08 1 0106-0402
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 0403-
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 0106-
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 02 1 0106-
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-006-0 02 1 0106-0203
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-054-0 02 1 0204-
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 02 1 0106-
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-001-0 02 1 0106-
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 02 1 0106-
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-001-0 02 1 0106-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-243-0 01 1 0106-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-247-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-242-0 01 1 0106-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-246-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-019-0 02 1 0106-
14 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-045-0 02 1 0106-
15 RETAINER; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-043-0 02 1 0106-
16 RETAINER; SPRING,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-033-0 02 1 0106-
17 PLATE; PRESS,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-088-0 01 1 0106-
17 PLATE; PRESS,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-087-0 01 1 0106-
18 RING; BACKUP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-019-0 02 1 0106-
19 BEARING; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-020-0 02 1 0106-
20 GASKET; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-047-0 02 1 0106-
21 RING; SNAP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-060-0 02 1 0106-
22 GASKET; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-048-0 02 1 0106-
23 GASKET; COVER,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-049-0 02 1 0106-
24 COVER; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48269-011-0 02 1 0106-
25 SPRING & SEAT SET
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-037-1 02 1 0106-
26 GASKET; PRESS PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-053-0 02 1 0106-
27 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-232-0 01 1 0106-
27 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-233-0 01 1 0106-
28 GASKET; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-09920-268-0 02 1 0106-
29 BOLT ASM; EMARGENCY
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-073-0 02 1 0106-
30 PIN; STRAIGHT,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-056-0 04 1 0106-
31 NUT; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-054-0 02 1 0106-
32 GASKET; BOLT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-055-0 02 1 0106-
33 PIPE ASM; LWR COVER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-080-0 02 1 0106-
34 COVER; RETAINER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-065-0 02 1 0106-
35 COVER; ROD & PLATE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-066-0 02 1 0106-
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89922-126-1 02 1 0106-0402
36 PIPE ASM; SHELL
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-076-0 02 1 0403-
37 STUD; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-050-0 02 1 0106-
38 HOSE; AIR
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-051-0 02 1 0106-
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94311-428-0 04 1 0106-0402
39 NUT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) M8 		9-09111-508-0 04 1 0403-
40 BRACKET; AIR HOSE
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-244-0 02 1 0106-
41 WASHER; LK,BRKT
BRAKE SYSTEM SPRING BRAKE(BCR) ID=8.2 		9-09150-508-0 02 1 0106-
42 COVER; EXH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-89966-127-3 02 1 0106-

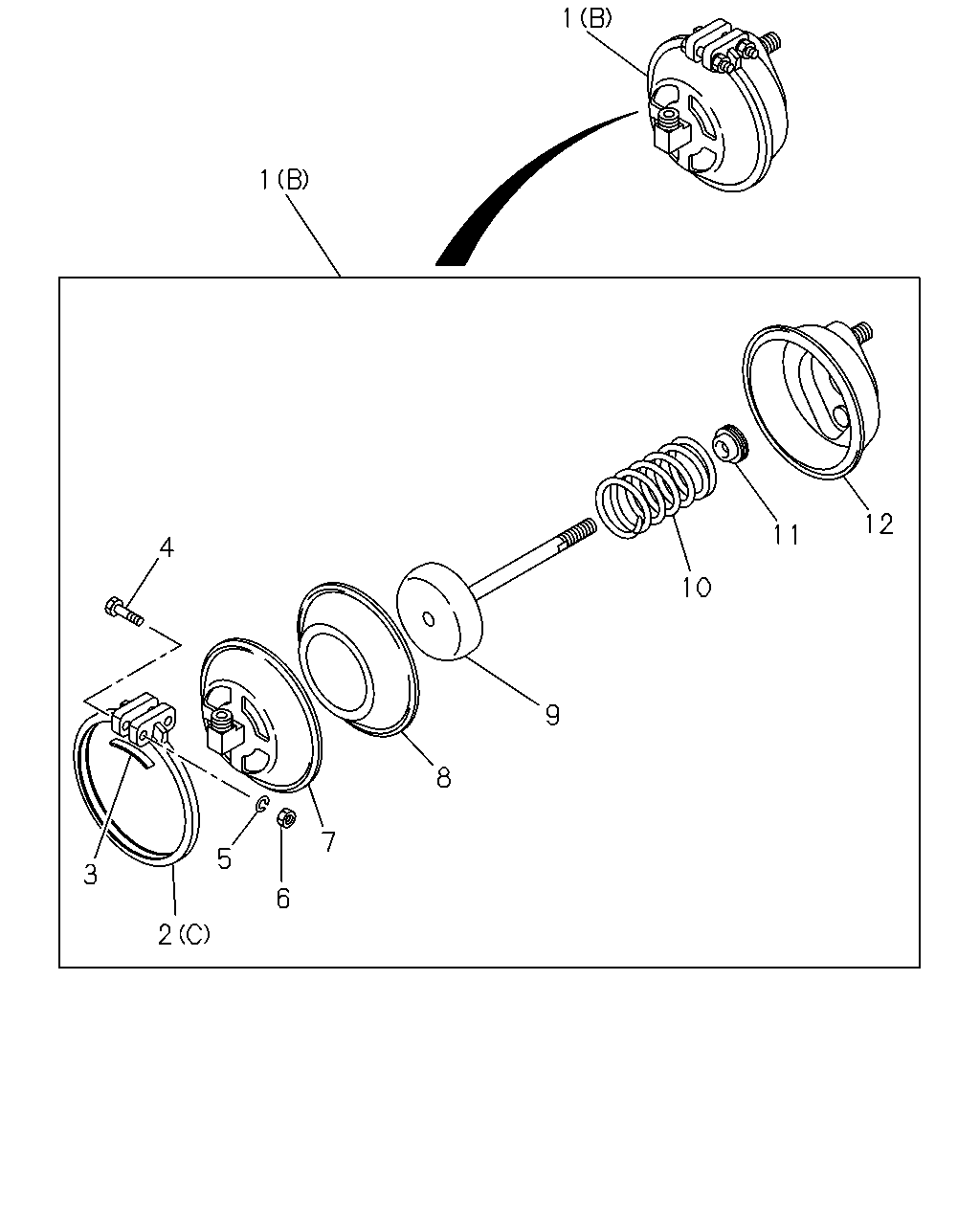

çizim 75055
1 1 4 3 2 5 6 7 8 9 10 11 12
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-523-1 01 1 0106-
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48250-522-1 01 1 0106-
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48250-338-0 02 1 0106-0203
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48250-062-2 02 1 0204-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-48259-016-0 04 1 0106-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) (B) 		1-48259-031-0 04 1 0106-
2 RING; CLAMP,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C) 		1-48259-001-0 02 1 0106-
3 RETAINER; DIAPH
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48250-044-0 04 1 0106-
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 04 1 0106-0203
3 RETAINER; DIAPH
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		9-48259-016-0 02 1 0204-
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-092-0 08 1 0106-0402
4 BOLT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-035-0 08 1 0403-
4 BOLT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-002-0 04 1 0106-
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 0106-0402
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10 		1-09985-345-0 08 1 0403-
5 WASHER; LK,CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 04 1 0106-
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) 		9-83315-080-0 08 1 0106-0402
6 NUT; CLAMP RING
BRAKE SYSTEM SPRING BRAKE(BCR) ID=10.2 		9-09150-510-0 08 1 0403-
6 NUT; CLAMP RING
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M10 		9-09110-010-0 04 1 0106-
7 COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-039-0 02 1 0106-
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48258-011-0 02 1 0106-
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-006-0 02 1 0106-0203
8 DIAPHRAGM; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-054-0 02 1 0204-
9 PISTON; SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48262-005-0 02 1 0106-
9 PISTON; SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48253-001-0 02 1 0106-
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-003-0 02 1 0106-
10 SPRING; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48255-001-0 02 1 0106-
11 SEAL; PISTON,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48252-025-0 02 1 0106-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-243-0 01 1 0106-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-247-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-242-0 01 1 0106-0402
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48259-246-0 01 1 0403-
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		1-48251-019-0 02 1 0106-
