◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#9012) — 100 parça

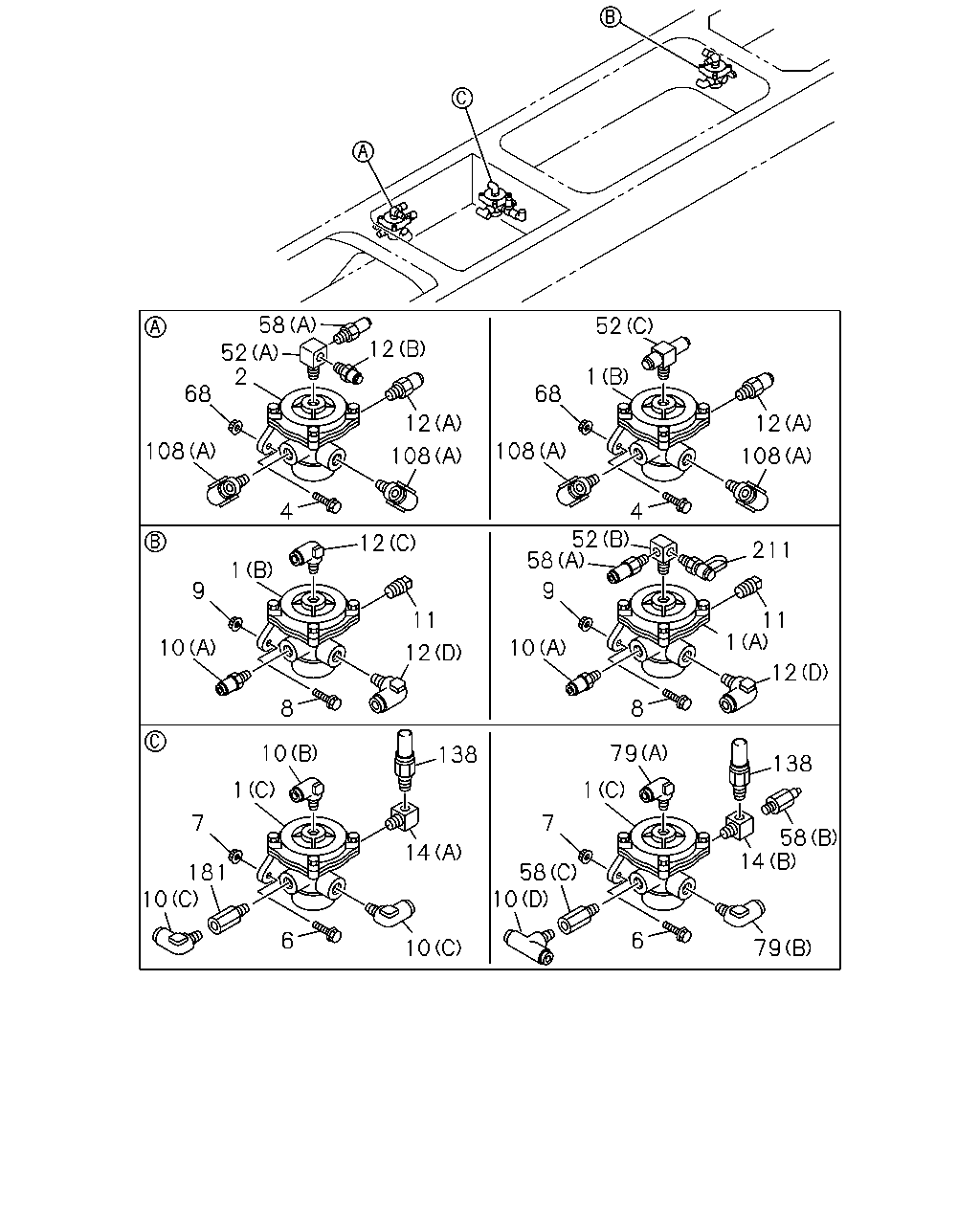

çizim 20748
58 52 2 68 12 12 108 108 4 52 1 68 108 12 108 4 211 11 1 12 52 58 9 10 8 12 11 12 1 9 10 8 138 14 10 10 1 7 181 6 10 79 138 58 14 79 6 10 58 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
BRAKE REGULATION ECE<TDV> (A) 		1-48210-500-0 01 1 0106-
1 VALVE; RELAY RWD RR
EXC. BRAKE REGULATION ECE<TDV> (B) 		1-48210-278-0 01 1 0106-
1 VALVE; RELAY RWD RR
PARKING BRAKE VALVE LEVER TYPE<W48> (C) 		1-48240-052-0 01 1 0106-
2 VALVE; RELAY
EXC. BRAKE REGULATION ECE<TDV> 		1-48210-278-0 01 1 0106-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28681-035-0 02 1 0106-0512
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
6 BOLT; VLV
PARKING BRAKE VALVE LEVER TYPE<W48> M10X35 FLANGE 		0-28681-035-0 02 1 0106-0512
6 BOLT; VLV
PARKING BRAKE VALVE LEVER TYPE<W48> M10X35 FLANGE 		0-28651-035-0 02 1 0601-
7 NUT; RELAY VLV
PARKING BRAKE VALVE LEVER TYPE<W48> M10 FLANGE 		0-91150-210-0 02 1 0106-0602
7 NUT; RELAY VLV
PARKING BRAKE VALVE LEVER TYPE<W48> M10 FLANGE 		0-91180-210-0 02 1 0603-
8 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 02 1 0106-0512
8 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0601-
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0106-0602
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603-
10 CONNECTOR
(A) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0106-
10 CONNECTOR
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12X2 & R3/8 3WAY 		1-09661-005-0 01 1 0106-
10 CONNECTOR
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
10 CONNECTOR
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0106-
11 PLUG
PT1/2 		9-09204-521-0 01 1 0106-
12 CONNECTOR; RELAY VLV
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0106-
12 CONNECTOR; RELAY VLV
EXC. BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
12 CONNECTOR; RELAY VLV
EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0106-
12 CONNECTOR; RELAY VLV
EXC. TRAILER BRAKE HAND CONTROL<NLG>,BRAKE REGULATION ECE<TDV> (B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0106-
14 CONNECTOR; RELAY VLV
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0106-
14 CONNECTOR; RELAY VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0106-
52 CONNECTOR; RELAY VLV
BRAKE REGULATION ECE<TDV> (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0106-
52 CONNECTOR; RELAY VLV
TRAILER BRAKE HAND CONTROL<NLG> EXC. BRAKE REGULATION ECE<TDV> (C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0106-
52 CONNECTOR; RELAY VLV
EXC. TRAILER BRAKE HAND CONTROL<NLG>,BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 0106-
58 ADAPTER
(D) 		1-09660-778-1 01 1 0106-
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
58 ADAPTER
EXC. TRAILER BRAKE HAND CONTROL<NLG>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
58 ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
58 ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (C) PT3/8 		1-48319-058-0 01 1 0106-
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0106-0602
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
79 CONNECTOR; RELAY VLV
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0106-
79 CONNECTOR; RELAY VLV
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
108 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0106-
138 SWITCH; RELAY VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-1 01 1 0106-0312
138 SWITCH; RELAY VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-068-0 01 1 0401-
181 ADAPTER; PRESSURE SW
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT3/8 		1-48319-058-0 02 1 0106-
211 CONNECTOR; TEST
BRAKE REGULATION ECE<TDV> 		1-47459-013-0 01 1 0106-
211 CONNECTOR; TEST 1-47459-013-0 01 1 0106-

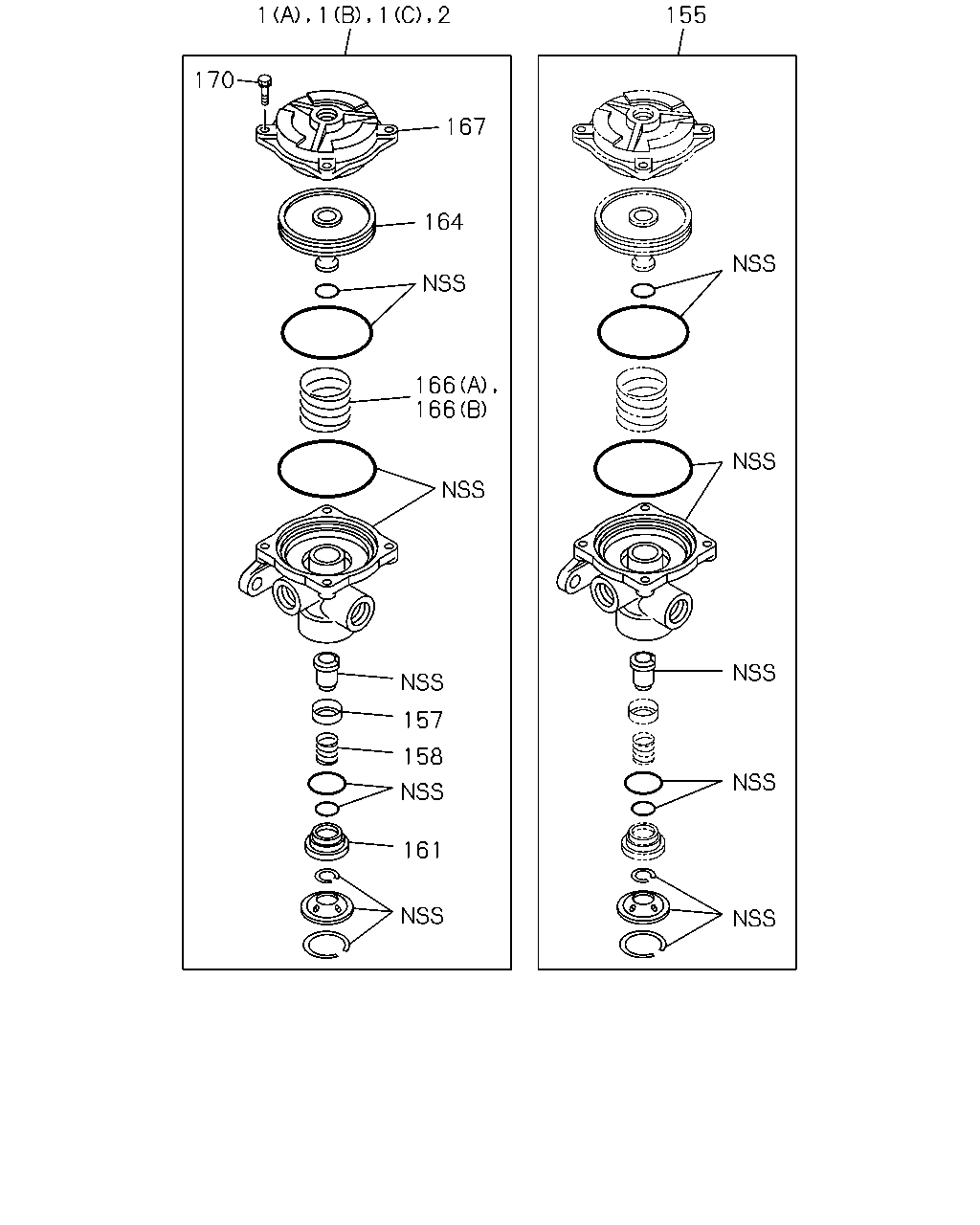

çizim 73119
155 1 1 1 2 170 167 164 166 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR
BRAKE REGULATION ECE<TDV> (A) 		1-48210-500-0 01 1 0106-
1 VALVE; RELAY RWD RR
EXC. BRAKE REGULATION ECE<TDV> (B) 		1-48210-278-0 01 1 0106-
1 VALVE; RELAY RWD RR
PARKING BRAKE VALVE LEVER TYPE<W48> (C) 		1-48240-052-0 01 1 0106-
2 VALVE; RELAY
EXC. BRAKE REGULATION ECE<TDV> 		1-48210-278-0 01 1 0106-
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0106-
155 REPAIR KIT; RELAY VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-85576-033-0 01 1 0106-
155 REPAIR KIT; RELAY VALVE
EXC. BRAKE REGULATION ECE<TDV> 		1-85576-033-0 01 1 0106-
157 RETAINER; VALVE 1-48213-002-0 01 1 0106-
157 RETAINER; VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48213-002-0 01 1 0106-
157 RETAINER; VALVE
EXC. BRAKE REGULATION ECE<TDV> 		1-48213-002-0 01 1 0106-
158 SPRING; VALVE 1-47819-089-0 01 1 0106-
158 SPRING; VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-47819-089-0 01 1 0106-
158 SPRING; VALVE
EXC. BRAKE REGULATION ECE<TDV> 		1-47819-089-0 01 1 0106-
161 GUIDE; VALVE 1-48129-014-0 01 1 0106-
161 GUIDE; VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48129-014-0 01 1 0106-
161 GUIDE; VALVE
EXC. BRAKE REGULATION ECE<TDV> 		1-48129-014-0 01 1 0106-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0106-
164 PISTON; RELAY VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48219-071-0 01 1 0106-
164 PISTON; RELAY VALVE
EXC. BRAKE REGULATION ECE<TDV> 		1-48219-071-0 01 1 0106-
166 SPRING; PISTON
BRAKE REGULATION ECE<TDV> (A) 		1-47819-165-0 01 1 0106-
166 SPRING; PISTON
EXC. BRAKE REGULATION ECE<TDV> (B) 		1-47819-090-0 01 1 0106-
166 SPRING; PISTON
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-47819-090-0 01 1 0106-
166 SPRING; PISTON
EXC. BRAKE REGULATION ECE<TDV> (B) 		1-47819-090-0 01 1 0106-
167 COVER; VALVE 1-48219-070-0 01 1 0106-
167 COVER; VALVE
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48219-070-0 01 1 0106-
167 COVER; VALVE
EXC. BRAKE REGULATION ECE<TDV> 		1-48219-070-0 01 1 0106-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0106-
170 SCREW; COVER TO BODY
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48219-039-0 04 1 0106-
170 SCREW; COVER TO BODY
EXC. BRAKE REGULATION ECE<TDV> 		1-48219-039-0 04 1 0106-

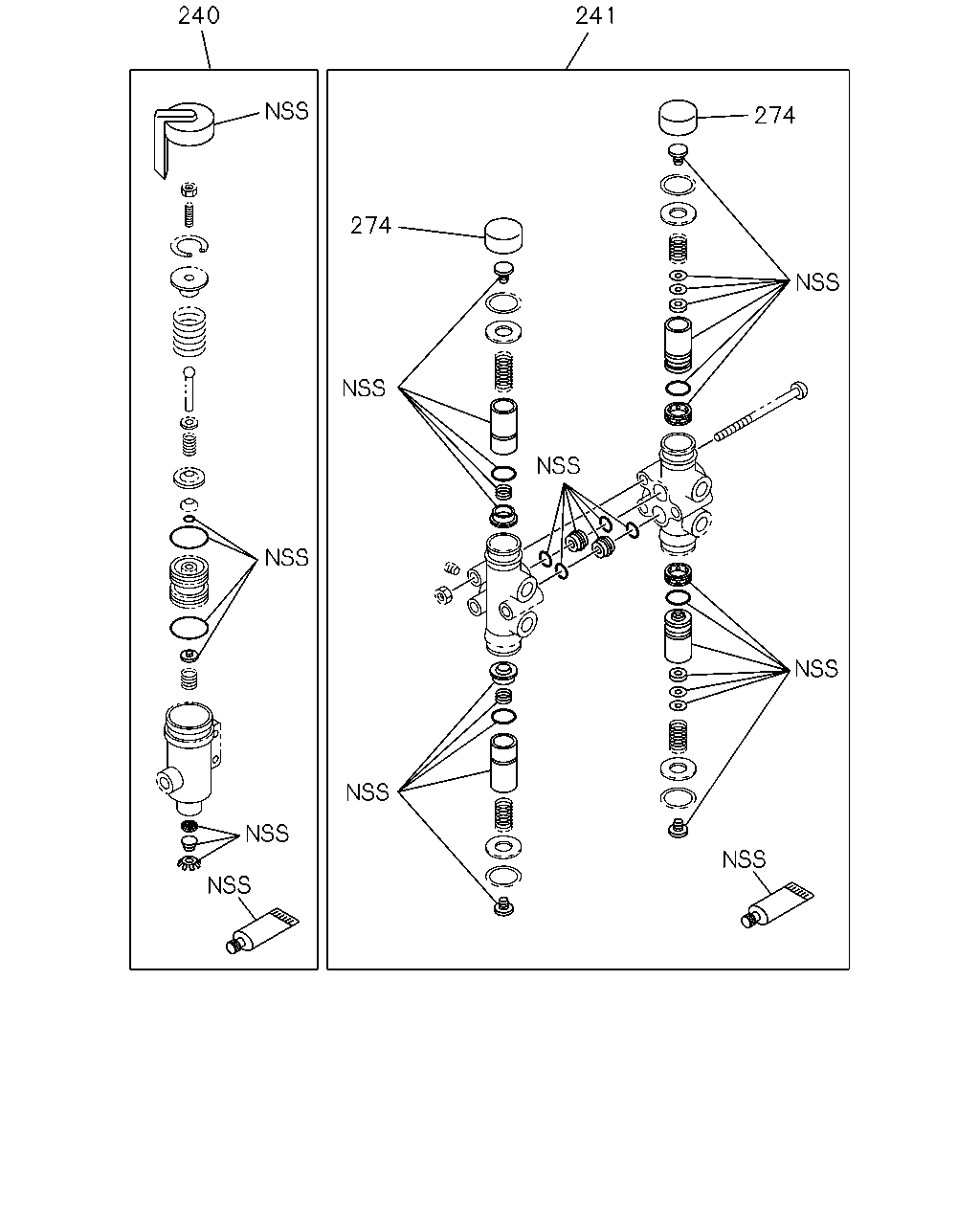

çizim 74707
240 241 274 274
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-303-0 01 1 0106-
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 0106-
274 COVER; DUST 1-48119-450-0 02 1 0106-

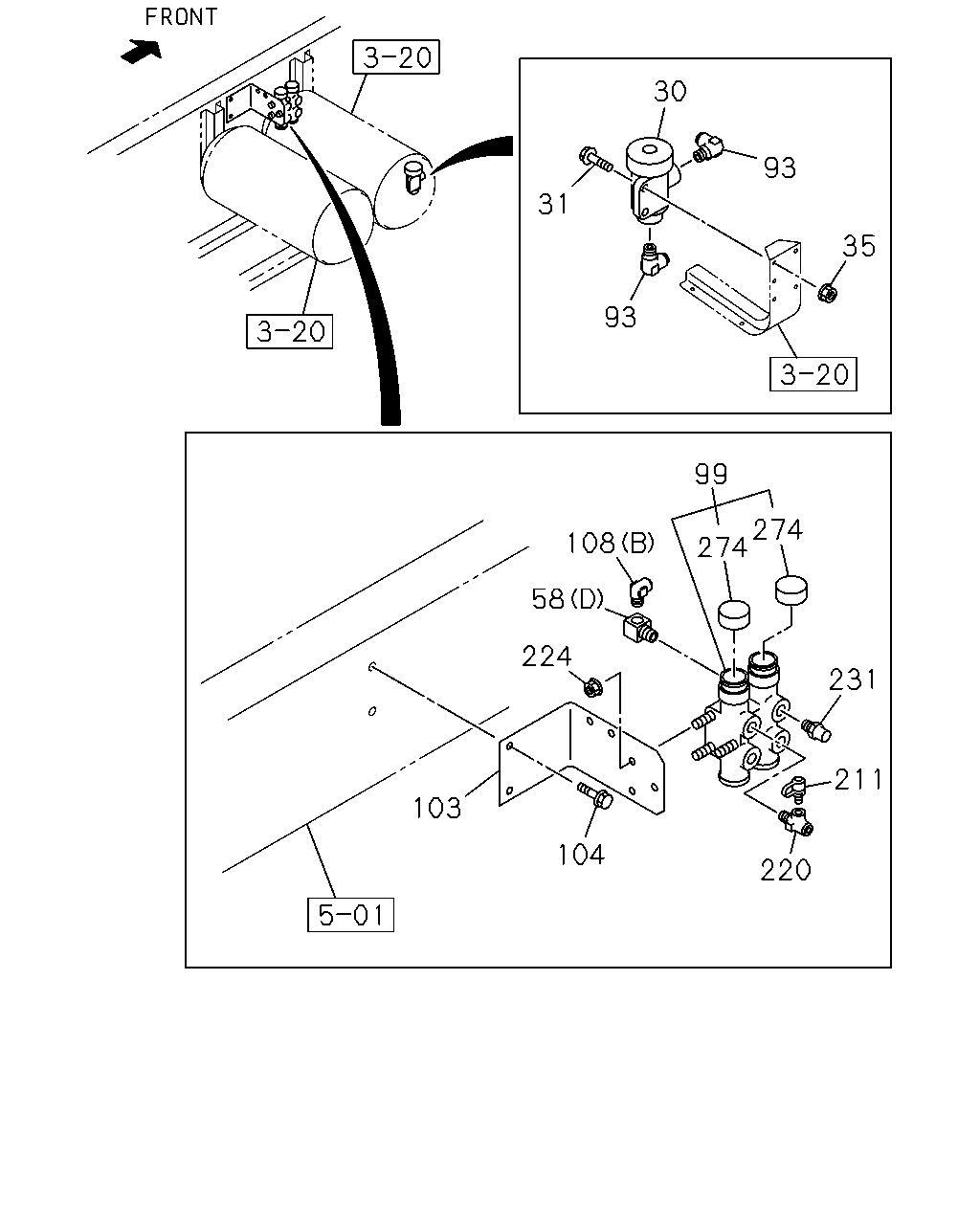

çizim 74951
30 31 93 35 93 99 274 274 231 211 220 108 58 224 104 103
BalonParca AdiParca NoAdetTipApplied Date
30 GOVERNOR; AIR CONT 1-48350-063-0 01 1 0106-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
58 ADAPTER
(D) 		1-09660-778-1 01 1 0106-
58 ADAPTER
BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
58 ADAPTER
EXC. TRAILER BRAKE HAND CONTROL<NLG>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0106-
58 ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (B) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0106-
58 ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR) PARKING BRAKE VALVE LEVER TYPE<W48> (C) PT3/8 		1-48319-058-0 01 1 0106-
93 CONNECTOR; GOV
DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0106-
99 VALVE; PROTECTION 1-48110-114-5 01 1 0106-
103 BRACKET; PROTECTION VALVE 1-47478-407-0 01 1 0106-
104 BOLT; BRKT,VALVE
M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512
104 BOLT; BRKT,VALVE
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
108 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106-
108 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE<TDV> (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0106-
211 CONNECTOR; TEST
BRAKE REGULATION ECE<TDV> 		1-47459-013-0 01 1 0106-
211 CONNECTOR; TEST 1-47459-013-0 01 1 0106-
220 CONNECTOR; 3WAY 1-09661-027-0 01 1 0106-
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0106-0602
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603-
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0106-
274 COVER; DUST 1-48119-450-0 02 1 0106-
