2-05 — CLUTCH PIPING (#901) — 50 parça

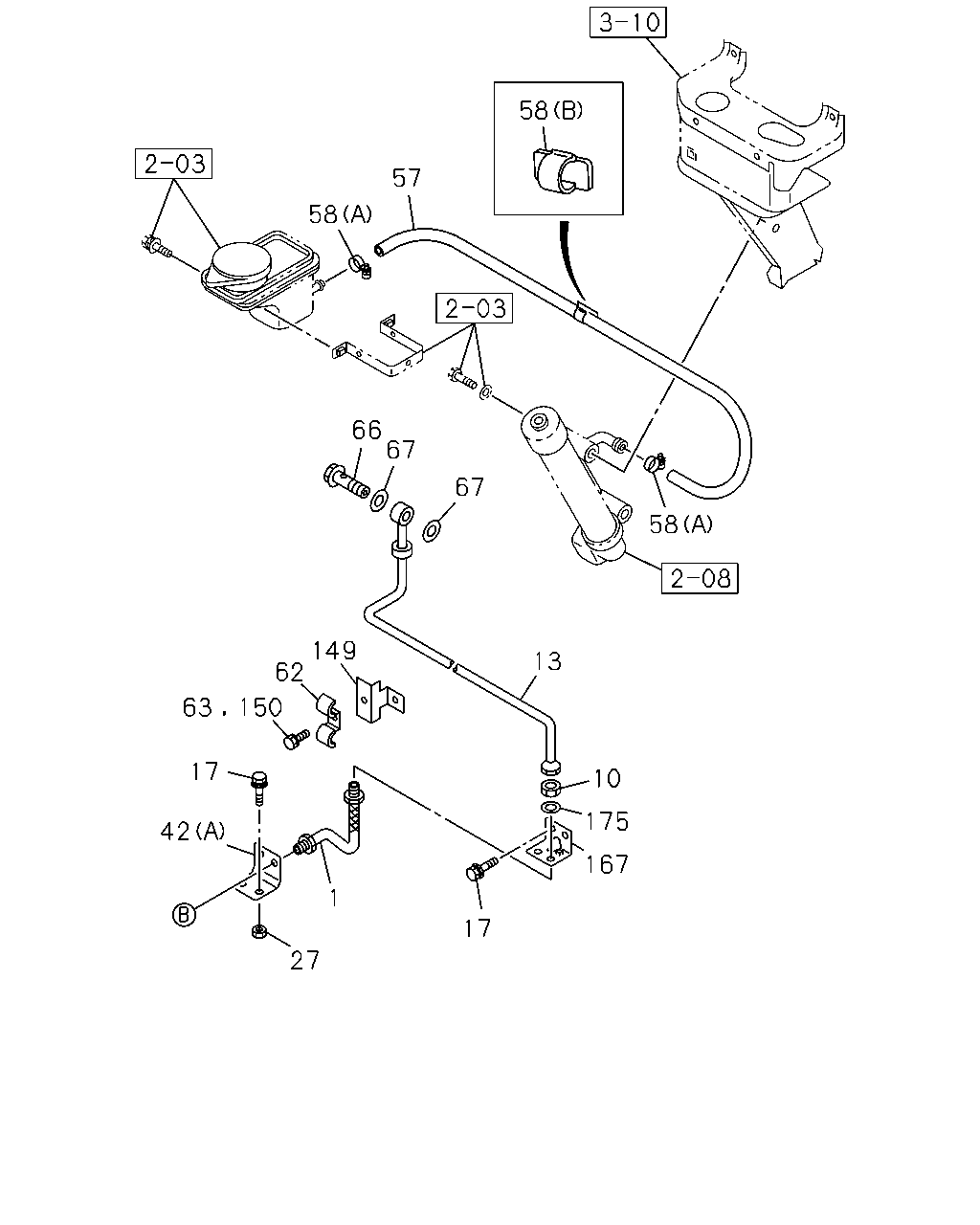

çizim 92792
58 57 58 66 67 67 58 149 62 13 63 150 17 10 175 42 167 1 17 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,CLU CONT
L=400 		1-09364-263-0 01 1 9202- ● ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9202- ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
L=812 		1-47418-493-4 01 1 9202-9212 ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL
L=802 		1-47425-600-0 01 1 9301- ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ● ●
17 BOLT; BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ● ●
27 NUT; BRKT
M8 		9-09110-408-0 02 1 9202- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9202-9209 ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9202- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9210- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
ASSISTER SHIFT CONTROL<WX8> (C) 		1-47476-819-0 01 1 9203- ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK
L=1800 		1-09360-320-0 01 1 9202- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(A) ID=16 		1-09707-171-0 02 1 9202- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(B) ID=15 		1-09987-115-0 01 1 9202- ● ● ●
62 CLIP; CLU PIPE
ID=5 & 8 		5-09700-165-0 01 1 9202- ● ● ●
63 BOLT; CLIP,PIPE
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202- ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9202- ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 9202- ● ● ●
149 BRACKET; CLIP,OIL PIPE 1-47465-169-1 01 1 9202- ● ● ●
150 BOLT; BRKT,PIPE CLIP
M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9202- ● ● ●
167 BRACKET; UNION 1-79738-107-0 01 1 9202- ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9202- ● ● ●

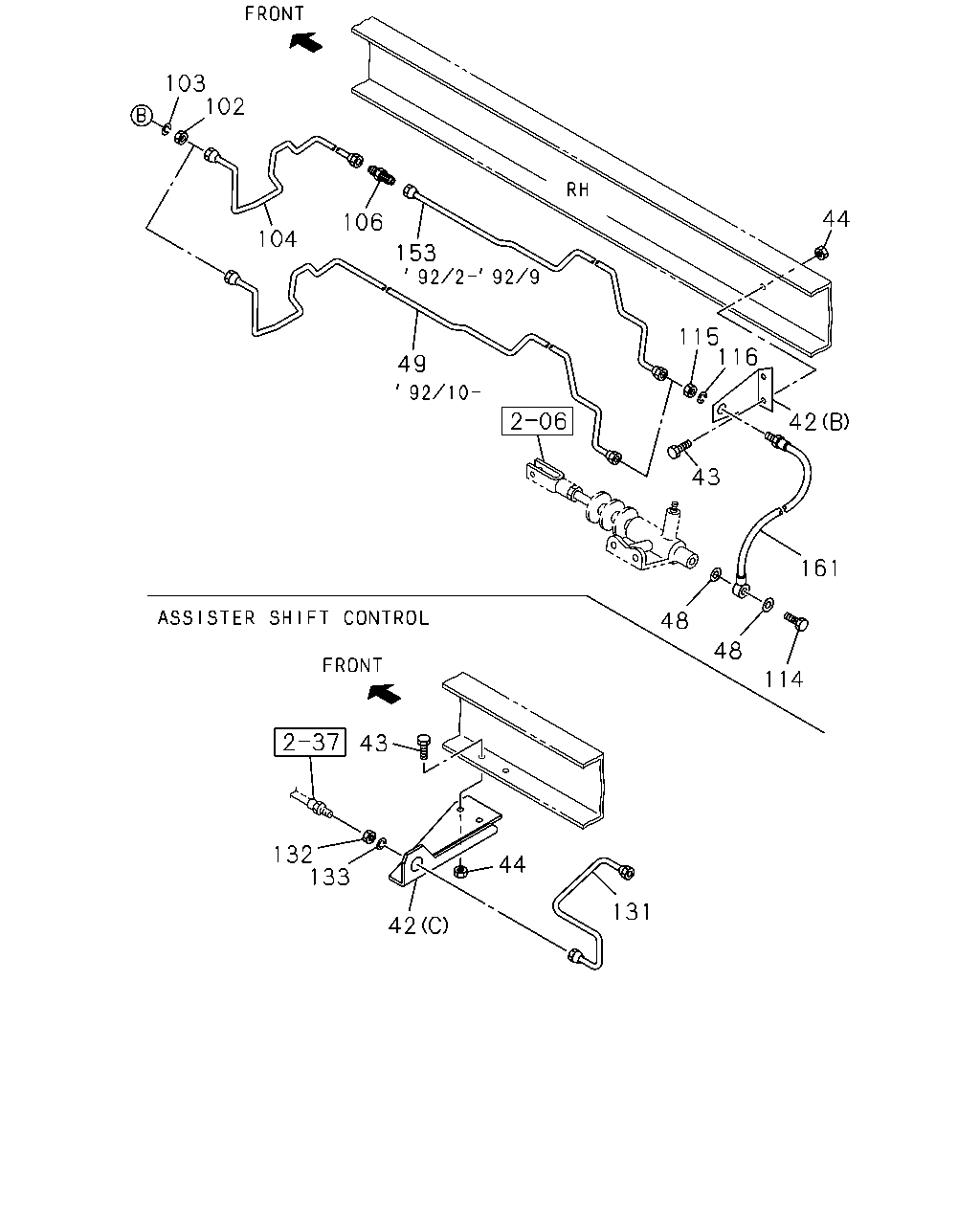

çizim 95778
103 102 44 106 104 153 115 116 49 42 43 161 48 48 114 43 132 133 44 131 42
BalonParca AdiParca NoAdetTipApplied Date A B C
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9202-9209 ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9202- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-371-0 01 1 9210- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
ASSISTER SHIFT CONTROL<WX8> (C) 		1-47476-819-0 01 1 9203- ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28010-825-0 02 1 9202-9204 ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTER SHIFT CONTROL<WX8> M8 		9-09110-408-0 02 1 9202- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9202- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.5 		1-09630-074-1 01 1 9202- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=14.2 		9-09851-004-0 01 1 9202- ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=2581 SERVICED BY L=2700 		1-47426-396-0 01 1 9210- ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99110-414-0 01 1 9202- ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9202-9312 ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1754 SERVICED BY L=1950 		1-47434-414-0 01 1 9202-9209 ● ● ●
106 UNION; OIL PIPE
M14 STRAIGHT 		9-09223-008-1 01 1 9202-9209 ● ● ●
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9202- ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9202- ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9202-9312 ● ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ASSISTER SHIFT CONTROL<WX8> 		1-47494-348-0 01 1 9202- ● ● ●
132 NUT; UNION,AIR PIPE
ASSISTER SHIFT CONTROL<WX8> M12 		9-09840-280-0 01 1 9202- ● ● ●
133 WASHER; LK,UNION
ASSISTER SHIFT CONTROL<WX8> ID=12.2 		9-09150-512-0 01 1 9202-9312 ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=795 SERVICED BY L=1000 		1-47437-956-0 01 1 9202-9209 ● ● ●
161 HOSE; FLEX,SLAVE CYL
L=280 		1-09364-581-0 01 1 9202-9205 ● ● ●
161 HOSE; FLEX,SLAVE CYL
EXC. TRANSMISSION FRONT PTO(RC2) L=280 		1-09364-581-0 01 1 9206- ● ● ●
161 HOSE; FLEX,SLAVE CYL
TRANSMISSION FRONT PTO(RC2) L=400 		1-09364-597-0 01 1 9206- ● ● ●
