3-08A — PARKING BRAKE (#9007) — 53 parça

113 159 159 92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> L=510	1-09363-649-0	02	1	0106-	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0106-	●	●
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=32 OD=36 L=50	1-09337-023-0	02	1	0106-	●	●

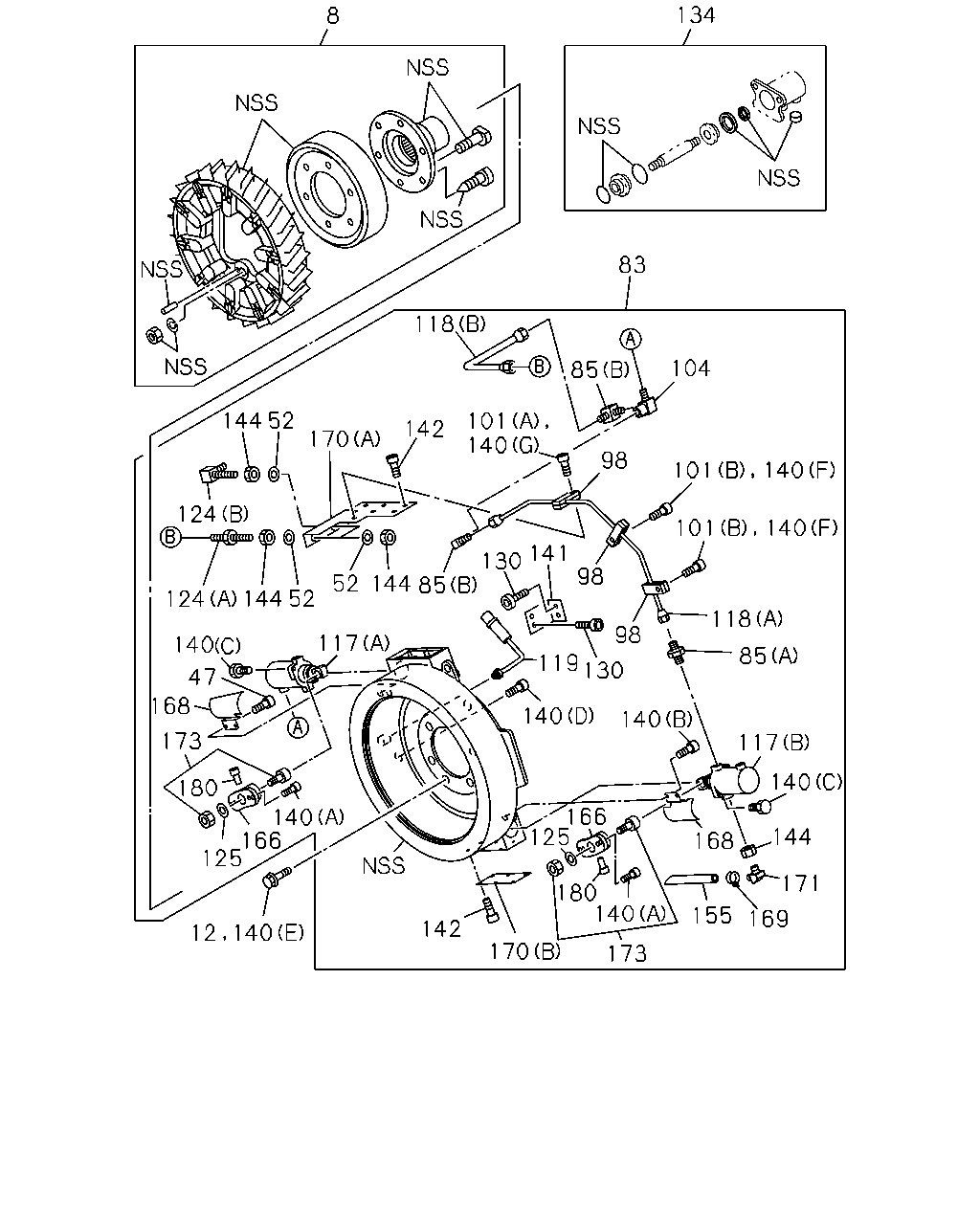

134 8 83 118 85 104 140 101 140 101 98 140 101 142 170 52 144 124 85 144 52 52 144 124 117 140 47 168 173 180 140 166 125 130 141 98 98 118 85 130 119 140 140 117 140 144 171 168 169 155 166 125 180 140 173 170 142 140 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-288-2	01	1	0106-	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> M12X35 FLANGE	0-28791-235-0	08	1	0106-0312	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	0106-	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26	9-09160-612-0	04	1	0106-0605	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●	●
83	RETARDER ASM; PARKING BRK FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 38/7 18.5"(W3E),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 43/11 18.5"(W3W),FINAL GEAR 39/9 18.5"(W4T) BRAKE SYSTEM RETARDER<RE2>	1-46200-237-7	01	1	0106-0312	●	●
83	RETARDER ASM; PARKING BRK FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 43/11 18.5"(W3W),FINAL GEAR 39/9 18.5"(W4T) BRAKE SYSTEM RETARDER<RE2>	1-46200-237-9	01	1	0401-0501	●	●
83	RETARDER ASM; PARKING BRK FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 43/11 18.5"(W3W),FINAL GEAR 39/9 18.5"(W4T) BRAKE SYSTEM RETARDER<RE2>	1-46200-275-0	01	1	0502-	●	●
83	RETARDER ASM; PARKING BRK FINAL GEAR 41/11 18.5"(W6V) BRAKE SYSTEM RETARDER<RE2>	1-46200-269-6	01	1	0106-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09221-806-1	01	1	0106-0607	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	0-92111-806-0	01	1	0608-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	02	1	0106-0607	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	0-92124-306-0	02	1	0608-	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	06	1	0106-	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M6X18	1-48629-134-0	02	1	0106-0312	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M6X25	1-48629-239-0	01	1	0106-0312	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-236-0	01	1	0106-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-193-0	01	1	0106-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-231-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-234-0	01	1	0106-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-235-0	01	1	0106-	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	0106-	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-296-0	01	1	0106-	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> LIMITED SLIP DIFF VAR1(G85) (A) M12 L=66.5	9-09223-306-1	01	1	0106-0207	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	9-09223-306-1	01	1	0208-0607	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	0-92113-306-0	01	1	0608-	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> EXC. LIMITED SLIP DIFF VAR1(G85),LIMITED SLIP DIFFVAR2(G86) (A) M12 2WAY	1-09654-257-1	01	1	0106-0207	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2>	1-48629-206-0	02	1	0106-	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	0106-	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-48629-218-0	02	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE	0-28791-235-0	08	1	0401-0512	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE	0-28761-235-0	08	1	0601-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M6X18	1-48629-134-0	02	1	0401-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G) M6X25	1-48629-239-0	01	1	0401-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X20	1-48629-070-0	08	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	02	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-170-0	04	1	0106-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M8X12	1-48629-205-0	02	1	0106-	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-233-0	01	1	0106-	●	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	12	1	0106-	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	05	1	0106-	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2>	1-48629-092-0	01	1	0106-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-191-0	02	1	0106-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0106-	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-126-0	01	1	0106-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-196-0	01	1	0106-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-232-0	01	1	0106-	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	0106-	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0106-	●	●
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	0106-	●	●
