◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53B - TRANSMISSION OIL COOLER SYSTEM ▶
2-53B — TRANSMISSION OIL COOLER SYSTEM (#9001) — 50 parça

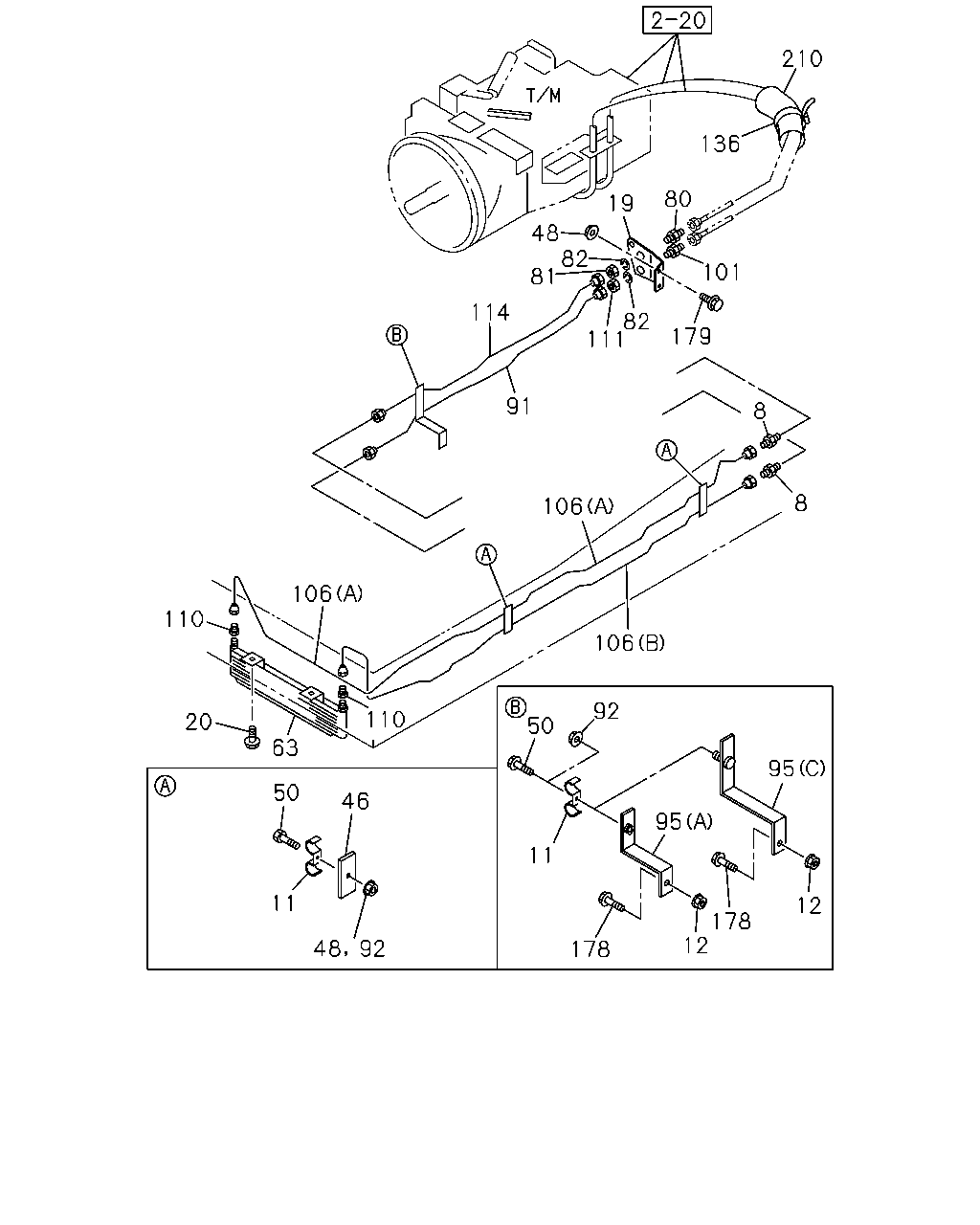

çizim 18985
210 136 80 19 48 82 81 101 179 82 111 114 91 8 8 106 106 106 110 20 63 110 46 50 11 48 92 92 50 11 95 95 12 178 12 178
BalonParca AdiParca NoAdetTipApplied Date A B
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09233-015-1 02 1 0106-0607 ● ●
8 UNION
TRANSMISSION OIL COOLER<C2C> M22 		0-92123-015-0 02 1 0608- ● ●
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 0106- ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> 		1-47478-566-0 01 1 0106- ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 0106-0512 ● ●
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ●
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> L=50 		1-47475-299-2 02 1 0106- ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0106-0602 ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0106-0602 ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 0106-0106 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0107-0410 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0106-0106 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512 ● ●
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 0106- ● ●
80 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0106- ● ●
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 0106-0512 ● ●
81 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		0-91111-522-0 01 1 0601- ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		9-09150-522-0 02 1 0106-0603 ● ●
82 WASHER; LK,UNION
TRANSMISSION OIL COOLER<C2C> ID=22.5 		0-91510-522-0 02 1 0604- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> L=911 		1-49163-072-0 01 1 0106-0106 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> 		1-49166-215-0 01 1 0107- ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0107-0410 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0411-0602 ● ●
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> (A) 		1-47475-881-0 01 1 0106-0106 ● ●
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> (C) 		1-47477-669-1 01 1 0107- ● ●
101 UNION; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0106- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) L=2317 		1-49164-311-0 01 1 0106-0106 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) L=2324 		1-49166-216-0 01 1 0107-0206 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) L=2305 		1-49166-669-0 01 1 0207- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) L=1703 		1-49164-312-0 01 1 0106-0106 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) L=1695 		1-49166-217-0 01 1 0107- ● ●
110 UNION; OIL PIPE
TRANSMISSION OIL COOLER<C2C> 		1-09654-398-0 02 1 0106- ● ●
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		9-09111-422-0 01 1 0106-0512 ● ●
111 NUT; UNION
TRANSMISSION OIL COOLER<C2C> M22 		0-91111-522-0 01 1 0601- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=1071 		1-49163-073-0 01 1 0106-0106 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=1073 		1-49166-218-0 01 1 0107- ● ●
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 0106- ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512 ● ●
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 0106-0512 ● ●
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 0106- ● ●
