2-53A — TRANSMISSION OIL COOLER SYSTEM (#9000) — 124 parça

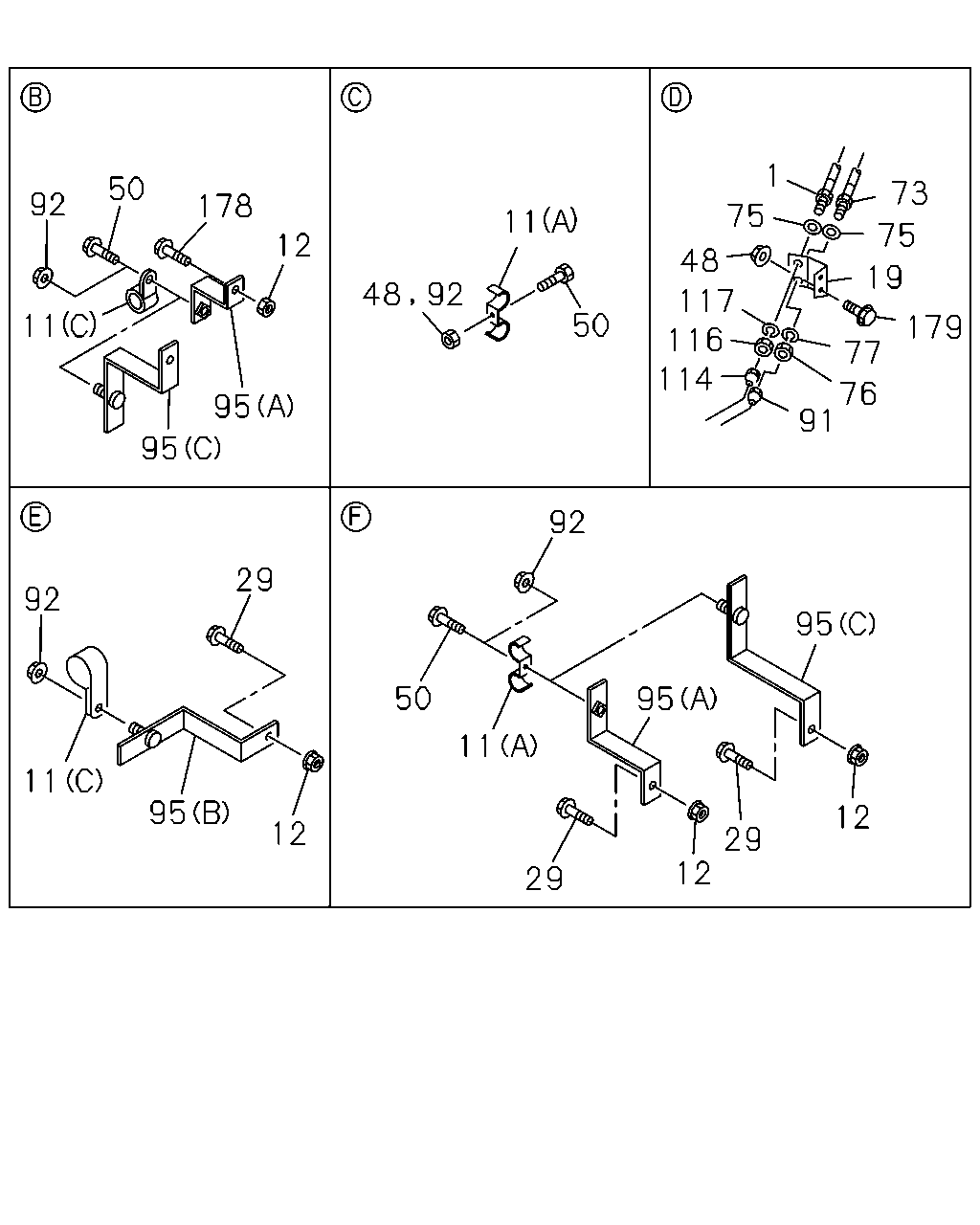

92 50 178 12 95 95 11 48 92 11 50 114 116 117 48 75 1 73 75 19 179 77 76 91 92 29 12 95 11 92 50 11 95 95 12 29 12 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0106-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0106-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0106-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0106-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-0505
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	01	1	0106-0106
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	02	1	0107-0606
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	0-95235-035-0	02	1	0607-
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0106-0106
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0106-0106
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0602
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	03	1	0107-0505
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0506-0602
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> SILENCER SINGLE VERTICAL<N28>	1-47479-212-0	01	1	0106-
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> EXC. SILENCER SINGLE VERTICAL<N28>	1-47478-344-0	01	1	0106-
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28681-030-0	02	1	0106-0512
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28651-030-0	02	1	0601-
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	04	1	0106-0505
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	03	1	0506-0602
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	03	1	0603-
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0106-0602
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0106-0106
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0107-0410
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	05	1	0106-0106
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	04	1	0107-0410
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	05	1	0411-0505
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	04	1	0506-0512
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28650-820-0	04	1	0601-
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0106-
75	GASKET; FLEX HOSE,TRANS TRANSMISSION OIL COOLER<C2C> ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0106-0108
76	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	01	1	0106-0512
76	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	01	1	0601-
77	WASHER; LK TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	01	1	0106-0603
77	WASHER; LK TRANSMISSION OIL COOLER<C2C> ID=16.2	0-91510-516-0	01	1	0604-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L=901 SERVICED BY L=900	1-47428-873-0	01	1	0106-0106
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L=902 SERVICED BY L=900	1-47428-873-0	01	1	0107-
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0411-0602
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0106-0106
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0106-0106
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0107-0410
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0107-0410
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0411-0602
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A)	1-47475-881-0	01	1	0106-0106
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A)	1-47475-881-0	01	1	0106-0106
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (C)	1-47477-669-1	01	1	0107-
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (C)	1-47477-669-1	01	1	0107-
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47479-172-0	01	1	0107-0402
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47479-994-0	01	1	0403-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=739 SERVICED BY L=800	1-47428-872-0	01	1	0106-0106
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-
116	NUT; BRKT,FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	01	1	0106-0512
116	NUT; BRKT,FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	01	1	0601-
117	WASHER; LK,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	01	1	0106-0603
117	WASHER; LK,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=16.2	0-91510-516-0	01	1	0604-
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	01	1	0601-
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28650-830-0	02	1	0601-

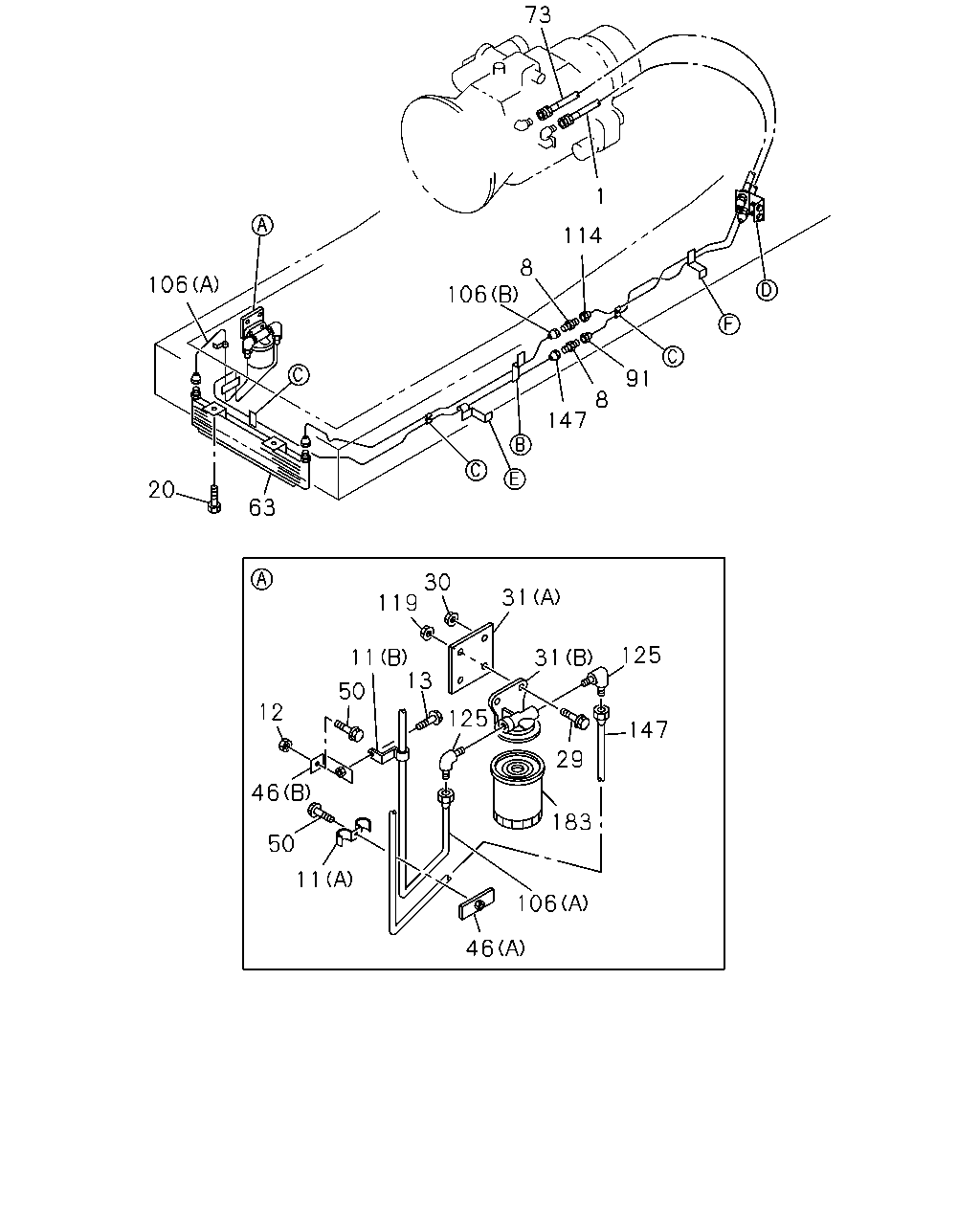

46 106 183 29 147 125 31 31 30 119 11 13 125 50 12 46 50 11 20 63 106 73 1 114 8 106 91 8 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0106-
8	UNION TRANSMISSION OIL COOLER<C2C> M16 L=42	9-09233-010-1	01	1	0106-0607
8	UNION TRANSMISSION OIL COOLER<C2C> M16 L=42	9-09233-010-1	01	1	0106-0607
8	UNION TRANSMISSION OIL COOLER<C2C> M16 L=42	0-92123-010-0	01	1	0608-
8	UNION TRANSMISSION OIL COOLER<C2C> M16 L=42	0-92123-010-0	01	1	0608-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0106-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0106-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0106-
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-0505
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	01	1	0106-0106
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	02	1	0107-0606
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	0-95235-035-0	02	1	0607-
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0106-0106
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0106-0106
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0602
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	03	1	0107-0505
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0506-0602
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0106-0505
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0106-0512
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28051-020-0	02	1	0601-
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28681-030-0	02	1	0106-0512
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28651-030-0	02	1	0601-
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91150-210-0	02	1	0106-0602
30	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91180-210-0	02	1	0603-
31	BRACKET; OIL FILTER TRANSMISSION OIL COOLER<C2C> (B)	1-33119-222-0	01	1	0106-
31	BRACKET; OIL FILTER TRANSMISSION OIL COOLER<C2C> (A)	1-47478-329-0	01	1	0106-
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	04	1	0106-
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-47475-519-0	01	1	0106-0505
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0106-0106
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0107-0410
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	05	1	0106-0106
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	04	1	0107-0410
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	05	1	0411-0505
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	04	1	0506-0512
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28650-820-0	04	1	0601-
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	0106-
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0106-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L=901 SERVICED BY L=900	1-47428-873-0	01	1	0106-0106
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L=902 SERVICED BY L=900	1-47428-873-0	01	1	0107-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (A) L=677	1-49163-119-0	01	1	0106-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B)	1-49164-314-0	01	1	0106-0106
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B) L=774	1-49166-229-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=739 SERVICED BY L=800	1-47428-872-0	01	1	0106-0106
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-
119	NUT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91150-210-0	02	1	0106-0602
119	NUT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91180-210-0	02	1	0603-
125	CONNECTOR; OIL FILTER TRANSMISSION OIL COOLER<C2C> M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0106-0607
125	CONNECTOR; OIL FILTER TRANSMISSION OIL COOLER<C2C> M16 & PT1/4 ELBOW	0-92134-310-0	02	1	0608-
147	PIPE; OIL,UNION TO FILTER TRANSMISSION OIL COOLER<C2C>	1-49164-313-0	01	1	0106-0106
147	PIPE; OIL,UNION TO FILTER TRANSMISSION OIL COOLER<C2C>	1-49166-228-0	01	1	0107-
183	CARTRIDGE; OIL FILTER TRANSMISSION OIL COOLER<C2C>	8-94459-700-1	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
