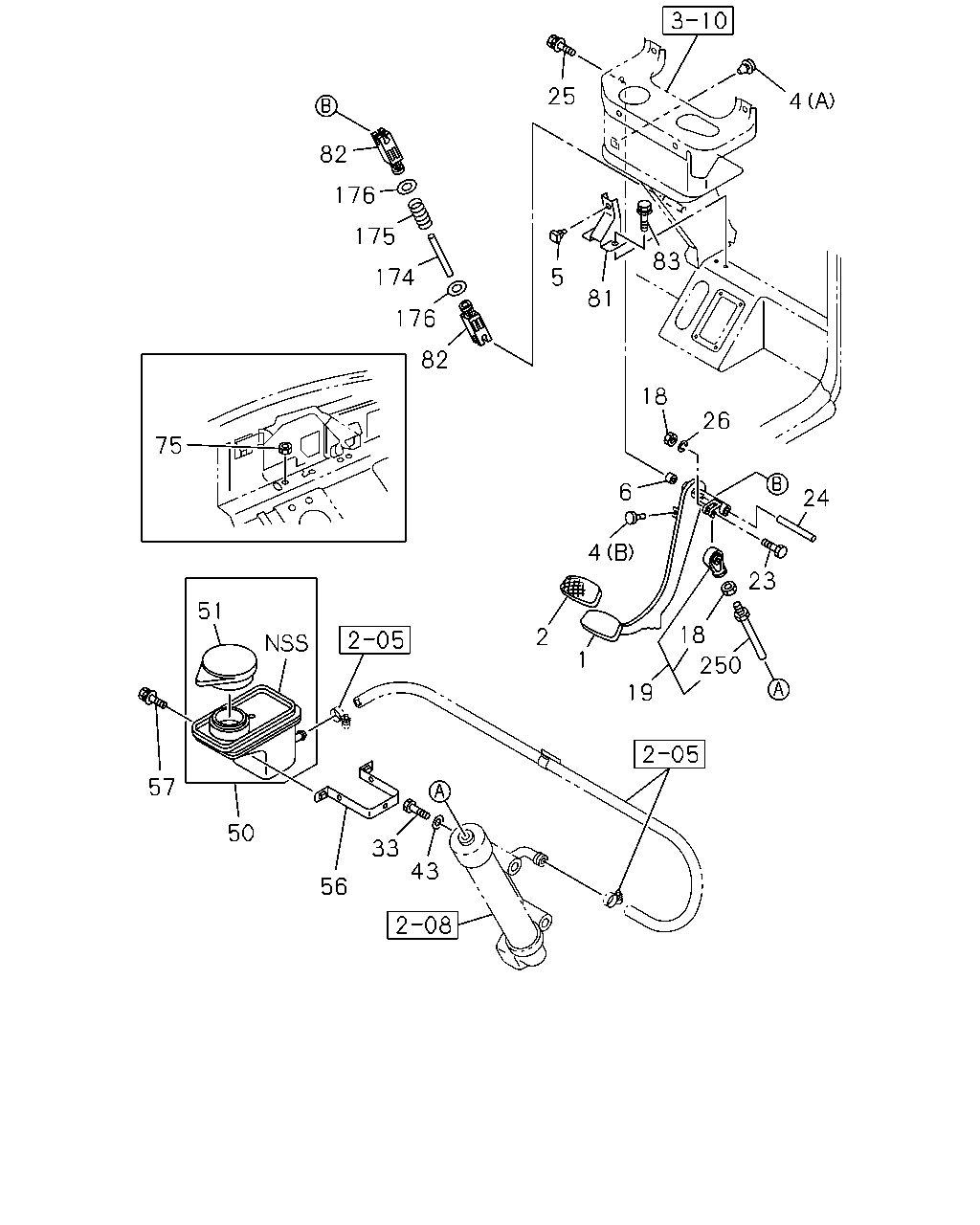

2-03 — CLUTCH PEDAL AND CONTROL (#900) — 27 parça

25 4 82 176 175 83 5 174 81 176 82 18 26 75 6 24 4 23 51 18 2 1 250 19 57 50 33 43 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU	1-73998-561-0	01	1	9202-	●	●
2	COVER; CLU PEDAL	8-94204-810-0	01	1	9202-	●	●
4	STOPPER; CLU PEDAL (A)	1-47319-014-1	01	1	9202-	●	●
4	STOPPER; CLU PEDAL (B)	5-31419-003-0	01	1	9202-	●	●
5	STOPPER; PEDAL SHAFT	1-09983-074-0	01	1	9202-	●	●
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	9202-	●	●
18	NUT; PUSH ROD M8	9-09110-508-0	02	1	9202-	●	●
19	ROD ASM; PUSH,CLU	1-31422-009-2	01	1	9202-	●	●
23	BOLT; PUSH ROD M8X35	9-01060-835-0	01	1	9202-	●	●
24	SHAFT; CLU PEDAL	1-31415-007-0	01	1	9202-	●	●
25	BOLT; PEDAL M10X25 W/LK WASHER	9-01931-025-0	02	1	9202-	●	●
26	WASHER; LK,PUSH ROD ID=8.2	9-09150-608-0	01	1	9202-	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	9-01046-065-0	02	1	9202-9204	●	●
33	BOLT; CLU M/CYL TO BRKT M10X65	0-10806-065-0	02	1	9205-	●	●
43	WASHER; LK,CLU M/CYL ID=10.2	9-09150-510-0	02	1	9202-	●	●
50	TANK; OIL,CLU	1-47530-140-1	01	1	9202-	●	●
51	CAP; OIL TANK,CLU	1-47525-023-0	01	1	9202-	●	●
56	BRACKET; OIL TANK,CLU CONT	1-73997-915-0	01	1	9202-	●	●
57	BOLT; OIL TANK BRKT,CLU M5X16 W/LK&PL WASHER	9-03920-516-0	02	1	9202-	●	●
75	GROMMET; CLU CABLE OD=28	9-09575-497-0	01	1	9202-	●	●
81	BRACKET; STOPPER,CLU PEDAL	1-73997-773-2	01	1	9202-	●	●
82	CLEVIS; HELPER,CLU PEDAL	1-73998-472-1	02	1	9202-	●	●
83	BOLT; STOPPER BRKT,CLU PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9202-	●	●
174	PIN; STRAIGHT,CLU PEDAL	1-73998-474-0	01	1	9202-	●	●
175	SPRING; HELPER	1-09985-192-0	01	1	9202-	●	●
176	SEAT; SPRING	1-09503-114-0	02	1	9202-	●	●
250	ROD; PUSH,CLU M8X31 L=128	1-31422-010-2	01	1	9202-	●	●
