Sayfa 2-39 - Isuzu EPC

2-39 — POWER ASSISTOR (#9) — 358 parça

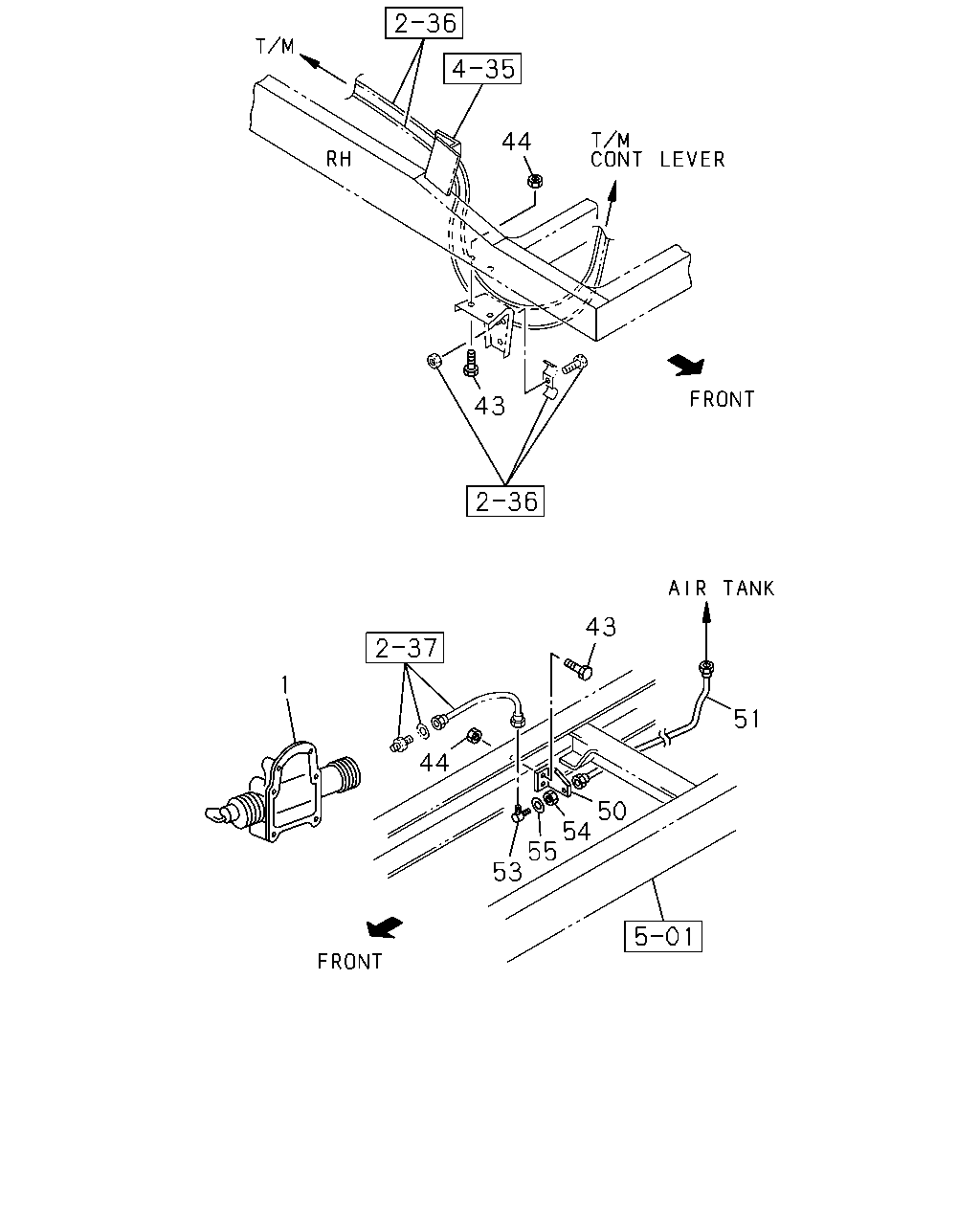

44 43 43 1 51 44 50 54 55 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-070-1	01	1	9202-9504	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-070-1	01	1	9202-9504		●
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-137-0	01	1	9505-	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-137-0	01	1	9505-		●
43	BOLT; BRKT,FRAME NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
43	BOLT; BRKT,FRAME NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M8X25 FLANGE	0-28080-825-0	02	1	9205-9207	●
44	NUT; BRKT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-9207	●	●	●	●	●
44	NUT; BRKT,FRAME NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M8	9-09110-408-0	02	1	9202-9207	●
44	NUT; BRKT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9208-9502	●	●	●	●	●
44	NUT; BRKT,FRAME STD CAB(FS*M) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ISUZU M/T<X9A> M8	9-09110-408-0	02	1	9503-	●	●	●	●	●
44	NUT; BRKT,FRAME DOUBLE CAB(FS*W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9503-	●	●	●	●	●
50	BRACKET; POWER ASSIST NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8>	1-47476-776-0	01	1	9202-9207	●
51	PIPE ASM; AIR NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> L=1267 SERVICED BY L=1370	1-47434-390-0	01	1	9202-9207	●
53	UNION; POWER ASSIST NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M12	1-09654-087-0	01	1	9202-9208	●
54	NUT; UNION POWER ASSIST NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9202-9207	●
55	WASHER; LK,UNION NEW ZEALAND EQUIPMENT(PK5) ASSISTER SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9202-9207	●

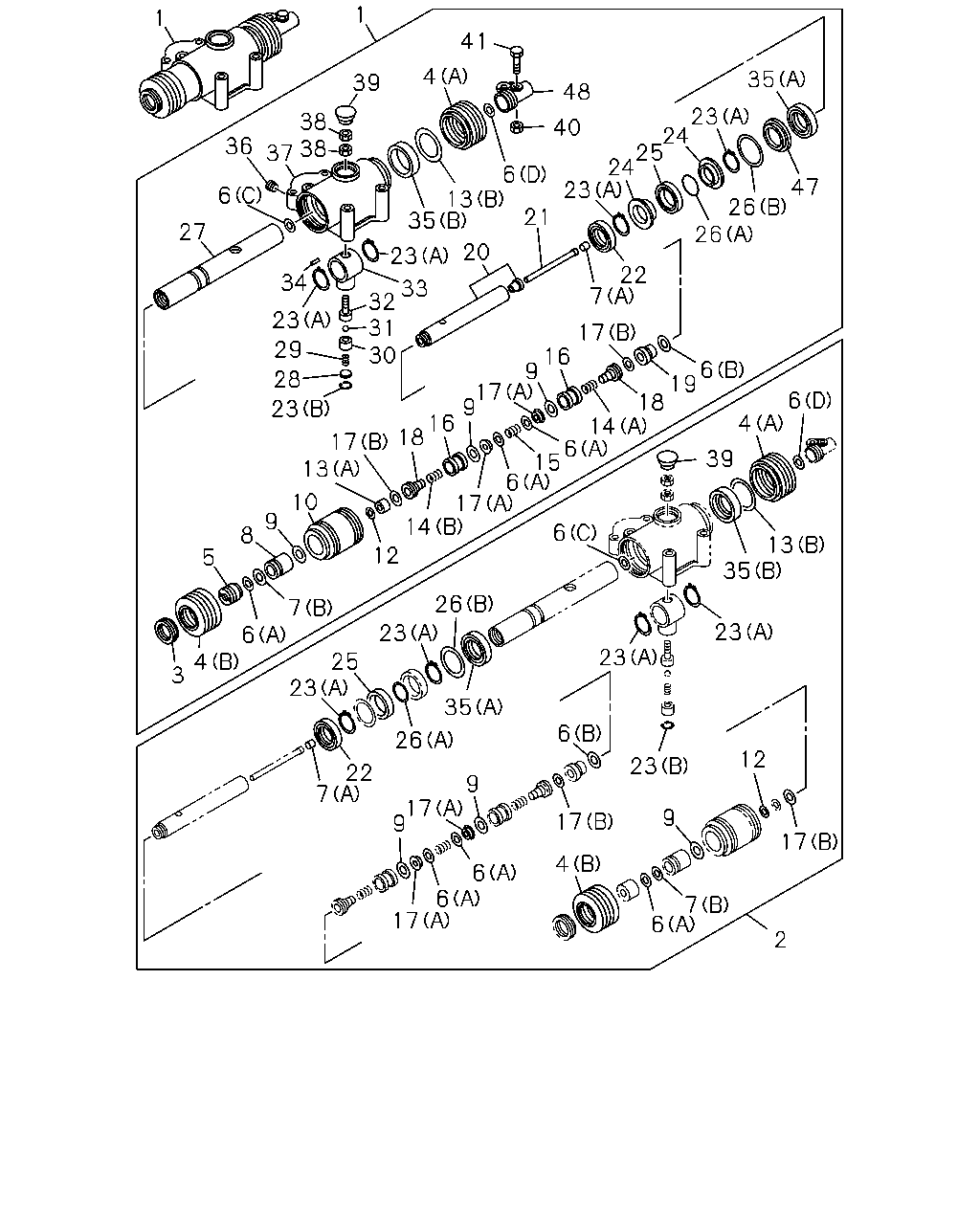

1 1 41 35 4 39 48 23 24 25 24 23 38 38 37 40 36 6 13 35 47 26 26 6 21 27 20 23 22 7 34 33 32 31 30 23 17 29 16 9 6 19 18 28 17 9 16 18 6 23 4 14 6 15 6 17 13 39 10 17 14 9 6 8 13 35 12 5 26 7 23 23 6 4 3 23 25 23 35 6 26 12 23 22 7 9 17 9 9 17 17 4 6 6 17 7 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-070-1	01	1	9202-9504	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-070-1	01	1	9202-9504		●
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-137-0	01	1	9505-	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-137-0	01	1	9505-		●

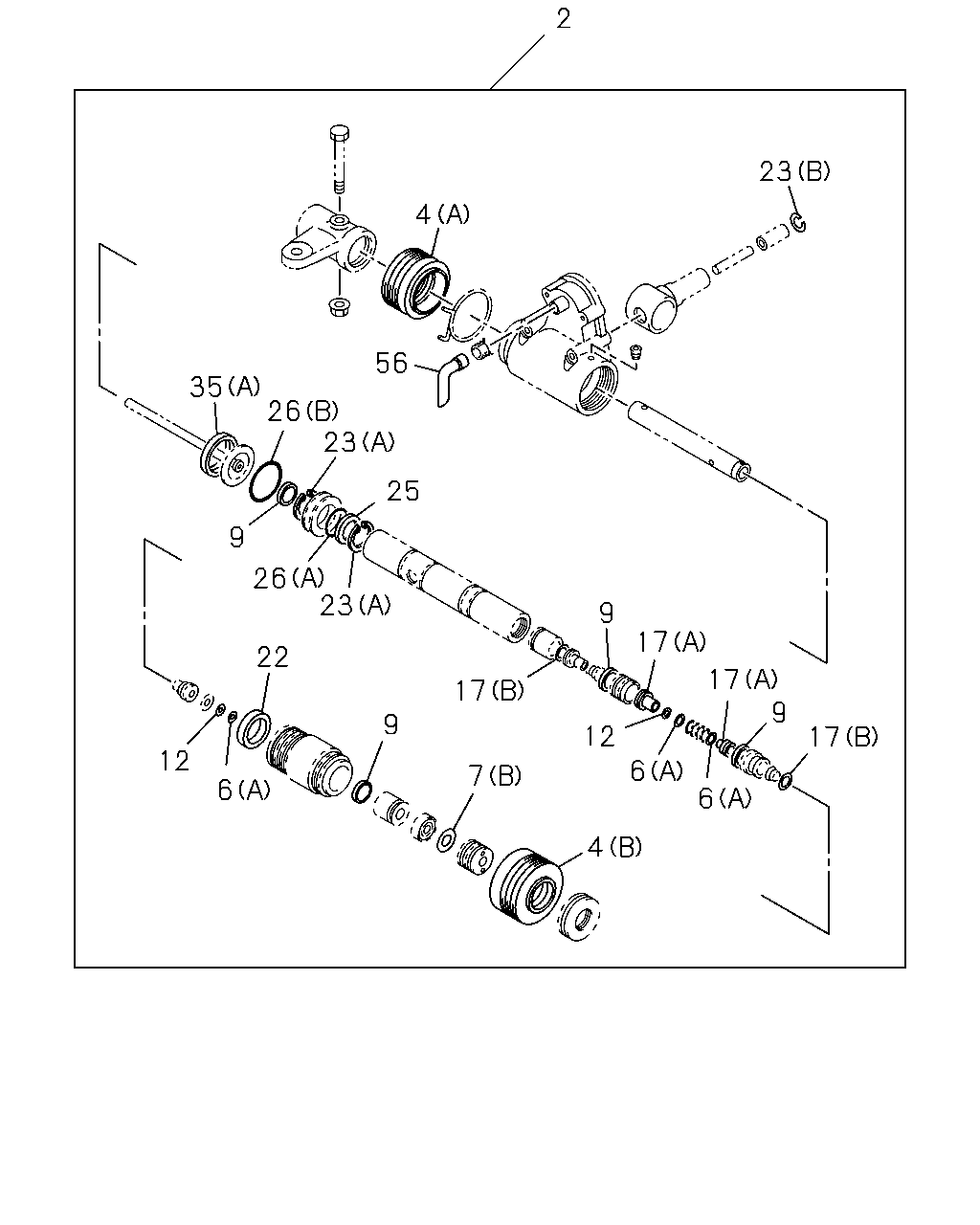

2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-498-0	01	1	9202-9504	●
2	REPAIR KIT; POWER SHIFTER	1-33739-498-0	01	1	9202-9504		●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-774-0	01	1	9505-	●
2	REPAIR KIT; POWER SHIFTER	1-33739-774-0	01	1	9505-		●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9202-	●
3	NUT; LK,ROD	1-33739-025-0	01	1	9202-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9202-9504	●
4	BOOT; POWER SHIFTER (A)	1-33739-030-0	01	1	9202-9504		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-571-0	01	1	9505-	●
4	BOOT; POWER SHIFTER (A)	1-33739-571-0	01	1	9505-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9202-	●
4	BOOT; POWER SHIFTER (B)	1-33739-038-0	01	1	9202-		●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9202-	●
5	CONNECTOR; CYL	1-33739-017-0	01	1	9202-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-013-0	03	1	9202-	●
6	GASKET (A)	1-33739-013-0	03	1	9202-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-070-0	01	1	9202-9504	●
6	GASKET (B)	1-33739-070-0	01	1	9202-9504		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9202-9504	●
6	GASKET (D)	1-33739-080-0	01	1	9202-9504		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-365-0	01	1	9202-9504	●
6	GASKET (C)	1-33739-365-0	01	1	9202-9504		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9202-9504	●
7	FILTER; AIR (A)	1-33739-032-0	01	1	9202-9504		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9202-	●
7	FILTER; AIR (B)	1-33739-033-0	01	1	9202-		●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-431-0	01	1	9202-9504	●
8	TUBE	1-33739-431-0	01	1	9202-9504		●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9505-	●
8	TUBE	1-33739-560-0	02	1	9505-		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9202-9504	●
9	RING; SQUARE	1-33739-086-0	03	1	9202-9504		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9505-	●
9	RING; SQUARE	1-33739-086-0	04	1	9505-		●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-421-0	01	1	9202-9504	●
10	CYLINDER; POWER SHIFTER	1-33739-421-0	01	1	9202-9504		●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-772-0	01	1	9505-	●
10	CYLINDER; POWER SHIFTER	1-33739-772-0	01	1	9505-		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9202-9504	●
12	RING; RET	1-33739-016-0	01	1	9202-9504		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9505-	●
12	RING; RET	1-33739-016-0	02	1	9505-		●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-426-0	01	1	9202-9504	●
13	RETAINER (B)	1-33739-426-0	01	1	9202-9504		●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-429-0	01	1	9202-9504	●
13	RETAINER (A)	1-33739-429-0	01	1	9202-9504		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	9202-9504	●
14	SPRING; VALVE LIFTER (A)	1-33739-066-0	01	1	9202-9504		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9505-	●
14	SPRING; VALVE LIFTER (A)	1-33739-347-0	01	1	9505-		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-077-0	01	1	9202-9504	●
14	SPRING; VALVE LIFTER (B)	1-33739-077-0	01	1	9202-9504		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9505-	●
14	SPRING; VALVE LIFTER (B)	1-33739-354-0	01	1	9505-		●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9202-	●
15	SPRING; VALVE SEAL	1-33739-014-0	01	1	9202-		●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9202-	●
16	SEAT; VALVE	1-33739-067-0	02	1	9202-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9202-	●
17	SEAL ASM; VALVE (A)	1-33739-012-0	02	1	9202-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9202-	●
17	SEAL ASM; VALVE (B)	9-83335-055-0	02	1	9202-		●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-500-0	02	1	9202-9504	●
18	LIFTER; VALVE	1-33739-500-0	02	1	9202-9504		●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9505-	●
18	LIFTER; VALVE	1-33739-586-0	02	1	9505-		●
19	BUSHING; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-427-0	01	1	9202-9504	●
19	BUSHING; CYL	1-33739-427-0	01	1	9202-9504		●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-083-0	01	1	9202-9504	●
20	ROD ASM; W/CAP	1-33739-083-0	01	1	9202-9504		●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-770-0	01	1	9505-	●
20	ROD ASM; W/CAP	1-33739-770-0	01	1	9505-		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-048-0	01	1	9202-9504	●
21	PIPE; AIR,POWER SHIFTER	1-33739-048-0	01	1	9202-9504		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-598-0	01	1	9505-	●
21	PIPE; AIR,POWER SHIFTER	1-33739-598-0	01	1	9505-		●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9202-	●
22	SEAL; OIL	1-33739-353-0	01	1	9202-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9202-9404	●
23	RING; RET (A)	1-33739-022-0	04	1	9202-9404		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9405-	●
23	RING; RET (A)	1-33739-022-0	02	1	9405-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9202-9504	●
23	RING; RET (B)	1-47819-109-0	01	1	9202-9504		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9505-	●
23	RING; RET (B)	1-33739-564-0	01	1	9505-		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-422-0	02	1	9202-9504	●
24	PISTON	1-33739-422-0	02	1	9202-9504		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9505-	●
24	PISTON	1-33739-578-0	01	1	9505-		●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9202-	●
25	RING; "X",PISTON	1-33739-420-0	01	1	9202-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-028-0	01	1	9202-9504	●
26	GASKET (B)	1-33739-028-0	01	1	9202-9504		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9505-	●
26	GASKET (B)	1-33739-573-0	01	1	9505-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9202-	●
26	GASKET (A)	1-33739-496-0	01	1	9202-		●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-423-0	01	1	9202-9504	●
27	ROD; POWER SHIFTER	1-33739-423-0	01	1	9202-9504		●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-769-0	01	1	9505-	●
27	ROD; POWER SHIFTER	1-33739-769-0	01	1	9505-		●
28	PLATE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-094-0	01	1	9202-9504	●
28	PLATE; POWER SHIFTER	1-33739-094-0	01	1	9202-9504		●
29	SPRING; BALL ASSISTER SHIFT CONTROL<WX8>	1-33739-095-0	01	1	9202-9504	●
29	SPRING; BALL	1-33739-095-0	01	1	9202-9504		●
30	PLUG ASSISTER SHIFT CONTROL<WX8>	1-33739-273-0	01	1	9202-9504	●
30	PLUG	1-33739-273-0	01	1	9202-9504		●
31	BALL; STEEL ASSISTER SHIFT CONTROL<WX8>	1-33739-096-0	01	1	9202-9504	●
31	BALL; STEEL	1-33739-096-0	01	1	9202-9504		●
32	BOLT; STRIKER ASSISTER SHIFT CONTROL<WX8>	1-33739-269-0	01	1	9202-9504	●
32	BOLT; STRIKER	1-33739-269-0	01	1	9202-9504		●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-272-0	01	1	9202-9504	●
33	STRIKER; POWER SHIFTER	1-33739-272-0	01	1	9202-9504		●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-577-0	01	1	9505-	●
33	STRIKER; POWER SHIFTER	1-33739-577-0	01	1	9505-		●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9202-9504	●
34	PIN; STRAIGHT,POWER SHIFTER	1-33739-271-0	01	1	9202-9504		●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9505-	●
34	PIN; STRAIGHT,POWER SHIFTER	1-33739-575-0	01	1	9505-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9202-	●
35	GASKET; CUP (A)	1-33739-073-0	01	1	9202-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9202-9504	●
35	GASKET; CUP (B)	1-33739-075-0	01	1	9202-9504		●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9202-	●
36	SCREW; SET	1-33739-040-0	01	1	9202-		●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-334-0	01	1	9202-9504	●
37	HOUSING; POWER SHIFTER	1-33739-334-0	01	1	9202-9504		●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-771-0	01	1	9505-	●
37	HOUSING; POWER SHIFTER	1-33739-771-0	01	1	9505-		●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8> M10	9-09110-510-0	02	1	9202-9504	●
38	NUT; STRIKER BOLT M10	9-09110-510-0	02	1	9202-9504		●
39	COVER; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33739-031-0	01	1	9202-9504	●
39	COVER; RUBBER	1-33739-031-0	01	1	9202-9504		●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9202-	●
40	NUT; LEVER	1-33739-363-0	01	1	9202-		●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9202-	●
41	BOLT; SET,LEVER	1-33739-339-0	01	1	9202-		●
47	BUSHING; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-333-0	01	1	9202-9504	●
47	BUSHING; CYL	1-33739-333-0	01	1	9202-9504		●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-054-0	01	1	9202-9504	●
48	LEVER; CONT,CABLE	1-33739-054-0	01	1	9202-9504		●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-775-0	01	1	9505-	●
48	LEVER; CONT,CABLE	1-33739-775-0	01	1	9505-		●

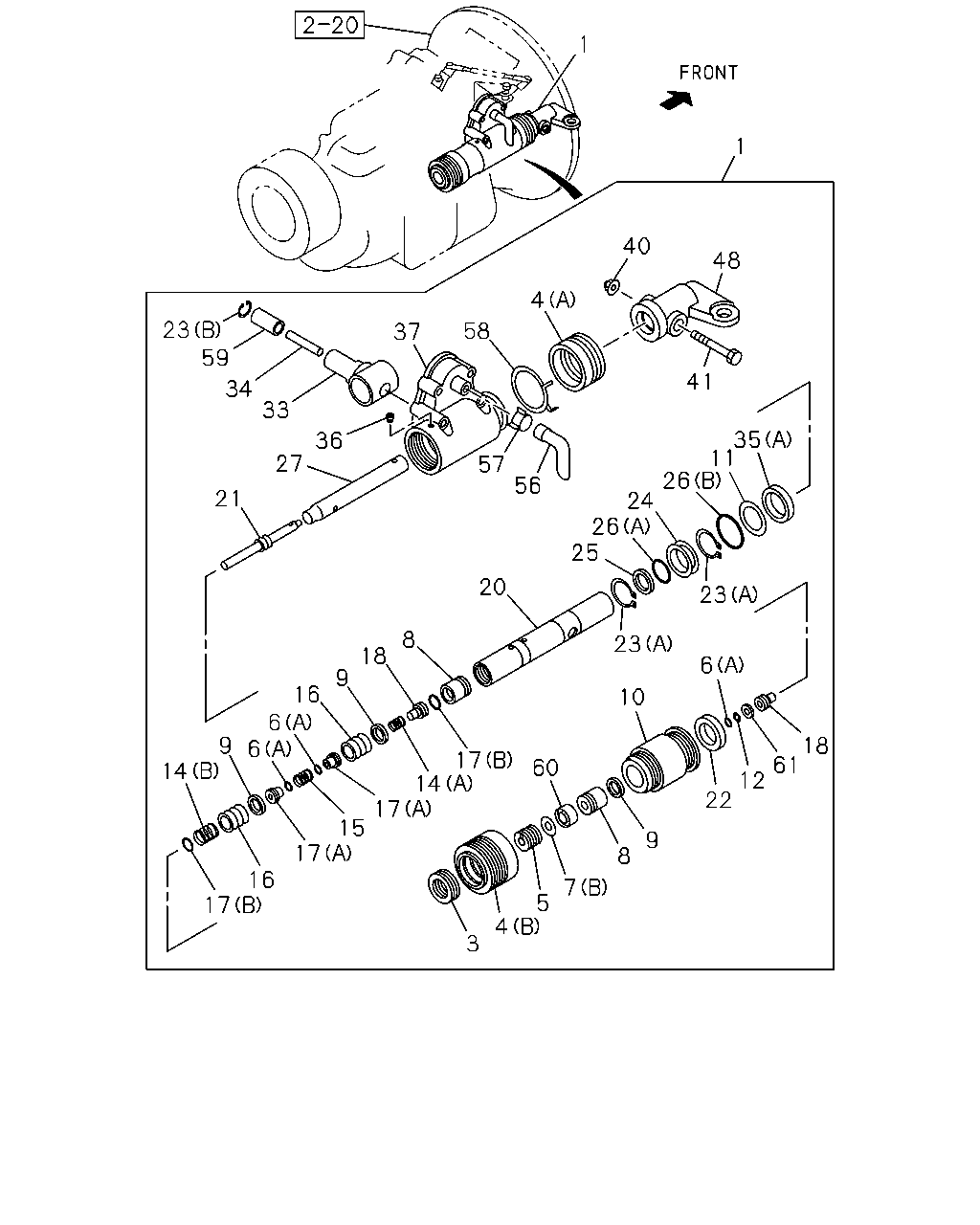

1 1 40 48 4 23 59 58 37 41 34 33 35 11 26 24 26 25 36 27 57 56 21 20 23 8 23 18 6 9 16 6 6 10 9 14 18 61 12 22 17 14 17 60 15 17 9 8 16 17 7 5 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-070-1	01	1	9202-9504	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-070-1	01	1	9202-9504		●
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-137-0	01	1	9505-	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-137-0	01	1	9505-		●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9202-	●
3	NUT; LK,ROD	1-33739-025-0	01	1	9202-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9202-9504	●
4	BOOT; POWER SHIFTER (A)	1-33739-030-0	01	1	9202-9504		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-571-0	01	1	9505-	●
4	BOOT; POWER SHIFTER (A)	1-33739-571-0	01	1	9505-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9202-	●
4	BOOT; POWER SHIFTER (B)	1-33739-038-0	01	1	9202-		●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9202-	●
5	CONNECTOR; CYL	1-33739-017-0	01	1	9202-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-013-0	03	1	9202-	●
6	GASKET (A)	1-33739-013-0	03	1	9202-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-070-0	01	1	9202-9504	●
6	GASKET (B)	1-33739-070-0	01	1	9202-9504		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9202-9504	●
6	GASKET (D)	1-33739-080-0	01	1	9202-9504		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-365-0	01	1	9202-9504	●
6	GASKET (C)	1-33739-365-0	01	1	9202-9504		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9202-9504	●
7	FILTER; AIR (A)	1-33739-032-0	01	1	9202-9504		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9202-	●
7	FILTER; AIR (B)	1-33739-033-0	01	1	9202-		●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-431-0	01	1	9202-9504	●
8	TUBE	1-33739-431-0	01	1	9202-9504		●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9505-	●
8	TUBE	1-33739-560-0	02	1	9505-		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9202-9504	●
9	RING; SQUARE	1-33739-086-0	03	1	9202-9504		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9505-	●
9	RING; SQUARE	1-33739-086-0	04	1	9505-		●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-421-0	01	1	9202-9504	●
10	CYLINDER; POWER SHIFTER	1-33739-421-0	01	1	9202-9504		●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-772-0	01	1	9505-	●
10	CYLINDER; POWER SHIFTER	1-33739-772-0	01	1	9505-		●
11	PLATE; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-576-0	01	1	9505-	●
11	PLATE; CYL	1-33739-576-0	01	1	9505-		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9202-9504	●
12	RING; RET	1-33739-016-0	01	1	9202-9504		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9505-	●
12	RING; RET	1-33739-016-0	02	1	9505-		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	9202-9504	●
14	SPRING; VALVE LIFTER (A)	1-33739-066-0	01	1	9202-9504		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9505-	●
14	SPRING; VALVE LIFTER (A)	1-33739-347-0	01	1	9505-		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-077-0	01	1	9202-9504	●
14	SPRING; VALVE LIFTER (B)	1-33739-077-0	01	1	9202-9504		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9505-	●
14	SPRING; VALVE LIFTER (B)	1-33739-354-0	01	1	9505-		●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9202-	●
15	SPRING; VALVE SEAL	1-33739-014-0	01	1	9202-		●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9202-	●
16	SEAT; VALVE	1-33739-067-0	02	1	9202-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9202-	●
17	SEAL ASM; VALVE (A)	1-33739-012-0	02	1	9202-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9202-	●
17	SEAL ASM; VALVE (B)	9-83335-055-0	02	1	9202-		●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-500-0	02	1	9202-9504	●
18	LIFTER; VALVE	1-33739-500-0	02	1	9202-9504		●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9505-	●
18	LIFTER; VALVE	1-33739-586-0	02	1	9505-		●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-083-0	01	1	9202-9504	●
20	ROD ASM; W/CAP	1-33739-083-0	01	1	9202-9504		●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-770-0	01	1	9505-	●
20	ROD ASM; W/CAP	1-33739-770-0	01	1	9505-		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-048-0	01	1	9202-9504	●
21	PIPE; AIR,POWER SHIFTER	1-33739-048-0	01	1	9202-9504		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-598-0	01	1	9505-	●
21	PIPE; AIR,POWER SHIFTER	1-33739-598-0	01	1	9505-		●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9202-	●
22	SEAL; OIL	1-33739-353-0	01	1	9202-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9202-9404	●
23	RING; RET (A)	1-33739-022-0	04	1	9202-9404		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9405-	●
23	RING; RET (A)	1-33739-022-0	02	1	9405-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9202-9504	●
23	RING; RET (B)	1-47819-109-0	01	1	9202-9504		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9505-	●
23	RING; RET (B)	1-33739-564-0	01	1	9505-		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-422-0	02	1	9202-9504	●
24	PISTON	1-33739-422-0	02	1	9202-9504		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9505-	●
24	PISTON	1-33739-578-0	01	1	9505-		●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9202-	●
25	RING; "X",PISTON	1-33739-420-0	01	1	9202-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-028-0	01	1	9202-9504	●
26	GASKET (B)	1-33739-028-0	01	1	9202-9504		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9505-	●
26	GASKET (B)	1-33739-573-0	01	1	9505-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9202-	●
26	GASKET (A)	1-33739-496-0	01	1	9202-		●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-423-0	01	1	9202-9504	●
27	ROD; POWER SHIFTER	1-33739-423-0	01	1	9202-9504		●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-769-0	01	1	9505-	●
27	ROD; POWER SHIFTER	1-33739-769-0	01	1	9505-		●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-272-0	01	1	9202-9504	●
33	STRIKER; POWER SHIFTER	1-33739-272-0	01	1	9202-9504		●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-577-0	01	1	9505-	●
33	STRIKER; POWER SHIFTER	1-33739-577-0	01	1	9505-		●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9202-9504	●
34	PIN; STRAIGHT,POWER SHIFTER	1-33739-271-0	01	1	9202-9504		●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9505-	●
34	PIN; STRAIGHT,POWER SHIFTER	1-33739-575-0	01	1	9505-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9202-	●
35	GASKET; CUP (A)	1-33739-073-0	01	1	9202-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9202-9504	●
35	GASKET; CUP (B)	1-33739-075-0	01	1	9202-9504		●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9202-	●
36	SCREW; SET	1-33739-040-0	01	1	9202-		●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-334-0	01	1	9202-9504	●
37	HOUSING; POWER SHIFTER	1-33739-334-0	01	1	9202-9504		●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-771-0	01	1	9505-	●
37	HOUSING; POWER SHIFTER	1-33739-771-0	01	1	9505-		●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9202-	●
40	NUT; LEVER	1-33739-363-0	01	1	9202-		●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9202-	●
41	BOLT; SET,LEVER	1-33739-339-0	01	1	9202-		●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-054-0	01	1	9202-9504	●
48	LEVER; CONT,CABLE	1-33739-054-0	01	1	9202-9504		●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-775-0	01	1	9505-	●
48	LEVER; CONT,CABLE	1-33739-775-0	01	1	9505-		●
56	HOSE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9505-	●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	9505-		●
57	CLAMP; HOSE ASSISTER SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9505-	●
57	CLAMP; HOSE	1-33739-569-0	01	1	9505-		●
58	CLAMP; BOOT ASSISTER SHIFT CONTROL<WX8>	1-33739-562-0	01	1	9505-	●
58	CLAMP; BOOT	1-33739-562-0	01	1	9505-		●
59	SHIM; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-563-0	01	1	9505-	●
59	SHIM; POWER SHIFTER	1-33739-563-0	01	1	9505-		●
60	COLLAR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-773-0	01	1	9505-	●
60	COLLAR; CYL	1-33739-773-0	01	1	9505-		●
61	PLATE; VLV LIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-581-0	02	1	9505-	●
61	PLATE; VLV LIFTER	1-33739-581-0	02	1	9505-		●

2 23 4 56 35 26 23 25 9 26 23 9 17 22 17 9 17 9 12 17 12 6 7 6 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-498-0	01	1	9202-9504	●
2	REPAIR KIT; POWER SHIFTER	1-33739-498-0	01	1	9202-9504		●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-774-0	01	1	9505-	●
2	REPAIR KIT; POWER SHIFTER	1-33739-774-0	01	1	9505-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9202-9504	●
4	BOOT; POWER SHIFTER (A)	1-33739-030-0	01	1	9202-9504		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-571-0	01	1	9505-	●
4	BOOT; POWER SHIFTER (A)	1-33739-571-0	01	1	9505-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9202-	●
4	BOOT; POWER SHIFTER (B)	1-33739-038-0	01	1	9202-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-013-0	03	1	9202-	●
6	GASKET (A)	1-33739-013-0	03	1	9202-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-070-0	01	1	9202-9504	●
6	GASKET (B)	1-33739-070-0	01	1	9202-9504		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9202-9504	●
6	GASKET (D)	1-33739-080-0	01	1	9202-9504		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-365-0	01	1	9202-9504	●
6	GASKET (C)	1-33739-365-0	01	1	9202-9504		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9202-9504	●
7	FILTER; AIR (A)	1-33739-032-0	01	1	9202-9504		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9202-	●
7	FILTER; AIR (B)	1-33739-033-0	01	1	9202-		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9202-9504	●
9	RING; SQUARE	1-33739-086-0	03	1	9202-9504		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9505-	●
9	RING; SQUARE	1-33739-086-0	04	1	9505-		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9202-9504	●
12	RING; RET	1-33739-016-0	01	1	9202-9504		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9505-	●
12	RING; RET	1-33739-016-0	02	1	9505-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9202-	●
17	SEAL ASM; VALVE (A)	1-33739-012-0	02	1	9202-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9202-	●
17	SEAL ASM; VALVE (B)	9-83335-055-0	02	1	9202-		●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9202-	●
22	SEAL; OIL	1-33739-353-0	01	1	9202-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9202-9404	●
23	RING; RET (A)	1-33739-022-0	04	1	9202-9404		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9405-	●
23	RING; RET (A)	1-33739-022-0	02	1	9405-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9202-9504	●
23	RING; RET (B)	1-47819-109-0	01	1	9202-9504		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9505-	●
23	RING; RET (B)	1-33739-564-0	01	1	9505-		●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9202-	●
25	RING; "X",PISTON	1-33739-420-0	01	1	9202-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-028-0	01	1	9202-9504	●
26	GASKET (B)	1-33739-028-0	01	1	9202-9504		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9505-	●
26	GASKET (B)	1-33739-573-0	01	1	9505-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9202-	●
26	GASKET (A)	1-33739-496-0	01	1	9202-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9202-	●
35	GASKET; CUP (A)	1-33739-073-0	01	1	9202-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9202-9504	●
35	GASKET; CUP (B)	1-33739-075-0	01	1	9202-9504		●
56	HOSE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9505-	●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	9505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
