◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶

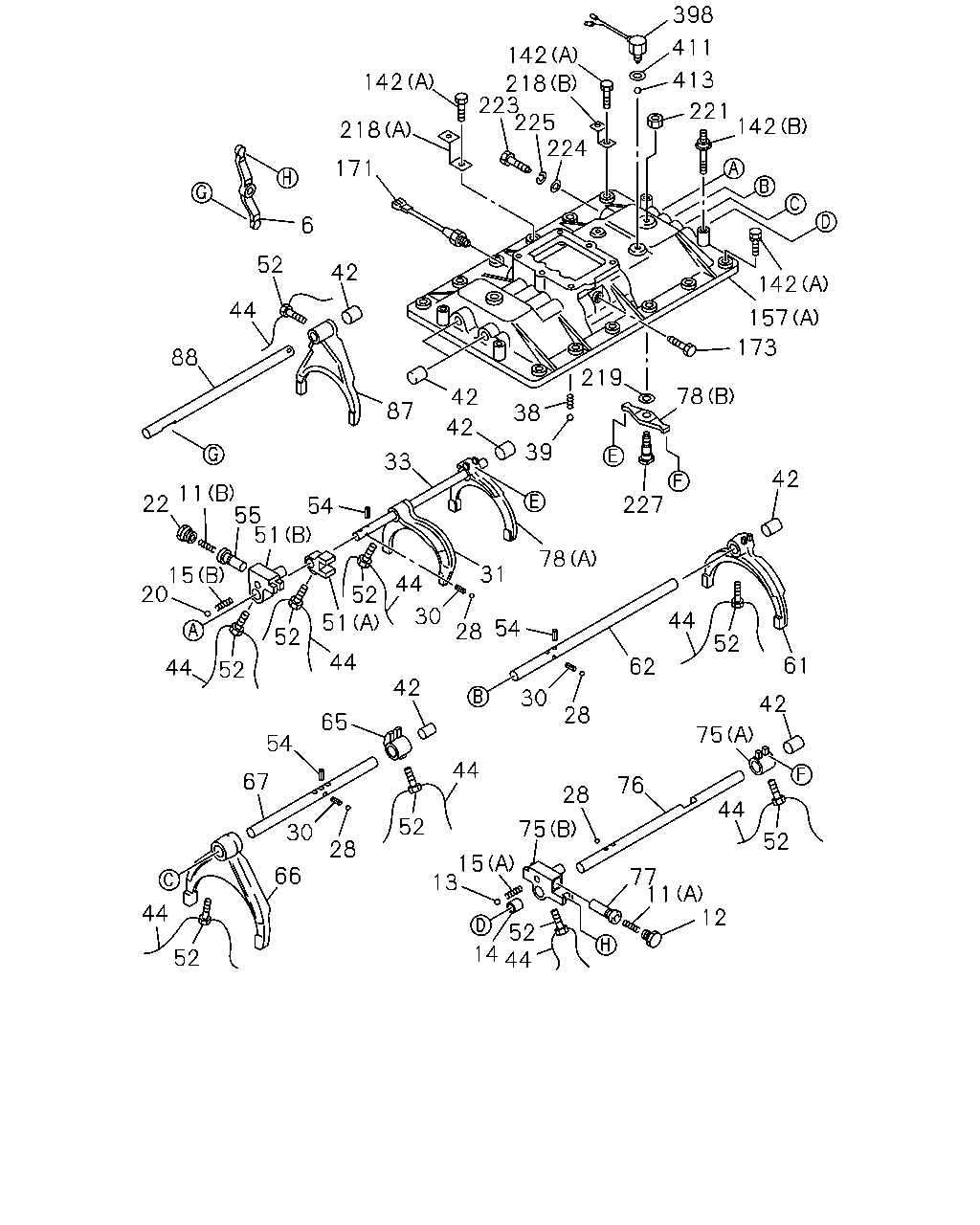

2-30A — GEAR SHIFTER AND QUADRANT BOX (#8994) — 201 parça

52 44 12 11 77 76 28 75 15 13 44 14 52 75 61 42 52 44 62 28 30 42 227 78 31 54 28 42 44 52 28 30 66 67 52 44 65 54 44 52 52 44 30 44 52 51 54 51 55 11 22 20 15 88 44 52 42 6 171 218 142 42 42 87 33 39 38 219 78 173 157 142 142 221 413 411 398 224 225 223 218 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	1-33511-233-1	01	1	0106-	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0106-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0106-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0106-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0106-	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	0106-	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	0106-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0106-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	0106-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0106-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0106-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0106-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0106-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	0106-	●
33	ROD; SHIFT,LOW & 2ND	1-33531-426-1	01	1	0106-	●
38	SPRING; DETENT	1-09580-379-0	04	1	0106-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0106-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0106-	●	●
44	WIRE; LK L=200	9-08351-020-0	02	1	0106-	●
44	WIRE; LK L=180	1-09780-024-0	07	1	0106-	●	●
44	WIRE; LK L=200	9-08351-020-0	03	1	0106-		●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-4	01	1	0106-	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-605-0	01	1	0106-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	09	1	0106-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	0106-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0106-	●	●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	0106-	●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	0106-	●
62	ROD; SHIFT,3RD & 4TH	1-33531-428-1	01	1	0106-	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-1	01	1	0106-	●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	0106-	●
67	ROD; SHIFT,5TH & 6TH	1-33531-429-1	01	1	0106-	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	0106-	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-4	01	1	0106-	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-432-1	01	1	0106-	●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	0106-	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0106-	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	0106-	●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	0106-	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-433-1	01	1	0106-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-388-1	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0106-		●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0106-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0106-	●	●
173	SCREW; SET,7TH TO REV	1-09000-446-1	01	1	0106-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0106-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0106-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0106-	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0106-0602	●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0106-	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0106-0605	●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0106-0603	●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0106-	●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	0106-		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0106-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0106-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0106-	●	●

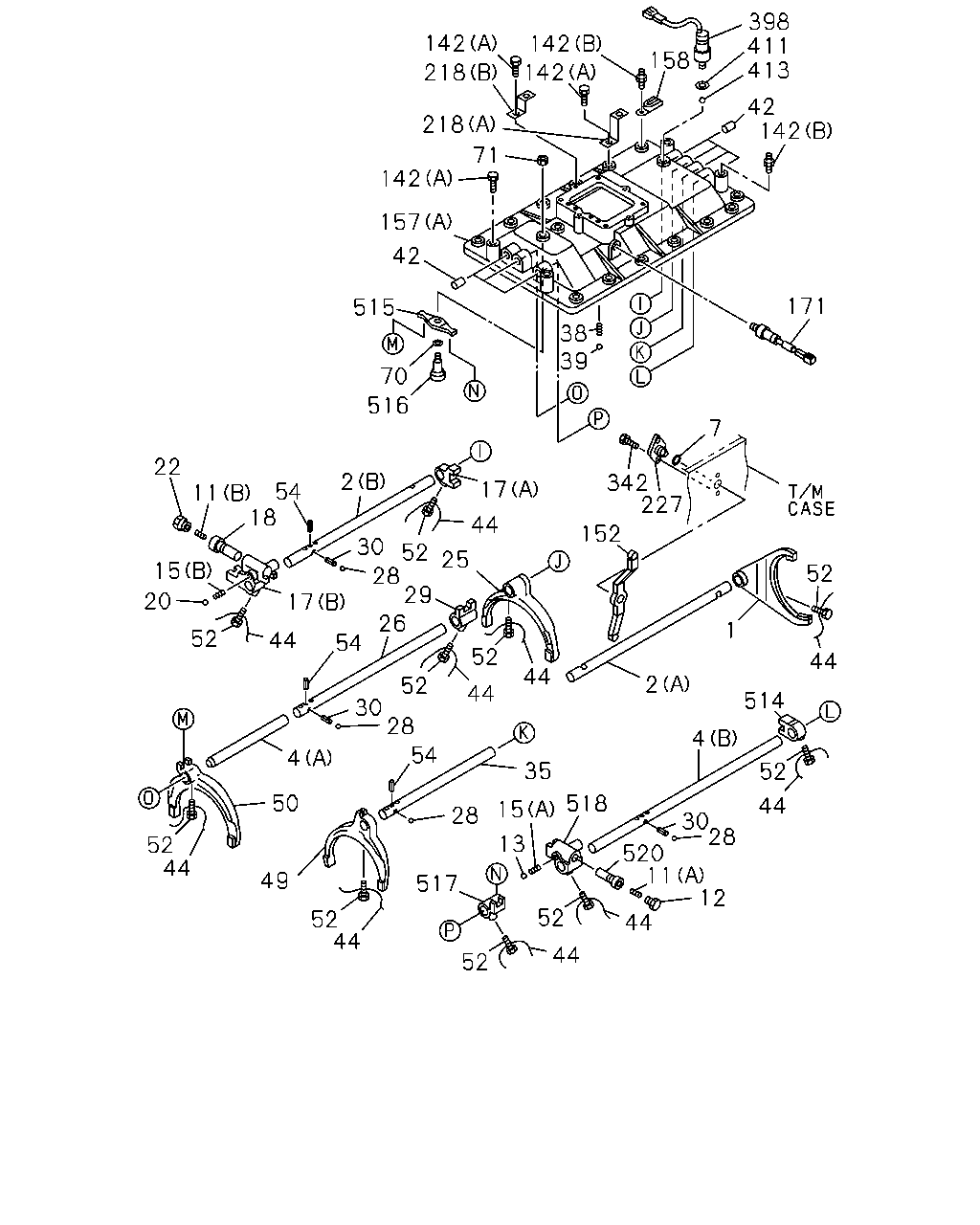

12 11 44 44 52 52 517 518 15 13 28 520 44 30 4 52 514 1 44 2 52 35 28 54 28 30 4 50 49 44 52 44 44 52 52 52 44 54 44 52 20 15 11 22 54 18 2 17 29 26 28 30 52 25 44 17 152 227 342 7 171 39 38 515 70 516 42 157 142 218 218 142 71 142 142 158 142 42 413 411 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-520-1	01	1	0106-		●
2	ROD; SHIFT,1ST & REV (B)	1-33531-418-1	01	1	0106-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-423-1	01	1	0106-		●
4	ROD; SHIFT,6TH (A)	1-33531-421-1	01	1	0106-		●
4	ROD; SHIFT,6TH (B)	1-33531-422-1	01	1	0106-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0106-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0106-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0106-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0106-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0106-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	0106-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0106-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	0106-		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-603-0	01	1	0106-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-605-0	01	1	0106-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0106-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0106-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0106-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	0106-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-419-1	01	1	0106-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0106-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-286-1	01	1	0106-0309		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0310-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0106-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-420-1	01	1	0106-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0106-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0106-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0106-	●	●
44	WIRE; LK L=200	9-08351-020-0	02	1	0106-	●
44	WIRE; LK L=180	1-09780-024-0	07	1	0106-	●	●
44	WIRE; LK L=200	9-08351-020-0	03	1	0106-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	0106-		●
50	ARM; SHIFT,6TH	1-33511-437-0	01	1	0106-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	09	1	0106-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	0106-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0106-	●	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0106-		●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0106-0602		●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
152	LEVER; RELAY,SELECT	1-33511-428-0	01	1	0106-		●
157	BOX; QUAD,TRANS (B)	1-33541-388-1	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0106-		●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0106-		●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0106-	●	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0106-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0106-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0106-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0106-	●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	0106-		●
342	BOLT M14X20	1-09044-078-0	02	1	0106-		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0106-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0106-	●	●
413	BALL; BACK SW	9-00097-013-0	01	1	0106-	●	●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	0106-		●
515	LEVER; SHIFT,6TH & 7TH	1-33511-082-0	01	1	0106-		●
516	SPINDLE; 6TH & 7TH	1-33519-012-0	01	1	0106-		●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-395-1	01	1	0106-		●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-293-2	01	1	0106-		●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	0106-		●

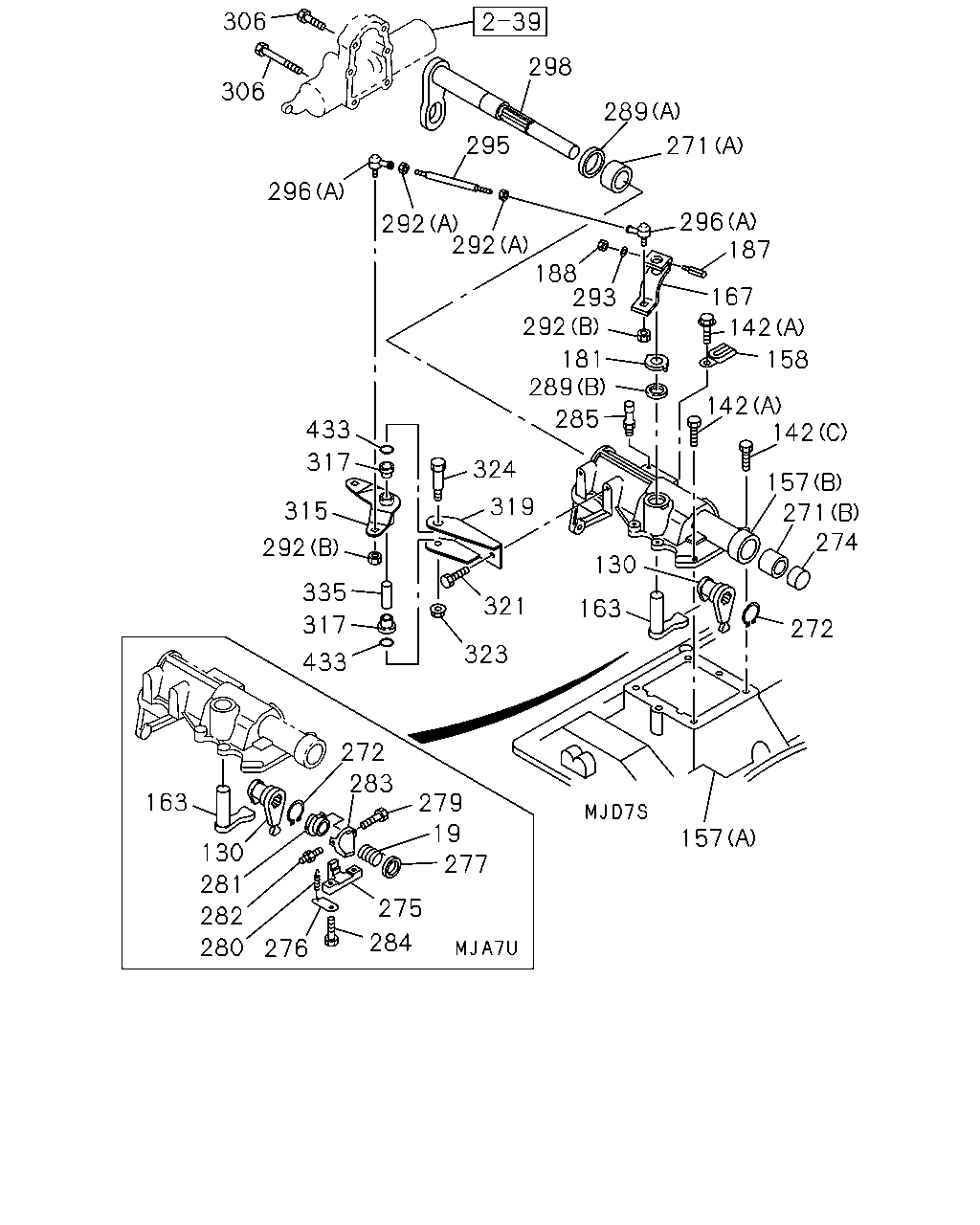

272 274 271 157 142 142 158 142 167 187 296 271 289 298 295 306 306 296 292 292 292 293 188 181 289 285 130 163 323 321 319 324 157 277 279 19 275 284 283 272 163 130 281 282 280 276 433 317 335 292 315 317 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP	1-09580-519-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL	1-33521-125-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	0106-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
157	BOX; QUAD,TRANS (B)	1-33541-388-1	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0106-		●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0106-		●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0106-	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0106-	●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	0106-		●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL	1-33521-163-0	01	1	0106-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0106-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0106-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0106-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	0106-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	0106-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0106-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0106-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-031-1	01	1	0106-	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	0106-	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	0106-	●
279	BOLT; STOPPER M5X8	0-20800-508-0	01	1	0106-	●
280	SPRING; COIL TENSION	1-09583-285-0	01	1	0106-	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	0106-	●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	0106-	●
283	STOPPER; SHIFT SHAFT	1-33529-032-0	01	1	0106-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	0106-	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0106-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0106-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0106-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0106-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0106-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0106-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER	9-08400-817-0	01	1	0106-	●
295	ROD; LINK,RELAY LEVER	1-33652-801-0	01	1	0106-0507		●
295	ROD; LINK,RELAY LEVER	9-08400-816-0	01	1	0508-		●
296	ROD END (A)	1-09760-108-0	02	1	0106-	●	●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	0106-0307	●
298	SHAFT; SHIFT LEVER	1-33522-179-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER	1-33522-161-0	01	1	0106-0307		●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	0308-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0106-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	0106-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	0601-	●	●
315	LEVER; SELECT	1-33651-960-0	01	1	0106-	●
315	LEVER; SELECT	1-33651-754-0	01	1	0106-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0106-	●	●
319	BRACKET; SELECT LEVER	1-33657-590-0	01	1	0106-	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	0106-		●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0106-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0106-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0106-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0106-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0106-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
