◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25B - SPEEDOMETER DRIVEN GEAR ▶
2-25B — SPEEDOMETER DRIVEN GEAR (#8991) — 22 parça

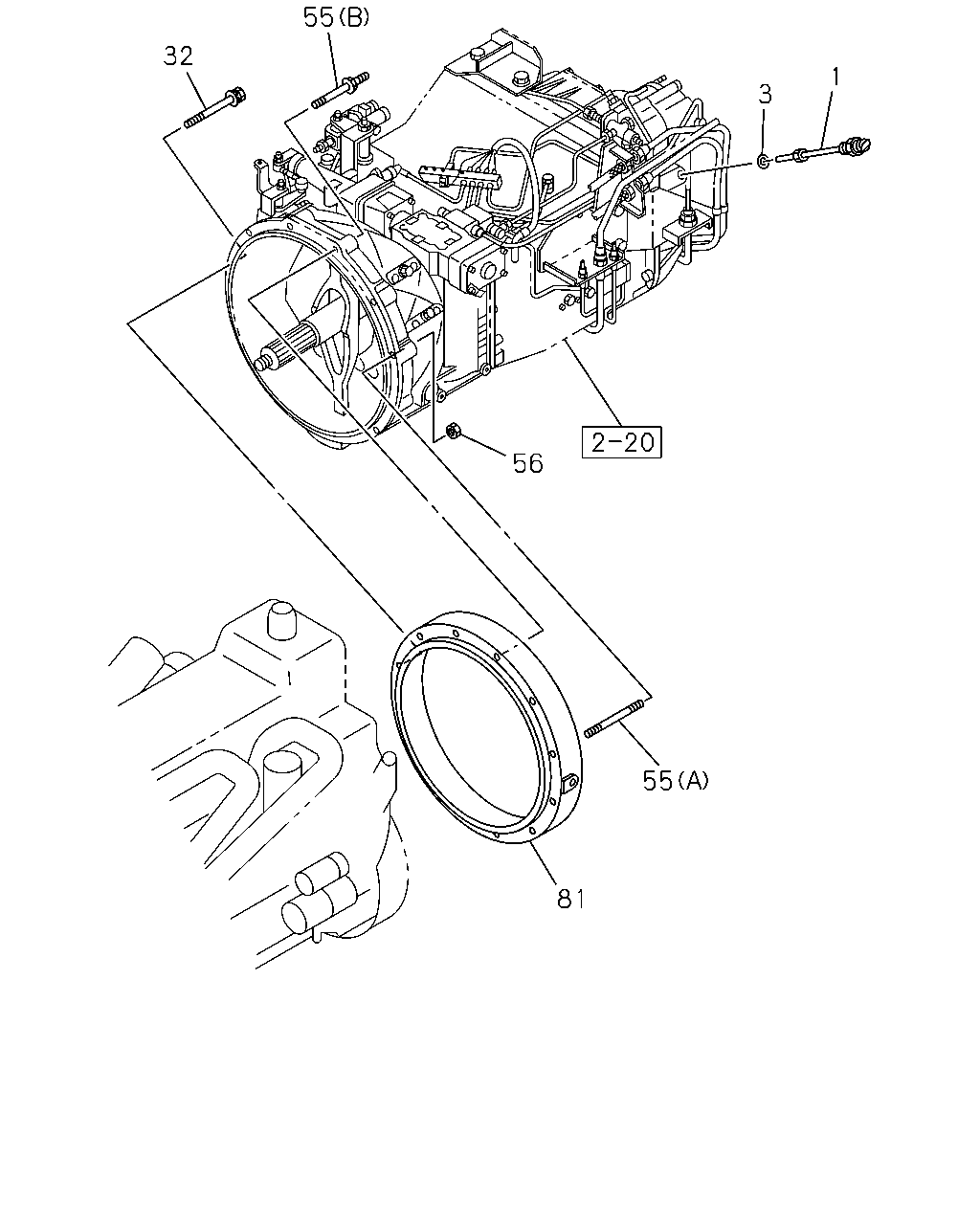

çizim 74871
1 3 32 55 56 55 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD 1-33372-164-0 01 1 0106- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-33379-007-0 01 1 0106- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6WA1 TC-C(55L),6WG1 TC-C(72L) M12X125 FLANGE 		1-09044-099-0 05 1 0312- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M12X125 FLANGE 		1-09044-099-0 05 1 0106-0311 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6WF1 TC-C(1B8) M12X125 FLANGE 		1-09044-099-0 07 1 0312- ●
55 STUD; FLYWHEEL HSG
(B) M10X18,M12X126 L=155.5 		1-09049-030-0 02 1 0106-0311 ● ●
55 STUD; FLYWHEEL HSG
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X18,M12X126 L=155.5 		1-09049-030-0 02 1 0312- ● ●
55 STUD; FLYWHEEL HSG
(A) M12X124 L=142 		1-09302-164-0 05 1 0106- ● ●
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91150-212-0 05 1 0106-0602 ● ●
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91180-212-0 05 1 0603- ● ●
81 SPACER 1-31119-018-3 01 1 0106- ● ●

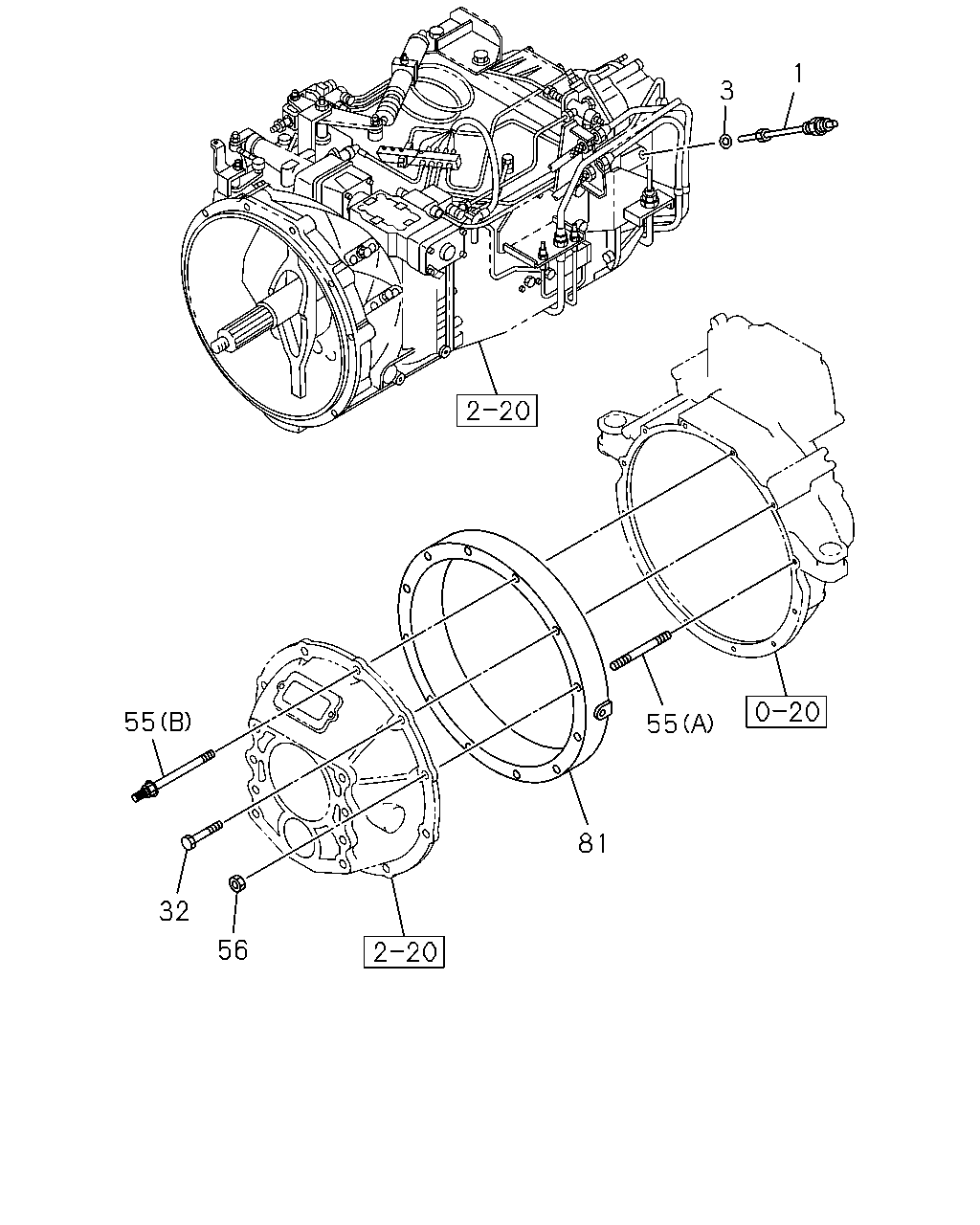

çizim 74904
1 3 81 56 32 55 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD 1-33372-164-0 01 1 0106- ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-33379-007-0 01 1 0106- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6WA1 TC-C(55L),6WG1 TC-C(72L) M12X125 FLANGE 		1-09044-099-0 05 1 0312- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
M12X125 FLANGE 		1-09044-099-0 05 1 0106-0311 ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
6WF1 TC-C(1B8) M12X125 FLANGE 		1-09044-099-0 07 1 0312- ●
55 STUD; FLYWHEEL HSG
(B) M10X18,M12X126 L=155.5 		1-09049-030-0 02 1 0106-0311 ● ●
55 STUD; FLYWHEEL HSG
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X18,M12X126 L=155.5 		1-09049-030-0 02 1 0312- ● ●
55 STUD; FLYWHEEL HSG
(A) M12X124 L=142 		1-09302-164-0 05 1 0106- ● ●
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91150-212-0 05 1 0106-0602 ● ●
56 NUT; CLU HSG TO FLYWHEEL HSG
M12 FLANGE 		0-91180-212-0 05 1 0603- ● ●
81 SPACER 1-31119-018-3 01 1 0106- ● ●
