2-25A — SPEEDOMETER DRIVEN GEAR (#8990) — 60 parça

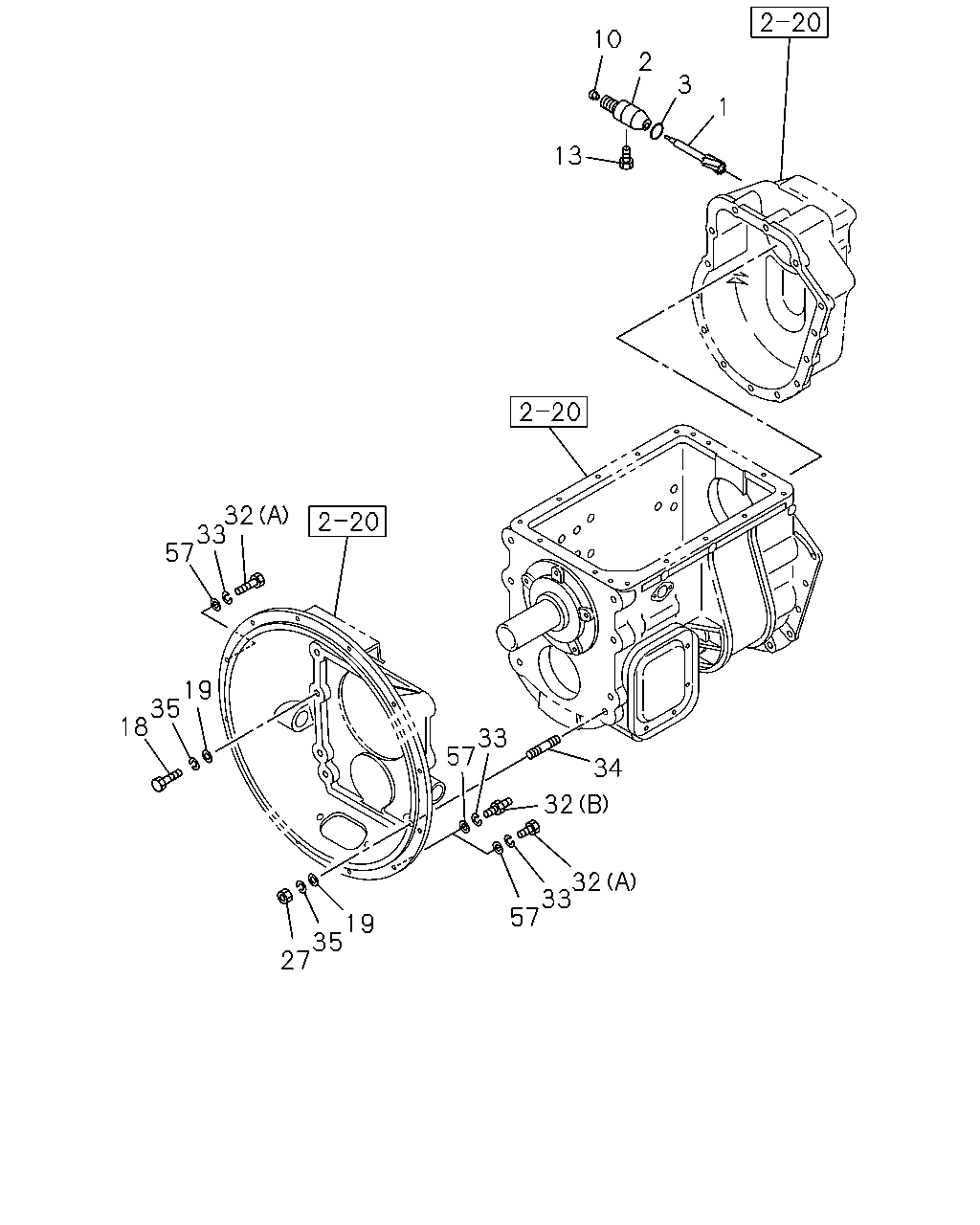

1 3 2 10 13 32 33 57 19 35 18 19 35 27 34 32 33 57 32 33 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0106-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0106-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0106-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0106-	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0106-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0106-0512	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0106-0605	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0106-0512	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WA1 TC-C(55L) (A) M12X60	0-28181-260-0	08	1	0312-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WA1 TC-C(55L) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WA1 TC-C(55L) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0106-0311	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60	0-28181-260-0	10	1	0312-0512		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60 FLANGE	0-28151-260-0	10	1	0601-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0106-0311	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0312-		●
33	WASHER; LK,CLU HSG 6WA1 TC-C(55L) ID=12.2	9-09150-612-0	04	1	0312-0603	●
33	WASHER; LK,CLU HSG 6WA1 TC-C(55L) ID=12.2	0-91510-612-0	04	1	0604-	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0106-0311	●	●
33	WASHER; LK,CLU HSG 6WF1 TC-C(1B8) ID=12.2	9-09150-612-0	02	1	0312-0603		●
33	WASHER; LK,CLU HSG 6WF1 TC-C(1B8) ID=12.2	0-91510-612-0	02	1	0604-		●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0106-	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0106-0603	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●	●
57	WASHER; PL,CLU HSG 6WA1 TC-C(55L) ID=12.5	9-09164-512-0	04	1	0312-	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0106-0311	●	●
57	WASHER; PL,CLU HSG 6WF1 TC-C(1B8) ID=12.5	9-09164-512-0	02	1	0312-		●

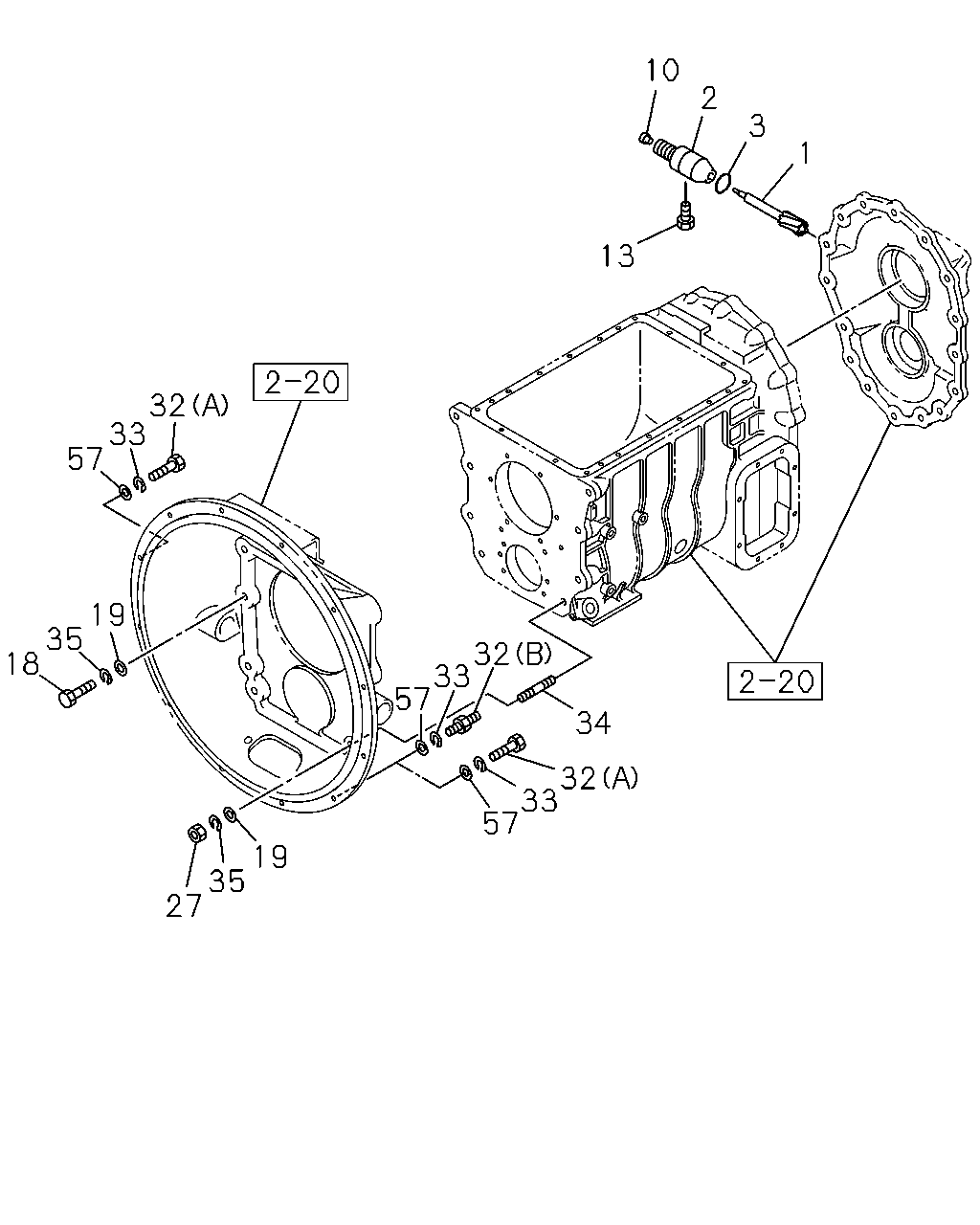

1 3 2 10 13 32 33 57 19 35 18 33 57 34 32 32 33 57 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0106-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0106-	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0106-	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0106-	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0106-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0106-0512	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0106-0605	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0106-0512	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WA1 TC-C(55L) (A) M12X60	0-28181-260-0	08	1	0312-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WA1 TC-C(55L) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WA1 TC-C(55L) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0106-0311	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60	0-28181-260-0	10	1	0312-0512		●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60 FLANGE	0-28151-260-0	10	1	0601-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0106-0311	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0312-		●
33	WASHER; LK,CLU HSG 6WA1 TC-C(55L) ID=12.2	9-09150-612-0	04	1	0312-0603	●
33	WASHER; LK,CLU HSG 6WA1 TC-C(55L) ID=12.2	0-91510-612-0	04	1	0604-	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0106-0311	●	●
33	WASHER; LK,CLU HSG 6WF1 TC-C(1B8) ID=12.2	9-09150-612-0	02	1	0312-0603		●
33	WASHER; LK,CLU HSG 6WF1 TC-C(1B8) ID=12.2	0-91510-612-0	02	1	0604-		●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0106-	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0106-0603	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●	●
57	WASHER; PL,CLU HSG 6WA1 TC-C(55L) ID=12.5	9-09164-512-0	04	1	0312-	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0106-0311	●	●
57	WASHER; PL,CLU HSG 6WF1 TC-C(1B8) ID=12.5	9-09164-512-0	02	1	0312-		●
