◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#8989) — 432 parça

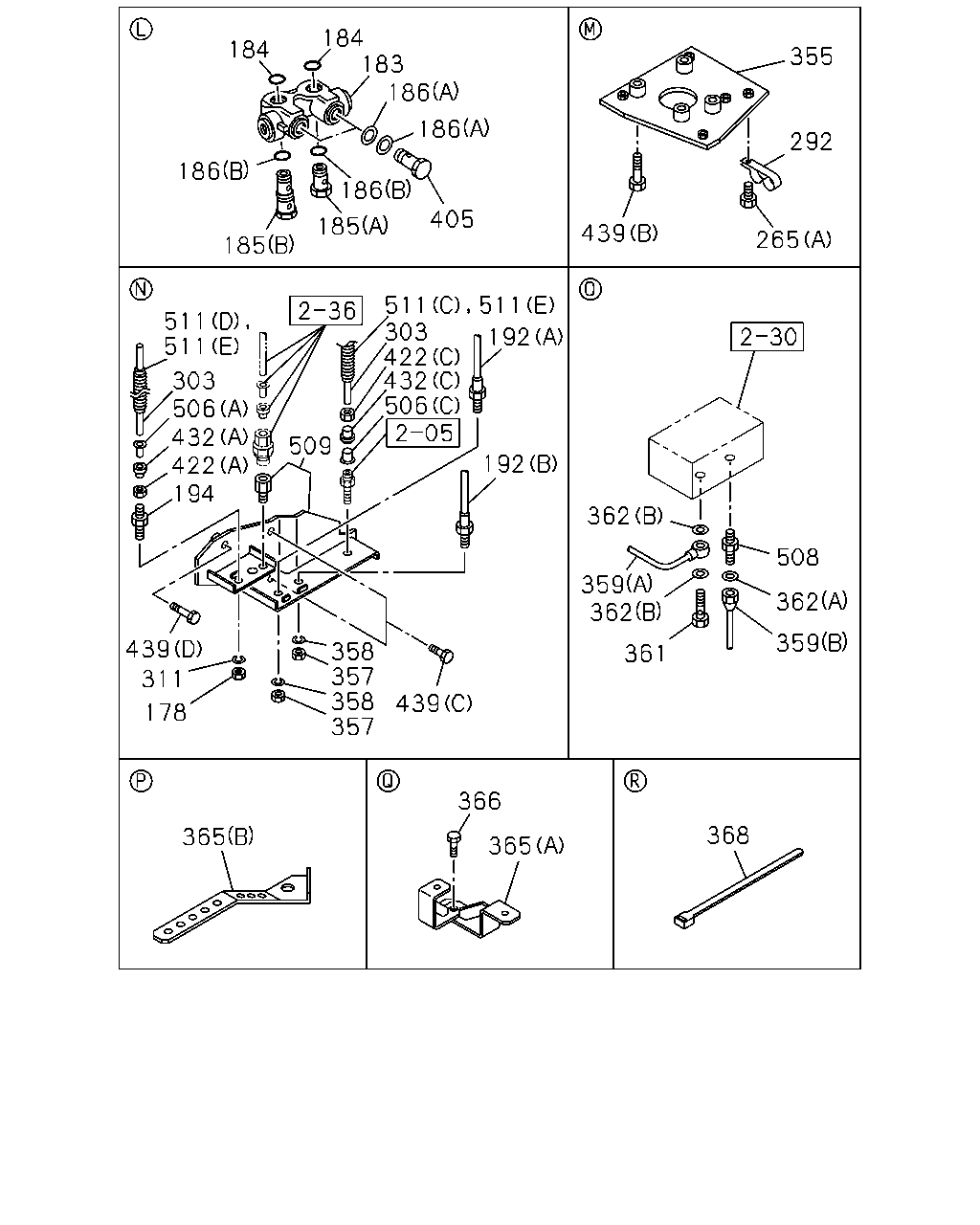

çizim 17357
368 365 366 365 178 439 311 357 358 357 358 439 361 359 508 362 362 359 362 192 265 292 355 439 405 192 511 511 506 432 422 303 186 185 186 186 183 184 184 186 185 511 511 303 194 422 509 432 506
BalonParca AdiParca NoAdetTipApplied Date A B
178 NUT; UNION
M14 		9-99111-414-0 01 1 0106-0512 ● ●
178 NUT; UNION
M14 		0-91111-514-0 01 1 0601- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0106- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0106- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0106- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=400 		1-09364-913-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=500 		1-09364-914-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0106- ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0106- ● ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512 ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28680-840-0 01 1 0106-0512 ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0106-0603 ● ●
311 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0106- ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0106- ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0106-0512 ● ●
357 NUT; UNION,FLEX HOSE
M22 		0-91111-522-0 02 1 0601- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0106-0603 ● ●
358 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0106- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0106- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0106- ● ●
365 BRACKET; HARNESS
(C) 		1-47477-902-0 01 1 0109- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0106-0512 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28151-225-0 01 1 0601- ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28181-216-0 01 1 0109-0512 ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28151-216-0 01 1 0601- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0106-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0106-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106- ● ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0106- ● ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0106- ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0106- ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(E) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●

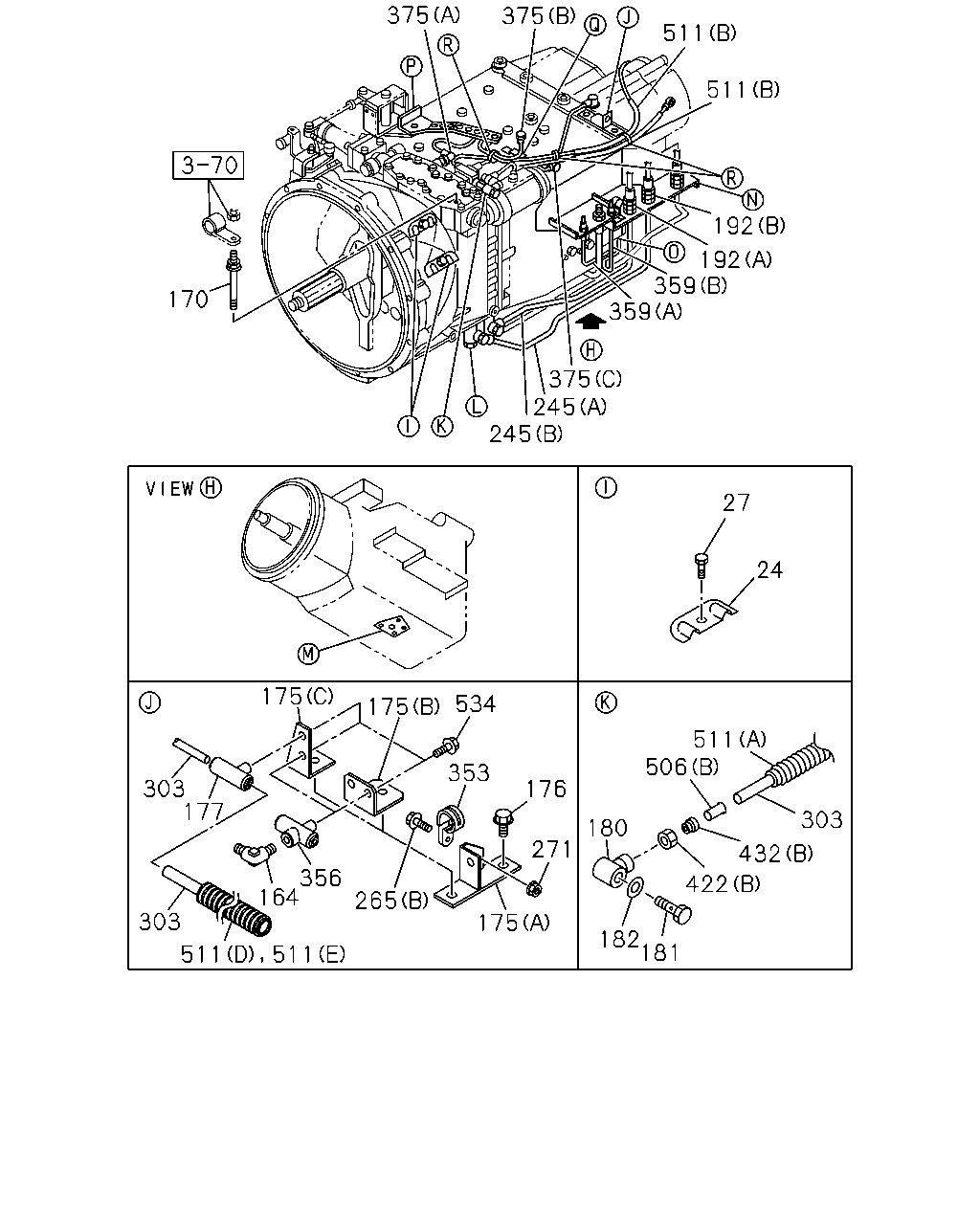

çizim 17718
181 182 422 303 432 511 506 180 176 271 175 265 353 534 175 175 356 164 177 303 303 511 511 245 245 375 359 359 192 192 511 511 375 375 170 24 27
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0106- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0106-0512 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106- ● ●
170 STUD; QUAD BOX 1-09052-017-1 01 1 0108- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0106- ● ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0106-0512 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0106- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0106- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=400 		1-09364-913-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=500 		1-09364-914-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0106- ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0106- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0106- ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512 ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28680-840-0 01 1 0106-0512 ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0106- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0106- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106- ● ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106- ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(E) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●

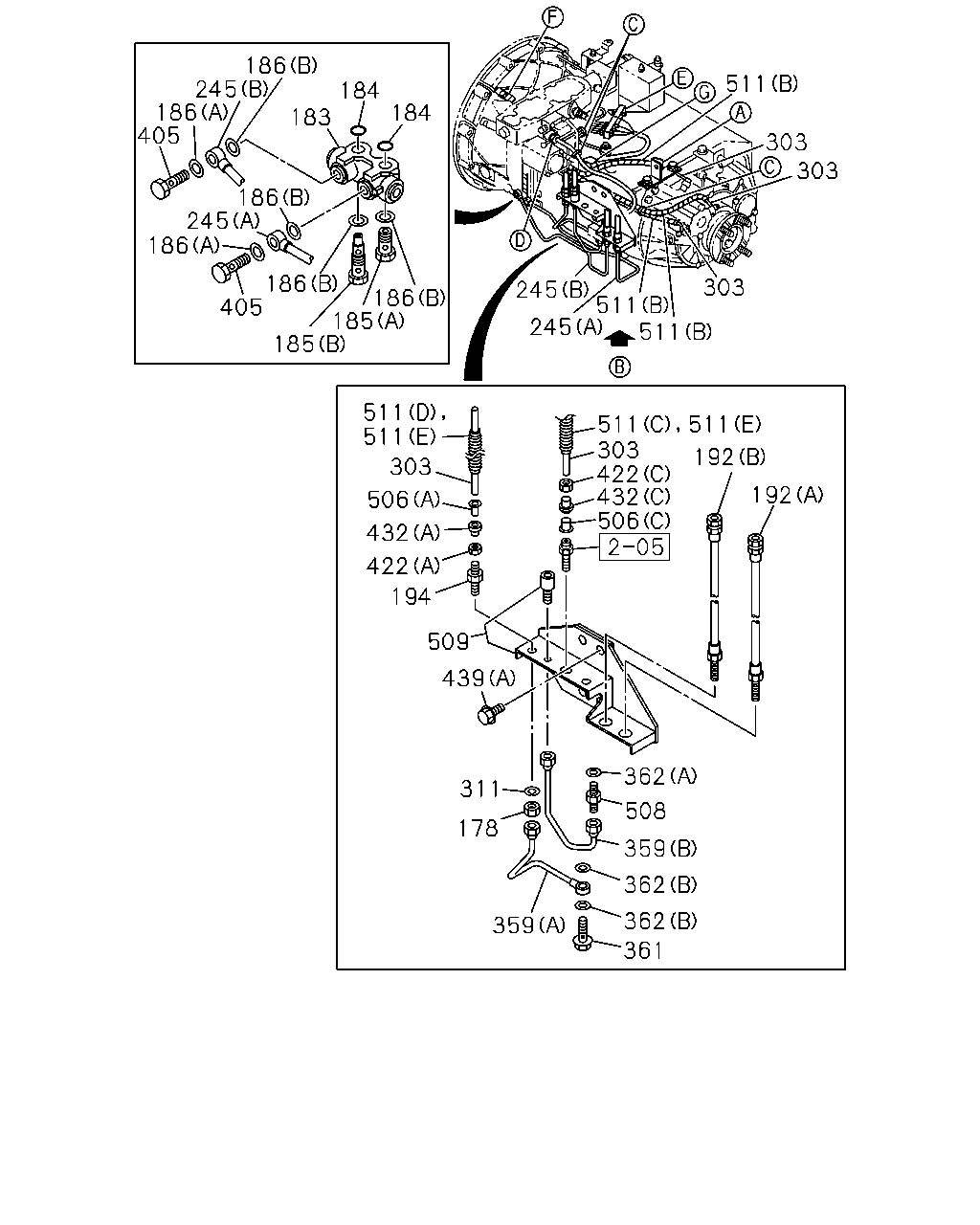

çizim 18939
186 245 186 405 183 184 184 186 245 186 186 405 186 185 185 303 303 511 511 303 511 245 245 192 192 511 511 506 432 422 303 511 511 303 506 194 422 432 509 439 361 362 362 508 359 362 359 178 311
BalonParca AdiParca NoAdetTipApplied Date A B
178 NUT; UNION
M14 		9-99111-414-0 01 1 0106-0512 ● ●
178 NUT; UNION
M14 		0-91111-514-0 01 1 0601- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0106- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0106- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0106- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0106- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0106- ● ●
192 HOSE; FLEX,TRANS
(B) L=400 		1-09364-913-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=500 		1-09364-914-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(B) L=535 		1-09364-936-0 01 1 0106- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0106- ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0106- ● ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0106- ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0106- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0106- ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0106-0603 ● ●
311 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0604- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0106- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0106- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0106-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0106-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106- ● ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0106- ● ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0106- ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0106- ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(E) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●

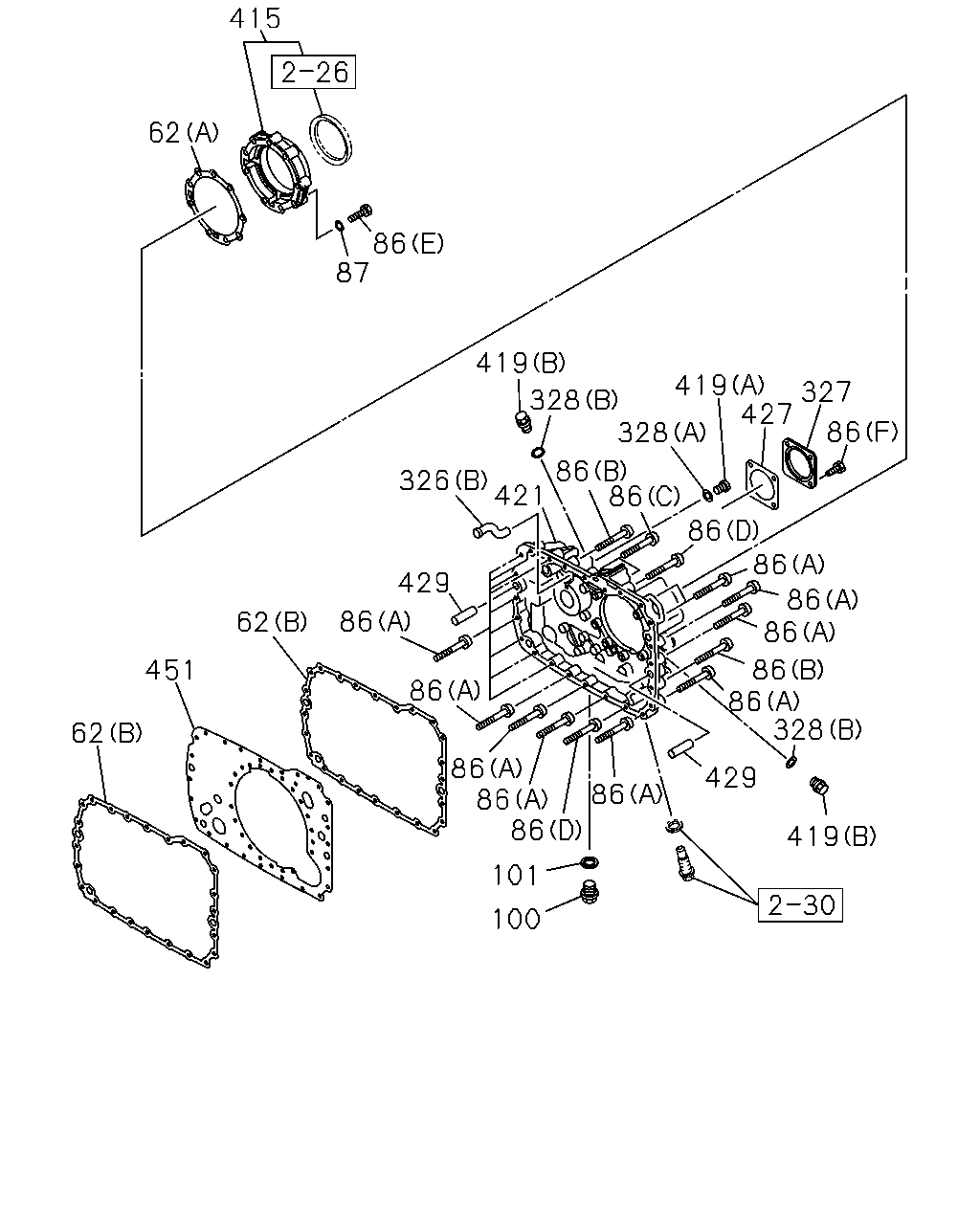

çizim 18940
327 427 419 86 86 328 86 86 86 86 328 86 429 419 86 86 86 86 101 100 86 429 86 62 451 62 326 421 86 86 328 419 86 87 62 415
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 0106- ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 0106- ● ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 0106- ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 0106- ● ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 0106- ● ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 0106- ● ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 0106- ● ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 0106- ● ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 0106- ● ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 0106- ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0106- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0106- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 0106- ● ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0106- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0106- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0106- ● ●
415 COVER; BRG 1-33159-039-0 01 1 0106- ● ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 0106- ● ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 0106- ● ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 0106- ● ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0106- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0106- ● ●
451 PLATE; RR COVER 1-33139-055-0 01 1 0106- ● ●

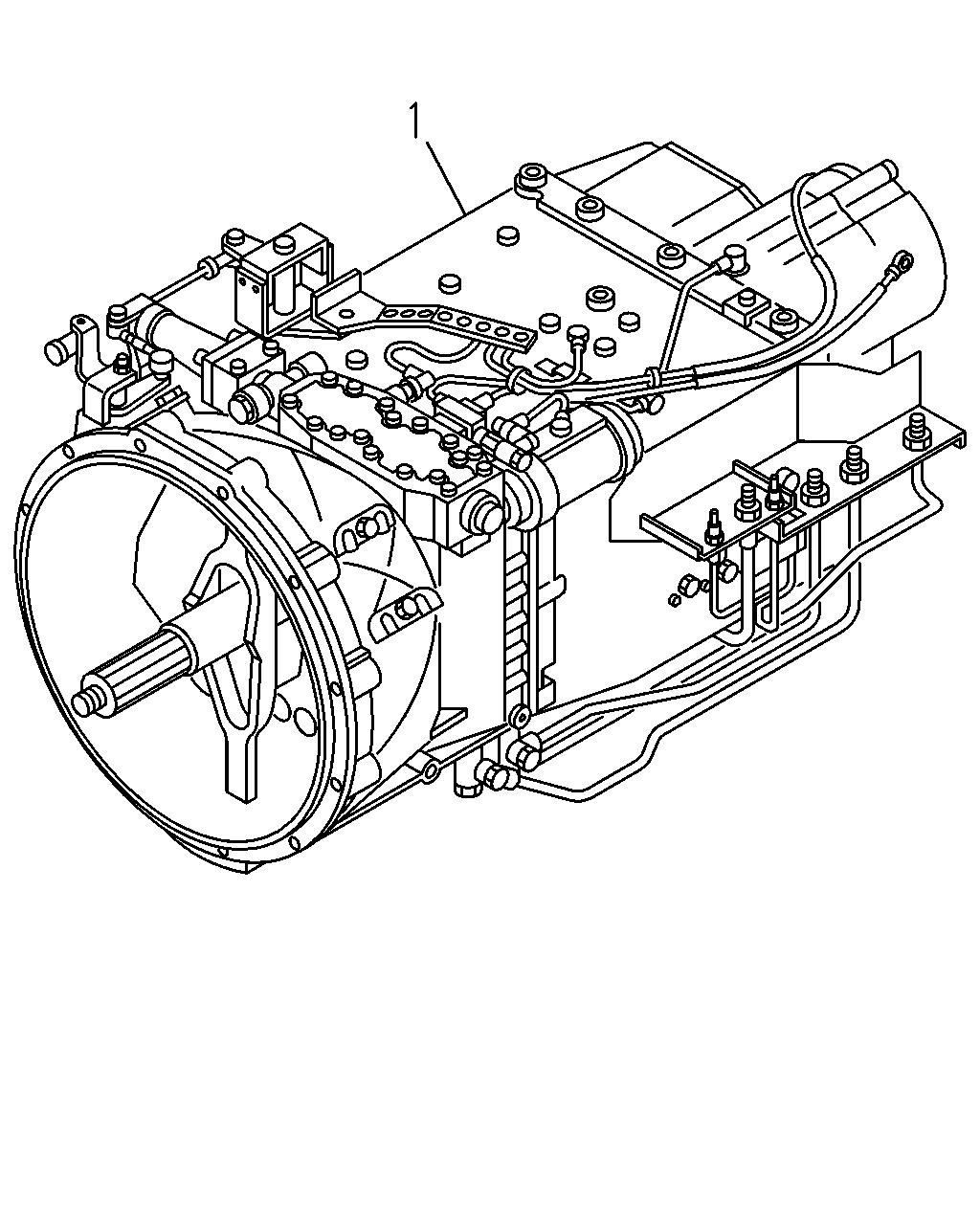

çizim 19674
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-021-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-383-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-382-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-380-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-379-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110- ●

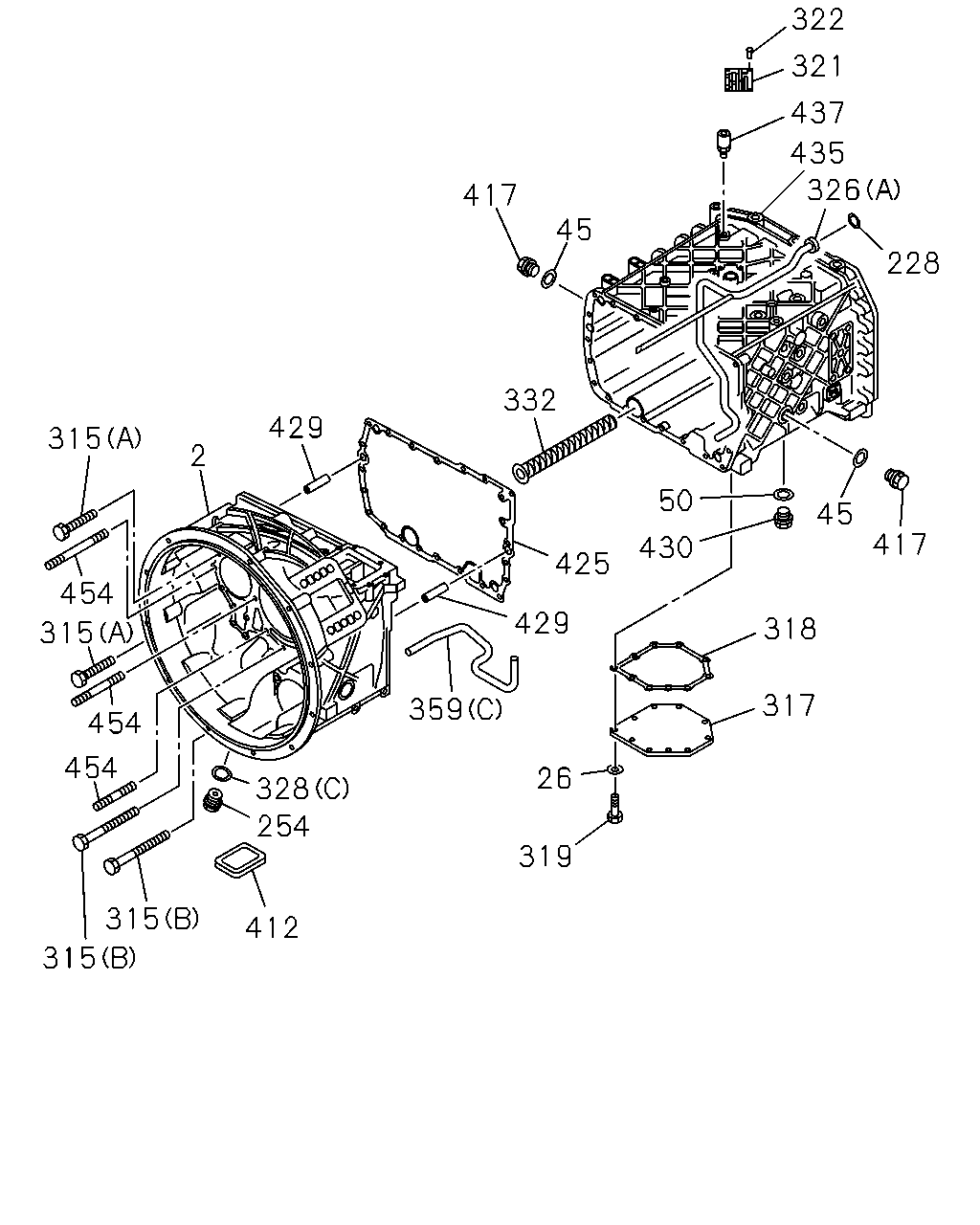

çizim 73048
228 326 435 437 321 322 417 45 332 50 417 45 430 425 318 317 26 319 429 359 429 2 315 454 315 454 454 328 254 412 315 315
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-194-0 01 1 0106- ● ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 0106- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 0106- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0106- ● ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 0106- ● ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 0106- ● ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 0106- ● ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 0106- ● ●
317 COVER; CASE 1-33119-274-0 01 1 0106- ● ●
318 GASKET; COVER 1-33119-409-0 01 1 0106- ● ●
319 BOLT; COVER 1-33119-276-0 10 1 0106- ● ●
321 PLATE; NAME 1-33119-277-0 01 1 0106- ● ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0106- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0106- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0106- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0106- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0106- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0106- ● ●
332 FILTER; OIL 1-33119-370-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0106-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 0106- ● ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 0106- ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 0106- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0106- ● ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 0106- ● ●
435 CASE; TRANS 1-33111-290-0 01 1 0106- ●
435 CASE; TRANS 1-33111-286-0 01 1 0106- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 0106- ● ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 0106- ● ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 0106- ● ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 0106- ● ●

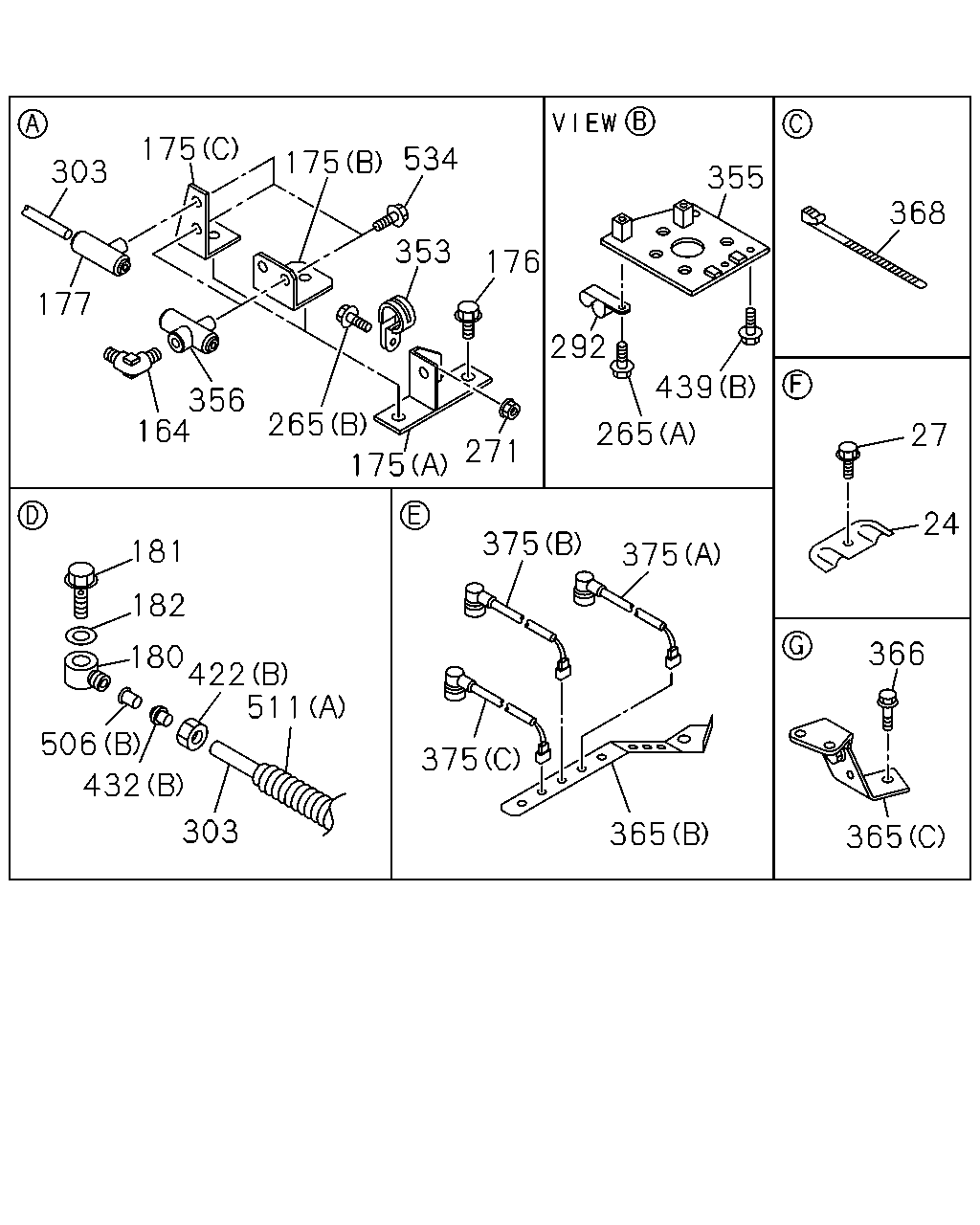

çizim 73359
365 366 24 27 368 355 439 265 292 375 375 365 375 303 511 422 180 182 181 432 506 265 164 175 271 176 353 534 175 175 303 177 356
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0106- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0106-0512 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0106- ● ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0106-0512 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0106- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0106- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0106- ● ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0106-0512 ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28680-840-0 01 1 0106-0512 ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0106- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202-0212 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0107-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202-0212 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301- ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 02 1 0107-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 02 1 0202- ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0106- ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0106- ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0106- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0106- ● ●
365 BRACKET; HARNESS
(C) 		1-47477-902-0 01 1 0109- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0106-0512 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28151-225-0 01 1 0601- ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28181-216-0 01 1 0109-0512 ●
366 BOLT; BRKT,HARNESS
M12X16 		0-28151-216-0 01 1 0601- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0106- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0106- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0106- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0106- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0106-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0106-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0106-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0106-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0106- ● ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0106- ● ●
511 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0202- ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
(E) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0106- ● ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(D) L=2000 ID=10 		1-87410-088-0 02 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(E) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●

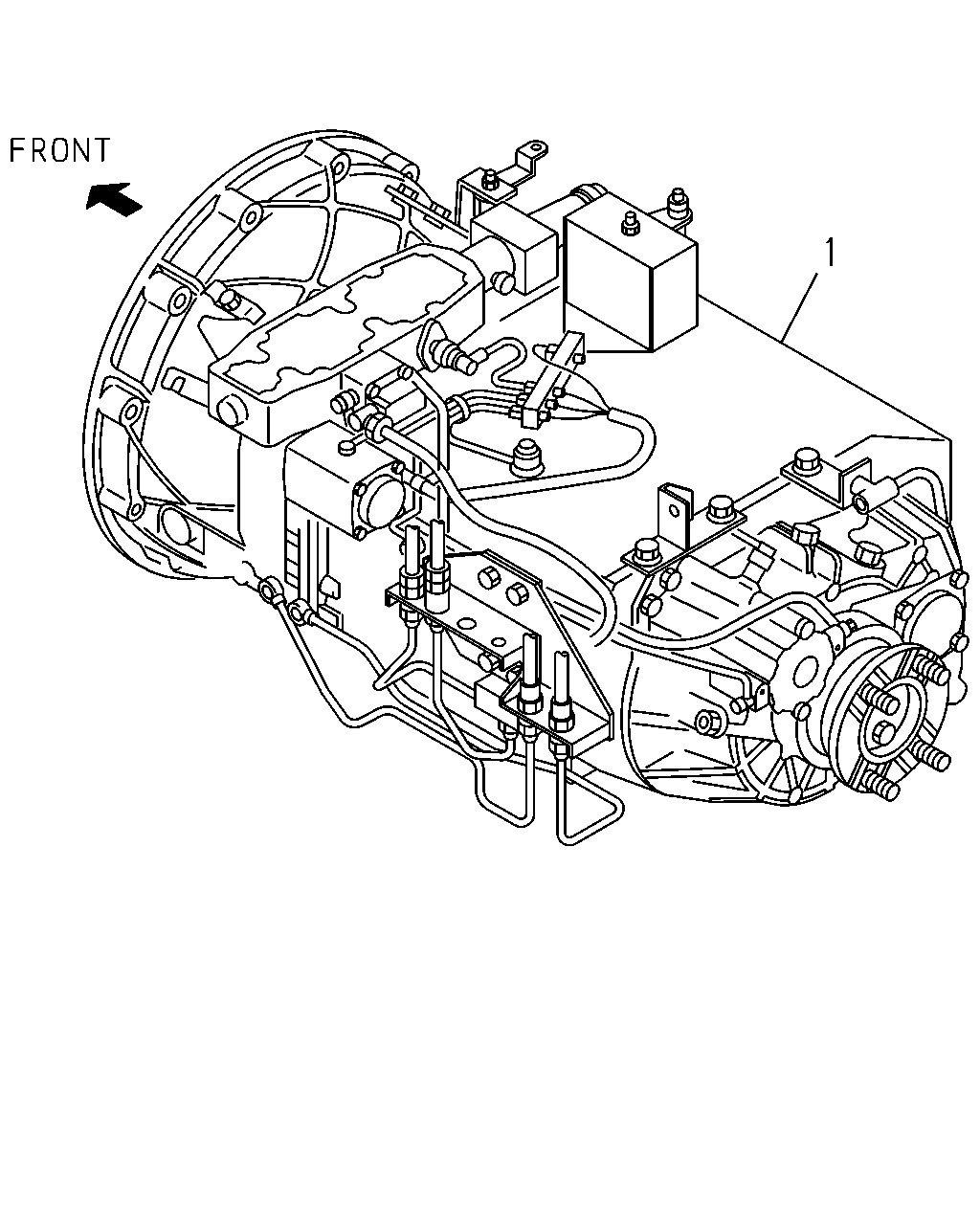

çizim 74673
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-021-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-383-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-382-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-380-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-379-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0106-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110- ●

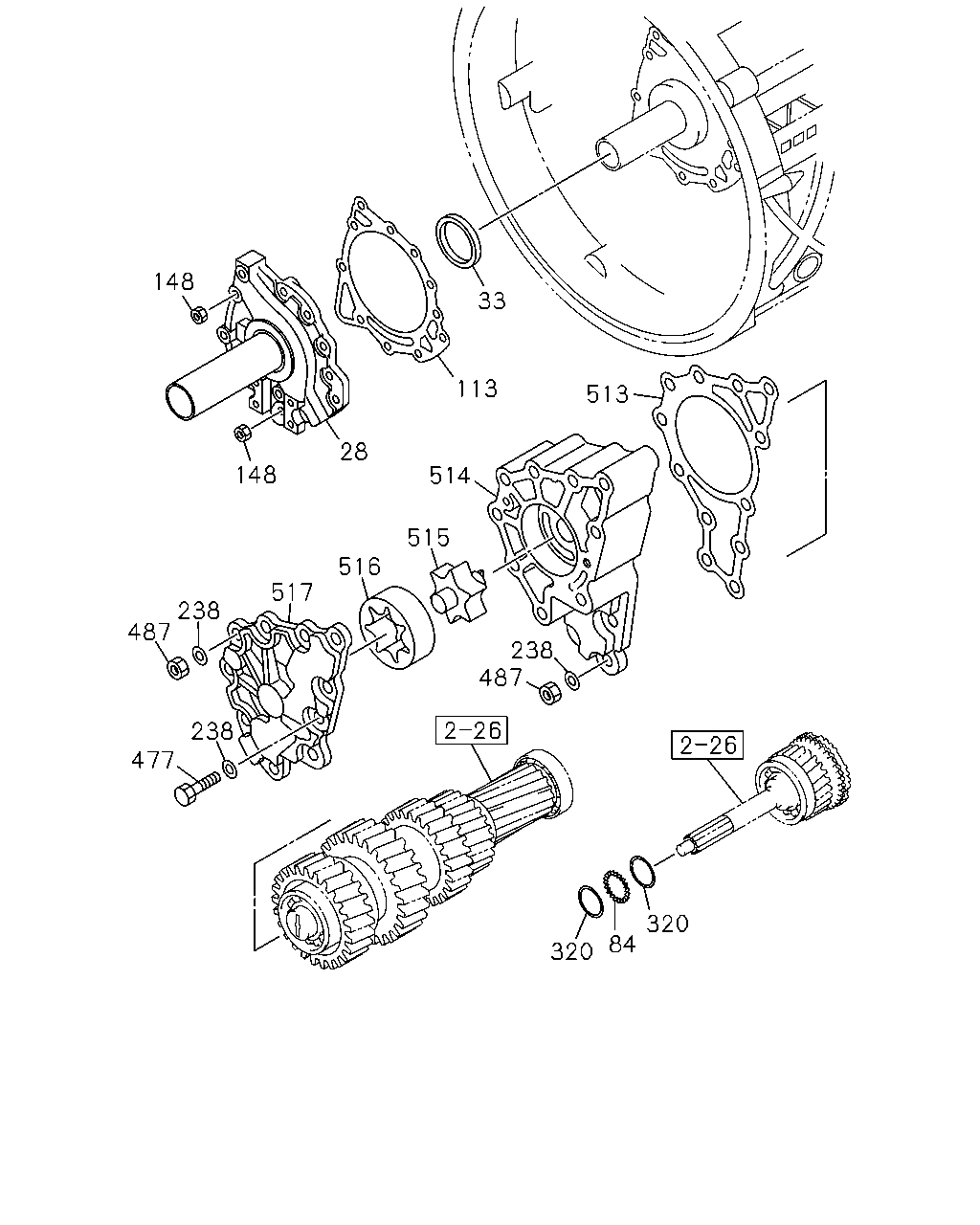

çizim 74727
320 84 320 487 238 515 516 517 238 487 238 477 514 28 148 513 113 33 148
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 0106- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 0106- ● ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 0106- ● ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 0106- ● ●
148 NUT 1-33529-056-0 11 1 0106- ● ●
238 WASHER; PL 1-09469-010-0 14 1 0106- ● ●
320 WASHER; COVER 1-33129-007-0 02 1 0106- ● ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 0106- ● ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 0106- ● ●
513 GASKET; HOUSING 1-34159-058-0 01 1 0106- ● ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 0106- ● ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 0106- ● ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 0106- ● ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
