2-20A — MANUAL TRANSMISSION ASM AND CASE (#8988) — 187 parça

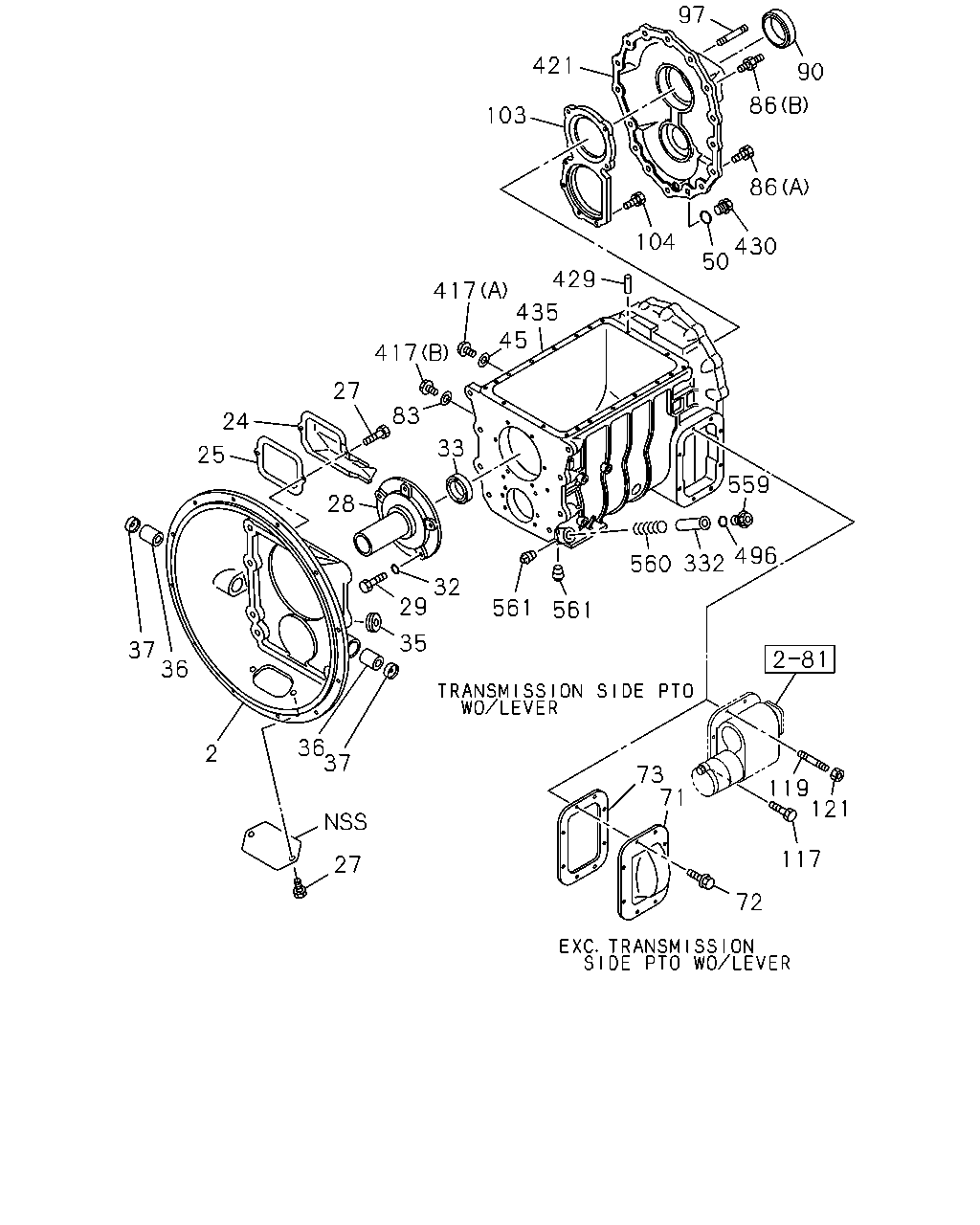

103 421 97 90 86 86 430 50 104 429 435 45 417 417 33 83 27 24 25 28 559 496 332 560 561 561 32 29 35 37 36 2 36 37 27 73 71 119 121 117 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-203-0	01	1	0106-	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0106-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0106-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0106-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0106-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0106-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0106-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0106-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0106-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0106-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0106-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0106-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0106-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	0106-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0106-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0106-0512		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0106-0512	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28151-220-0	08	1	0601-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	0106-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0106-	●
83	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=22.5	9-09571-422-0	01	1	0106-0106	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	0106-		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0106-		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0106-		●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0106-0512	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0106-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0106-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0106-	●	●
103	RETAINER; BRG	1-33151-035-1	01	1	0106-		●
103	RETAINER; BRG	1-33151-059-0	01	1	0106-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0106-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0106-0512	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-0605	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	08	1	0606-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0106-0605	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	0106-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	0106-0512		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0106-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28151-225-0	02	1	0601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0106-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28156-212-0	02	1	0601-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0106-0604		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0106-0604	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0106-0602		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0106-0602	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-	●
332	FILTER; OIL	1-41383-003-0	01	1	0106-	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0106-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0106-	●
421	COVER; RR,TRANS	1-33131-197-2	01	1	0106-		●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0106-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0106-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0106-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0106-	●	●
435	CASE; TRANS	1-33111-195-1	01	1	0106-		●
435	CASE; TRANS	1-33111-321-0	01	1	0106-0510	●
435	CASE; TRANS	1-33111-356-0	01	1	0511-	●
496	GASKET; OIL FILTER ID=26.8	1-09623-058-0	01	1	0106-	●
559	PLUG; OIL M24X17 FLANGE	1-09604-023-0	01	1	0106-	●
560	SPRING; OIL	1-09580-504-0	01	1	0106-	●
561	PLUG PT1/4	9-99204-513-0	02	1	0106-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

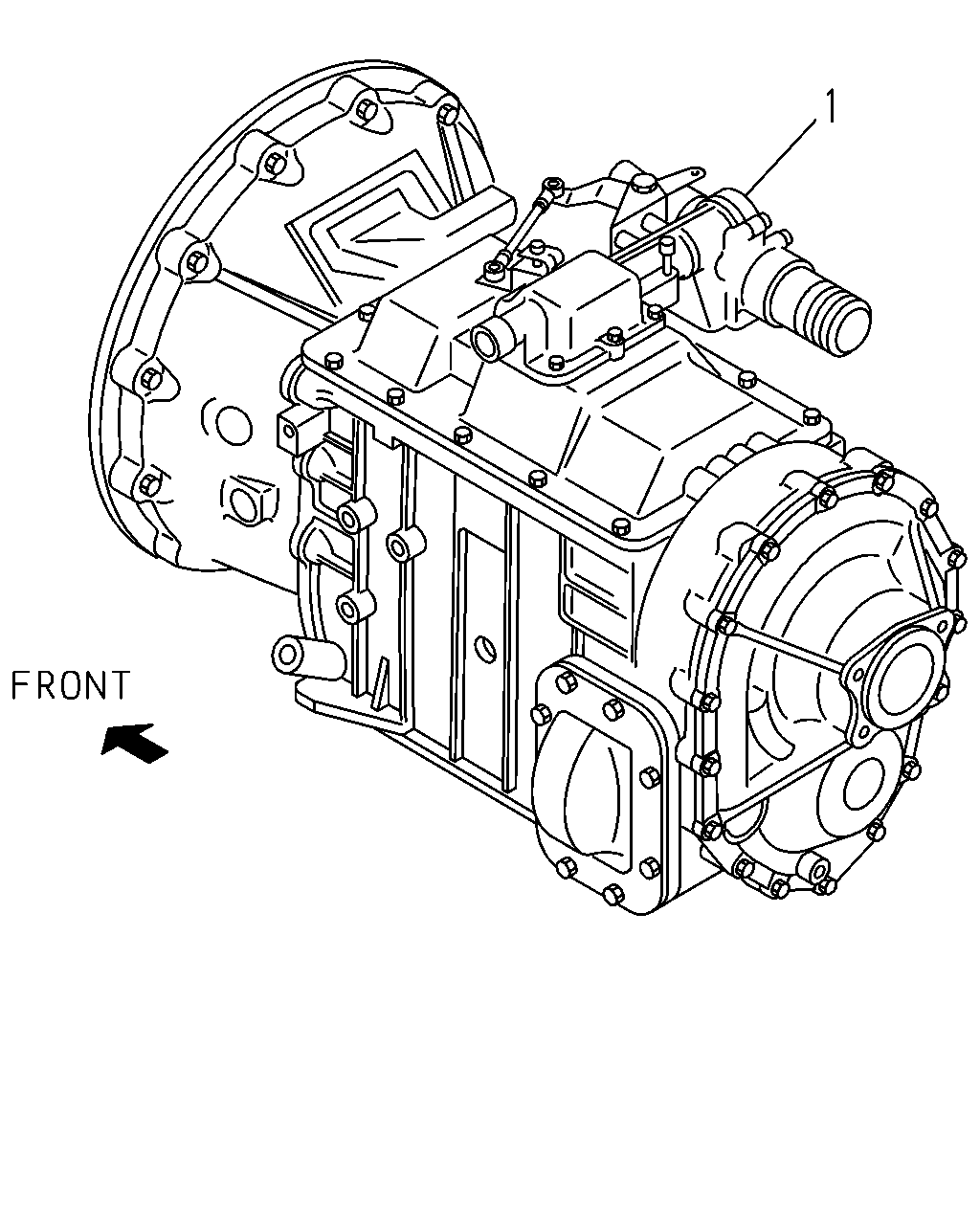

	1	TRANSMISSION ASM; MANUAL	1-33043-266-0	01	1	0106-		●
	1	TRANSMISSION ASM; MANUAL	1-33043-202-0	01	1	0106-	●

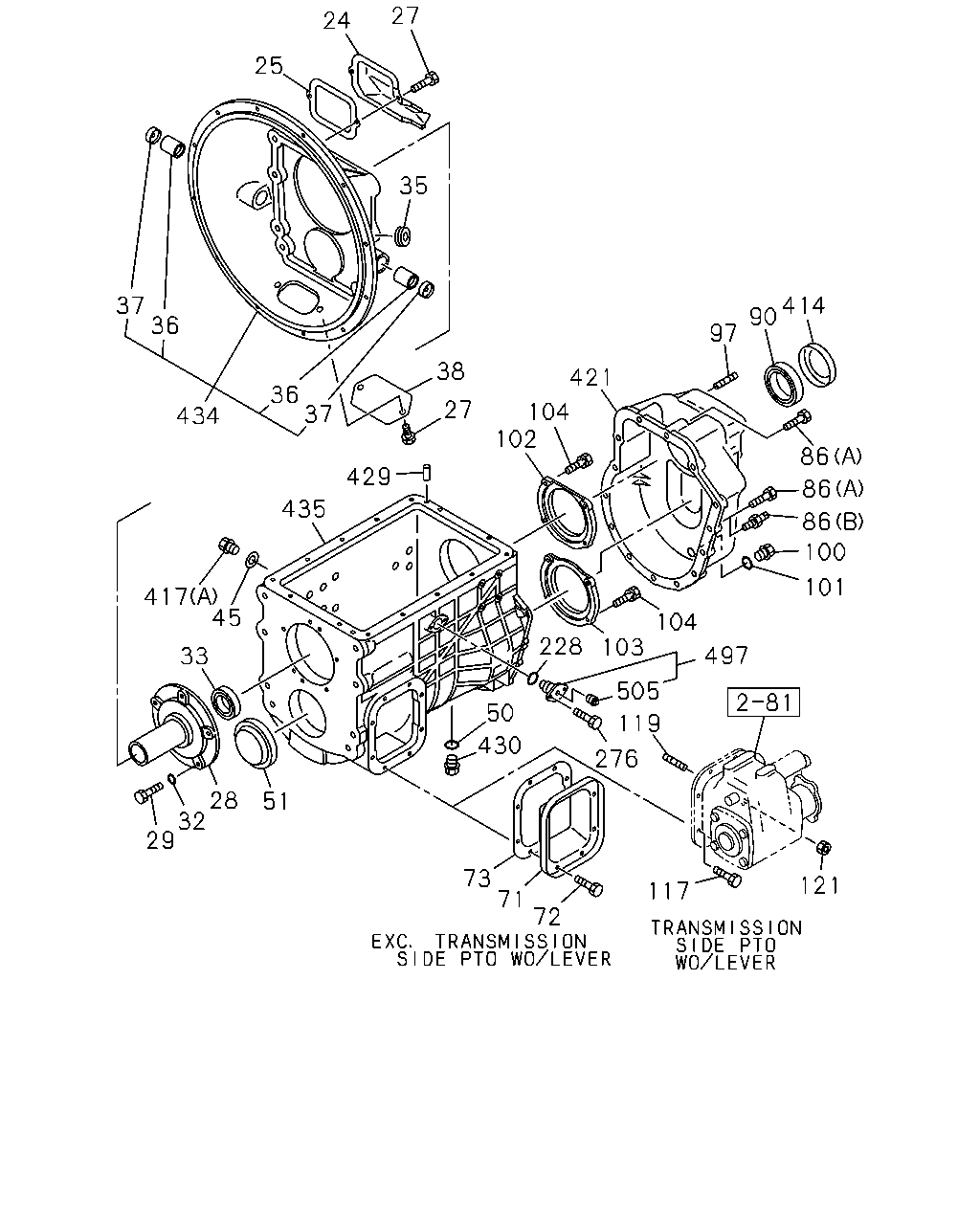

121 117 72 71 73 51 28 32 29 33 417 435 45 429 37 36 434 36 37 35 27 24 25 38 27 421 104 102 97 90 414 86 86 86 100 101 497 104 103 505 119 276 228 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0106-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0106-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0106-		●
28	COVER; FRT,TRANS CASE	1-33121-161-1	01	1	0106-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0106-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	06	1	0106-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0106-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	06	1	0106-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0106-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0106-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0106-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0106-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0106-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0106-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	0106-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-044-1	01	1	0106-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0106-0512		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28181-220-0	08	1	0106-0512	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X20 FLANGE	0-28151-220-0	08	1	0601-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	0106-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0106-	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	0106-		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0106-		●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0106-		●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28181-230-0	14	1	0106-0512	●
86	BOLT; RR COVER (A) M12X30 FLANGE	0-28151-230-0	14	1	0601-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	02	1	0106-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0106-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0106-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0106-		●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	0106-		●
103	RETAINER; BRG	1-33151-035-1	01	1	0106-		●
103	RETAINER; BRG	1-33151-059-0	01	1	0106-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0106-		●
104	BOLT; BRG RET M10X30 FLANGE	0-28181-030-0	01	1	0106-0512	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	01	1	0601-0605	●
104	BOLT; BRG RET M10X30 FLANGE	0-28151-030-0	08	1	0606-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	07	1	0106-0605	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	0106-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	0106-0512		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28181-225-0	02	1	0106-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 FLANGE	0-28151-225-0	02	1	0601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28186-212-0	02	1	0106-0512	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X120 FLANGE	0-28156-212-0	02	1	0601-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0106-0604		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0106-0604	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0605-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0106-0602		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0106-0602	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0603-	●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	0106-		●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	0106-		●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0106-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-064-1	01	1	0106-0201	●	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0106-	●
421	COVER; RR,TRANS	1-33131-197-2	01	1	0106-		●
421	COVER; RR,TRANS	1-33131-201-1	01	1	0106-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0106-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0106-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0106-	●	●
434	HOUSING; CLU	1-31110-173-2	01	1	0106-		●
435	CASE; TRANS	1-33111-195-1	01	1	0106-		●
435	CASE; TRANS	1-33111-321-0	01	1	0106-0510	●
435	CASE; TRANS	1-33111-356-0	01	1	0511-	●
497	ADAPTER; PLUG	1-33119-255-0	01	1	0106-		●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	0106-		●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

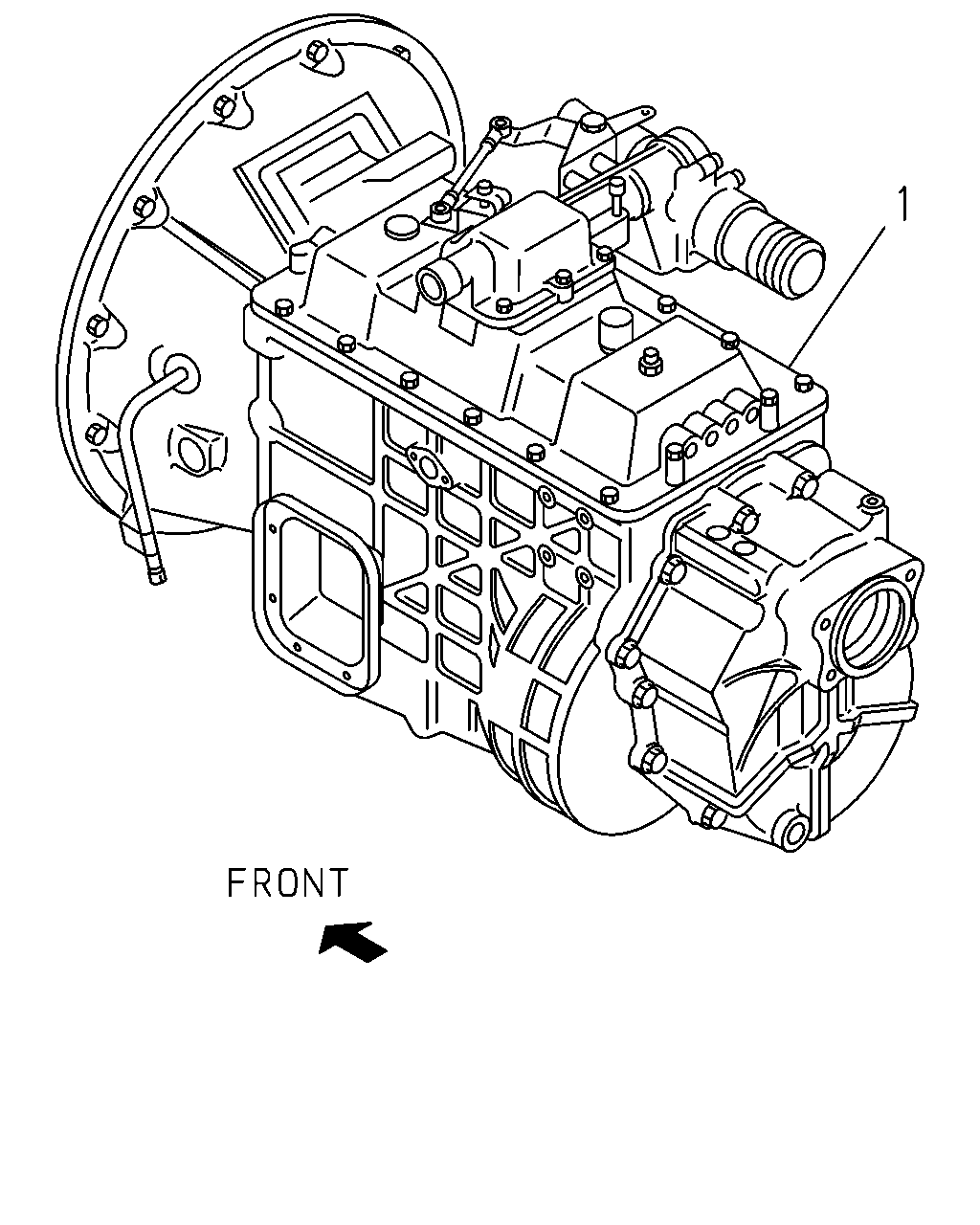

	1	TRANSMISSION ASM; MANUAL	1-33043-266-0	01	1	0106-		●
	1	TRANSMISSION ASM; MANUAL	1-33043-202-0	01	1	0106-	●

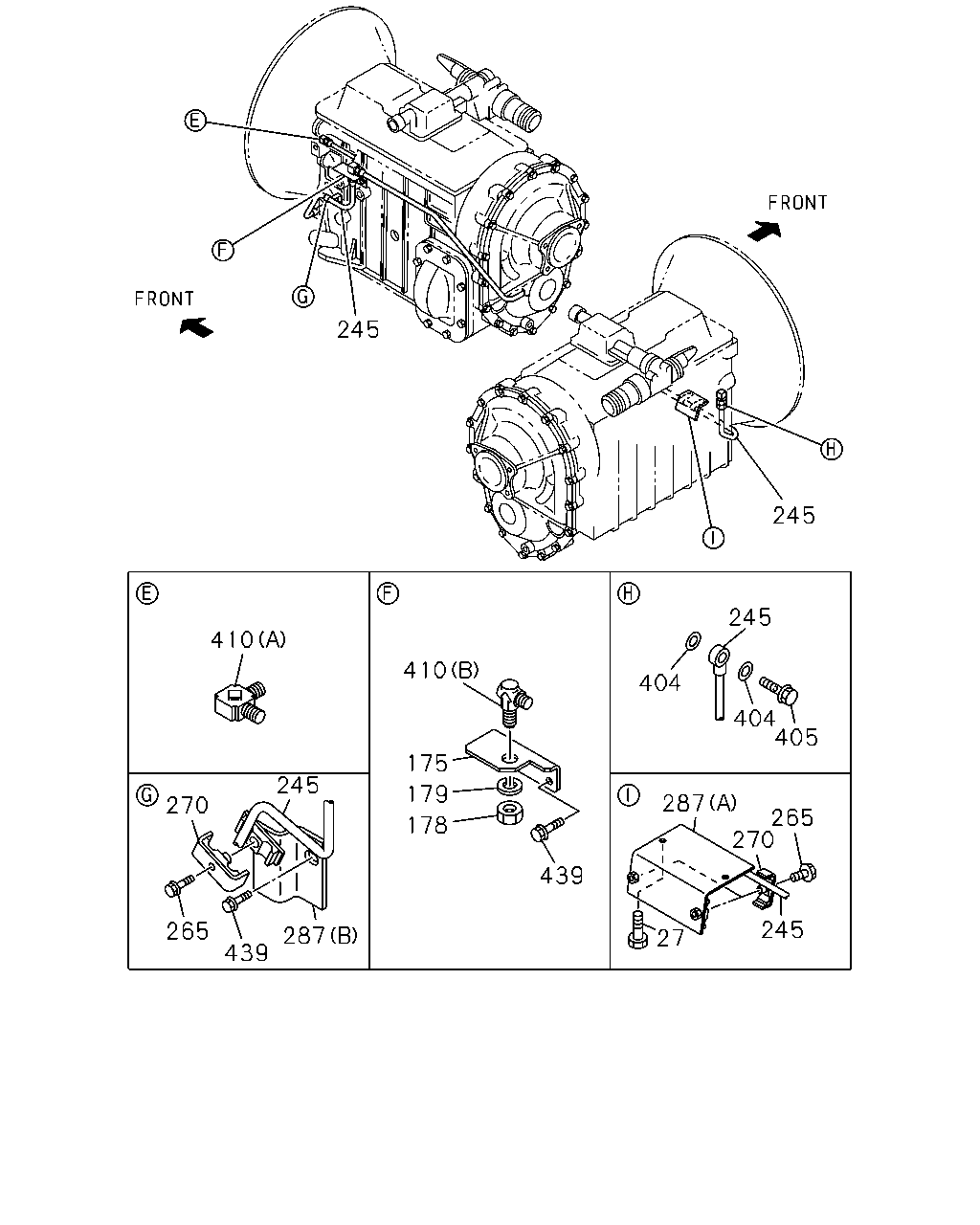

245 245 404 405 404 265 287 245 270 27 439 178 175 179 410 410 270 245 287 439 265 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
175	BRACKET; UNION	1-46147-216-2	01	1	0106-	●
178	NUT; UNION M16	9-99111-516-0	01	1	0106-0512	●
178	NUT; UNION M16	0-91111-516-0	01	1	0601-	●
179	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	0106-0603	●
179	WASHER; LK,UNION ID=16.2	0-91510-516-0	01	1	0604-	●
245	PIPE; OIL L=738	1-32571-147-0	01	1	0106-	●
265	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	03	1	0106-0512	●
265	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0601-	●
270	CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-2	03	1	0106-	●
287	BRACKET; CLIP,OIL PIPE (A)	1-32579-014-1	01	1	0106-	●
287	BRACKET; CLIP,OIL PIPE (B)	1-32579-015-2	01	1	0106-	●
404	GASKET; OIL PIPE ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-	●
405	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0106-	●
410	UNION; OIL PIPE (B)	1-09654-371-0	01	1	0106-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0106-	●
439	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	03	1	0106-0512	●
439	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	03	1	0601-	●

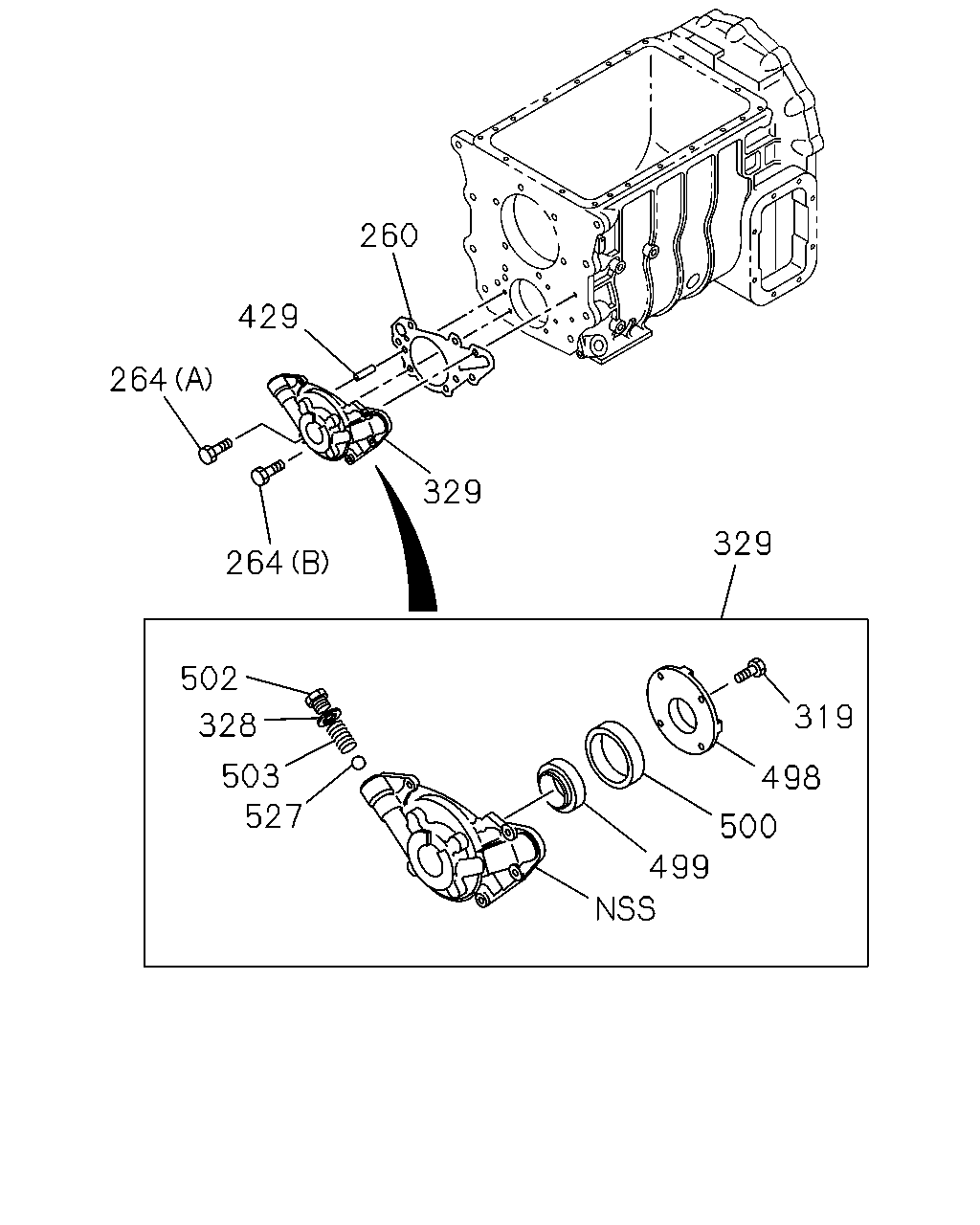

499 319 498 500 329 329 264 264 429 260 527 503 328 502

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
260	GASKET; OIL PUMP	1-34142-026-0	01	1	0106-	●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28181-030-0	05	1	0106-0512	●
264	BOLT; OIL PUMP (A) M10X30 FLANGE	0-28151-030-0	05	1	0601-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	02	1	0106-0512	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	02	1	0601-	●
319	BOLT; COVER	1-34159-075-0	04	1	0106-	●
328	GASKET; PLUG	8-94244-656-0	01	1	0106-	●
329	PUMP ASM; OIL	1-34150-098-0	01	1	0106-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0106-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	04	1	0106-	●
498	COVER; ROTER,OIL PUMP	1-34159-067-1	01	1	0106-	●
499	ROTOR; INNER,OIL PUMP	1-34159-053-0	01	1	0106-	●
500	ROTOR; OUTER,OIL PUMP	1-34159-054-0	01	1	0106-	●
502	PLUG; OIL PUMP	8-94244-655-0	01	1	0106-	●
503	SPRING; OIL PUMP	5-09580-098-0	01	1	0106-	●
527	BALL; OIL PUMP	9-00097-531-0	01	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
