2-08 — CLUTCH MASTER CYLINDER (#8986) — 22 parça

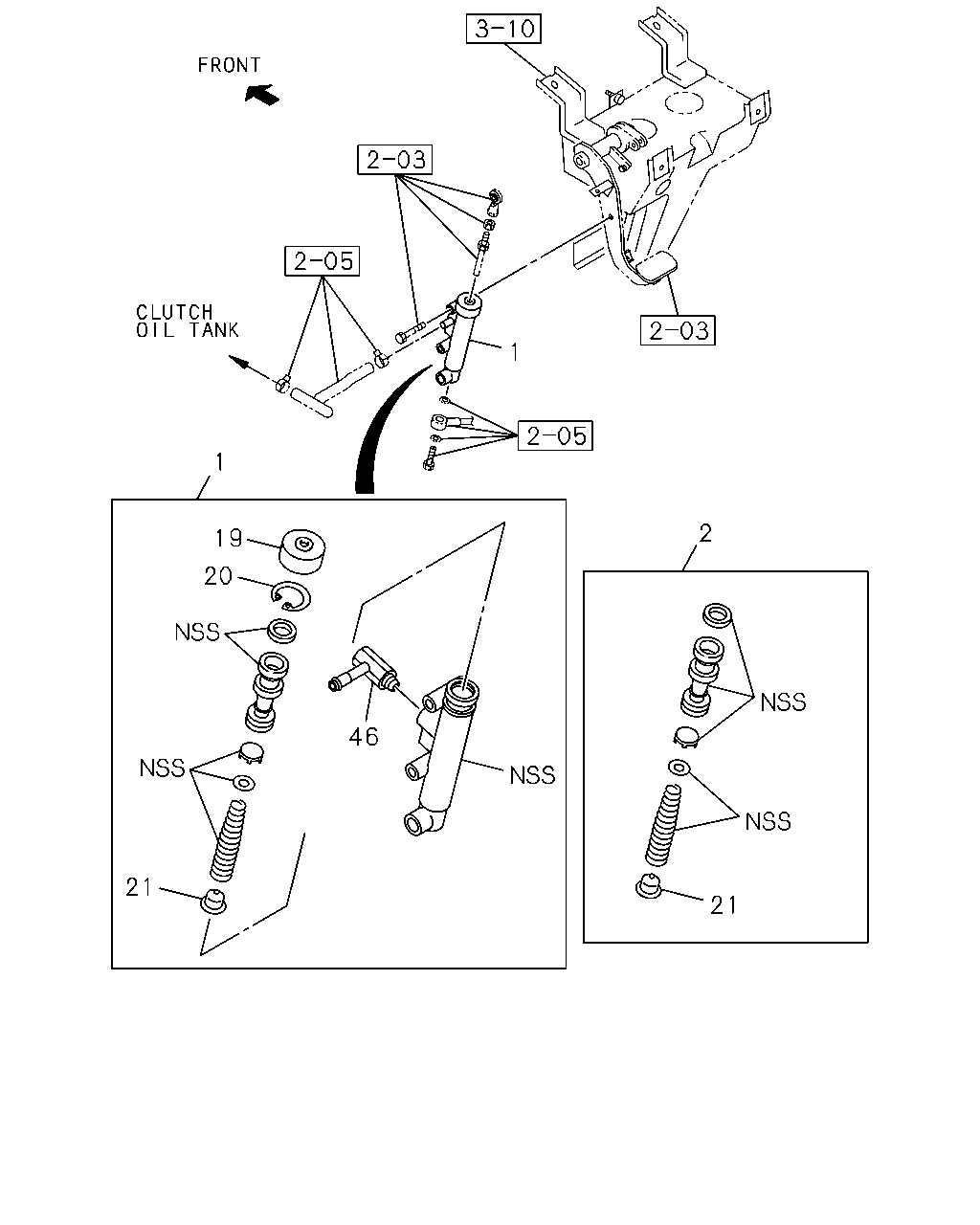

46 21 21 20 19 1 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER ISUZU M/T<X9A>	1-47500-239-2	01	1	0106-
1	CYLINDER ASM; CLUTCH MASTER ZF M/T<X9E>	1-47500-241-3	01	1	0106-
2	REPAIR KIT; CLU M/CYL ISUZU M/T<X9A>	1-85572-010-0	01	1	0106-
2	REPAIR KIT; CLU M/CYL ZF M/T<X9E>	1-47550-046-0	01	1	0106-
19	BOOT; CLU M/CYL ISUZU M/T<X9A>	9-47545-032-0	01	1	0106-
19	BOOT; CLU M/CYL ZF M/T<X9E>	1-47545-011-0	01	1	0106-
20	RING; SNAP,BODY ISUZU M/T<X9A> OD=26.9	9-09180-125-0	01	1	0106-
20	RING; SNAP,BODY ZF M/T<X9E>	1-47515-009-0	01	1	0106-
21	VALVE; CHECK	1-47565-004-0	01	1	0106-
46	CONNECTOR; PIPE ISUZU M/T<X9A>	1-47559-016-0	01	1	0106-
46	CONNECTOR; PIPE ZF M/T<X9E>	1-47517-003-0	01	1	0106-

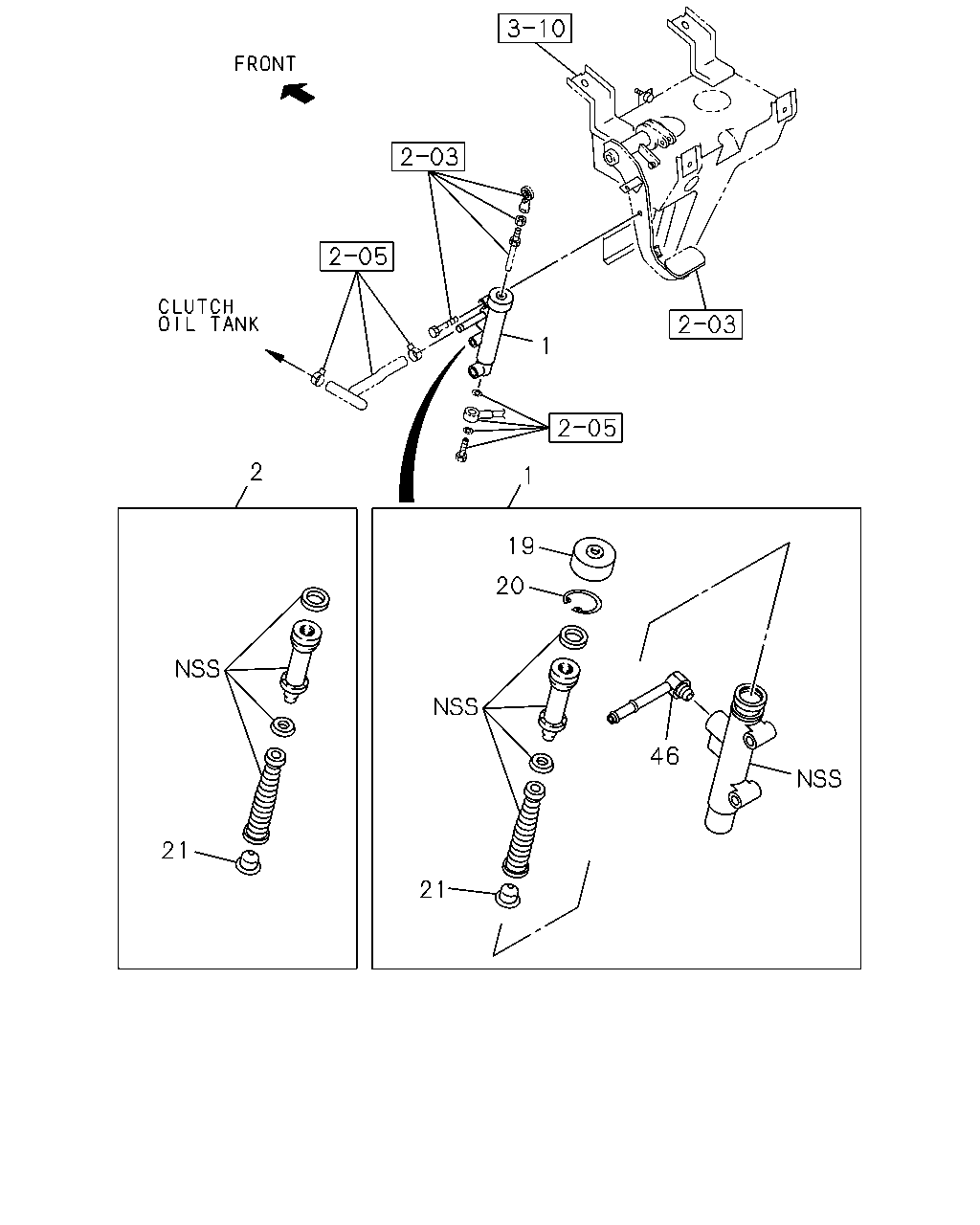

21 2 46 21 20 19 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER ASM; CLUTCH MASTER ISUZU M/T<X9A>	1-47500-239-2	01	1	0106-
1	CYLINDER ASM; CLUTCH MASTER ZF M/T<X9E>	1-47500-241-3	01	1	0106-
2	REPAIR KIT; CLU M/CYL ISUZU M/T<X9A>	1-85572-010-0	01	1	0106-
2	REPAIR KIT; CLU M/CYL ZF M/T<X9E>	1-47550-046-0	01	1	0106-
19	BOOT; CLU M/CYL ISUZU M/T<X9A>	9-47545-032-0	01	1	0106-
19	BOOT; CLU M/CYL ZF M/T<X9E>	1-47545-011-0	01	1	0106-
20	RING; SNAP,BODY ISUZU M/T<X9A> OD=26.9	9-09180-125-0	01	1	0106-
20	RING; SNAP,BODY ZF M/T<X9E>	1-47515-009-0	01	1	0106-
21	VALVE; CHECK	1-47565-004-0	01	1	0106-
46	CONNECTOR; PIPE ISUZU M/T<X9A>	1-47559-016-0	01	1	0106-
46	CONNECTOR; PIPE ZF M/T<X9E>	1-47517-003-0	01	1	0106-
