◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#8984) — 61 parça

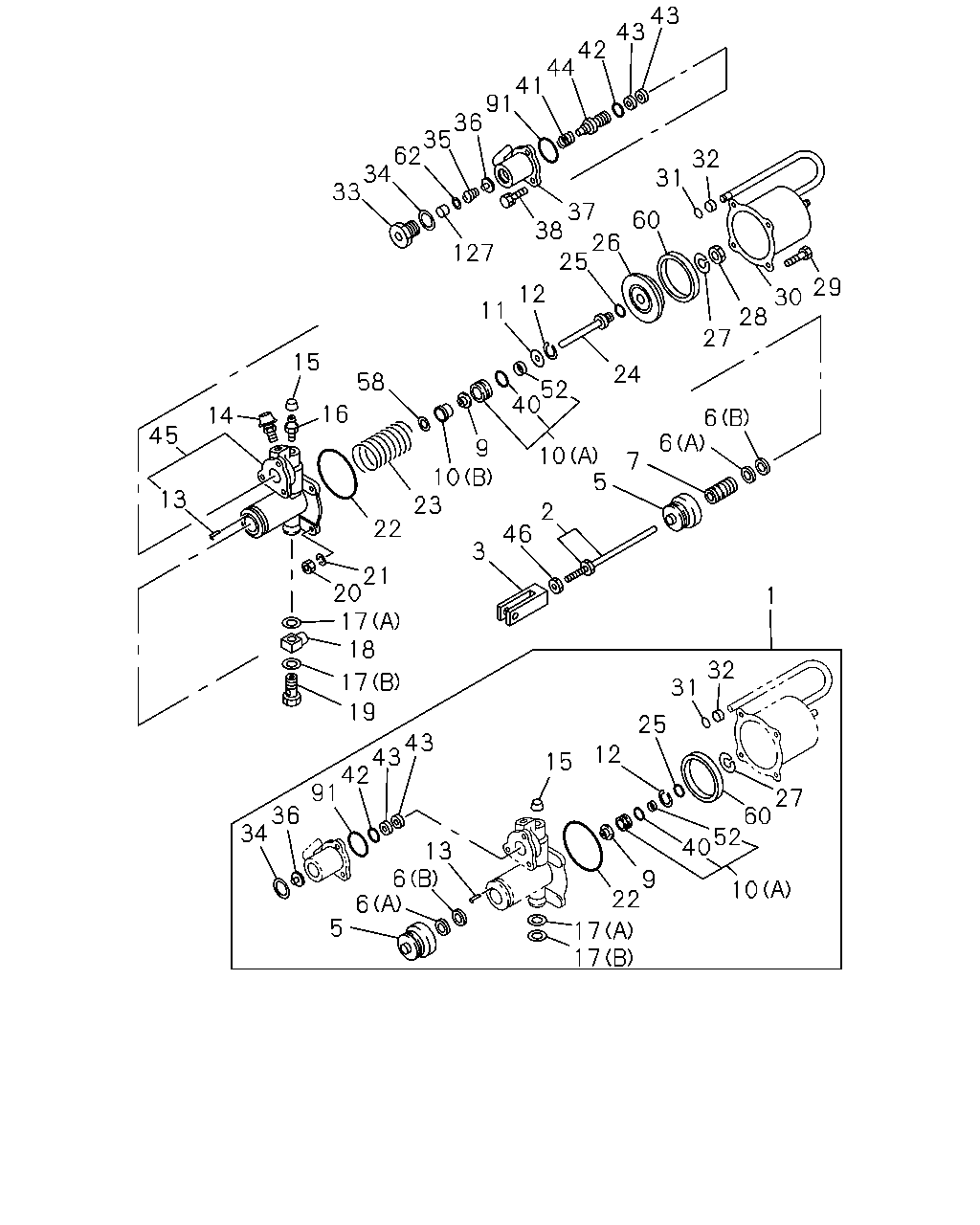

çizim 17909
27 60 52 40 9 22 17 17 1 32 31 25 12 15 13 6 6 5 43 43 42 91 36 34 19 17 17 18 20 21 22 23 10 9 46 3 2 5 7 6 6 10 24 27 28 30 29 32 31 60 26 25 12 11 52 40 37 38 127 43 43 42 44 41 91 36 35 62 34 33 58 15 14 16 13 45 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-356-0 01 1 0106-0203 ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-572-0 01 1 0204- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0106- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0106- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0106- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 0106- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 0106- ● ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0106- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0106- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0106- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0106-0203 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0106- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0106- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0106- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0106-0203 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0204- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0106- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0106- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0106- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0106- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0106- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0106- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0106- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0106- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0106- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0106- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0106- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0106- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 0106-0203 ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0204- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0106- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0106- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0106- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-077-0 01 1 0106-0203 ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0204- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0106- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0106- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0106- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0106- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0106-0203 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0204- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0106-0203 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0204- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0106- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0106- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0106- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0106-0203 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0204- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0106- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0106- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0106- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0106- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0106- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0204- ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 0106-0203 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0106-0203 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0204- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0106- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0106- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
