Sayfa 2-05 - Isuzu EPC

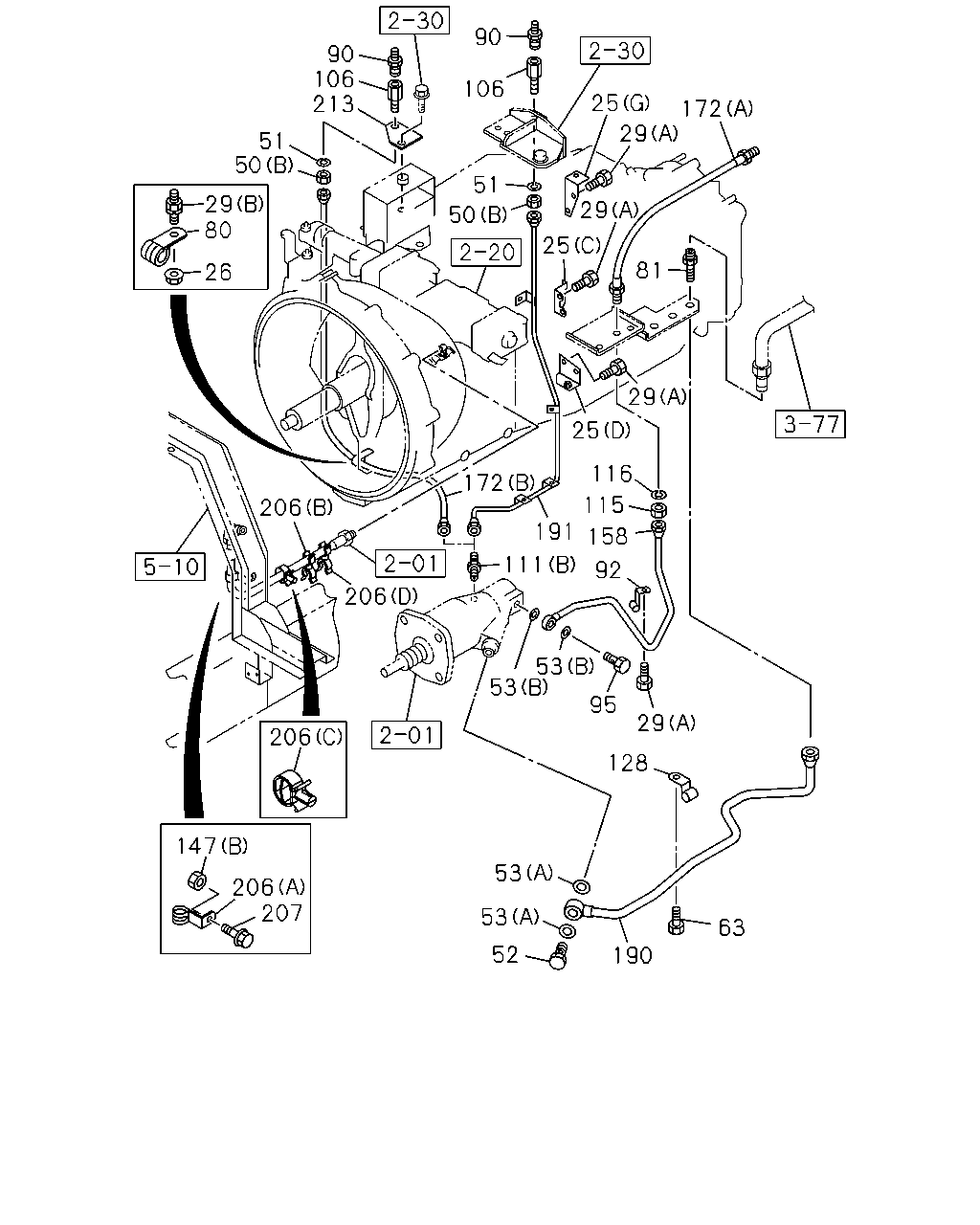

2-05 — CLUTCH PIPING (#8983) — 379 parça

63 190 52 53 53 207 206 147 128 95 29 53 53 206 206 206 111 191 116 158 115 92 25 172 29 81 172 29 25 106 90 51 50 29 25 213 51 50 106 90 29 26 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0106
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0106-0512
50	NUT; UNION ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91150-212-0	01	1	0106-0602
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0106-
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0603
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0106-0603
51	WASHER; LK ZF M/T<X9E> ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0106-
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0106-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0106-
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-
63	BOLT; CLIP,PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0106-0512
63	BOLT; CLIP,PIPE ZF M/T<X9E> M8X16 FLANGE	0-28050-816-0	01	1	0601-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
81	UNION; AIR PIPE ZF M/T<X9E>	1-09664-233-0	01	1	0106-
90	NIPPLE; OIL PIPE ZF M/T<X9E>	1-31829-485-0	01	1	0106-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0106-0606
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	0-95234-865-0	01	1	0607-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=9 H=32 L=24	1-09701-221-0	01	1	0106-
95	BOLT; EYE,OIL PIPE ZF M/T<X9E> M14X27 FLANGE	1-09675-086-0	01	1	0106-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	02	1	0106-0607
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	0-92113-008-0	02	1	0608-
106	UNION; OIL PIPE ZF M/T<X9E>	1-09654-384-0	01	1	0106-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0106-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=13 H=18 L=20	1-09701-232-0	01	1	0106-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0106-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0106-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0106-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0106-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0106-0107
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0106-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0106-
206	CLIP; TUBE 6WF1 TC-C(1B8) ZF M/T<X9E> (D) ID=13 & 21	8-94417-626-0	01	1	0108-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-

30 25 34 34 153 33 34 33 35 35 35 33 33 106 33 34 33 27 30 109 106 104 31 35 28 25 26 29 35 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0106-0602
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0106
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
31	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0106-0602
31	NUT; BRKT ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	01	1	0603-
32	BRACKET; CLIP OIL PIPE ISUZU M/T<X9A>	1-47477-235-0	01	1	0106-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	06	1	0106-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	9-09524-835-0	01	1	0106-0606
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	0-95234-835-0	01	1	0607-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	06	1	0106-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	06	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0106-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0106-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2296	1-49166-267-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2143	1-49164-307-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	02	1	0106-0607
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	0-92113-008-0	02	1	0608-
106	UNION; OIL PIPE ZF M/T<X9E>	1-09654-384-0	01	1	0106-
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0106-0205
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0106-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=1704 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=955	1-49163-430-0	01	1	0106-

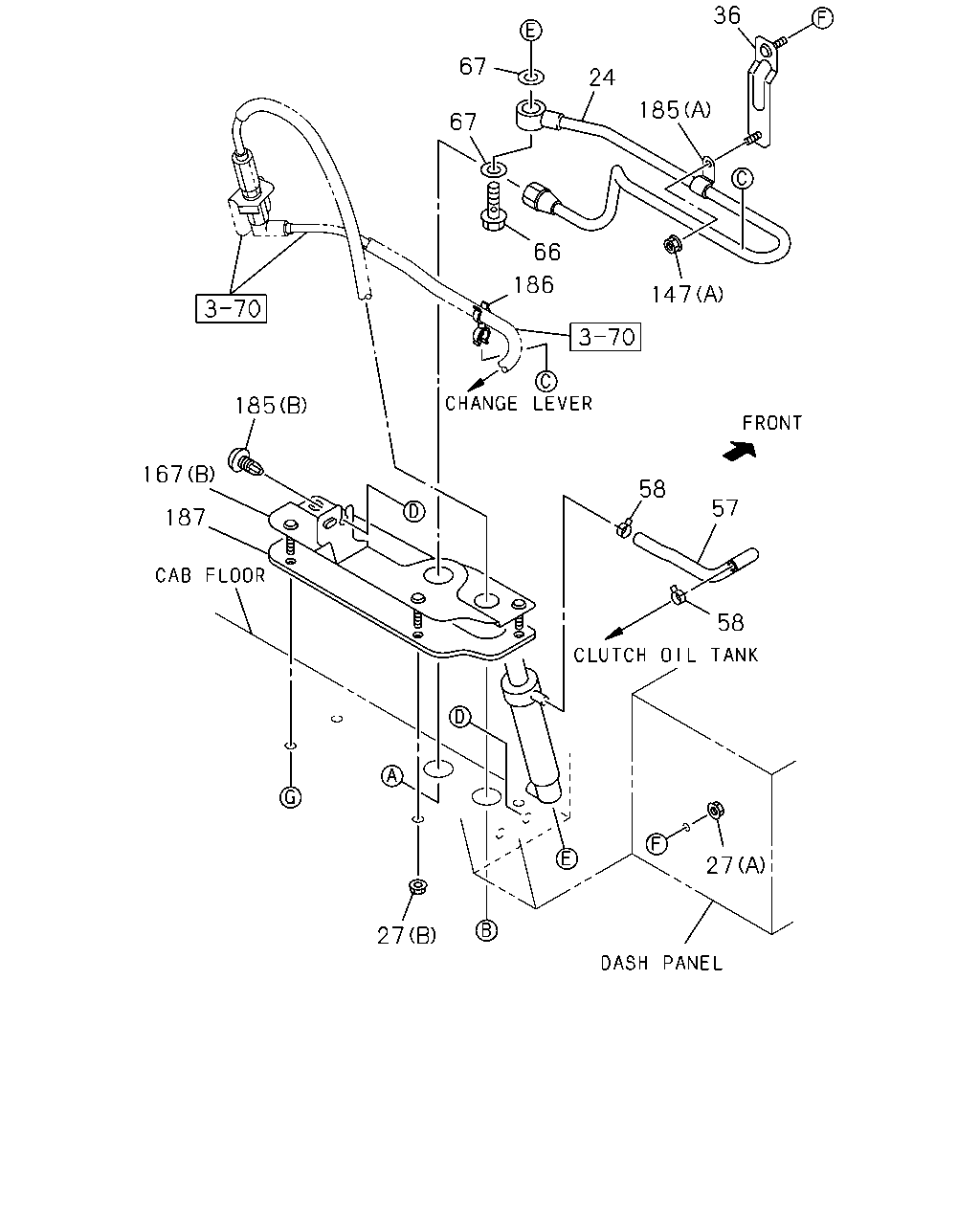

27 27 58 57 58 147 186 66 185 24 36 67 67 167 187 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=621	1-47428-362-1	01	1	0106-
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E> L=628	1-47428-381-1	01	1	0106-
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0106-0602
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
36	BRACKET; CLIP	1-71117-191-1	01	1	0106-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0106-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0106-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0106-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0106-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0106-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0106-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0106-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-0606
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0607-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0106-
187	SEAL; BRKT	1-71117-209-2	01	1	0106-

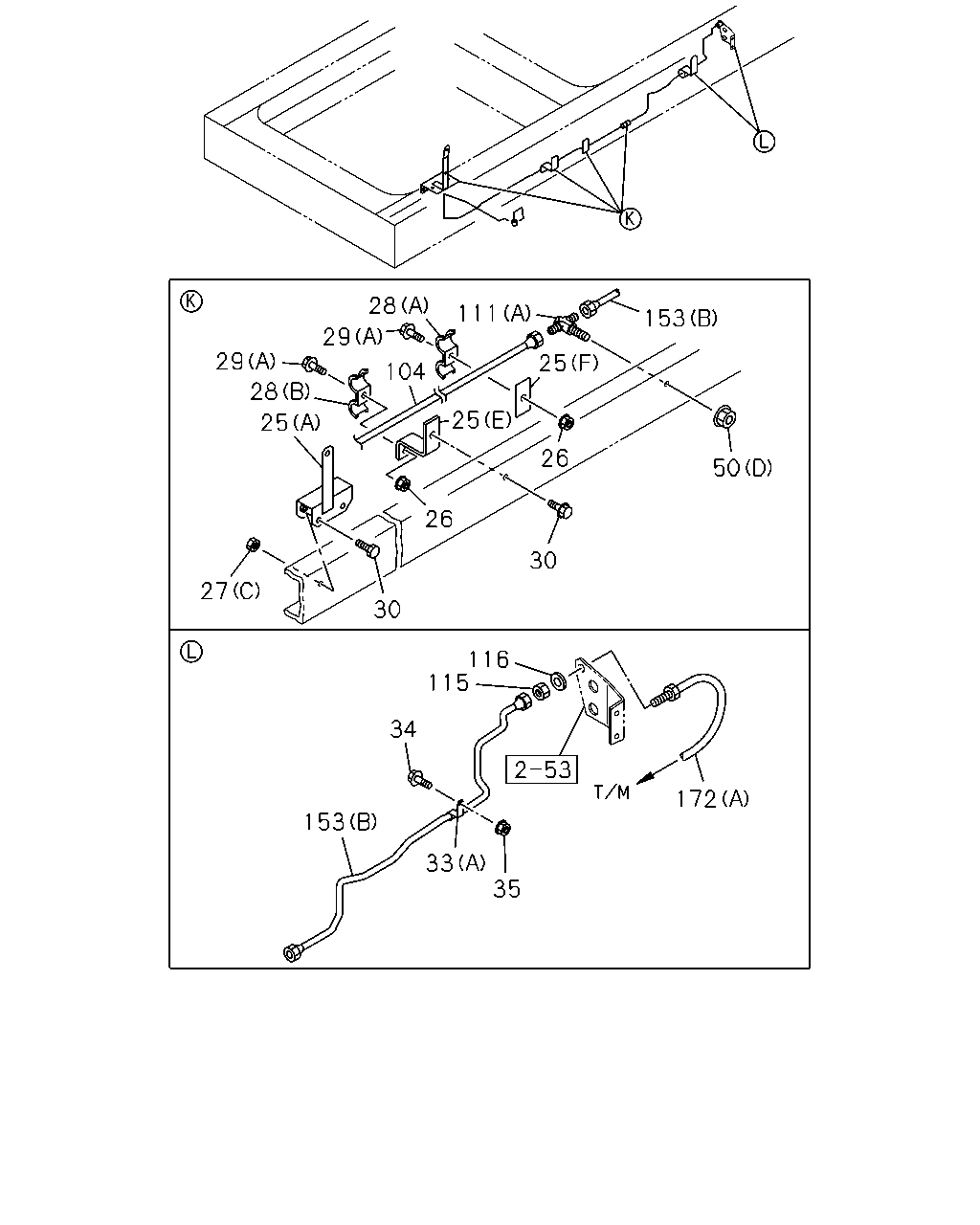

50 153 111 28 25 29 29 25 28 104 25 26 30 26 30 27 116 115 34 35 33 153 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0106
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0106-0602
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0107
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0106
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	06	1	0106-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	9-09524-835-0	01	1	0106-0606
33	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=9 L=20	0-95234-835-0	01	1	0607-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	06	1	0106-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	06	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0106-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0106-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0106-0512
50	NUT; UNION ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91150-212-0	01	1	0106-0602
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=2296	1-49166-267-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2143	1-49164-307-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0106-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=1704 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=955	1-49163-430-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-

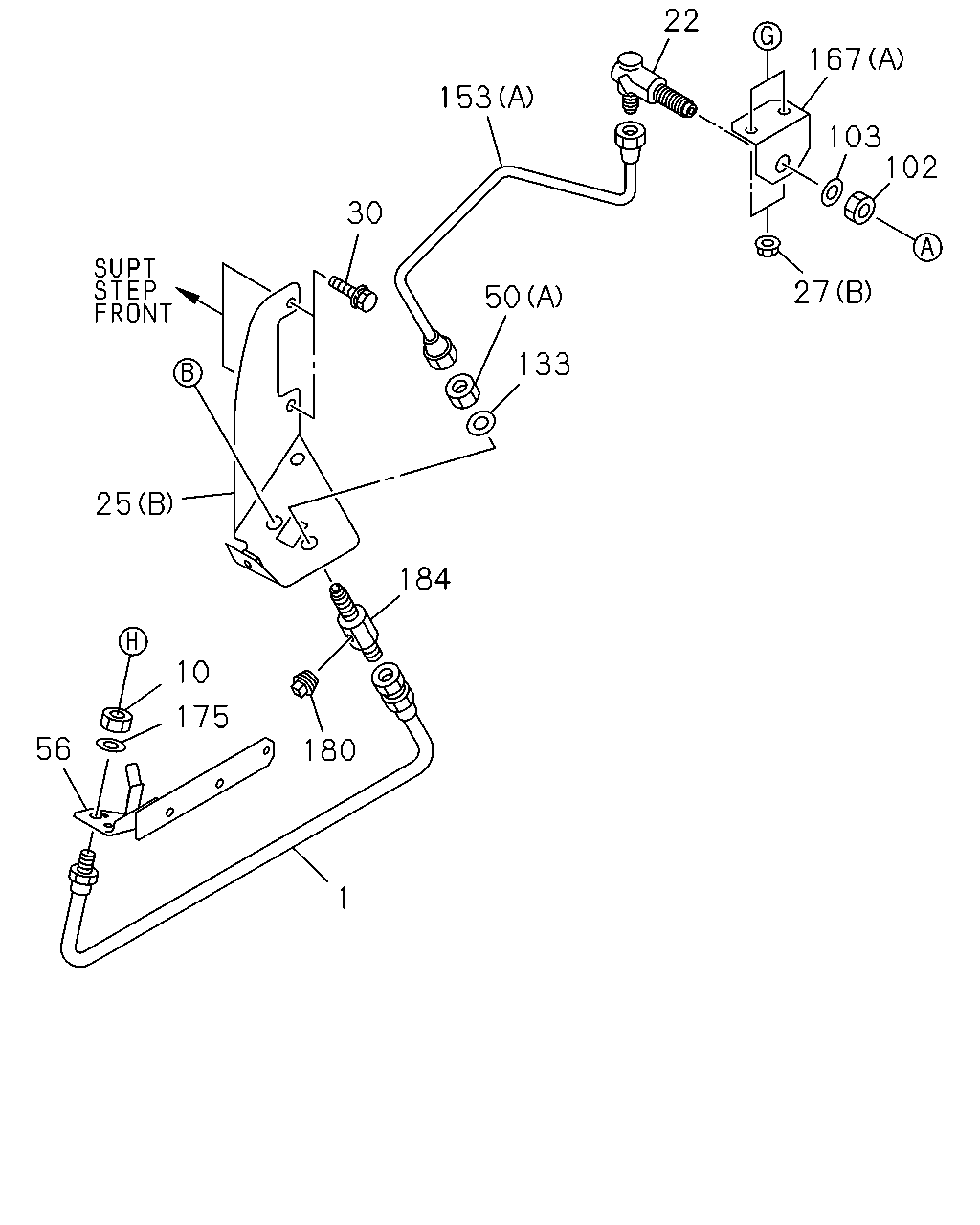

153 22 167 103 102 27 50 133 30 25 184 10 175 180 1 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0106-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0106-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0106-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0106-
25	BRACKET; OIL PIPE ISUZU M/T<X9A> (F) L=50	1-47475-299-2	02	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (F) L=50	1-47475-299-2	01	1	0106-
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47475-881-0	01	1	0106-0106
25	BRACKET; OIL PIPE ZF M/T<X9E> (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-
27	NUT; BRKT (C) M10 FLANGE	0-91150-210-0	02	1	0106-0602
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0106-
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91150-108-0	01	1	0106-0602
27	NUT; BRKT ZF M/T<X9E> (C) M8 FLANGE	0-91180-108-0	01	1	0603-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0106-0512
50	NUT; UNION ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91150-212-0	01	1	0106-0602
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0106-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0106-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0106-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0106-0106
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-0606
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (B) L=1704 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=955	1-49163-430-0	01	1	0106-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0106-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0106-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0106-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0106-

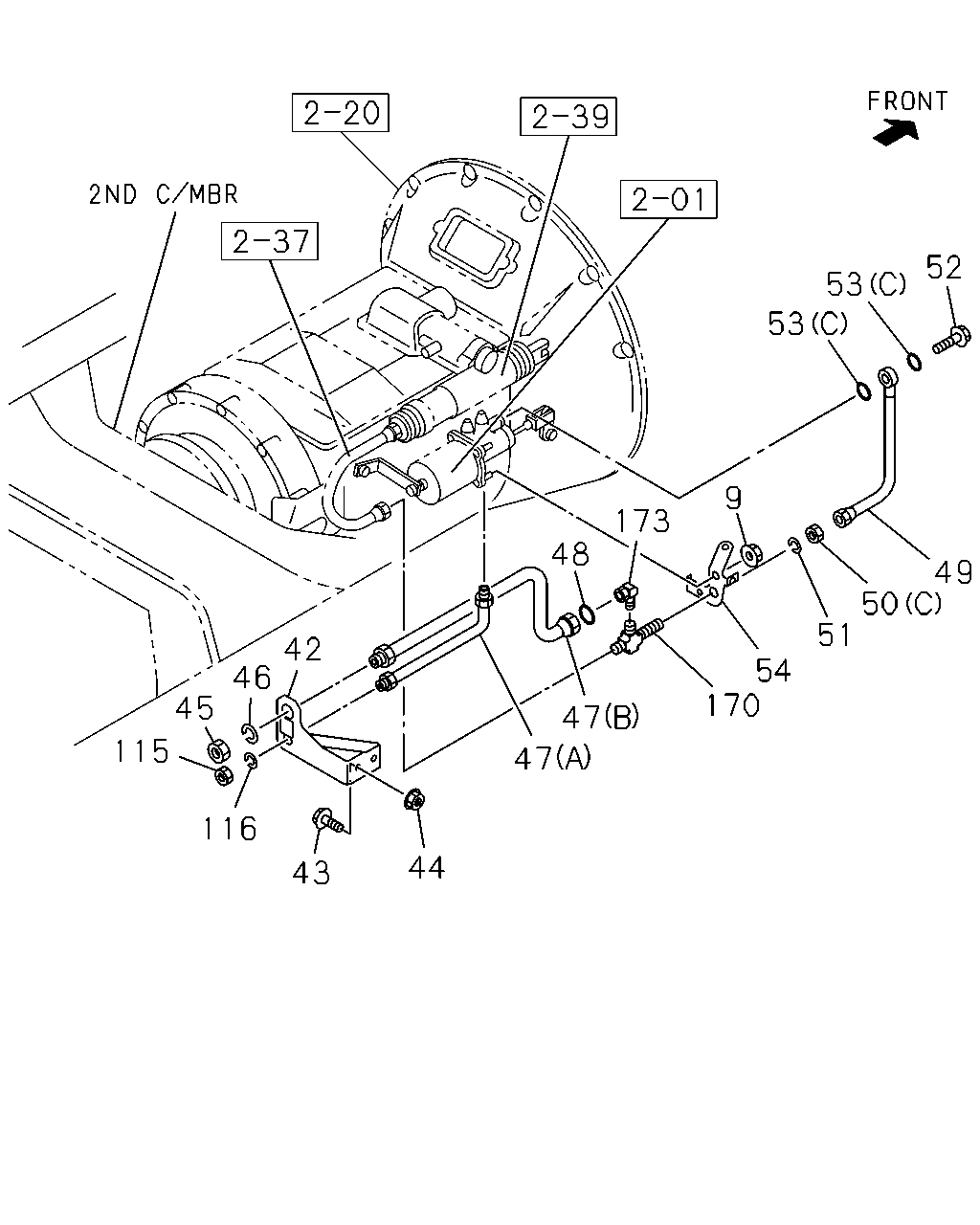

49 50 51 54 170 47 47 44 43 116 42 46 45 115 48 9 173 52 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	0106-0602
9	NUT; BRKT,FLEX HOSE ISUZU M/T<X9A> M10 FLANGE	0-91180-210-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47477-475-1	01	1	0106-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0106-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0106-0512
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> M20	0-91111-520-0	01	1	0601-
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0603
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0106-0605
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (A) L=500	0-57806-500-1	01	1	0606-
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> (B) L=550	1-09364-434-0	01	1	0106-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0106-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0106-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0106-0512
50	NUT; UNION ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91150-212-0	01	1	0106-0602
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0106-
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0106-0603
51	WASHER; LK ISUZU M/T<X9A> ID=20.2	0-91510-520-0	01	1	0604-
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0106-0603
51	WASHER; LK ZF M/T<X9E> ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0106-
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0106-
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0106-
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-
54	BRACKET; AIR,FLEX HOSE ISUZU M/T<X9A>	1-47477-284-1	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	0-91510-514-0	01	1	0604-
170	UNION; AIR PIPE ISUZU M/T<X9A>	1-09656-640-0	01	1	0106-
173	CONNECTOR ISUZU M/T<X9A> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
