2-01B — CLUTCH (#8981) — 71 parça

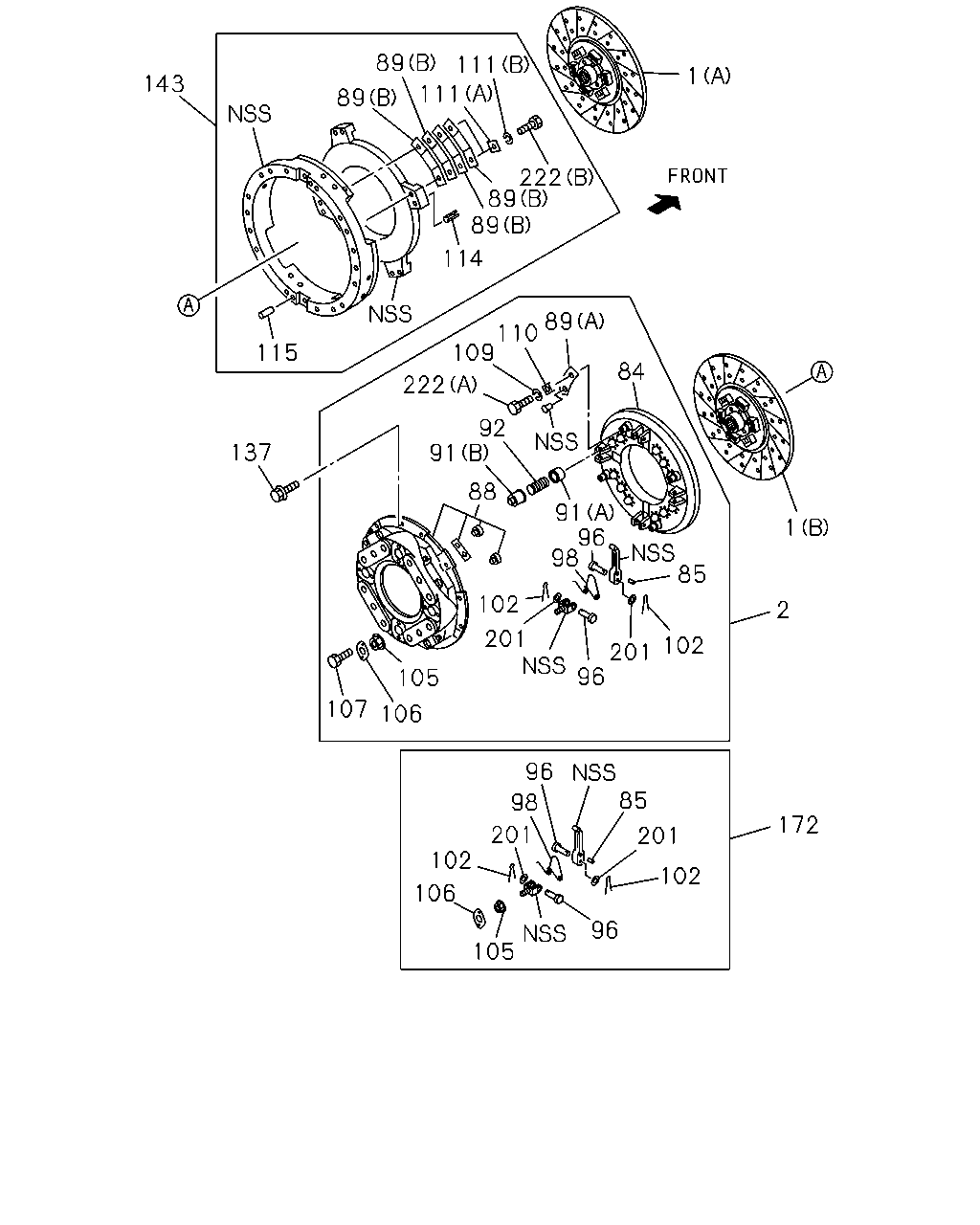

172 102 201 85 96 98 201 102 106 105 96 2 102 201 96 85 1 84 89 110 109 222 91 92 88 98 96 91 102 105 106 107 201 137 115 114 89 89 222 1 111 111 89 89 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 6WA1 TC-C(55L) (A) FRONT 15.5"	1-31240-885-0	01	1	0106-	●
1	DISC; CLUTCH 6WA1 TC-C(55L) (B) REAR 15.5"	1-31240-886-0	01	1	0106-	●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-C(72L) (A) FRONT 15.5"	1-31240-883-0	01	1	0106-		●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) REAR 15.5"	1-31240-884-0	01	1	0106-		●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-293-3	01	1	0106-		●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-C(72L)	1-31220-299-3	01	1	0106-		●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L)	1-31220-286-3	01	1	0106-	●
84	PLATE; PRESSURE	1-31221-092-0	01	1	0106-	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0106-0205	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0206-	●	●
88	COVER SUB ASM; CLU	1-31211-034-1	01	1	0106-	●	●
89	PLATE; STRAP 6WA1 TC-C(55L) (B)	1-31229-048-0	16	1	0106-	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	0106-	●	●
89	PLATE; STRAP 6WF1 TC-C(1B8),6WG1 TC-C(72L) (B)	1-31229-048-0	20	1	0106-		●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0106-	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0106-	●	●
92	SPRING; CLU 6WA1 TC-C(55L)	1-31214-042-0	12	1	0106-	●
92	SPRING; CLU 6WF1 TC-C(1B8)	1-31214-062-0	12	1	0106-		●
92	SPRING; CLU 6WG1 TC-C(72L)	1-31214-055-0	12	1	0106-		●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0106-0308	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0309-	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	0106-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0106-	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0106-0205	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0106-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0106-0205	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0106-0603	●	●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0106-	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0106-	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0106-0603	●	●
111	WASHER; PL,STRAP (B) ID=12.2	0-91510-512-0	08	1	0604-	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0106-	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0106-	●	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0106-0512	●	●
137	BOLT; CLU COVER M12X80	0-28151-280-0	02	1	0601-	●	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0106-0512	●	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28151-290-0	10	1	0601-	●	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0106-0512	●	●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	04	1	0601-	●	●
143	PLATE; INTERMEDIATE 6WF1 TC-C(1B8),6WG1 TC-C(72L)	1-31221-110-0	01	1	0106-		●
143	PLATE; INTERMEDIATE 6WA1 TC-C(55L)	1-31221-108-0	01	1	0106-	●
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	0106-0205	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-113-0	01	1	0206-0306	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-174-1	01	1	0307-	●	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0106-	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0106-	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0106-	●	●

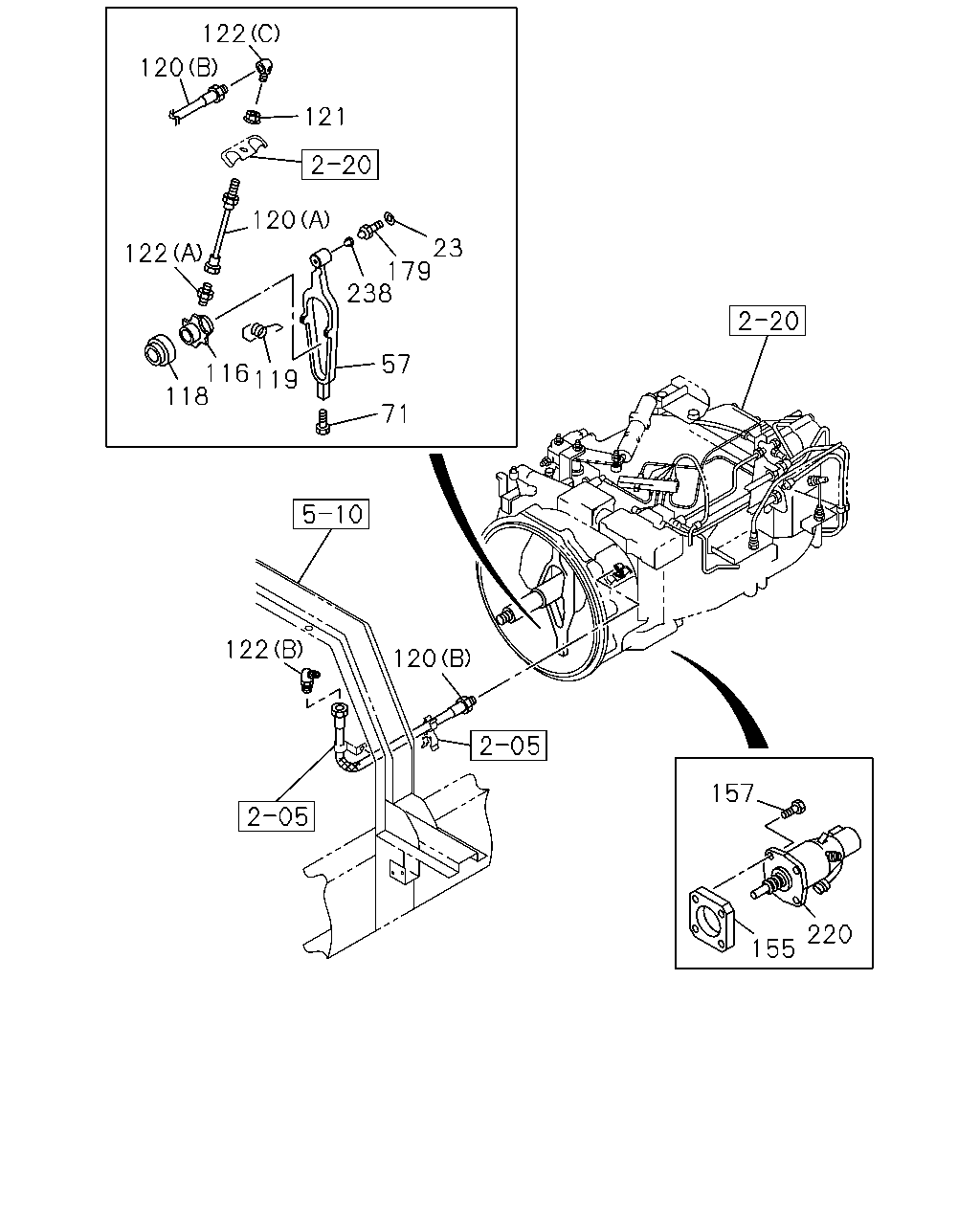

155 157 220 122 120 71 57 238 179 23 121 122 120 122 119 116 118 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	0106-	●	●
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	0106-	●	●
71	BOLT M4X6	9-93490-406-0	01	1	0106-	●	●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	0106-	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	0106-0111	●	●
118	BEARING; CLU RELEASE	1-09820-116-0	01	1	0112-	●	●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	0106-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0106-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=270	1-09364-903-0	01	1	0106-	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0106-0602	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91180-216-0	01	1	0603-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0106-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0106-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0106-	●	●
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0106-	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58310-840-0	04	1	0106-0512	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58330-840-0	04	1	0601-	●	●
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	0106-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0106-	●	●
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	0106-	●	●
