2-01A — CLUTCH (#8980) — 86 parça

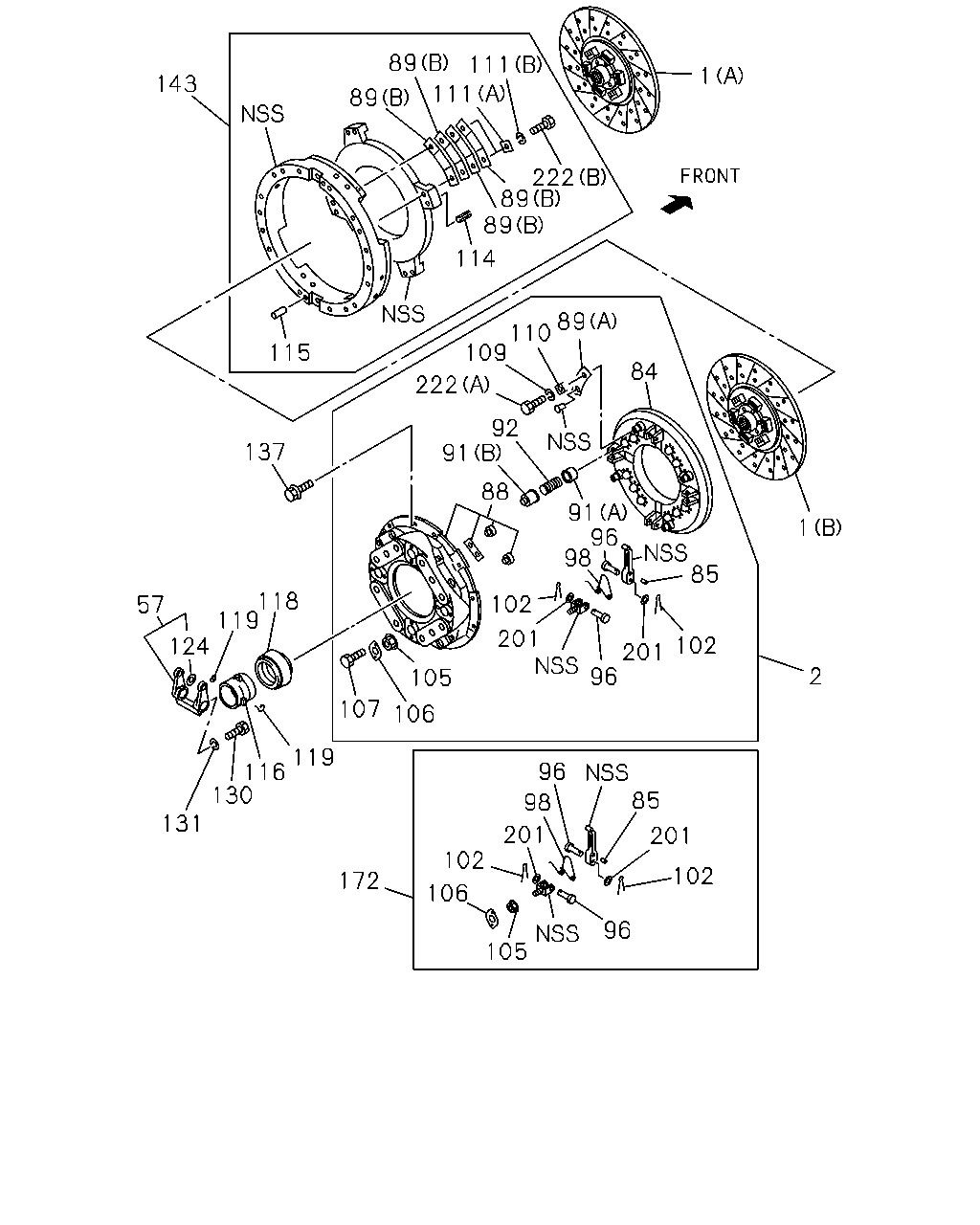

102 201 85 96 98 201 102 106 172 105 96 2 102 201 96 85 96 91 98 201 102 105 106 107 118 119 124 57 119 116 130 131 137 115 84 1 88 91 92 222 109 110 114 89 89 222 1 111 111 89 89 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 6WA1 TC-C(55L) (A) FRONT 15.5"	1-31240-885-0	01	1	0106-	●
1	DISC; CLUTCH 6WA1 TC-C(55L) (B) REAR 15.5"	1-31240-886-0	01	1	0106-	●
1	DISC; CLUTCH 6WF1 TC-C(1B8) (A) FRONT 15.5"	1-31240-883-0	01	1	0106-		●
1	DISC; CLUTCH 6WF1 TC-C(1B8) (B) REAR 15.5"	1-31240-884-0	01	1	0106-		●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L)	1-31220-276-2	01	1	0106-	●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-329-2	01	1	0106-		●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0106-	●	●
84	PLATE; PRESSURE	1-31221-087-0	01	1	0106-	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0106-0205	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0206-	●	●
88	COVER SUB ASM; CLU	1-31210-020-1	01	1	0106-	●	●
89	PLATE; STRAP 6WA1 TC-C(55L) (B)	1-31229-048-0	16	1	0106-	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	0106-	●	●
89	PLATE; STRAP 6WF1 TC-C(1B8) (B)	1-31229-048-0	20	1	0106-		●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0106-	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0106-	●	●
92	SPRING; CLU 6WA1 TC-C(55L)	1-31214-042-0	12	1	0106-	●
92	SPRING; CLU 6WF1 TC-C(1B8)	1-31214-062-0	12	1	0106-		●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0106-0308	●	●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0309-	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	0106-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0106-	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0106-0205	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0106-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0106-0205	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0106-0603	●	●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0106-	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0106-	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0106-0603	●	●
111	WASHER; PL,STRAP (B) ID=12.2	0-91510-512-0	08	1	0604-	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0106-	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0106-	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0106-	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0106-0111	●	●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0112-	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0106-	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0106-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0106-	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0106-0512	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0106-0603	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0106-0512	●	●
137	BOLT; CLU COVER M12X80	0-28151-280-0	02	1	0601-	●	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0106-0512	●	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28151-290-0	10	1	0601-	●	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0106-0512	●	●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	04	1	0601-	●	●
143	PLATE; INTERMEDIATE 6WA1 TC-C(55L)	1-31221-122-0	01	1	0106-	●
143	PLATE; INTERMEDIATE 6WF1 TC-C(1B8)	1-31221-109-0	01	1	0106-		●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87830-733-0	01	1	0106-0205	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87831-142-0	01	1	0206-0306	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87831-165-0	01	1	0307-	●
172	LEVER KIT; RELEASE,CLU 6WF1 TC-C(1B8)	1-87830-915-0	01	1	0106-0205		●
172	LEVER KIT; RELEASE,CLU 6WF1 TC-C(1B8)	1-87831-114-0	01	1	0206-0306		●
172	LEVER KIT; RELEASE,CLU 6WF1 TC-C(1B8)	1-87831-164-1	01	1	0307-		●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0106-	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0106-	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0106-	●	●

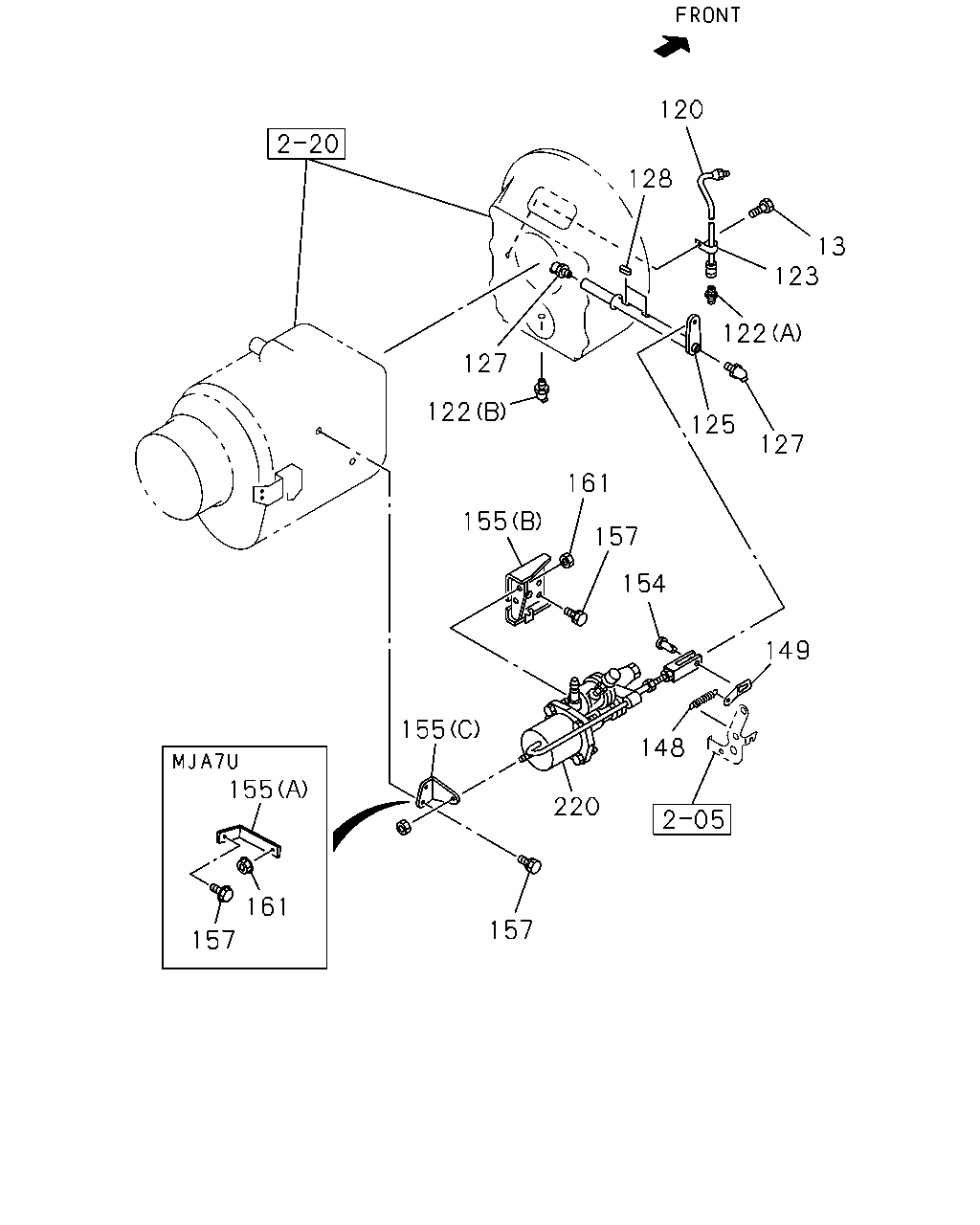

157 157 161 155 220 155 148 149 154 157 161 155 122 127 127 125 122 123 13 128 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-0512	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0106-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0106-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0106-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0106-0606	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●	●
125	SHAFT; CLU	1-31342-262-0	01	1	0106-	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0106-0512	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0106-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0106-	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-048-0	01	1	0106-	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0106-	●	●
155	BRACKET; MINIPACK (A)	1-31429-324-0	01	1	0106-	●
155	BRACKET; MINIPACK (B)	1-31429-323-1	01	1	0106-	●	●
155	BRACKET; MINIPACK (C)	1-31429-350-0	01	1	0106-		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0106-	●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0106-0512		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0601-		●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0106-0602	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-386-3	01	1	0106-	●	●
