◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#8979) — 70 parça

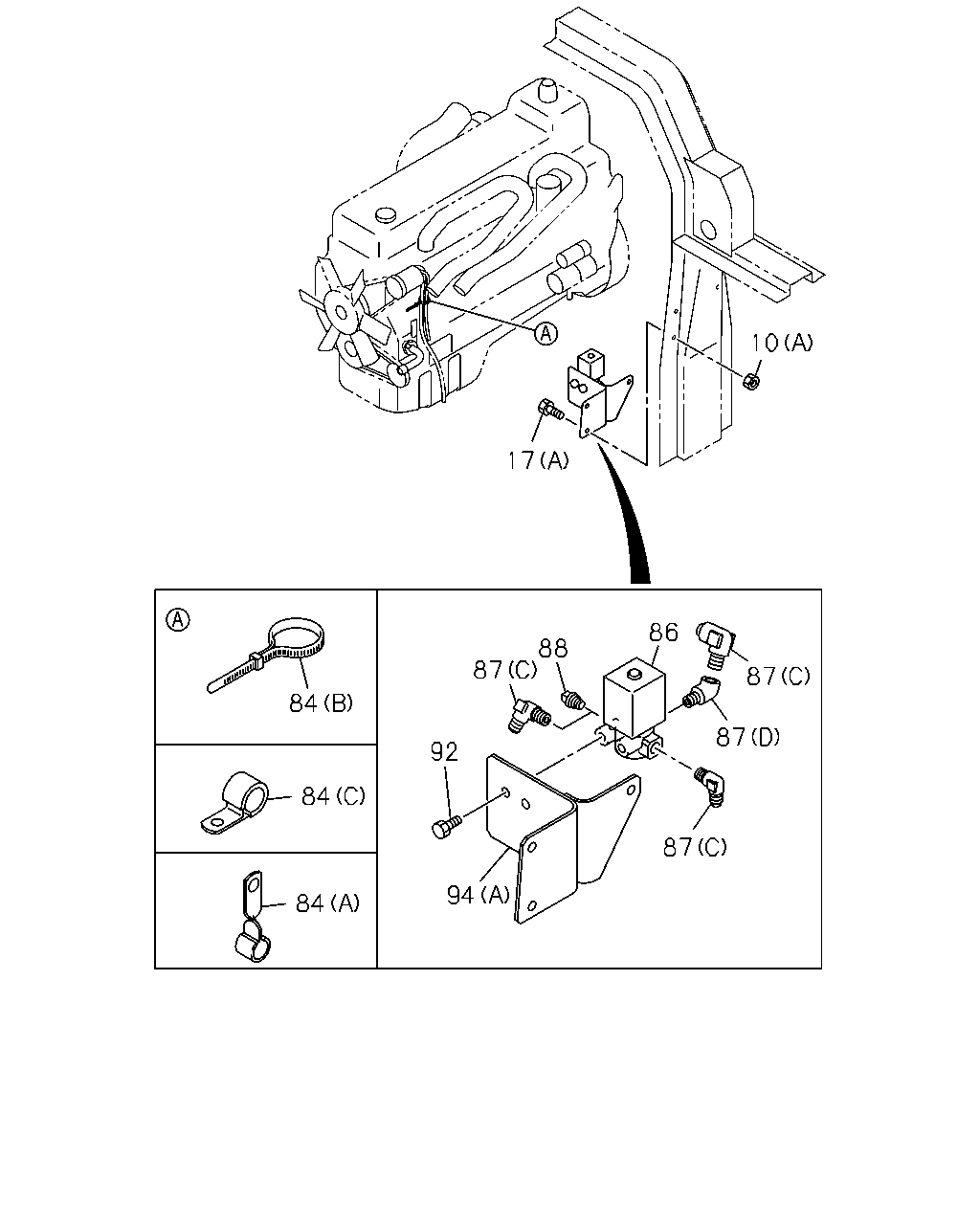

çizim 20414
17 10 87 87 87 86 88 87 92 94 84 84 84
BalonParca AdiParca NoAdetTipApplied Date A B C
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91150-108-0 03 1 0106-0602 ● ●
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
10 NUT; BRKT,EXH BRAKE
(B) M8 FLANGE 		0-91150-108-0 01 1 0106-0602 ●
10 NUT; BRKT,EXH BRAKE
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
10 NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> (C) M10 FLANGE 		0-91150-210-0 01 1 0106-0602 ●
10 NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> (C) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0106-0512 ● ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
17 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512 ●
17 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
84 CLIP; HARNESS
(C) ID=22 L=32 		1-09700-126-1 02 1 0106-0112 ● ● ●
84 CLIP; HARNESS
(C) ID=22 L=32 		1-09700-126-1 01 1 0201- ● ● ●
84 CLIP; HARNESS
(A) ID=20 L=50 		1-09700-679-1 01 1 0106- ● ● ●
84 CLIP; HARNESS
(C) ID=19 L=50 		9-09525-886-0 01 1 0201-0606 ● ● ●
84 CLIP; HARNESS
(C) ID=19 L=50 		0-95235-886-0 01 1 0607- ● ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 0106- ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0106- ● ●
86 VALVE; MAG,EXH BRK
EURO2 SPECIFICATION<THN> 		1-82563-871-2 01 1 0106- ●
87 CONNECTOR
(D) R1/4 & RC1/4 		1-09664-211-0 01 1 0201- ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0106- ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0106- ● ●
87 CONNECTOR
EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0106- ●
87 CONNECTOR
EURO2 SPECIFICATION<THN> FULL FLOATING CAB(W16) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0106- ●
87 CONNECTOR
EURO2 SPECIFICATION<THN> EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0106- ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0106- ● ●
88 PLUG
EURO2 SPECIFICATION<THN> EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0106- ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 0106-0512 ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-82569-273-0 01 1 0106- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		1-82569-277-2 01 1 0106- ●
çizim 76207
92 93
BalonParca AdiParca NoAdetTipApplied Date A B C
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 0106-0512 ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 02 1 0106-0602 ● ● ●
93 NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
çizim 76208
10 10 87 87 92 94 87 86 17 88 84 84
BalonParca AdiParca NoAdetTipApplied Date A B C
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91150-108-0 03 1 0106-0602 ● ●
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
10 NUT; BRKT,EXH BRAKE
(B) M8 FLANGE 		0-91150-108-0 01 1 0106-0602 ●
10 NUT; BRKT,EXH BRAKE
(B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
10 NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> (C) M10 FLANGE 		0-91150-210-0 01 1 0106-0602 ●
10 NUT; BRKT,EXH BRAKE
ANTI NOISE EQUIPMENT<SV9> (C) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0106-0512 ● ●
17 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
17 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0512 ●
17 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
84 CLIP; HARNESS
(C) ID=22 L=32 		1-09700-126-1 02 1 0106-0112 ● ● ●
84 CLIP; HARNESS
(C) ID=22 L=32 		1-09700-126-1 01 1 0201- ● ● ●
84 CLIP; HARNESS
(A) ID=20 L=50 		1-09700-679-1 01 1 0106- ● ● ●
84 CLIP; HARNESS
(C) ID=19 L=50 		9-09525-886-0 01 1 0201-0606 ● ● ●
84 CLIP; HARNESS
(C) ID=19 L=50 		0-95235-886-0 01 1 0607- ● ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 0106- ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0106- ● ●
86 VALVE; MAG,EXH BRK
EURO2 SPECIFICATION<THN> 		1-82563-871-2 01 1 0106- ●
87 CONNECTOR
(D) R1/4 & RC1/4 		1-09664-211-0 01 1 0201- ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0106- ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0106- ● ●
87 CONNECTOR
EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0106- ●
87 CONNECTOR
EURO2 SPECIFICATION<THN> FULL FLOATING CAB(W16) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0106- ●
87 CONNECTOR
EURO2 SPECIFICATION<THN> EXC. FULL FLOATING CAB(W16) (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0106- ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0106- ● ●
88 PLUG
EURO2 SPECIFICATION<THN> EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0106- ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0106-0512 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28080-870-0 02 1 0106-0512 ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE 		0-28050-870-0 02 1 0601- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		1-82569-273-0 01 1 0106- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		1-82569-277-2 01 1 0106- ●
