Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#8977) — 258 parça

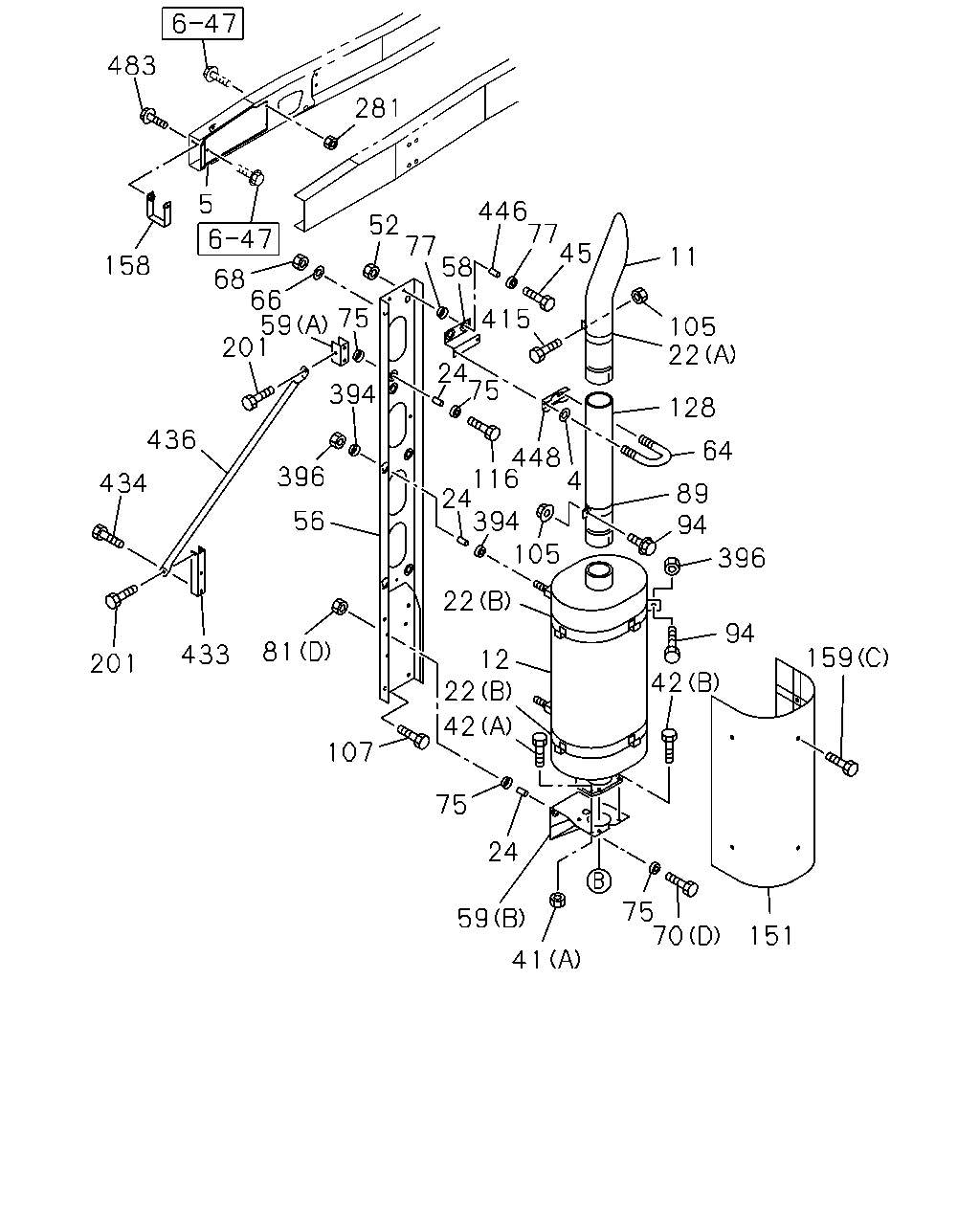

151 75 70 159 94 42 396 94 89 64 128 22 105 11 45 77 446 52 281 77 415 58 75 24 448 116 4 105 394 24 22 22 42 75 24 59 107 81 56 396 394 75 59 66 68 201 436 434 433 201 158 5 483 12 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	0106-0605
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	0606-
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0106-
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	0106-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0106-
12	SILENCER ASM; EXH 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0106-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0106-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-266-1	01	1	0106-
22	CLAMP; EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B)	1-22133-269-0	02	1	0106-
22	CLAMP; EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B)	1-22133-270-0	02	1	0106-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	0106-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0106-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12	9-99110-512-0	08	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0106-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0301-0512
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0106-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	03	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0106-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	0106-0512
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	0601-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	0106-0602
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	0603-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-788-0	01	1	0106-
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	0106-0109
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-938-0	01	1	0110-
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	0106-0109
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-939-0	01	1	0110-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	0106-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22151-710-1	02	1	0106-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	0106-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	0106-0603
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	0604-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0106-0602
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28081-060-0	04	1	0106-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X25 FLANGE	0-28081-025-0	04	1	0106-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	05	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	05	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28080-850-0	02	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0106-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0106-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0106-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10 FLANGE	0-91150-210-0	04	1	0106-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	0106-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	03	1	0106-0512
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28651-040-0	03	1	0601-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	0106-0602
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	0603-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	0106-0111
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28081-235-0	04	1	0112-0512
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28051-235-0	04	1	0601-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0106-0512
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28651-240-0	04	1	0601-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	0106-0512
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	0601-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	0106-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22123-207-1	01	1	0106-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22159-334-0	01	1	0106-
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0106-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0106-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0106-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	04	1	0106-0512
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28651-025-0	04	1	0601-
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0106-0602
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0603-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	0106-
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	0106-0602
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	06	1	0603-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	0106-0512
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28651-040-0	01	1	0601-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-811-0	01	1	0106-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	02	1	0106-0512
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28651-030-0	02	1	0601-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-798-2	02	1	0106-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	0106-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	0106-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	01	1	0601-

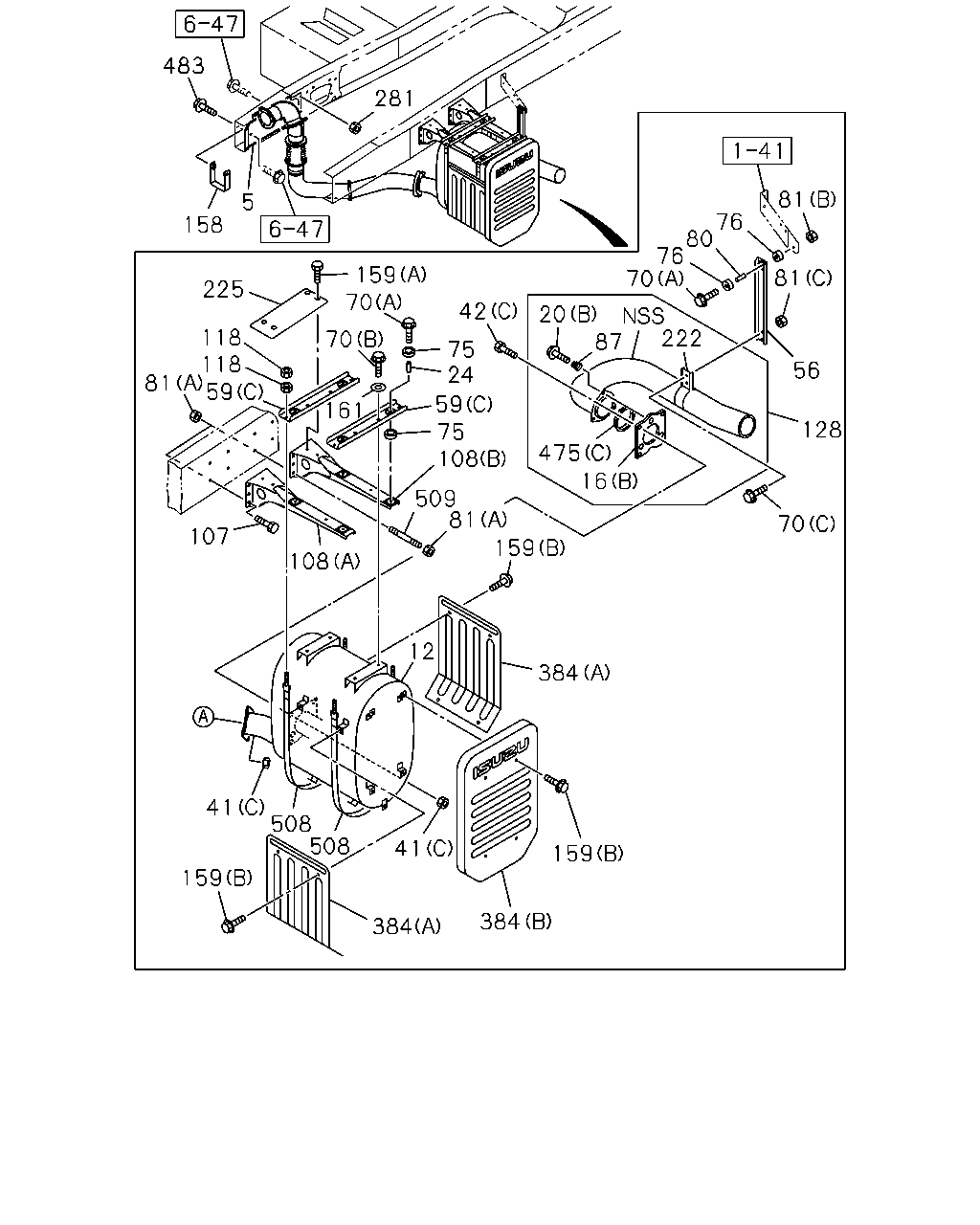

384 159 41 384 508 508 41 159 12 384 159 81 509 108 107 81 225 59 118 118 158 5 483 281 159 70 70 42 75 108 75 59 24 20 222 56 128 70 16 475 81 81 76 80 76 70 87 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0106-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0106-
12	SILENCER ASM; EXH 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0106-
12	SILENCER ASM; EXH 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22140-925-2	01	1	0106-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0106-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0106-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X51.4	8-94436-943-0	02	1	0501-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	05	1	0106-0412
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	03	1	0501-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0106-0512
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28661-230-0	01	1	0601-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	0106-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0106-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12	9-99110-512-0	08	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0106-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0301-0512
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0106-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	03	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0106-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-788-0	01	1	0106-
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	0106-0109
56	BRACKET; CLAMP,EXH PIPE 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28>	1-22151-938-0	01	1	0110-
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-795-0	01	1	0106-0109
56	BRACKET; CLAMP,EXH PIPE 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28>	1-22151-939-0	01	1	0110-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22151-710-1	02	1	0106-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28081-060-0	04	1	0106-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X25 FLANGE	0-28081-025-0	04	1	0106-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	05	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	05	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28080-850-0	02	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0106-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0106-
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	0106-
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	0106-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10 FLANGE	0-91150-210-0	04	1	0106-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	0106-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	0106-0111
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28081-235-0	04	1	0112-0512
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28051-235-0	04	1	0601-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0106-0512
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28651-240-0	04	1	0601-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	0106-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	0106-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	0106-0512
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	0601-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	0106-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22123-207-1	01	1	0106-
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0106-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0106-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0106-
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	0106-
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	0106-
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-515-0	01	1	0106-
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0106-0602
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0603-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-378-3	01	1	0106-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-379-1	02	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=112	1-22119-294-0	01	1	0106-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	01	1	0601-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	04	1	0106-0312
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	0401-0408
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-382-0	02	1	0409-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-369-0	02	1	0401-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	0106-0303
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	0304-

42 17 16 475 476 20 1 20 20 476 17 1 36 36 34 26 1 475 84 476 475 1 36

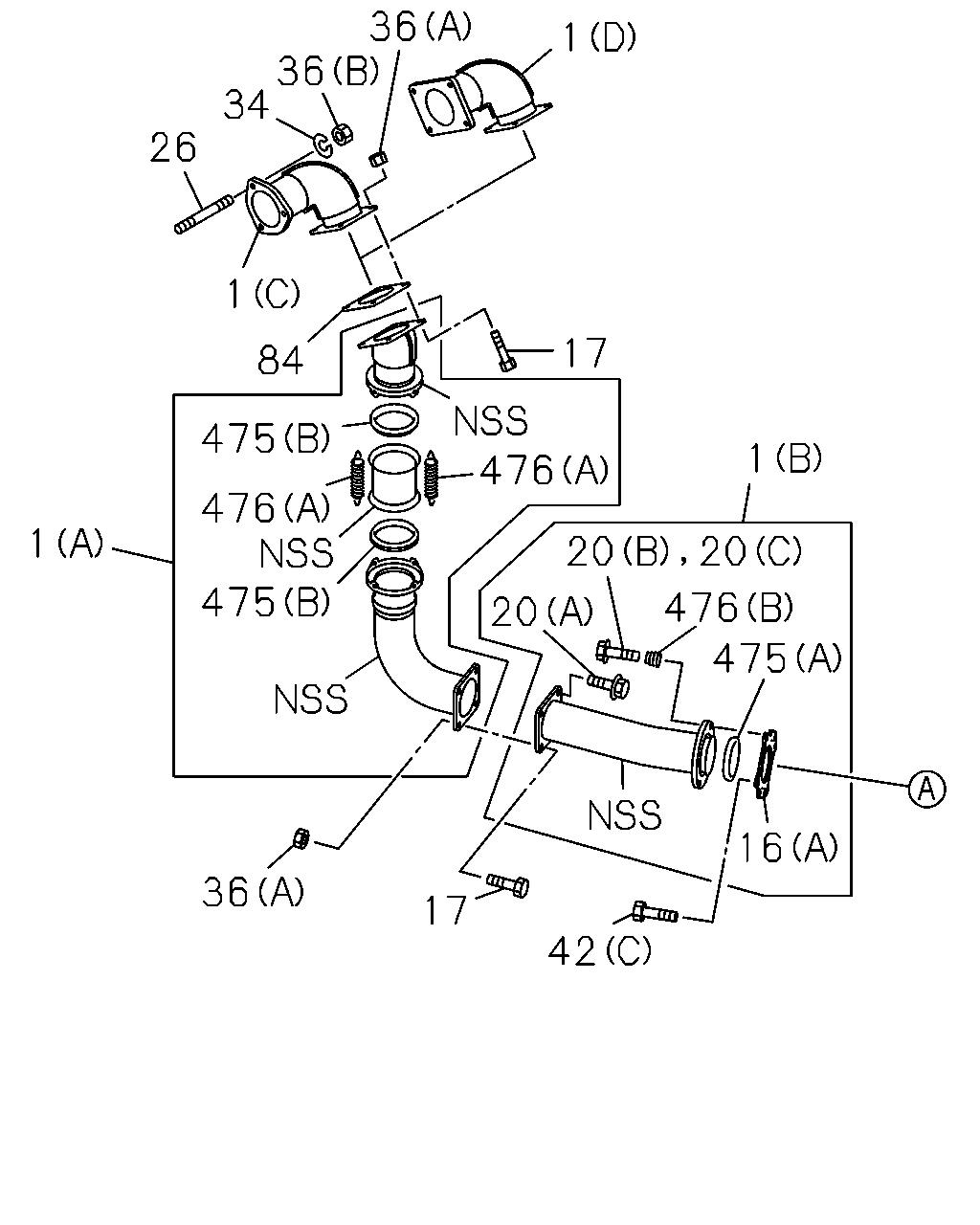

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22123-085-1	01	1	0106-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22123-421-1	01	1	0106-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-22122-227-1	01	1	0106-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-C(72L) (A)	1-22122-818-0	01	1	0106-
1	PIPE; EXH 6WF1 TC-C(1B8) (D)	1-22122-976-0	01	1	0106-
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22123-487-0	01	1	0106-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0106-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0106-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0106-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X51.4	8-94436-943-0	02	1	0501-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	05	1	0106-0412
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	03	1	0501-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0106-0512
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28661-230-0	01	1	0601-
26	STUD; EXH MANIF 6WA1 TC-C(55L),6WG1 TC-C(72L) M12X140 L=160	1-09302-163-0	03	1	0210-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0106-0209
26	STUD; EXH MANIF 6WF1 TC-C(1B8) M12X140 L=160	1-09302-163-0	04	1	0210-
34	WASHER; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=13 OD=24 DISH	1-09556-020-0	03	1	0210-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	0106-0209
34	WASHER; EXH PIPE 6WF1 TC-C(1B8) ID=13 OD=24 DISH	1-09556-020-0	04	1	0210-
36	NUT; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M12	1-09400-131-0	03	1	0210-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0106-0209
36	NUT; EXH PIPE 6WF1 TC-C(1B8) (B) M12	1-09400-131-0	04	1	0210-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0106-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0106-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0301-0512
42	BOLT; EXH PIPE TO EXH SILENCER 6WA1 TC-C(55L) SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0106-0212
42	BOLT; EXH PIPE TO EXH SILENCER 6WF1 TC-C(1B8),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	03	1	0301-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0106-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=112	1-22119-294-0	01	1	0106-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0106-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0106-

17 36 1 1 41 1 36 36 34 26 1 475 84 17 476 476 475

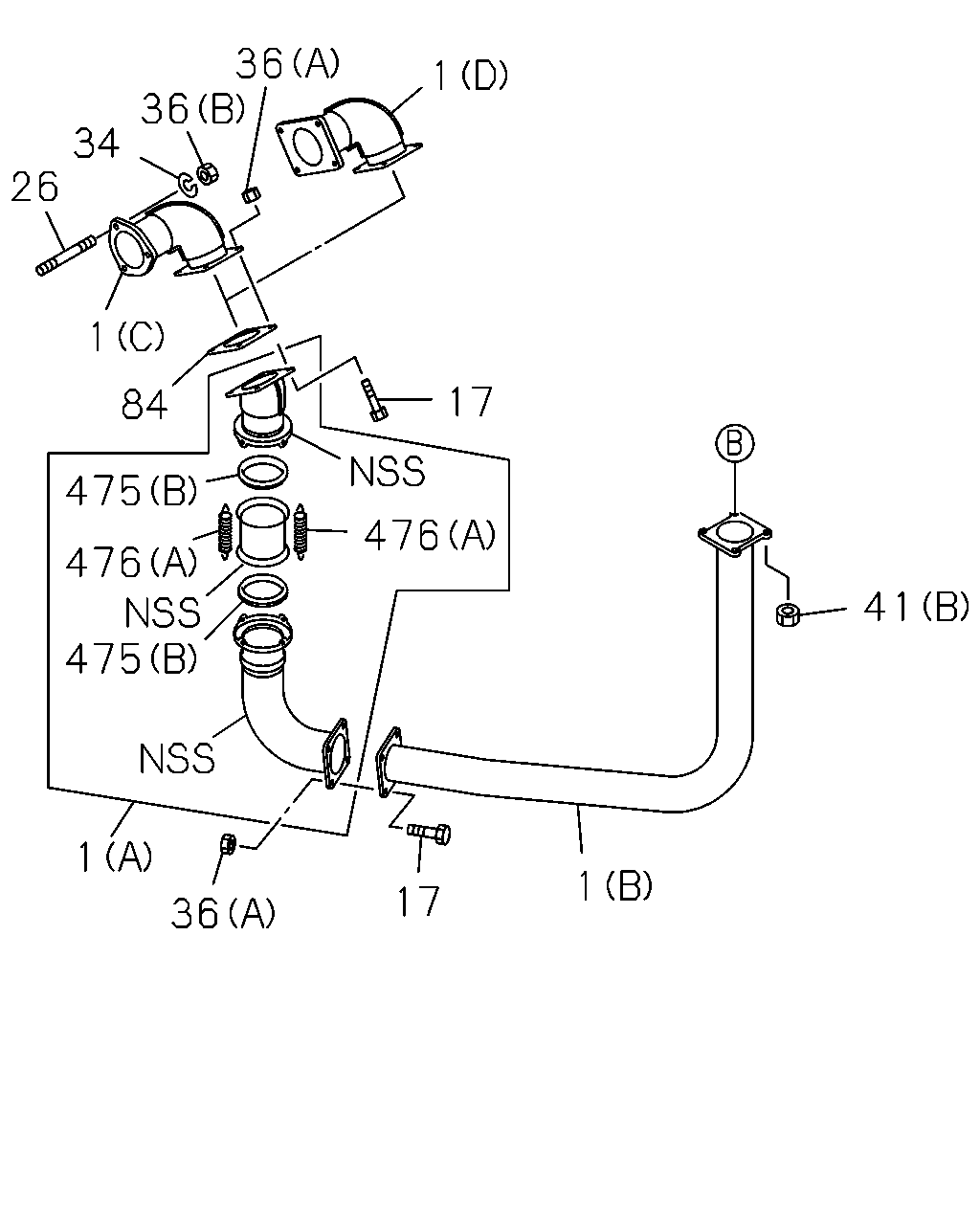

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22123-085-1	01	1	0106-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22123-421-1	01	1	0106-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-C(72L) (C)	1-22122-227-1	01	1	0106-
1	PIPE; EXH 6WA1 TC-C(55L),6WG1 TC-C(72L) (A)	1-22122-818-0	01	1	0106-
1	PIPE; EXH 6WF1 TC-C(1B8) (D)	1-22122-976-0	01	1	0106-
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22123-487-0	01	1	0106-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0106-
26	STUD; EXH MANIF 6WA1 TC-C(55L),6WG1 TC-C(72L) M12X140 L=160	1-09302-163-0	03	1	0210-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0106-0209
26	STUD; EXH MANIF 6WF1 TC-C(1B8) M12X140 L=160	1-09302-163-0	04	1	0210-
34	WASHER; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) ID=13 OD=24 DISH	1-09556-020-0	03	1	0210-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	0106-0209
34	WASHER; EXH PIPE 6WF1 TC-C(1B8) ID=13 OD=24 DISH	1-09556-020-0	04	1	0210-
36	NUT; EXH PIPE 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M12	1-09400-131-0	03	1	0210-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0106-0209
36	NUT; EXH PIPE 6WF1 TC-C(1B8) (B) M12	1-09400-131-0	04	1	0210-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0106-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12	9-99110-512-0	08	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12	0-91110-512-0	08	1	0601-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=112	1-22119-294-0	01	1	0106-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0106-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
