◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#8975) — 64 parça

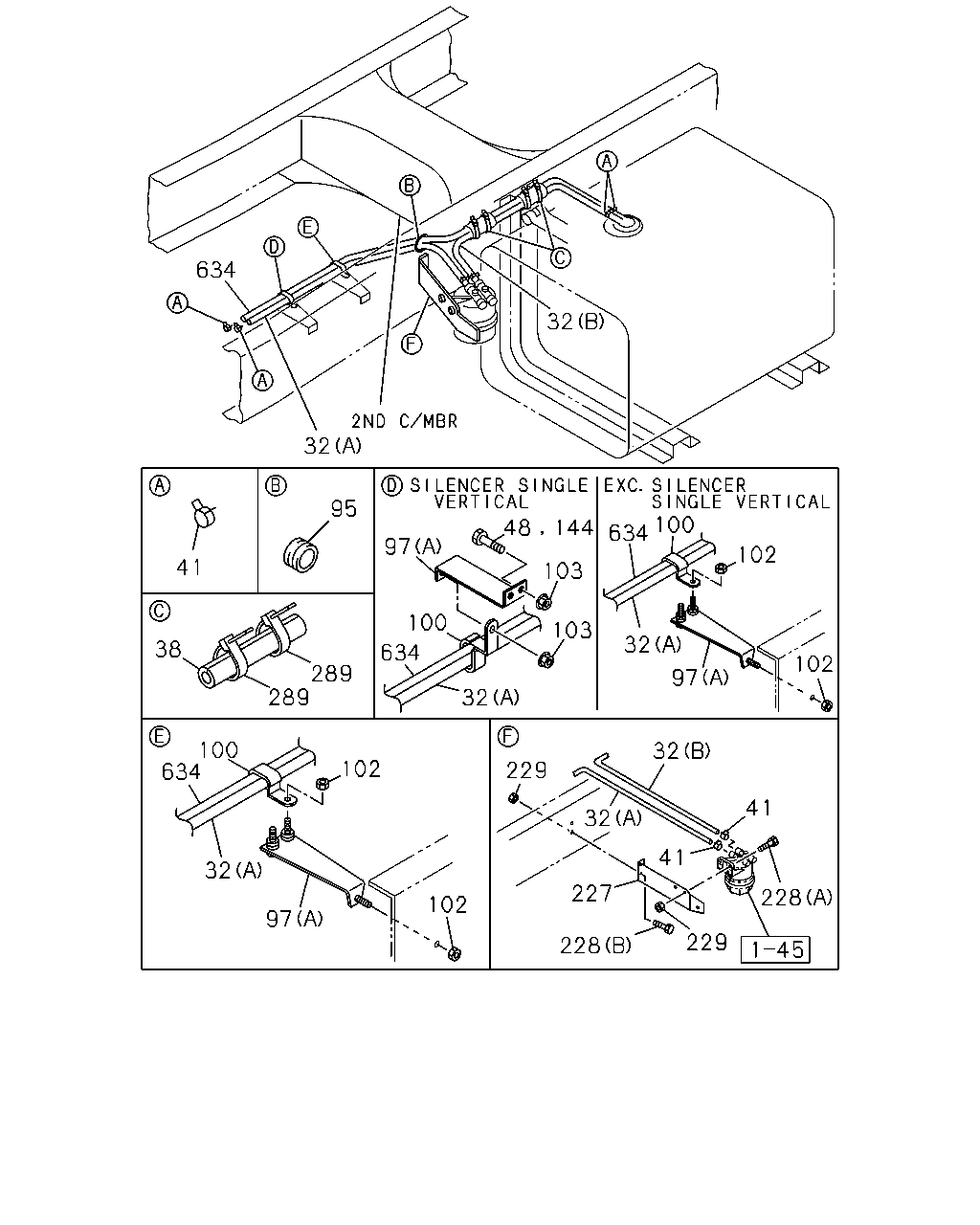

çizim 20180
228 229 41 41 227 228 32 32 229 32 97 102 32 102 100 634 144 48 103 103 100 634 97 95 32 32 634 41 38 289 289 102 102 97 32 634 100
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=820 SERVICED BY L=3000 		0-01260-300-0 01 1 0106-
32 PIPE; DELIVERY,FUEL TANK
(A) L=1200 SERVICED BY L=3000 		0-01260-300-0 01 1 0106-
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0106-0107
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0108-
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 0106-
48 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE 		0-28680-830-0 02 1 0112-0512
48 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE 		0-28650-830-0 02 1 0601-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0106-
97 BRACKET; CLIP
(A) 		1-47479-247-0 02 1 0106-0109
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 01 1 0110-0111
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 01 1 0112-0408
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47471-045-0 01 1 0409-
97 BRACKET; CLIP
FUEL TANK 400L+400L<NAR> (B) 		1-53461-494-1 01 1 0106-
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-345-0 01 1 0110-0111
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-379-0 01 1 0112-
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 02 1 0110-0111
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 02 1 0112-0408
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47471-045-0 02 1 0409-
100 CLIP; FUEL PIPE
ID=15 		1-09700-845-1 02 1 0106-0106
100 CLIP; FUEL PIPE 1-09701-299-0 02 1 0107-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 04 1 0106-0111
102 NUT; CLIP,FUEL PIPE
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 02 1 0110-0111
102 NUT; CLIP,FUEL PIPE
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 02 1 0112-0602
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
102 NUT; CLIP,FUEL PIPE
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 02 1 0603-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
103 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 03 1 0112-0602
103 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 03 1 0603-
144 BOLT; CLIP,FUEL PIPE,C/MBR
SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE 		0-28680-830-0 02 1 0110-0111
227 BRACKET; FUEL SEDIMENTER 1-22518-168-2 01 1 0106-
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE 		0-28681-030-0 02 1 0106-0512
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
228 BOLT; BRKT,SEDIMENTER
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0106-0512
228 BOLT; BRKT,SEDIMENTER
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-210-0 04 1 0106-0602
229 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91180-210-0 04 1 0603-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 0106-0107
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 06 1 0108-
634 HOSE; RUBBER RETURN
L=1650 SERVICED BY L=3000 		0-01260-300-0 01 1 0106-

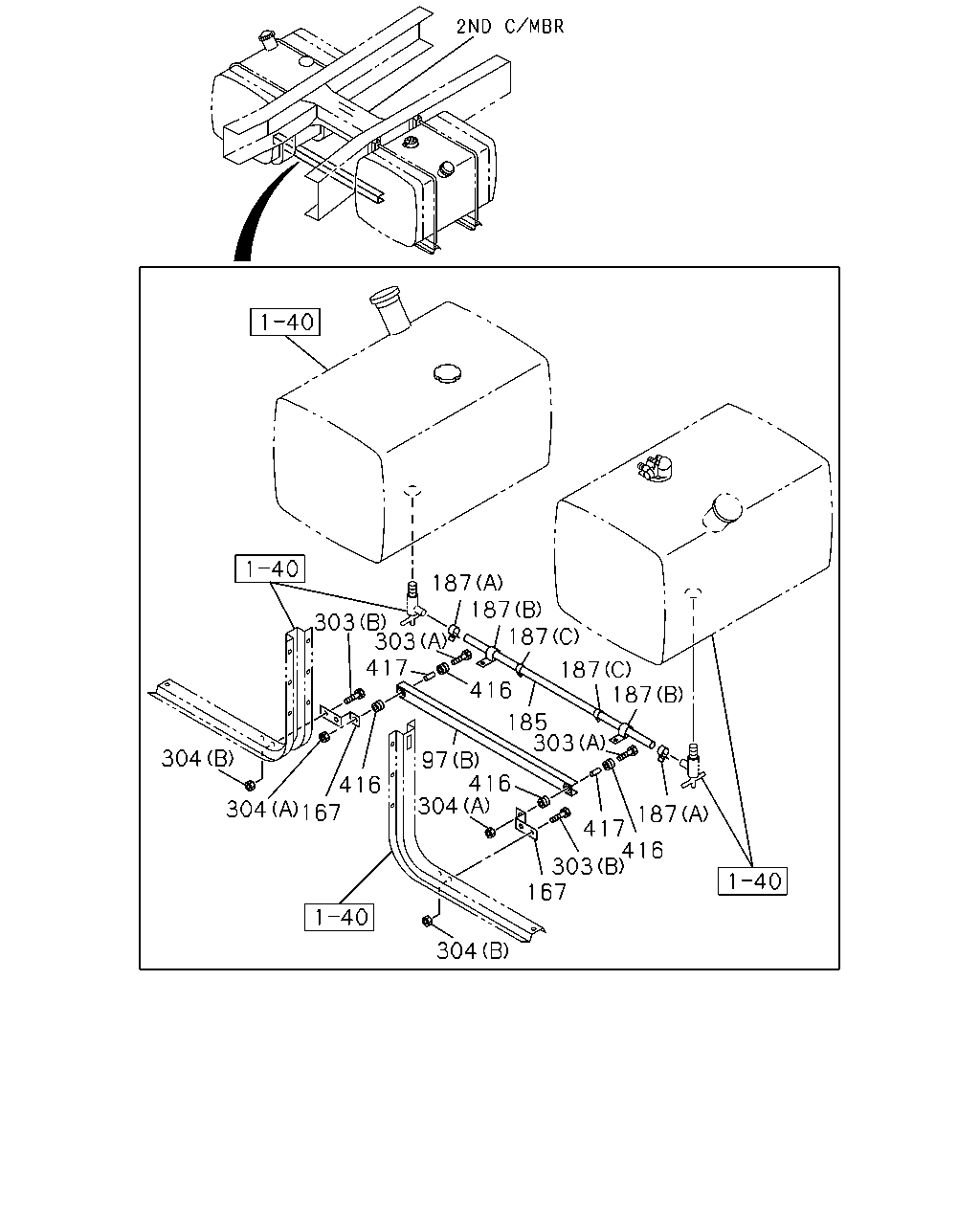

çizim 76379
187 187 187 187 187 187 416 417 303 167 304 416 185 303 416 417 303 303 97 304 416 167 304 304
BalonParca AdiParca NoAdetTipApplied Date
97 BRACKET; CLIP
(A) 		1-47479-247-0 02 1 0106-0109
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 01 1 0110-0111
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 01 1 0112-0408
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47471-045-0 01 1 0409-
97 BRACKET; CLIP
FUEL TANK 400L+400L<NAR> (B) 		1-53461-494-1 01 1 0106-
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-345-0 01 1 0110-0111
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-379-0 01 1 0112-
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 02 1 0110-0111
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 02 1 0112-0408
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47471-045-0 02 1 0409-
167 BRACKET
FUEL TANK 400L+400L<NAR> 		1-47478-031-0 02 1 0106-
185 PIPE; FUEL TANK TO TANK
FUEL TANK 400L+400L<NAR> L=1800 SERVICED BY L=3000 		0-01262-300-0 01 1 0106-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 400L+400L<NAR> (A) ID=19 		8-94238-569-0 02 1 0106-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 400L+400L<NAR> (B) ID=19 H=25 L=25 		9-09917-035-0 02 1 0106-
187 CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 400L+400L<NAR> (C) ID=22 L=52 		9-09917-431-0 02 1 0106-
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE 		0-28081-050-0 02 1 0106-0512
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE 		0-28051-050-0 02 1 0601-
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE 		0-28680-825-0 04 1 0106-0512
303 BOLT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8 FLANGE 		0-91150-108-0 04 1 0106-0602
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (B) M8 FLANGE 		0-91180-108-0 04 1 0603-
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
304 NUT; BRKT
FUEL TANK 400L+400L<NAR> (A) M10 FLANGE 		0-91180-210-0 02 1 0603-
416 RUBBER; SUPPORT
FUEL TANK 400L+400L<NAR> OD=40 		1-22159-094-0 04 1 0106-
417 TUBE; DISTANCE,BRKT
FUEL TANK 400L+400L<NAR> L=22 		9-22159-024-0 02 1 0106-
