1-40 — FUEL TANK (#8974) — 59 parça

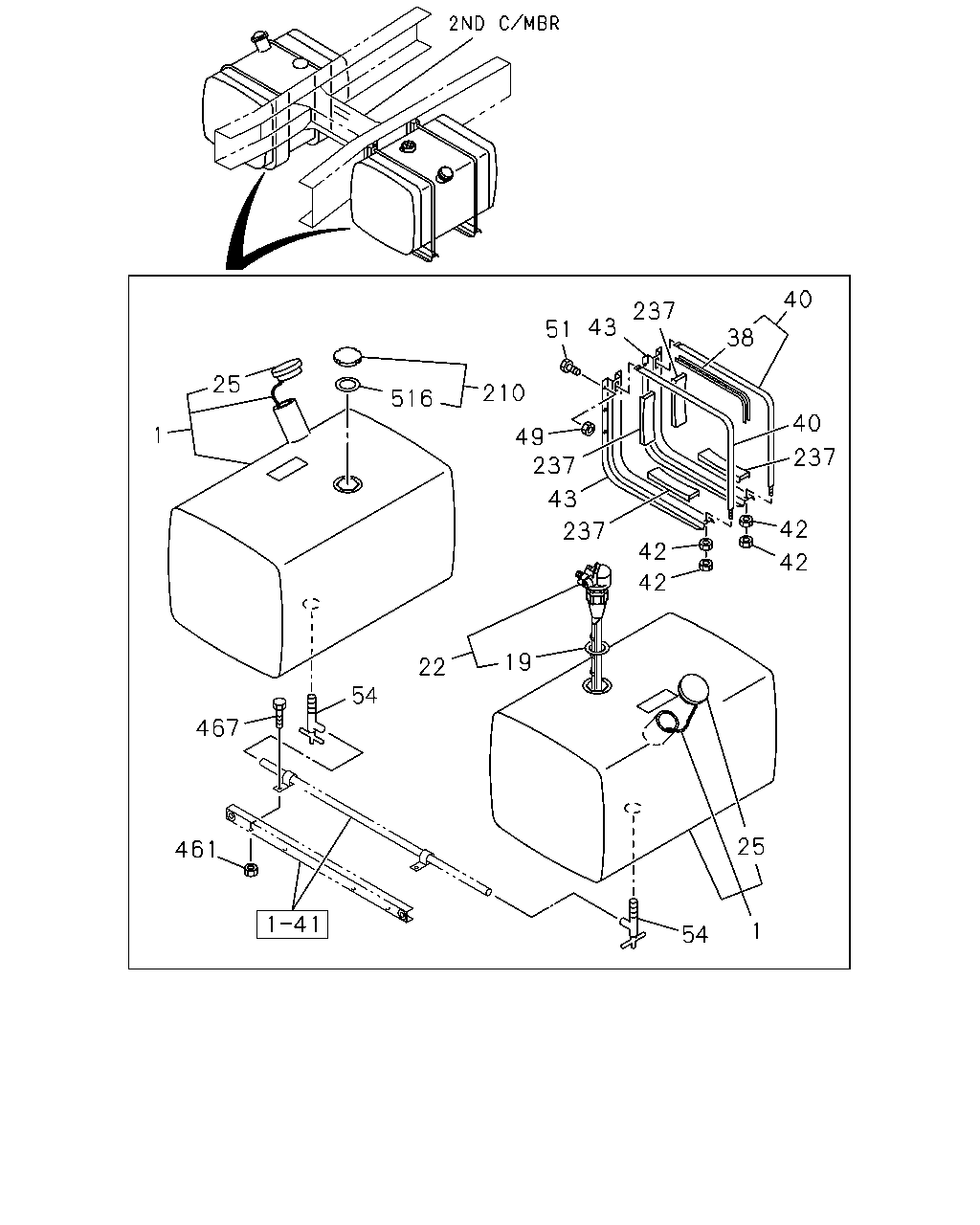

25 54 1 42 42 237 40 38 40 237 43 51 210 516 25 1 19 22 54 467 461 42 42 237 43 237 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	02	1	0106-
1	TANK; FUEL EXC. FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	01	1	0106-
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0106-
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0106-
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR>	1-22440-056-0	02	1	0106-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22440-056-0	01	1	0106-
38	INSULATION; SUPPORT BELT FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	04	1	0106-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	02	1	0106-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	04	1	0106-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	02	1	0106-
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	08	1	0106-0512
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	0-91110-510-0	08	1	0601-
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	04	1	0106-0512
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK FUEL TANK 400L+400L<NAR>	1-53461-525-1	04	1	0106-
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-53461-525-1	02	1	0106-
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	16	1	0106-0512
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	0-91110-512-0	16	1	0601-
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	08	1	0106-0512
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	0-91110-512-0	08	1	0601-
51	BOLT; BRKT TO FRAME FUEL TANK 400L+400L<NAR> M12X40 FLANGE	0-28681-240-0	24	1	0106-0512
51	BOLT; BRKT TO FRAME FUEL TANK 400L+400L<NAR> M12X40 FLANGE	0-28651-240-0	24	1	0601-
54	COCK ASM; FUEL TANK FUEL TANK 400L+400L<NAR>	1-09680-085-0	02	1	0106-
210	CAP; FUEL TANK FUEL TANK 400L+400L<NAR>	1-22411-076-0	01	1	0106-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L+400L<NAR>	1-22553-037-0	08	1	0106-
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22553-037-0	04	1	0106-
461	NUT; CLIP,FUEL PIPE FUEL TANK 400L+400L<NAR> M8 FLANGE	0-91150-108-0	02	1	0106-0602
461	NUT; CLIP,FUEL PIPE FUEL TANK 400L+400L<NAR> M8 FLANGE	0-91180-108-0	02	1	0603-
467	BOLT FUEL TANK 400L+400L<NAR> M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
467	BOLT FUEL TANK 400L+400L<NAR> M8X20 FLANGE	0-28650-820-0	02	1	0601-
516	GASKET; CAP FUEL TANK 400L+400L<NAR> ID=58	1-83149-005-0	01	1	0106-

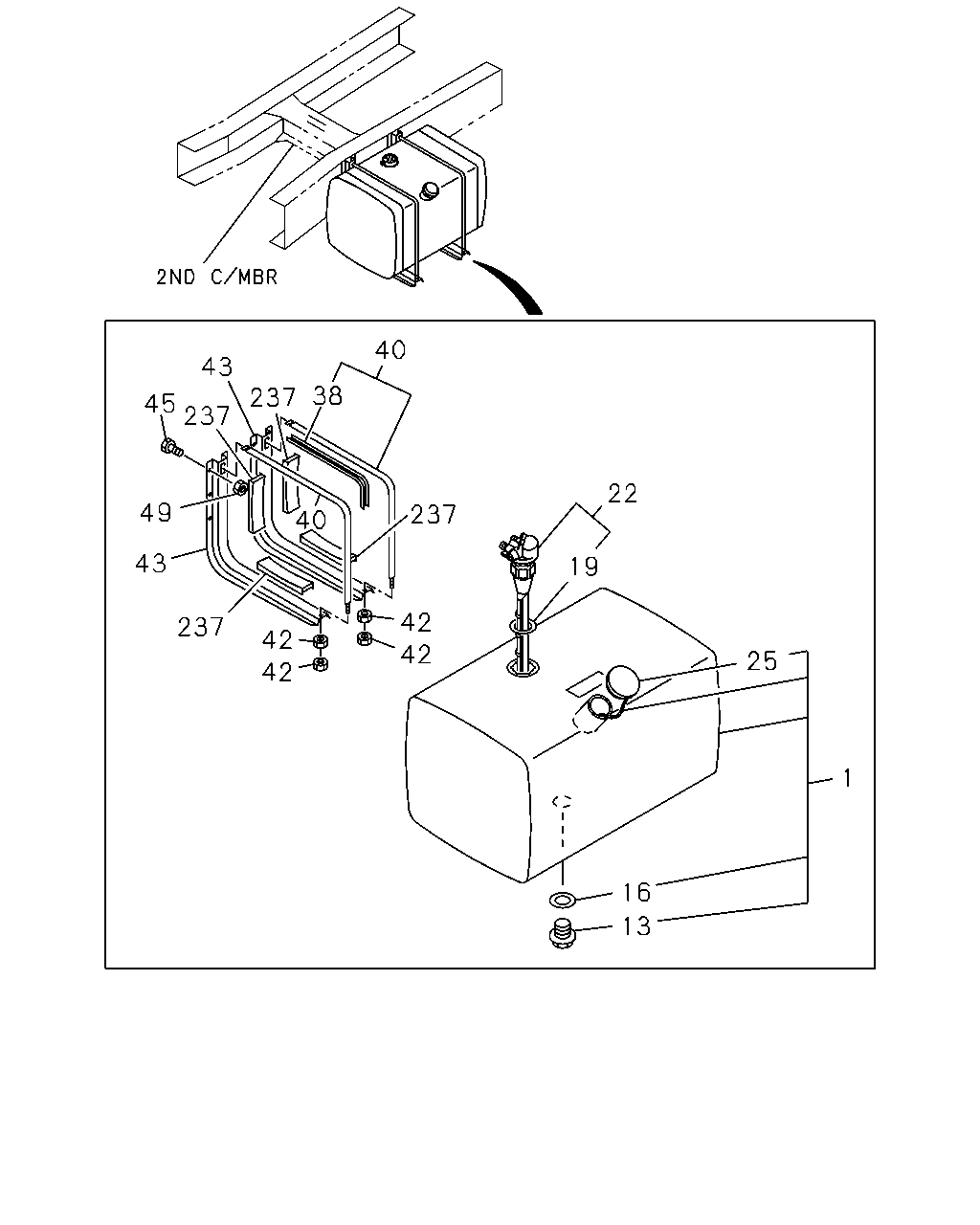

1 13 16 19 22 237 42 42 25 42 42 237 43 49 40 38 237 43 45 237 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	02	1	0106-
1	TANK; FUEL EXC. FUEL TANK 400L+400L<NAR> 1020X680X625 400L	1-87411-168-0	01	1	0106-
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 400L+400L<NAR> M18X12	9-99202-318-0	01	1	0106-0606
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 400L+400L<NAR> M18X12	0-92002-418-0	01	1	0607-
16	GASKET; PLUG EXC. FUEL TANK 400L+400L<NAR> T=1.60	1-22416-001-0	01	1	0106-0509
16	GASKET; PLUG EXC. FUEL TANK 400L+400L<NAR> T=1.60	8-98030-453-0	01	1	0510-
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0106-
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0106-
25	CAP; FILLER,FUEL TANK FUEL TANK 400L+400L<NAR>	1-22440-056-0	02	1	0106-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22440-056-0	01	1	0106-
38	INSULATION; SUPPORT BELT FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	04	1	0106-
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> L=1156	1-22553-039-1	02	1	0106-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	04	1	0106-
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> L=1205	1-22550-227-2	02	1	0106-
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	08	1	0106-0512
42	NUT; SUPPORT BELT FUEL TANK 400L+400L<NAR> M10	0-91110-510-0	08	1	0601-
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	9-09110-510-0	04	1	0106-0512
42	NUT; SUPPORT BELT EXC. FUEL TANK 400L+400L<NAR> M10	0-91110-510-0	04	1	0601-
43	BRACKET; FUEL TANK FUEL TANK 400L+400L<NAR>	1-53461-525-1	04	1	0106-
43	BRACKET; FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-53461-525-1	02	1	0106-
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> M12X40 FLANGE	0-28681-240-0	12	1	0106-0512
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 400L+400L<NAR> M12X40 FLANGE	0-28651-240-0	12	1	0601-
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	16	1	0106-0512
49	NUT; BRKT FUEL TANK 400L+400L<NAR> M12	0-91110-512-0	16	1	0601-
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	9-99110-512-0	08	1	0106-0512
49	NUT; BRKT EXC. FUEL TANK 400L+400L<NAR> M12	0-91110-512-0	08	1	0601-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L+400L<NAR>	1-22553-037-0	08	1	0106-
237	GASKET; BRKT TO FUEL TANK EXC. FUEL TANK 400L+400L<NAR>	1-22553-037-0	04	1	0106-
