Isuzu WW
▶
TRUCKS
▶
EXR
▶
10862 - EXR LHD FUEL TANK 400L/400L+400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#8973) — 62 parça
Tümü
A - 6WA1 TC-C
B - 6WF1 TC-C
C - 6WG1 TC-C
◀

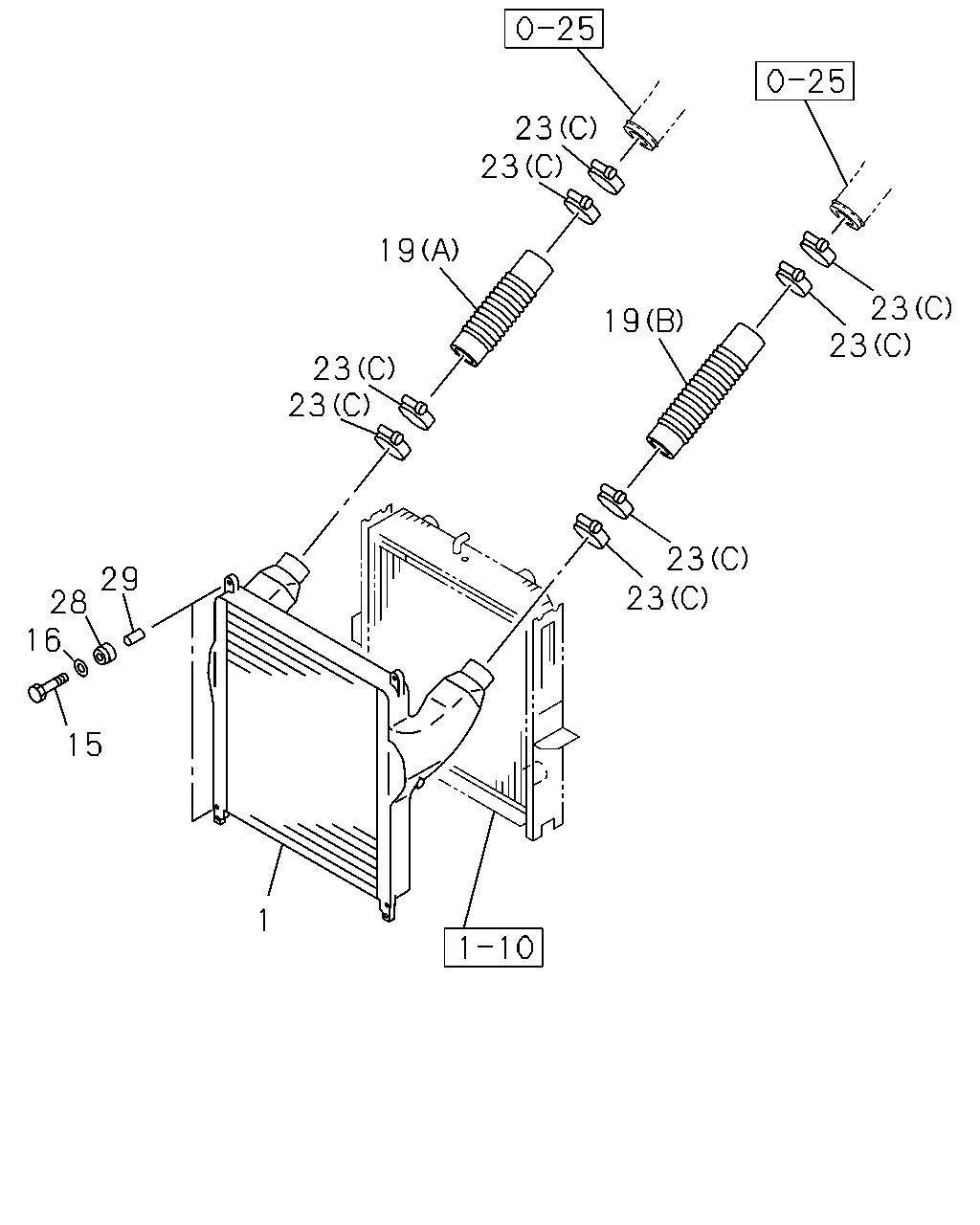

[135A] 6WF1 (28 parça)

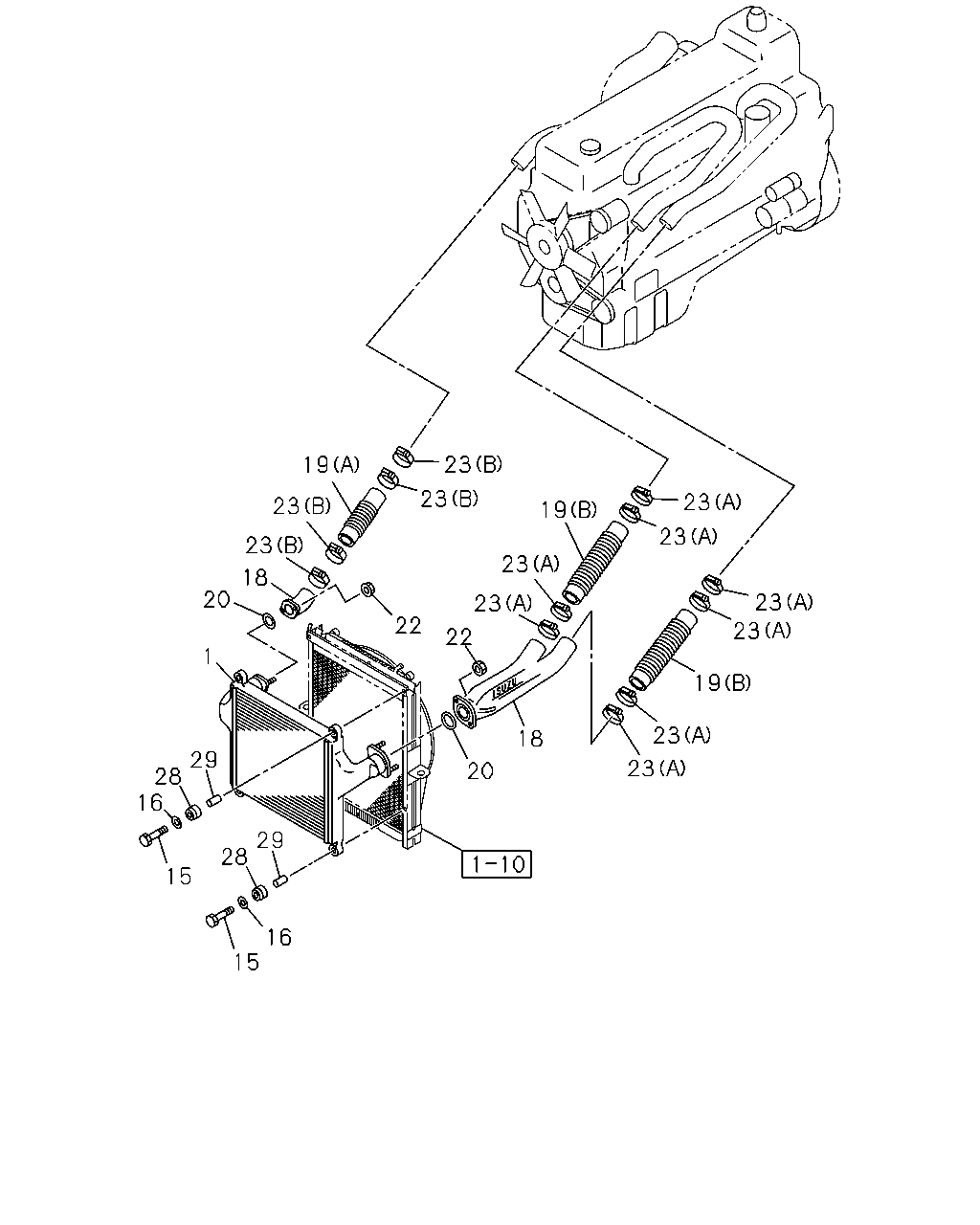

[135A] 6WA1,6WG1 (34 parça)
▶
23
23
23
23
23
23
19
23
23
15
1
16
28
29
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COOLER; CHARGE AIR
1-14431-039-0
01
1
0106-
●
1
COOLER; CHARGE AIR
1-14431-057-0
01
1
0106-
●
1
COOLER; CHARGE AIR
ENG LOW TORQUE<Q3R>
1-14431-047-0
01
1
0106-
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
0106-
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
02
1
0106-
●
15
BOLT; CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> M8X35 FLANGE
0-28080-835-0
02
1
0106-
●
15
BOLT; CHARGE AIR COOLER
M8X50 FLANGE
0-28080-850-0
02
1
0106-
●
15
BOLT; CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> M8X50 FLANGE
0-28080-850-0
02
1
0106-
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0106-0107
●
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
08
1
0108-
●
16
WASHER; PL,CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> ID=10.5 OD=32
9-09164-810-0
08
1
0108-
●
16
WASHER; PL,CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> ID=10.5 OD=32
9-09164-810-0
08
1
0106-0107
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0108-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270
1-09360-914-2
02
1
0106-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-3
01
1
0106-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-088-0
01
1
0106-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-089-1
01
1
0106-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
ENG LOW TORQUE<Q3R> (B)
1-09361-010-1
02
1
0106-
●
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
0106-0306
●
●
23
CLIP; HOSE
(B) ID=77-95
1-09707-198-0
04
1
0307-
●
●
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
0106-0306
●
●
23
CLIP; HOSE
(A) ID=68-85
1-09707-202-0
08
1
0307-
●
●
23
CLIP; HOSE
(C) ID=87-116
1-09707-144-0
08
1
0106-0306
●
23
CLIP; HOSE
(C) ID=87-113
1-09707-199-0
08
1
0307-
●
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0106-
●
●
28
RUBBER; MTG,CHARGE AIR COOLER
ENG LOW TORQUE<Q3R>
1-21467-015-1
04
1
0106-
●
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0106-
●
●
29
COLLAR; MTG RUBBER,CAC BRKT
ENG LOW TORQUE<Q3R>
1-21469-100-0
04
1
0106-
●
23
19
23
23
23
23
23
19
23
23
22
22
18
20
16
15
29
28
15
16
29
28
1
19
23
23
18
20
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COOLER; CHARGE AIR
1-14431-039-0
01
1
0106-
●
1
COOLER; CHARGE AIR
1-14431-057-0
01
1
0106-
●
1
COOLER; CHARGE AIR
ENG LOW TORQUE<Q3R>
1-14431-047-0
01
1
0106-
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
0106-
●
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
02
1
0106-
●
15
BOLT; CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> M8X35 FLANGE
0-28080-835-0
02
1
0106-
●
15
BOLT; CHARGE AIR COOLER
M8X50 FLANGE
0-28080-850-0
02
1
0106-
●
15
BOLT; CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> M8X50 FLANGE
0-28080-850-0
02
1
0106-
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0106-0107
●
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
08
1
0108-
●
16
WASHER; PL,CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> ID=10.5 OD=32
9-09164-810-0
08
1
0108-
●
16
WASHER; PL,CHARGE AIR COOLER
ENG LOW TORQUE<Q3R> ID=10.5 OD=32
9-09164-810-0
08
1
0106-0107
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0108-
●
18
ADAPTER
1-14112-567-0
01
1
0106-
●
18
ADAPTER
1-14112-491-1
01
1
0106-
●
●
18
ADAPTER
ENG LOW TORQUE<Q3R>
1-14112-719-0
01
1
0106-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270
1-09360-914-2
02
1
0106-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-3
01
1
0106-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-088-0
01
1
0106-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-089-1
01
1
0106-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
ENG LOW TORQUE<Q3R> (B)
1-09361-010-1
02
1
0106-
●
20
GASKET
ID=84.6
1-09623-431-0
02
1
0106-
●
●
22
NUT
M10 FLANGE
0-91150-210-0
04
1
0106-0602
●
●
22
NUT
M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
0106-0306
●
●
23
CLIP; HOSE
(B) ID=77-95
1-09707-198-0
04
1
0307-
●
●
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
0106-0306
●
●
23
CLIP; HOSE
(A) ID=68-85
1-09707-202-0
08
1
0307-
●
●
23
CLIP; HOSE
(C) ID=87-116
1-09707-144-0
08
1
0106-0306
●
23
CLIP; HOSE
(C) ID=87-113
1-09707-199-0
08
1
0307-
●
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0106-
●
●
28
RUBBER; MTG,CHARGE AIR COOLER
ENG LOW TORQUE<Q3R>
1-21467-015-1
04
1
0106-
●
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0106-
●
●
29
COLLAR; MTG RUBBER,CAC BRKT
ENG LOW TORQUE<Q3R>
1-21469-100-0
04
1
0106-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
