Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#8972) — 221 parça

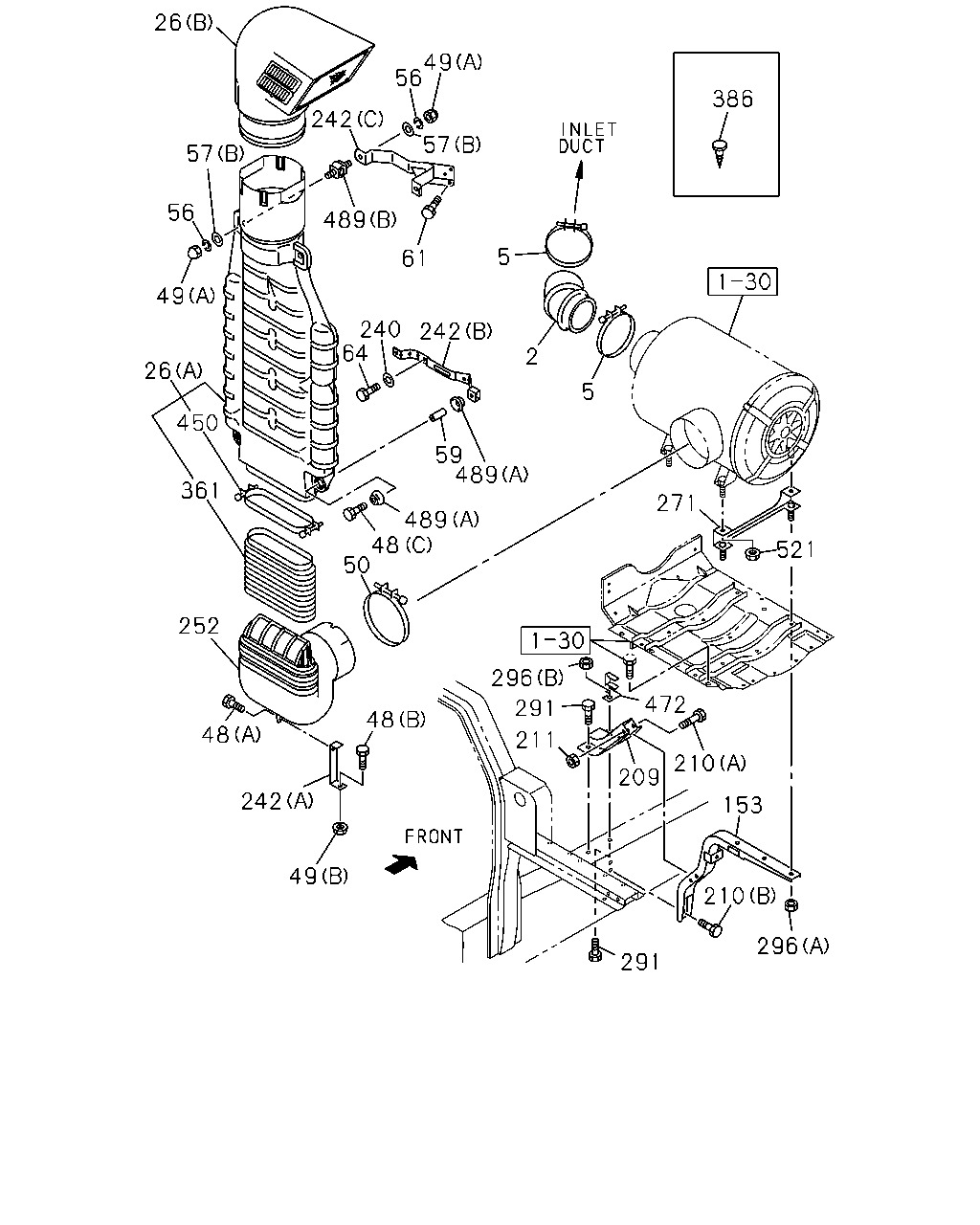

386 49 56 57 242 26 57 56 49 26 450 361 252 48 242 49 48 50 48 489 59 489 242 240 64 61 489 5 2 5 271 521 472 209 211 296 291 210 153 296 210 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-931-0	01	1	0106-	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0106-	●	●	●
26	DUCT; AIR INT (B)	1-14219-258-0	01	1	0106-		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0106-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-168-0	01	1	0106-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-202-0	01	1	0106-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512	●	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0106-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT (C) M10X26	1-09030-044-1	02	1	0106-		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0106-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	04	1	0106-		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	0106-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0106-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0106-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0106-	●	●	●
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	0106-		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0106-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0106-	●
57	WASHER; PL,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	04	1	0106-		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	04	1	0106-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0106-0110	●
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	02	1	0106-	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0106-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0106-0308	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL	1-53419-276-0	01	1	0106-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0106-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0106-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
240	WASHER; PL,BRKT ID=8.4 OD=22	1-09985-188-0	01	1	0106-		●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17>, GRIPOUT SIDE<W52> (F)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0106-	●	●	●
242	BRACKET; AIR DUCT (B)	1-79990-041-0	01	1	0106-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0106-	●
242	BRACKET; AIR DUCT (C)	1-79990-045-1	01	1	0106-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0106-0110	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0111-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-0	01	1	0607-	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0106-	●
252	DUCT; AIR INT	1-14232-059-0	01	1	0106-		●	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0106-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0106-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0106-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0106-	●	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0106-	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0106-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0106-	●	●	●
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0106-	●	●	●
489	RUBBER; SUPPORT (A) OD=40 T=18.5	1-14119-267-0	04	1	0106-		●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0106-	●
489	RUBBER; SUPPORT (B)	8-97080-149-0	02	1	0106-		●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0106-	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●

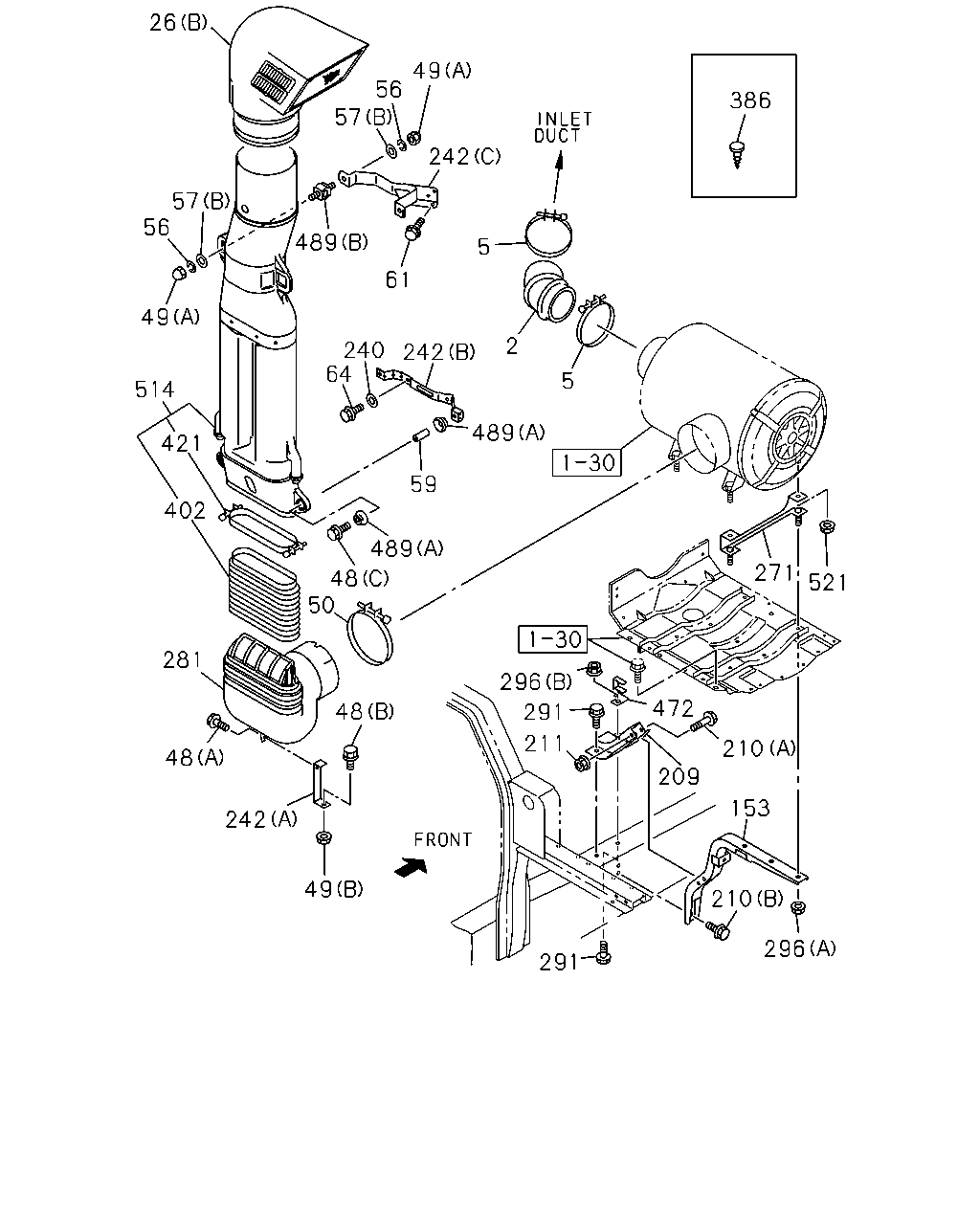

296 210 153 210 209 472 211 291 296 48 49 242 48 281 50 48 489 59 271 521 5 2 5 386 242 49 56 57 26 57 56 49 514 421 402 64 242 240 61 489 489 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-931-0	01	1	0106-	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0106-	●	●	●
26	DUCT; AIR INT (B)	1-14219-258-0	01	1	0106-		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0106-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-168-0	01	1	0106-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-202-0	01	1	0106-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512	●	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0106-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT (C) M10X26	1-09030-044-1	02	1	0106-		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0106-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	04	1	0106-		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	0106-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0106-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0106-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0106-	●	●	●
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	0106-		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0106-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0106-	●
57	WASHER; PL,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	04	1	0106-		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	04	1	0106-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0106-0110	●
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	02	1	0106-	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0106-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0106-0308	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL	1-53419-276-0	01	1	0106-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0106-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0106-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
240	WASHER; PL,BRKT ID=8.4 OD=22	1-09985-188-0	01	1	0106-		●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17>, GRIPOUT SIDE<W52> (F)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0106-	●	●	●
242	BRACKET; AIR DUCT (B)	1-79990-041-0	01	1	0106-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0106-	●
242	BRACKET; AIR DUCT (C)	1-79990-045-1	01	1	0106-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0106-0110	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0111-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-0	01	1	0607-	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0106-	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0106-	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0106-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0106-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0106-	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0106-	●	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0106-	●	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0106-	●	●	●
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0106-	●	●	●
489	RUBBER; SUPPORT (A) OD=40 T=18.5	1-14119-267-0	04	1	0106-		●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0106-	●
489	RUBBER; SUPPORT (B)	8-97080-149-0	02	1	0106-		●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0106-	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0106-	●	●	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●

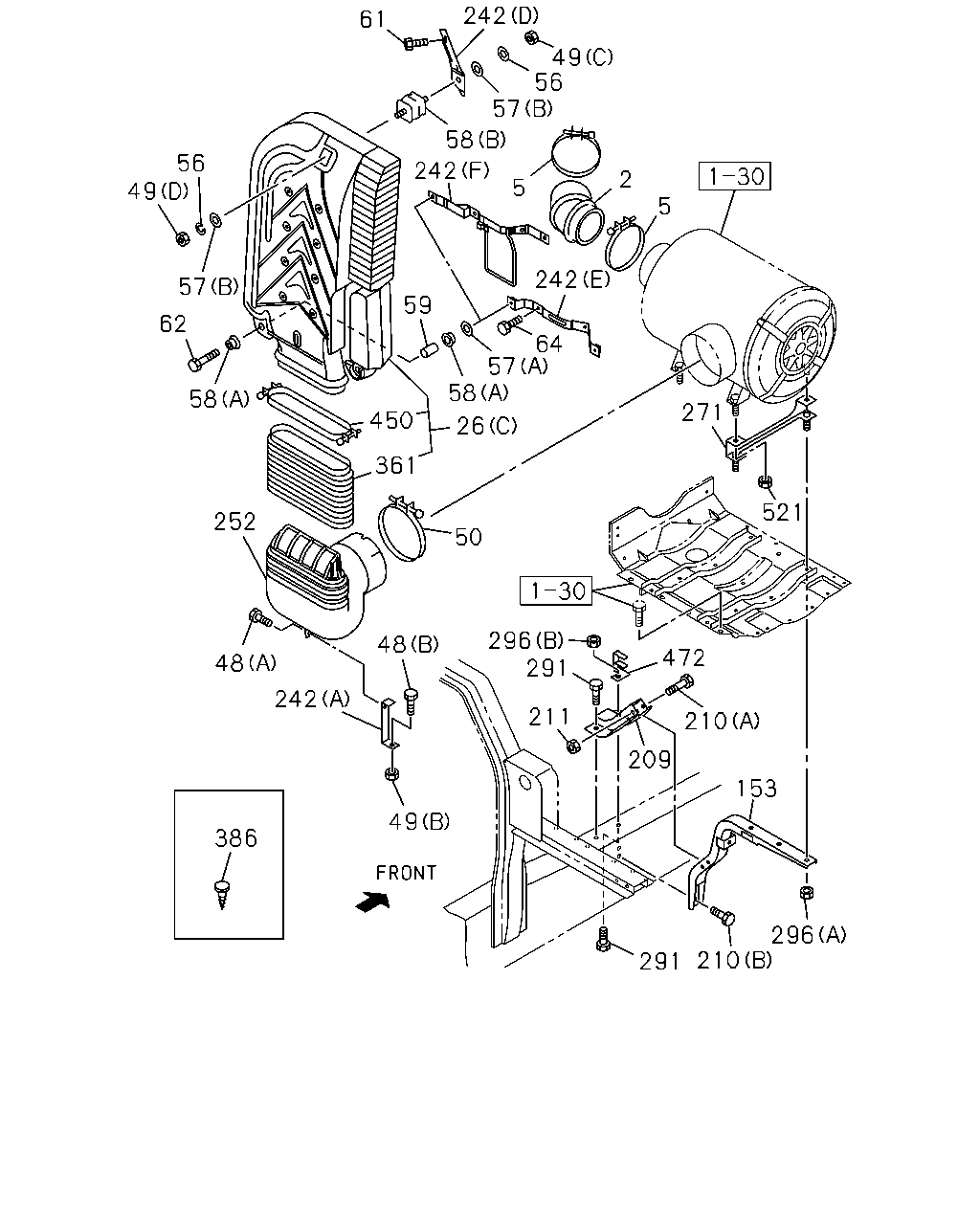

296 210 291 153 210 472 209 211 291 296 48 242 48 49 386 521 271 5 2 5 242 242 58 57 56 49 242 61 56 49 57 62 58 252 50 361 450 26 58 59 57 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-931-0	01	1	0106-	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0106-	●	●	●
26	DUCT; AIR INT (B)	1-14219-258-0	01	1	0106-		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0106-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-168-0	01	1	0106-		●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-202-0	01	1	0106-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512	●	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0106-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
48	BOLT; AIR DUCT (C) M10X26	1-09030-044-1	02	1	0106-		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	0106-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	04	1	0106-		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M8 FLANGE	1-09984-126-0	04	1	0106-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0106-	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0106-0512	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0106-	●	●	●
56	WASHER; LK,AIR INT DUCT ID=8.2	1-09985-177-0	04	1	0106-		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0106-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0106-	●
57	WASHER; PL,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	04	1	0106-		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	04	1	0106-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0106-0110	●
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.4 OD=22	1-09985-188-0	02	1	0106-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0106-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0106-0110	●
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0111-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	0111-	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0106-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X26	1-09030-044-1	02	1	0106-	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0106-	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0106-0308	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL	1-53419-276-0	01	1	0106-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0106-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0106-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT EXC. FULL FLOATING CAB(W16),PRE CLEANER<W17>, GRIPOUT SIDE<W52> (F)	1-53419-324-0	01	1	0607-	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0106-	●	●	●
242	BRACKET; AIR DUCT (B)	1-79990-041-0	01	1	0106-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0106-	●
242	BRACKET; AIR DUCT (C)	1-79990-045-1	01	1	0106-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0106-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0106-0110	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0111-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0111-0606	●
242	BRACKET; AIR DUCT FULL FLOATING CAB(W16) EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (F)	8-98041-993-0	01	1	0607-	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0106-	●
252	DUCT; AIR INT	1-14232-059-0	01	1	0106-		●	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0106-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0106-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0106-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0106-	●	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0106-	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0106-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0106-	●	●	●
472	STOPPER; LINK ROD	1-33659-227-0	01	1	0106-	●	●	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
