1-10 — RADIATOR (#8969) — 157 parça

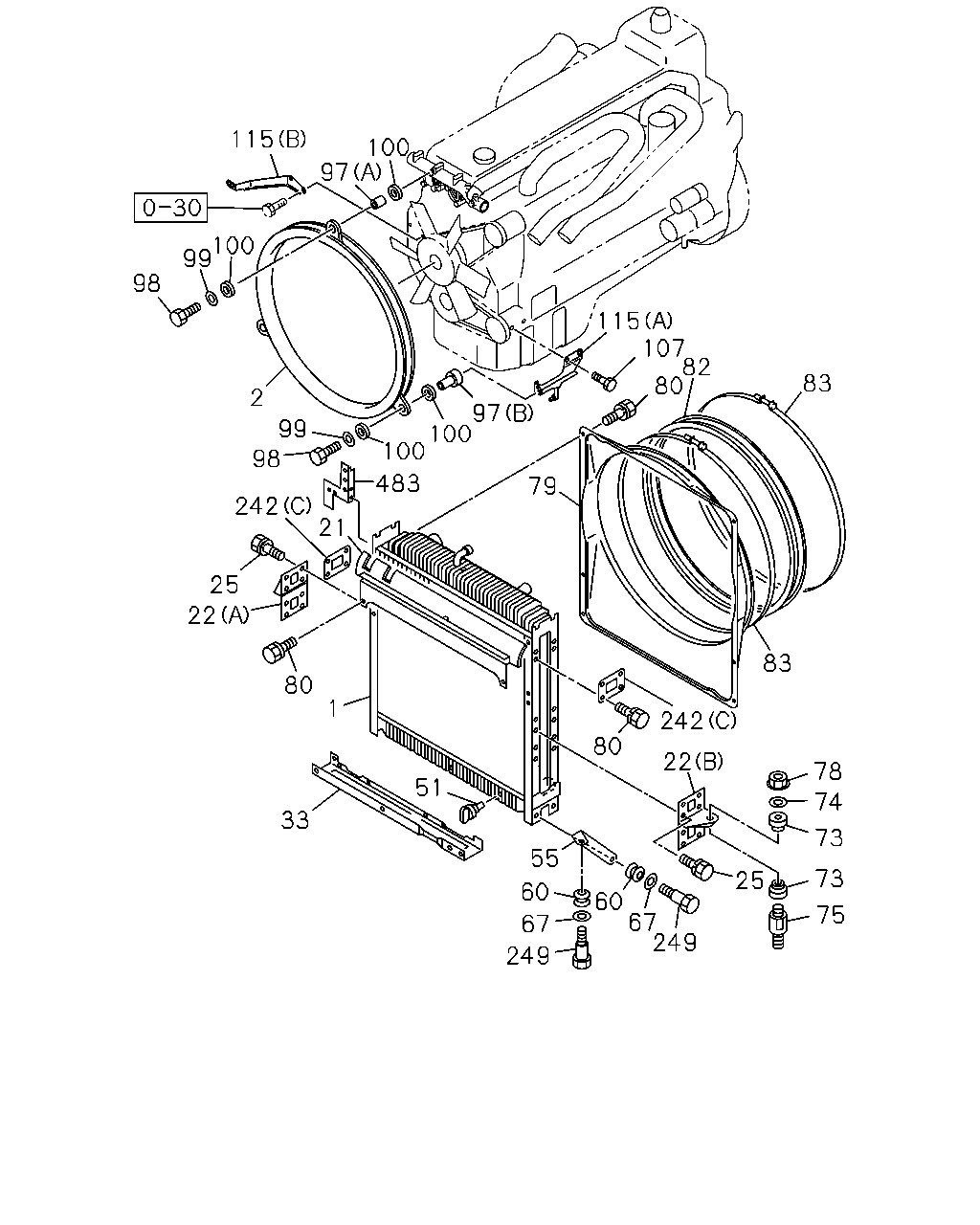

75 78 74 73 73 25 249 67 60 55 60 67 249 51 33 1 80 22 25 80 22 83 242 83 80 82 107 115 97 100 100 79 483 21 242 98 99 2 100 97 115 100 99 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-786-0	01	1	0106-	●
1	RADIATOR ASM EXC. RADIATOR HEAVY DUTY<V05>	1-21410-761-0	01	1	0106-	●
1	RADIATOR ASM	1-21410-870-0	01	1	0106-		●
1	RADIATOR ASM ENG LOW TORQUE<Q3R>	1-21410-806-0	01	1	0106-			●
2	GUIDE; FAN RADIATOR HEAVY DUTY<V05>	1-21551-420-0	01	1	0106-0606	●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-0606		●	●
2	GUIDE; FAN RADIATOR HEAVY DUTY<V05>	8-97615-752-0	01	1	0607-	●
2	GUIDE; FAN	8-97615-752-0	01	1	0607-		●	●
2	GUIDE; FAN EXC. RADIATOR HEAVY DUTY<V05>	1-21551-369-0	01	1	0106-	●
21	SEAL; RAD RADIATOR HEAVY DUTY<V05>	1-21460-103-0	01	1	0106-	●
21	SEAL; RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21460-094-0	01	1	0106-	●
21	SEAL; RAD	1-21460-126-0	01	1	0106-		●
21	SEAL; RAD ENG LOW TORQUE<Q3R>	1-21460-098-0	01	1	0106-			●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0106-	●	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0106-	●	●
22	BRACKET; RAD MTG ENG LOW TORQUE<Q3R> (B)	1-21464-658-0	01	1	0106-			●
22	BRACKET; RAD MTG ENG LOW TORQUE<Q3R> (A)	1-21464-659-0	01	1	0106-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0108-	●
25	BOLT; BRKT ENG LOW TORQUE<Q3R> M8X16 FLANGE	0-28080-816-0	18	1	0108-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0106-0107	●	●
25	BOLT; BRKT ENG LOW TORQUE<Q3R> M8X16 FLANGE	0-28080-816-0	18	1	0106-0107			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0108-		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0106-	●	●
33	PROTECTOR; RAD ENG LOW TORQUE<Q3R>	1-21419-049-0	01	1	0106-			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0106-	●	●
51	PLUG; DRAIN ENG LOW TORQUE<Q3R> W/GASKET	1-09609-009-0	01	1	0106-			●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-473-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-473-0	01	1	0106-		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-472-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-472-0	01	1	0106-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-573-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-572-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR ENG LOW TORQUE<Q3R>	1-21464-694-0	01	1	0106-			●
55	STAY; RAD TO UPR MBR ENG LOW TORQUE<Q3R>	1-21464-693-0	01	1	0106-			●
60	GROMMET	1-09332-117-0	04	1	0106-	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0106-0605	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0106-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	0106-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0106-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0106-0602	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
79	GUIDE; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21551-416-2	01	1	0106-	●
79	GUIDE; FAN,RAD	1-21551-416-2	01	1	0106-		●
79	GUIDE; FAN,RAD ENG LOW TORQUE<Q3R>	1-21551-416-2	01	1	0106-			●
79	GUIDE; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21551-438-0	01	1	0106-	●
80	BOLT; FAN GUIDE RADIATOR HEAVY DUTY<V05> M8X12 FLANGE	0-28080-812-0	15	1	0106-	●
80	BOLT; FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> M8X12 FLANGE	0-28080-812-0	14	1	0106-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0106-		●
80	BOLT; FAN GUIDE ENG LOW TORQUE<Q3R> M8X12 FLANGE	0-28080-812-0	17	1	0106-			●
82	COVER; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21559-262-1	01	1	0106-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0106-		●	●
82	COVER; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21559-134-1	01	1	0106-	●
83	CLIP; FAN COVER RADIATOR HEAVY DUTY<V05>	1-09707-152-2	02	1	0106-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0106-		●	●
83	CLIP; FAN COVER EXC. RADIATOR HEAVY DUTY<V05>	1-09707-127-1	01	1	0106-	●
97	TUBE; DIST,FAN GUIDE RADIATOR HEAVY DUTY<V05> (A) ID=11.8 L=27	1-21559-149-0	03	1	0106-	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	0106-			●
97	TUBE; DIST,FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> (A) ID=11.8 L=27	1-21559-149-0	01	1	0106-	●
97	TUBE; DIST,FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> (B)	1-21559-273-0	02	1	0106-	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28081-045-0	03	1	0106-0512	●	●	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28051-045-0	03	1	0601-	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0106-0605	●	●	●
99	WASHER; PL ID=10.5 OD=26	0-91614-710-0	03	1	0606-	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0106-	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0106-0512	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28951-425-0	02	1	0601-	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0106-	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0106-0307	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●	●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	0106-	●
242	BRACKET; RAD (B)	1-21464-731-1	01	1	0106-		●
242	BRACKET; RAD (A)	1-21464-732-1	01	1	0106-		●
242	BRACKET; RAD ENG LOW TORQUE<Q3R> (A)	1-21464-661-0	01	1	0106-			●
242	BRACKET; RAD ENG LOW TORQUE<Q3R> (B)	1-21464-662-0	01	1	0106-			●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0106-0201	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●
483	BRACKET; SEAL EXC. RADIATOR HEAVY DUTY<V05>	1-21460-092-1	01	1	0106-	●

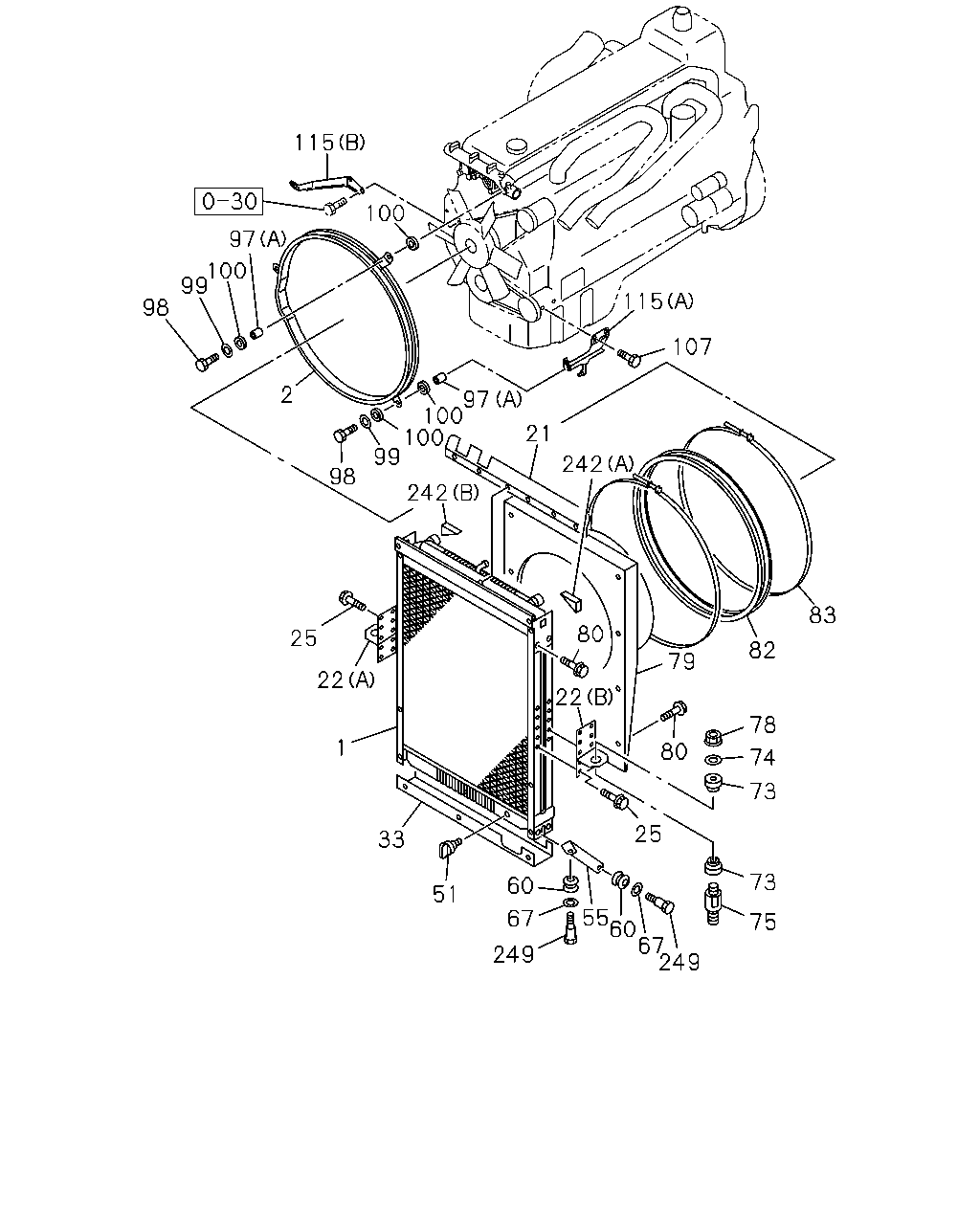

83 82 79 78 74 73 80 25 73 75 249 67 60 55 60 67 249 51 33 1 22 25 242 21 107 115 97 100 100 99 98 2 242 115 100 97 100 99 98 22 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM RADIATOR HEAVY DUTY<V05>	1-21410-786-0	01	1	0106-	●
1	RADIATOR ASM EXC. RADIATOR HEAVY DUTY<V05>	1-21410-761-0	01	1	0106-	●
1	RADIATOR ASM	1-21410-870-0	01	1	0106-		●
1	RADIATOR ASM ENG LOW TORQUE<Q3R>	1-21410-806-0	01	1	0106-			●
2	GUIDE; FAN RADIATOR HEAVY DUTY<V05>	1-21551-420-0	01	1	0106-0606	●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-0606		●	●
2	GUIDE; FAN RADIATOR HEAVY DUTY<V05>	8-97615-752-0	01	1	0607-	●
2	GUIDE; FAN	8-97615-752-0	01	1	0607-		●	●
2	GUIDE; FAN EXC. RADIATOR HEAVY DUTY<V05>	1-21551-369-0	01	1	0106-	●
21	SEAL; RAD RADIATOR HEAVY DUTY<V05>	1-21460-103-0	01	1	0106-	●
21	SEAL; RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21460-094-0	01	1	0106-	●
21	SEAL; RAD	1-21460-126-0	01	1	0106-		●
21	SEAL; RAD ENG LOW TORQUE<Q3R>	1-21460-098-0	01	1	0106-			●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0106-	●	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0106-	●	●
22	BRACKET; RAD MTG ENG LOW TORQUE<Q3R> (B)	1-21464-658-0	01	1	0106-			●
22	BRACKET; RAD MTG ENG LOW TORQUE<Q3R> (A)	1-21464-659-0	01	1	0106-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0108-	●
25	BOLT; BRKT ENG LOW TORQUE<Q3R> M8X16 FLANGE	0-28080-816-0	18	1	0108-			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0106-0107	●	●
25	BOLT; BRKT ENG LOW TORQUE<Q3R> M8X16 FLANGE	0-28080-816-0	18	1	0106-0107			●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0108-		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0106-	●	●
33	PROTECTOR; RAD ENG LOW TORQUE<Q3R>	1-21419-049-0	01	1	0106-			●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0106-	●	●
51	PLUG; DRAIN ENG LOW TORQUE<Q3R> W/GASKET	1-09609-009-0	01	1	0106-			●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-473-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-473-0	01	1	0106-		●
55	STAY; RAD TO UPR MBR RADIATOR HEAVY DUTY<V05>	1-21464-472-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR	1-21464-472-0	01	1	0106-		●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-573-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR EXC. RADIATOR HEAVY DUTY<V05>	1-21464-572-0	01	1	0106-	●
55	STAY; RAD TO UPR MBR ENG LOW TORQUE<Q3R>	1-21464-694-0	01	1	0106-			●
55	STAY; RAD TO UPR MBR ENG LOW TORQUE<Q3R>	1-21464-693-0	01	1	0106-			●
60	GROMMET	1-09332-117-0	04	1	0106-	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0106-0605	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0106-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	0106-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0106-	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0106-0602	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
79	GUIDE; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21551-416-2	01	1	0106-	●
79	GUIDE; FAN,RAD	1-21551-416-2	01	1	0106-		●
79	GUIDE; FAN,RAD ENG LOW TORQUE<Q3R>	1-21551-416-2	01	1	0106-			●
79	GUIDE; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21551-438-0	01	1	0106-	●
80	BOLT; FAN GUIDE RADIATOR HEAVY DUTY<V05> M8X12 FLANGE	0-28080-812-0	15	1	0106-	●
80	BOLT; FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> M8X12 FLANGE	0-28080-812-0	14	1	0106-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0106-		●
80	BOLT; FAN GUIDE ENG LOW TORQUE<Q3R> M8X12 FLANGE	0-28080-812-0	17	1	0106-			●
82	COVER; FAN,RAD RADIATOR HEAVY DUTY<V05>	1-21559-262-1	01	1	0106-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0106-		●	●
82	COVER; FAN,RAD EXC. RADIATOR HEAVY DUTY<V05>	1-21559-134-1	01	1	0106-	●
83	CLIP; FAN COVER RADIATOR HEAVY DUTY<V05>	1-09707-152-2	02	1	0106-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0106-		●	●
83	CLIP; FAN COVER EXC. RADIATOR HEAVY DUTY<V05>	1-09707-127-1	01	1	0106-	●
97	TUBE; DIST,FAN GUIDE RADIATOR HEAVY DUTY<V05> (A) ID=11.8 L=27	1-21559-149-0	03	1	0106-	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	0106-			●
97	TUBE; DIST,FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> (A) ID=11.8 L=27	1-21559-149-0	01	1	0106-	●
97	TUBE; DIST,FAN GUIDE EXC. RADIATOR HEAVY DUTY<V05> (B)	1-21559-273-0	02	1	0106-	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28081-045-0	03	1	0106-0512	●	●	●
98	BOLT; RAD FAN GUIDE M10X45 FLANGE	0-28051-045-0	03	1	0601-	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0106-0605	●	●	●
99	WASHER; PL ID=10.5 OD=26	0-91614-710-0	03	1	0606-	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0106-	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0106-0512	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28951-425-0	02	1	0601-	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0106-	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0106-0307	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●	●
242	BRACKET; RAD (C)	1-21464-461-1	02	1	0106-	●
242	BRACKET; RAD (B)	1-21464-731-1	01	1	0106-		●
242	BRACKET; RAD (A)	1-21464-732-1	01	1	0106-		●
242	BRACKET; RAD ENG LOW TORQUE<Q3R> (A)	1-21464-661-0	01	1	0106-			●
242	BRACKET; RAD ENG LOW TORQUE<Q3R> (B)	1-21464-662-0	01	1	0106-			●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0106-0201	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●
