Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#8968) — 258 parça

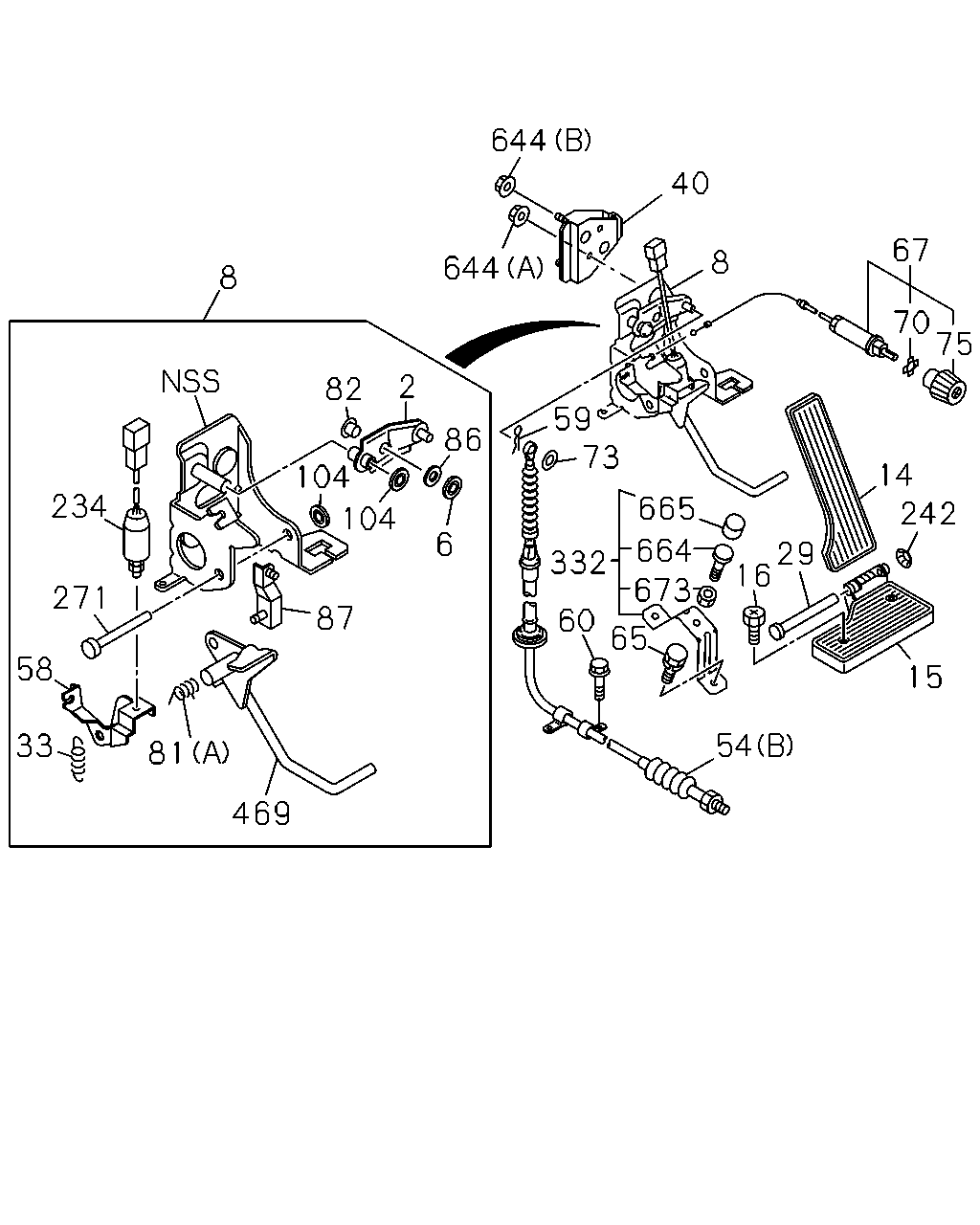

15 242 14 75 70 67 8 40 644 644 59 73 29 16 54 665 673 664 65 60 332 6 86 2 82 8 104 104 87 469 81 33 58 271 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-550-1	01	1	0106-	●	●	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-210-2	01	1	0106-	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=4	9-09185-404-0	02	1	0106-0604	●	●	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=4	0-91805-504-0	02	1	0605-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-551-3	01	1	0106-	●	●	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73996-206-6	01	1	0106-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0106-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-	●	●	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-94414-815-0	01	1	0106-	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0106-		●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=850	1-71907-257-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=2836	1-73907-404-2	01	1	0106-0106	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=2160	1-73907-559-1	01	1	0106-	●	●	●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-242-1	01	1	0106-	●	●	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=27.7	1-09747-005-0	01	1	0106-	●	●	●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0106-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=399	1-73998-912-3	01	1	0106-0204	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=315	1-73908-423-0	01	1	0205-	●	●	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73908-045-1	01	1	0106-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4	9-09160-508-0	01	1	0106-0605	●	●	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97066-797-1	01	1	0106-0109	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97137-504-0	01	1	0110-0204	●	●	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73908-409-0	01	1	0205-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	1-71907-268-0	01	1	0106-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	8-97997-917-0	01	1	0207-	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=31.5	1-53459-627-0	01	1	0106-	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-244-1	02	1	0106-	●	●	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6.4	9-09160-506-0	02	1	0106-	●	●	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-211-1	01	1	0106-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0106-	●	●	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0106-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-131-2	01	1	0106-	●	●	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-114-3	01	1	0106-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=69	1-71907-298-0	01	1	0106-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=74	1-71907-212-1	01	1	0106-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-	●	●	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-209-5	01	1	0106-	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●

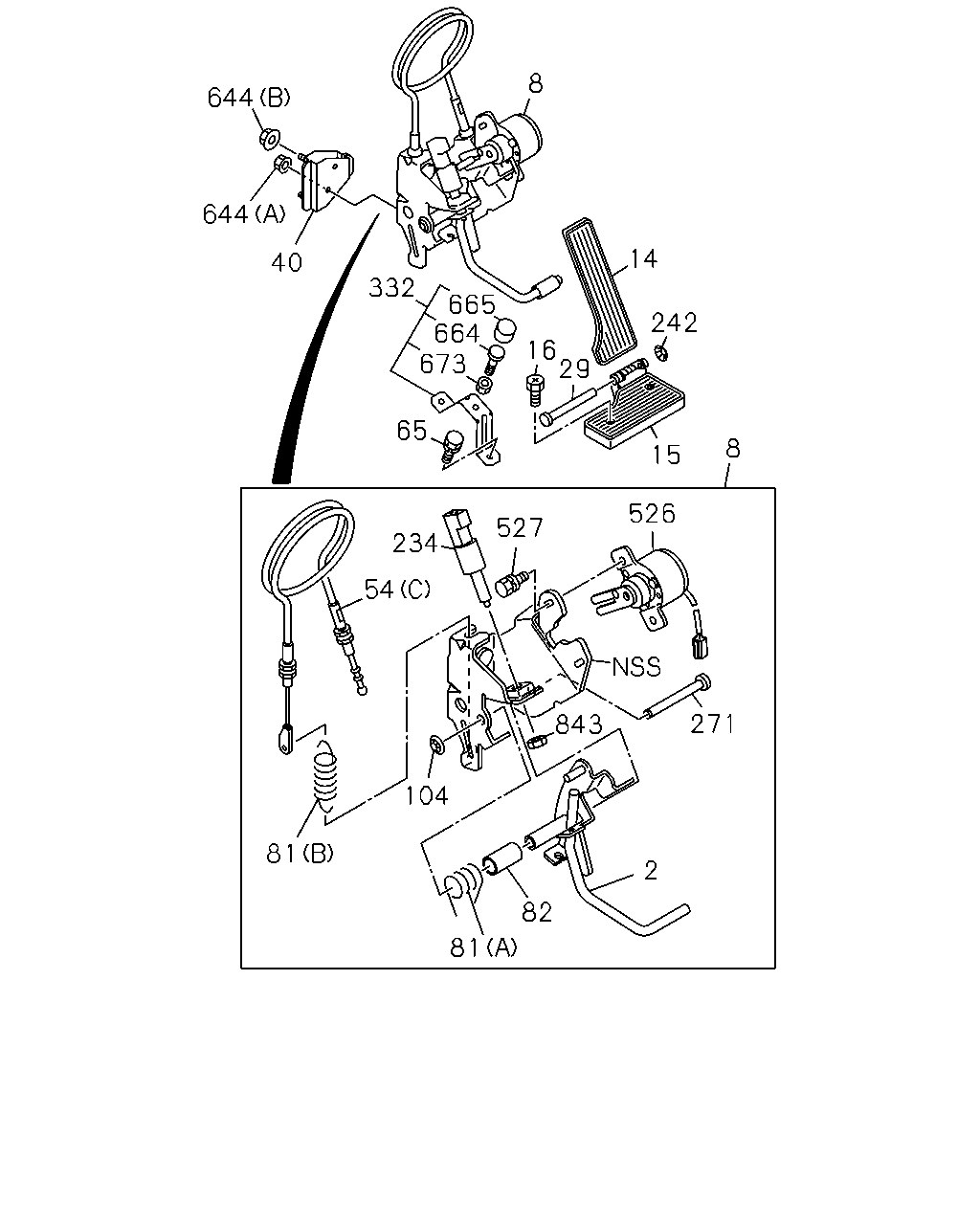

644 8 14 242 8 15 29 16 673 65 664 665 332 40 644 234 527 526 54 271 843 104 2 82 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-550-1	01	1	0106-	●	●	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-210-2	01	1	0106-	●	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-551-3	01	1	0106-	●	●	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-73996-206-6	01	1	0106-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0106-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-	●	●	●
40	BRACKET; ENG CONT CABLE	1-71907-269-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0106-		●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=850	1-71907-257-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=2836	1-73907-404-2	01	1	0106-0106	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=2160	1-73907-559-1	01	1	0106-	●	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	1-71907-268-0	01	1	0106-0206	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	8-97997-917-0	01	1	0207-	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=31.5	1-53459-627-0	01	1	0106-	●	●	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-71907-244-1	02	1	0106-	●	●	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0106-	●	●	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0106-	●	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-131-2	01	1	0106-	●	●	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-82380-114-3	01	1	0106-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=69	1-71907-298-0	01	1	0106-	●	●	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) OD=8.0 L=74	1-71907-212-1	01	1	0106-	●	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-	●	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-81534-003-2	01	1	0106-	●	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-0206	●	●	●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
644	NUT; LINK,ENG CONT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
644	NUT; LINK,ENG CONT (B) M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M12	9-99111-412-0	01	1	0106-0512	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M12	0-91111-512-0	01	1	0601-	●	●	●

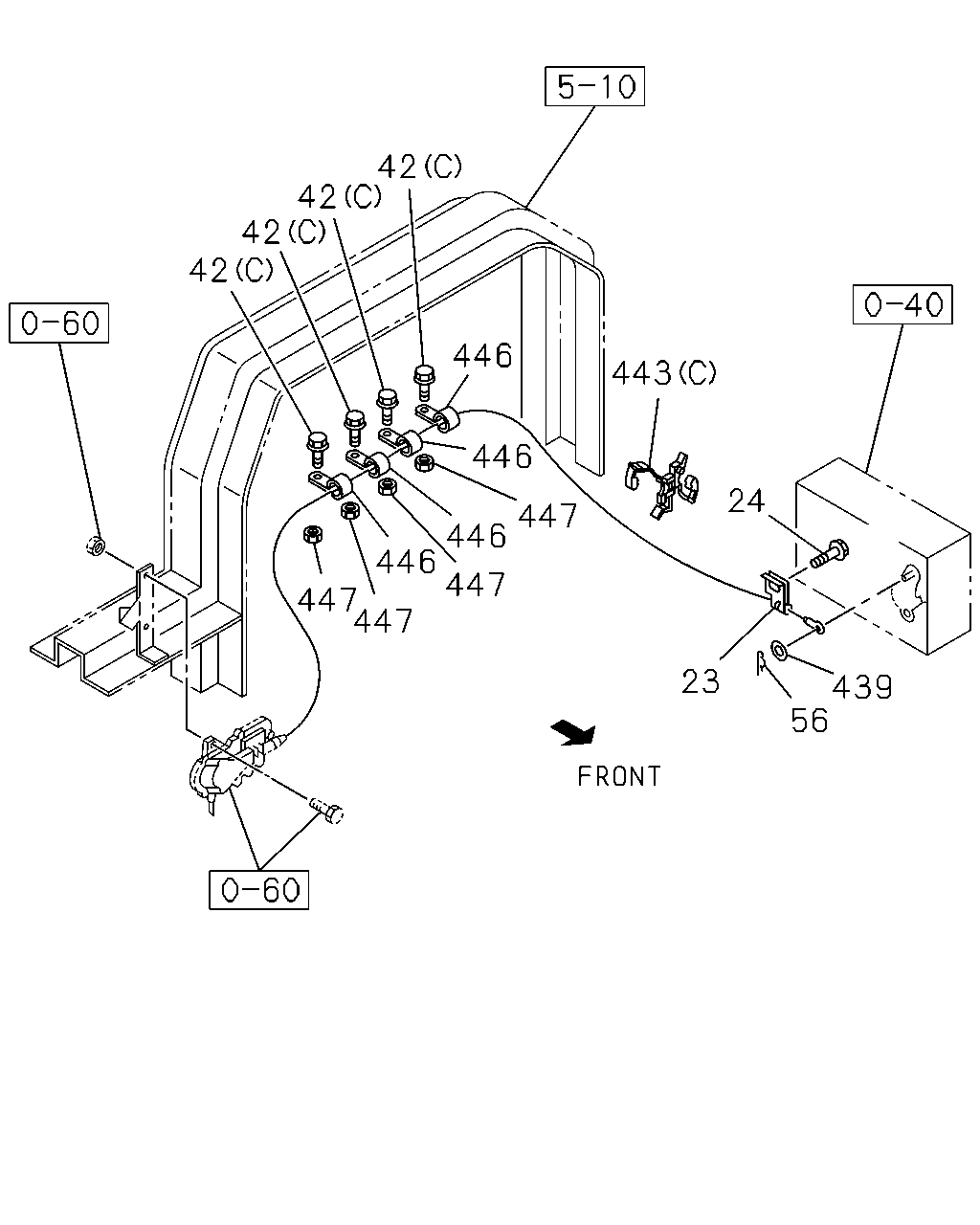

56 23 439 24 443 42 42 42 42 446 446 447 446 446 447 447 447

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0106-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-138-0	01	1	0106-	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0106-0112	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	0106-0512	●	●	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0106-0512	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0106-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0106-0605	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0106-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=11 L=20	9-09525-035-0	01	1	0106-0606	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	9-09524-655-0	04	1	0106-0606	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	0-95234-655-0	04	1	0607-	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0106-0602	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●

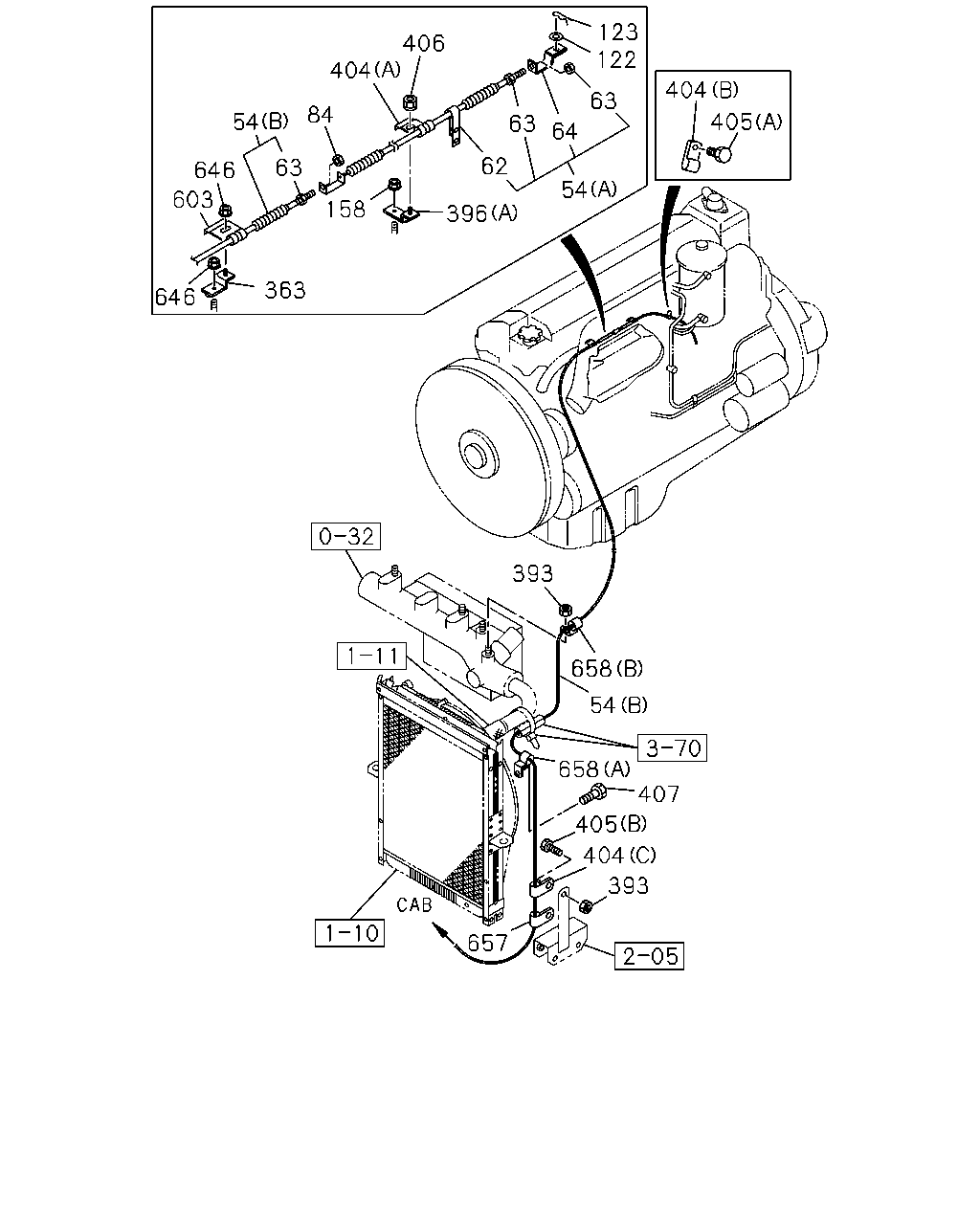

405 404 122 123 63 64 63 62 396 158 63 406 404 84 54 646 603 363 646 393 658 54 407 405 404 393 658 657 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0106-		●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=850	1-71907-257-0	01	1	0106-	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=2836	1-73907-404-2	01	1	0106-0106	●	●	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) L=2160	1-73907-559-1	01	1	0106-	●	●	●
62	CLIP; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=30	1-09700-326-0	01	1	0106-		●
63	NUT; LOCK,BRKT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M8	9-09111-408-0	02	1	0106-		●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8	9-09111-408-0	01	1	0106-	●	●	●
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-23219-105-1	01	1	0106-		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0106-	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0106-0501	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8	9-09110-408-0	01	1	0502-0512	●	●	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8	0-91110-508-0	01	1	0601-	●	●	●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-0605		●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0106-0605	●		●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	0-91610-505-0	01	1	0606-		●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-	●		●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	0106-0605		●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-		●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0106-	●		●
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	0106-		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602		●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-47477-804-3	01	1	0106-	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0106-		●	●
396	BRACKET; CLIP (B)	1-14319-130-1	01	1	0106-	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-		●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0106-		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=20	9-09525-035-0	01	1	0106-0410	●	●	●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0106-0410	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=20	9-09525-035-0	01	1	0411-0606		●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0411-0606	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=20	0-95235-035-0	01	1	0607-		●
404	CLIP; CABLE (C) ID=11 L=20	0-95235-035-0	01	1	0607-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606		●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606		●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-		●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	0-95234-875-0	01	1	0607-		●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0106-	●		●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-0512		●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0512		●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0106-0512	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602		●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X12 FLANGE	0-28080-812-0	01	1	0106-0512	●	●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-140-0	01	1	0106-	●	●	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
657	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=11 L=20	9-09525-035-0	01	1	0106-0606	●	●	●
657	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-	●	●	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-	●	●	●

406 759 404 396 158 55 439 66 56 23 66 64 396 404 405 42 391 759 324 443 409 410 443 323 42 446 447 759 405 404 121 122 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0106-0112	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-140-0	01	1	0201-0401	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0402-0402	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-099-0	01	1	0403-	●	●	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-14319-138-0	01	1	0106-	●	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED4(Q4F)	1-14319-113-0	01	1	0106-0112	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M8X25 FLANGE	0-28680-825-0	04	1	0106-0512	●	●	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0106-0512	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=11	1-09744-102-0	01	1	0106-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0106-	●	●	●
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-23219-105-1	01	1	0106-		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0106-	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-0602	●	●	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0106-		●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0106-	●		●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-0605		●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0106-0605	●		●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	0-91610-505-0	01	1	0606-		●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-	●		●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	0106-0605		●
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-		●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0106-	●		●
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	0106-		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602		●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X12 FLANGE	0-28080-812-0	01	1	0106-0512	●	●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0106-0602	●	●	●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0106-	●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0106-		●	●
396	BRACKET; CLIP (B)	1-14319-130-1	01	1	0106-	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-		●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0106-		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=20	9-09525-035-0	01	1	0106-0410	●	●	●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0106-0410	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=20	9-09525-035-0	01	1	0411-0606		●
404	CLIP; CABLE (C) ID=11 L=20	9-09525-035-0	01	1	0411-0606	●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=11 L=20	0-95235-035-0	01	1	0607-		●
404	CLIP; CABLE (C) ID=11 L=20	0-95235-035-0	01	1	0607-	●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606		●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606		●
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-		●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	0-95234-875-0	01	1	0607-		●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0106-	●		●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28080-616-0	02	1	0106-0512		●
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-		●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512	●	●	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	02	1	0106-0512		●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0106-0512	●
405	BOLT; CABLE CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602		●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
409	SLEEVE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=6 OD=10 L=70	1-09376-512-0	01	1	0106-0106	●	●	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=300	1-09707-001-1	01	1	0106-0504	●	●	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=350	1-09707-183-0	01	1	0505-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0106-0605	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) ID=9 H=20 L=50	1-09700-084-0	01	1	0106-	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-	●	●	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0106-	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=11 L=20	9-09525-035-0	01	1	0106-0606	●	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	9-09524-655-0	04	1	0106-0606	●	●	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) ID=7 L=28	0-95234-655-0	04	1	0607-	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	01	1	0106-0602	●	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91150-108-0	04	1	0106-0602	●	●	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
759	WIRE; CONT,FUEL CUT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=752	1-23230-026-1	01	1	0106-		●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0106-			●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
