Isuzu WW
▶
TRUCKS
▶
EXR
▶
10862 - EXR LHD FUEL TANK 400L/400L+400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#8967) — 18 parça
Tümü
A - 6WA1 TC-C
B - 6WG1 TC-C
C - 6WF1 TC-C
◀

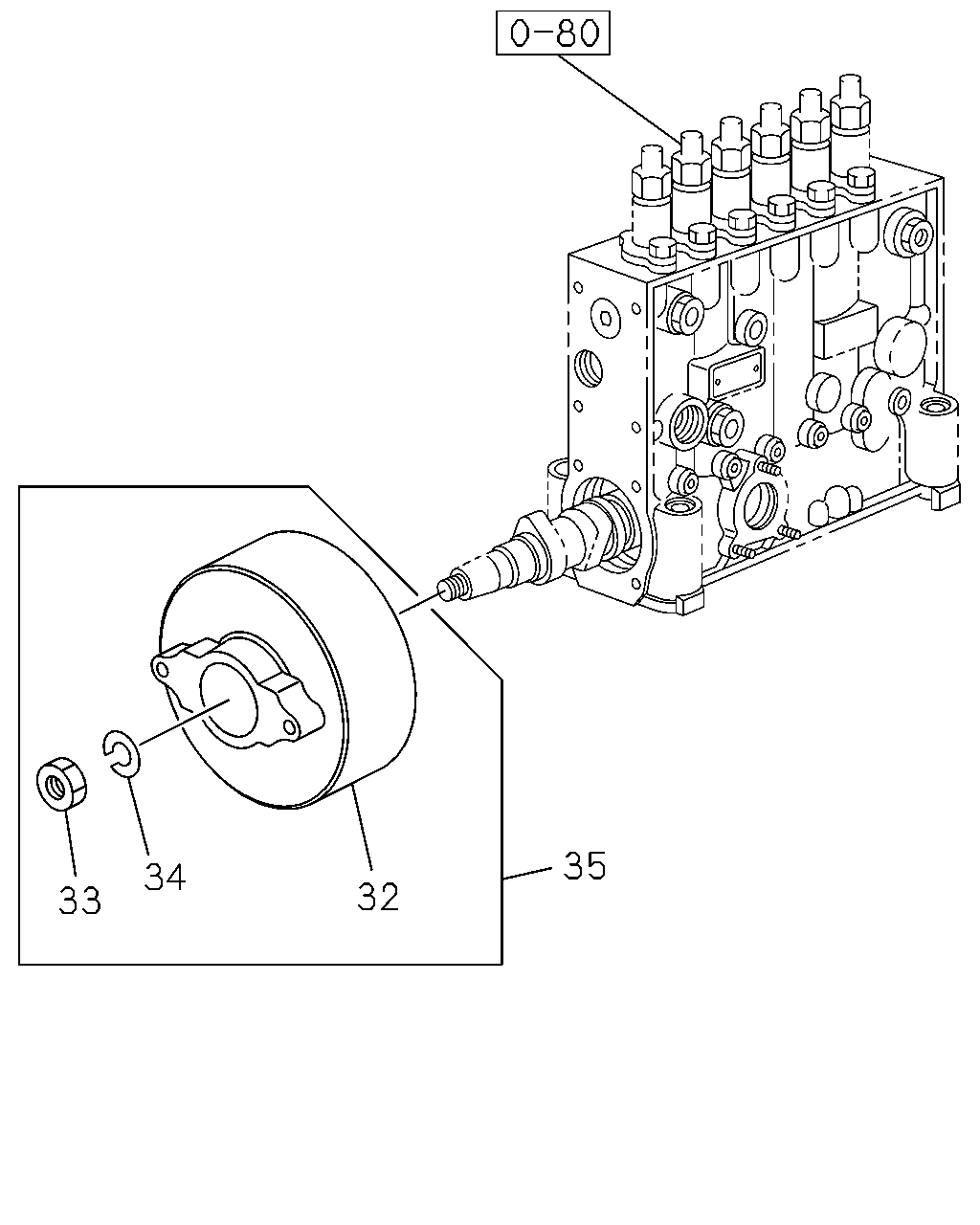

[087A] DAMPER ASM;INJ PUMP (8 parça)

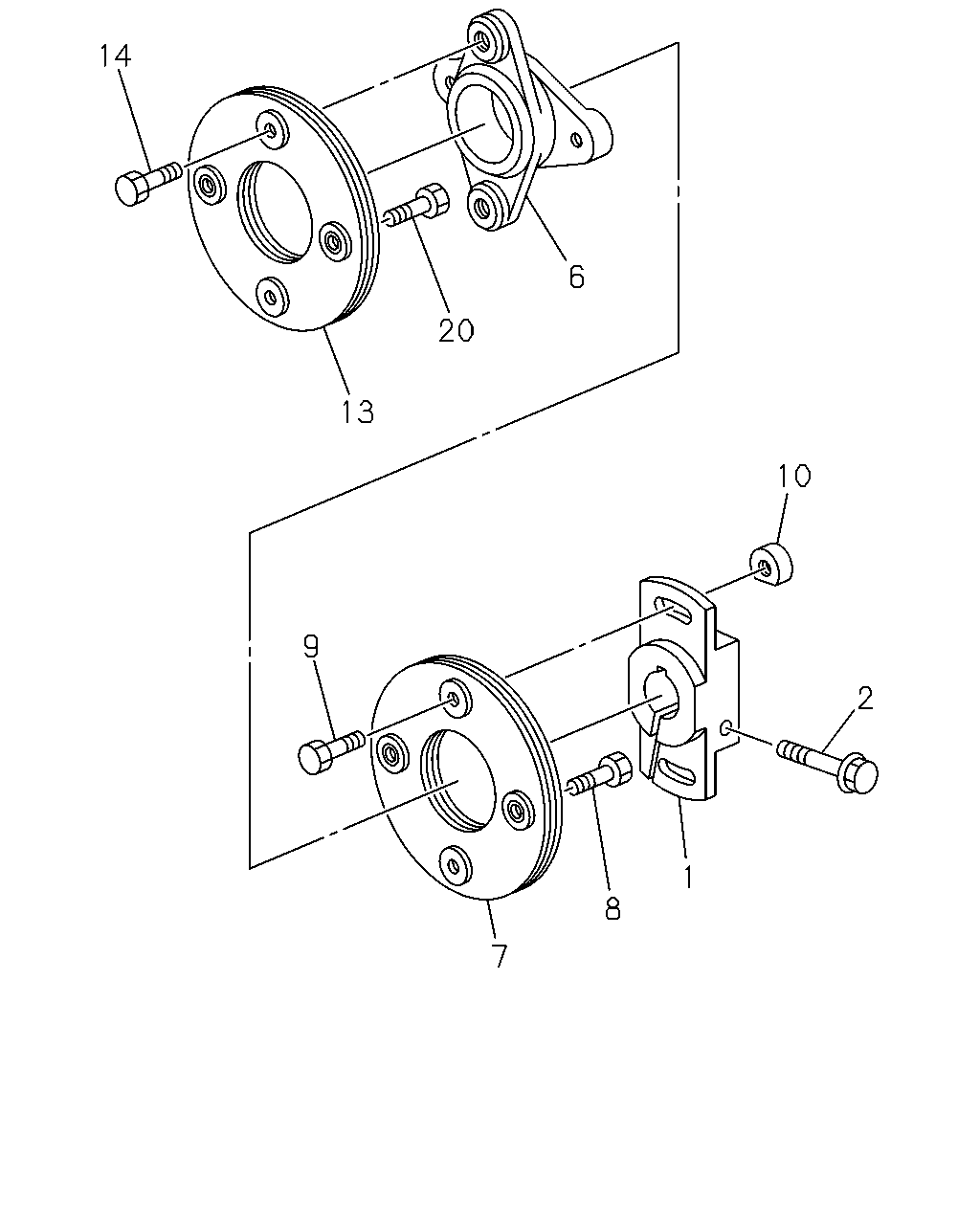

[087A] COMPONENT;INJ PUMP DRIVE COUPLING (10 parça)
▶
35
32
34
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
32
DAMPER; INJ PUMP
1-15744-005-1
01
1
0106-0410
●
●
32
DAMPER; INJ PUMP
1-15744-015-0
01
1
0106-0410
●
32
DAMPER; INJ PUMP
1-15744-015-0
01
1
0411-
●
●
●
33
NUT; DAMPER
1-19179-020-0
01
1
0106-
●
●
●
34
WASHER; DAMPER
1-19179-002-0
01
1
0106-
●
●
●
35
DAMPER ASM; INJ PUMP
1-15744-007-1
01
1
0106-0410
●
●
35
DAMPER ASM; INJ PUMP
1-15744-017-0
01
1
0106-0410
●
35
DAMPER ASM; INJ PUMP
1-15744-017-0
01
1
0411-
●
●
●
14
13
20
6
10
2
1
8
7
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COUPLING; INJ PUMP DRIVE
1-15782-020-0
01
1
0106-
●
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-177-0
01
1
0106-
●
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-176-0
01
1
0106-
●
●
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-173-0
01
1
0106-
●
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15789-175-0
02
1
0106-
●
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-172-0
02
1
0106-
●
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-174-0
02
1
0106-
●
●
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-173-0
01
1
0106-
●
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-175-0
02
1
0106-
●
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-175-0
02
1
0106-
●
●
●
