◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#896) — 89 parça

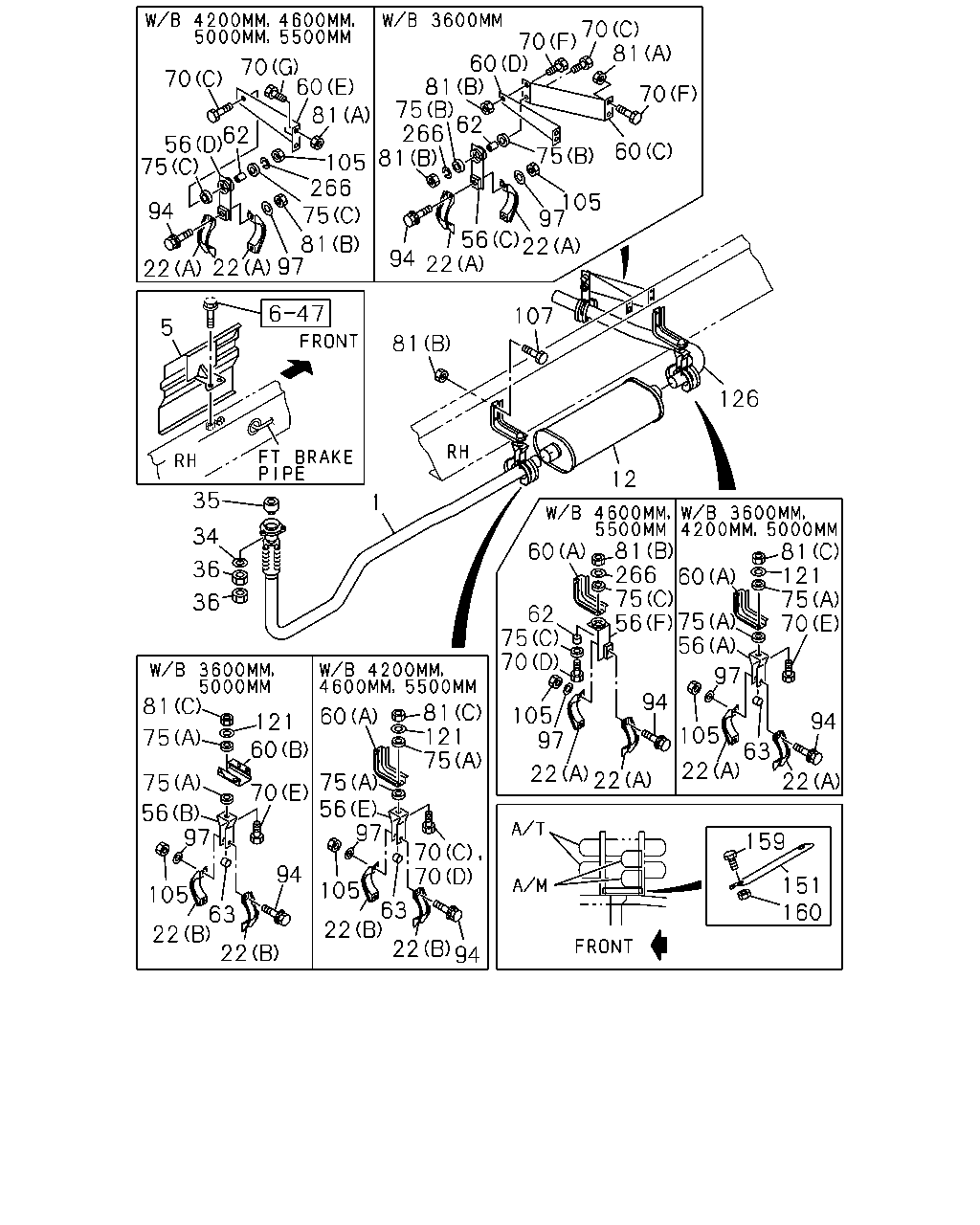

çizim 27167
70 70 81 60 81 75 62 266 81 70 60 81 70 70 62 56 75 75 105 266 75 60 105 97 56 22 22 94 81 22 94 22 107 5 81 126 12 35 1 81 81 121 75 75 70 56 34 60 36 36 62 75 70 81 121 75 81 97 94 105 97 60 94 121 60 70 105 75 63 22 22 22 22 75 56 97 75 56 97 159 70 70 94 151 160 105 105 63 22 63 22 22 22 94 97 60 75 266 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-369-0 01 1 9411- ●
1 PIPE; EXH 1-22122-264-1 01 1 9202-9410 ● ●
1 PIPE; EXH
EXC. ANTI NOISE EQUIPMENT VAR2<TAK> 		1-22122-264-1 01 1 9411- ●
1 PIPE; EXH 1-22122-264-1 01 1 9411- ●
5 PROTECTOR; HEAT 1-33659-167-1 01 1 9202- ● ●
12 SILENCER ASM; EXH 1-22140-715-2 01 1 9202- ● ●
22 CLAMP; EXH PIPE
(B) L=120 		1-22133-231-0 02 1 9202- ● ●
22 CLAMP; EXH PIPE
(A) ID=75-78 		1-22133-232-0 04 1 9202- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9202- ● ●
35 GASKET; EXH PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		1-22116-024-0 01 1 9202- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9202- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3600MM(36W) (C) L=287 		1-22131-523-1 01 1 9202- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 5000MM(50W) (A) H=119 		1-22139-060-0 01 1 9202- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) (B) 		1-22139-044-0 01 1 9202- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (D) 		1-22131-528-1 01 1 9202- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (E) H=125 		1-22139-048-0 01 1 9202- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (F) 		1-22131-599-0 01 1 9202- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-2 01 1 9202-9410 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-512-2 01 1 9411- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W) (A) 		1-22151-512-2 01 1 9411- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3600MM(36W) (C) 		1-22131-489-0 01 1 9202- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3600MM(36W) (D) 		1-22131-491-0 01 1 9202- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) (B) 		1-22151-534-3 01 1 9202- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (E) 		1-22131-435-1 01 1 9202- ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9202-9410 ● ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9411- ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) L=22 		9-22159-024-0 01 1 9411- ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9202-9410 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9411- ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 4200MM(42W) L=11 		1-22139-026-0 01 1 9411- ● ●
63 TUBE; DIST,BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) L=8.5 		1-22139-057-0 01 1 9202- ● ●
70 BOLT; BRKT
(D) M10X50 		0-10806-050-0 01 1 9202-9410 ● ●
70 BOLT; BRKT
(D) M10X50 		0-10806-050-0 01 1 9411- ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W) (D) M10X50 		0-10806-050-0 01 1 9411- ● ●
70 BOLT; BRKT
(C) M10X55 		0-10806-055-0 01 1 9202-9410 ● ●
70 BOLT; BRKT
(C) M10X55 		0-10806-055-0 01 1 9411- ● ●
70 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (C) M10X55 		0-10806-055-0 01 1 9411- ● ●
70 BOLT; BRKT
WHEEL BASE 3600MM(36W) (F) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9202- ● ●
70 BOLT; BRKT
WHEEL BASE 3600MM(36W) (F) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9307 ● ●
70 BOLT; BRKT
WHEEL BASE 3600MM(36W) (F) M10X30 FLANGE 		0-28081-030-0 04 1 9308- ● ●
70 BOLT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) (E) M10X45 		0-10806-045-0 01 1 9202- ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) (G) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9202-9307 ● ●
70 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (G) M10X30 FLANGE 		0-28081-030-0 02 1 9308- ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9202-9410 ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) (A) OD=30 		1-22159-106-1 02 1 9202-9410 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9411- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 5000MM(50W) (A) OD=30 		1-22159-106-1 02 1 9411- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 3600MM(36W) (B) 		1-22159-119-0 02 1 9202- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (C) OD=35 		9-22159-008-0 02 1 9202- ● ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (C) OD=35 		9-22159-008-0 02 1 9202- ● ●
81 NUT; BRKT
(B) M10 		9-09110-410-0 02 1 9202-9304 ● ●
81 NUT; BRKT
WHEEL BASE 3600MM(36W) (B) M10 		9-09110-410-0 02 1 9305-9407 ● ●
81 NUT; BRKT
(B) M10 		9-09110-410-0 01 1 9202-9304 ● ●
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) (B) M10 		9-09110-410-0 01 1 9202-9304 ● ●
81 NUT; BRKT
(B) M10 		9-09110-410-0 01 1 9305-9407 ● ●
81 NUT; BRKT
WHEEL BASE 4600MM(46W) (B) M10 		9-09110-410-0 01 1 9305-9407 ● ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 04 1 9202- ● ●
81 NUT; BRKT
WHEEL BASE 3600MM(36W) (A) M10 		9-09110-510-0 04 1 9202- ● ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 9202-9410 ● ●
81 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) (C) M10 LOCK NUT 		9-09131-510-0 01 1 9202-9410 ● ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 9411- ● ●
81 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 5000MM(50W) (C) M10 LOCK NUT 		9-09131-510-0 01 1 9411- ● ●
81 NUT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) (B) M10 		9-09110-510-0 01 1 9305-9407 ● ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 02 1 9408- ● ●
81 NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) (B) M10 		9-09110-510-0 02 1 9305-9407 ● ●
81 NUT; BRKT
(B) M10 		9-09110-510-0 01 1 9408- ● ●
81 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) (B) M10 		9-09110-510-0 01 1 9408- ● ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 06 1 9202- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 06 1 9202- ● ●
105 NUT; CLAMP
M10 		9-09110-410-0 06 1 9202-9407 ● ●
105 NUT; CLAMP
M10 		9-09110-510-0 06 1 9408- ● ●
107 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9202-9307 ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28081-030-0 04 1 9308- ● ●
107 BOLT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M10X30 W/LK WASHER 		0-50041-030-0 01 1 9202-9307 ● ●
107 BOLT; BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 5000MM(50W) M10X30 FLANGE 		0-28081-030-0 01 1 9308- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9202-9410 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) ID=10.5 OD=32 		9-09164-810-0 01 1 9202-9410 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9411- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 5000MM(50W) ID=10.5 OD=32 		9-09164-810-0 01 1 9411- ● ●
126 PIPE; EXH,RR 1-22112-777-2 01 1 9202-9207 ● ●
126 PIPE; EXH,RR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) 		1-22126-073-0 01 1 9208- ● ●
126 PIPE; EXH,RR
WHEEL BASE 3600MM(36W) 		1-22126-072-0 01 1 9208- ● ●
151 PROTECTOR; HEAT,EXH PIPE 1-53619-081-1 01 1 9203-9206 ● ●
151 PROTECTOR; HEAT,EXH PIPE 1-53319-018-0 01 1 9207- ● ●
159 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28080-825-0 02 1 9203- ● ●
160 NUT; HEAT PROTECTOR
M8 		9-09110-408-0 02 1 9203-9205 ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9202-9410 ● ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9411- ● ●
266 WASHER; LK,BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) ID=10.2 		9-09150-510-0 01 1 9411- ● ●
