◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10862 - EXR LHD FUEL TANK 400L/400L+400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#8959) — 140 parça
çizim 19790
490 489 488
BalonParca AdiParca NoAdetTipApplied Date
488 STOPPER; ENG
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 		1-82840-161-0 01 1 0106-
489 BOLT; ENG STOPPER
EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0106-0410
489 BOLT; ENG STOPPER
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0411-0512
489 BOLT; ENG STOPPER
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601-
490 NUT; ENG STOP
EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 0106-0410
490 NUT; ENG STOP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 02 1 0411-0602
490 NUT; ENG STOP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91180-108-0 02 1 0603-
çizim 74908
449 450 690 690
BalonParca AdiParca NoAdetTipApplied Date
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WA1 TC-C(55L) 		1-82563-871-2 01 1 0106-
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WG1 TC-C(72L) 		1-82563-871-2 02 1 0106-
450 CONNECTOR; MAG VLV,INL PORT
6WA1 TC-C(55L),6WG1 TC-C(72L) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0106-
690 CONNECTOR
6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0106-
690 CONNECTOR
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0106-
690 CONNECTOR
6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0106-

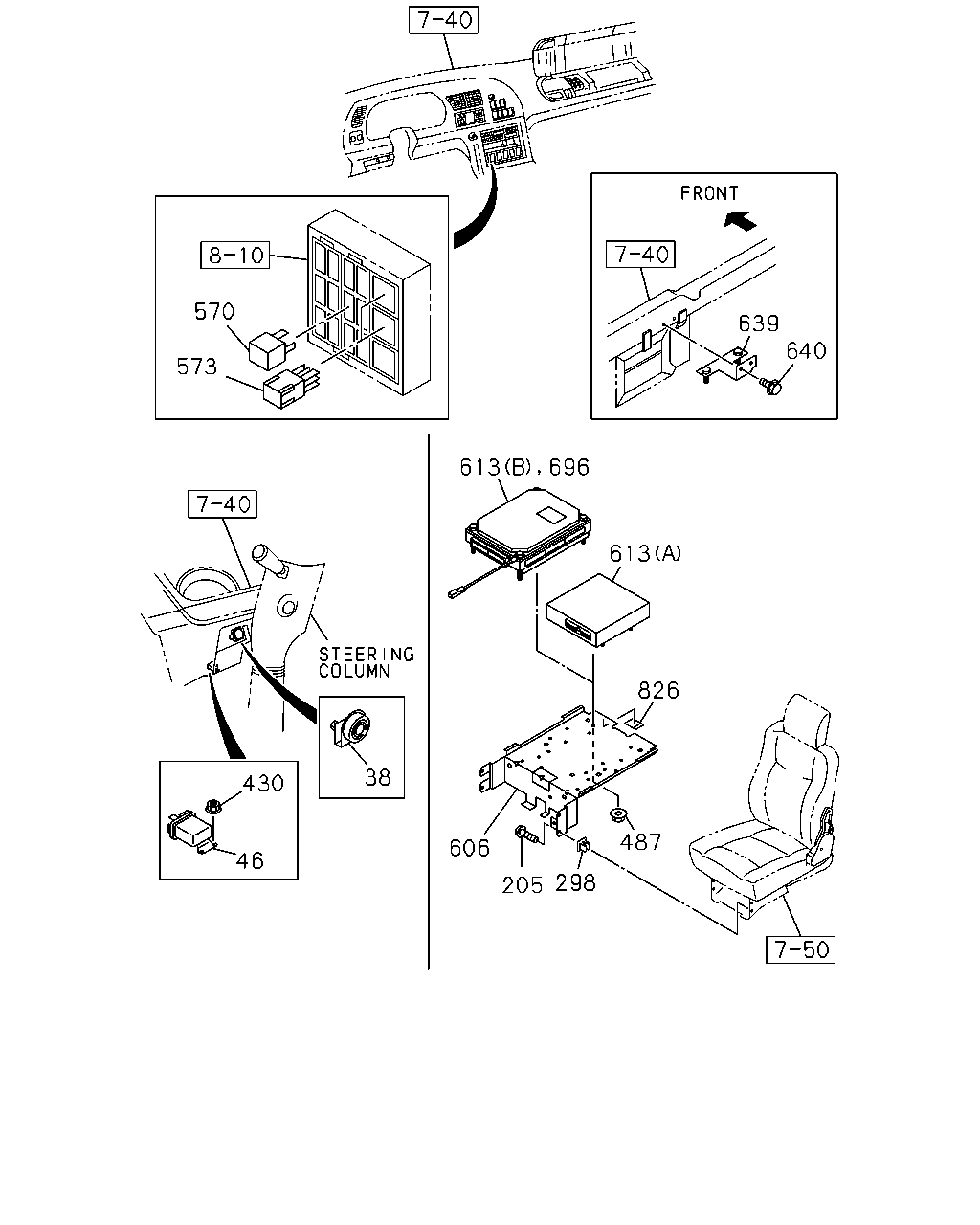

çizim 74947
570 639 640 573 613 826 38 430 487 606 46 298 205 613 696
BalonParca AdiParca NoAdetTipApplied Date
38 RESISTOR; CONT,GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-81402-008-0 01 1 0106-
46 RELAY; GLOW PLUG
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		8-94258-014-0 01 1 0106-
205 SCREW; BRKT
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0106-
205 SCREW; BRKT
6WA1 TC-C(55L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0106-
298 GROMMET; SCREW
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0106-
298 GROMMET; SCREW
6WA1 TC-C(55L) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0106-
430 NUT; RELAY FIX
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE 		0-91150-106-0 01 1 0106-0602
430 NUT; RELAY FIX
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE 		0-91180-106-0 01 1 0603-
487 NUT
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6 FLANGE 		0-91150-106-0 04 1 0106-0602
487 NUT
6WA1 TC-C(55L) M6 FLANGE 		0-91150-106-0 04 1 0106-0602
487 NUT
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M6 FLANGE 		0-91180-106-0 04 1 0603-
487 NUT
6WA1 TC-C(55L) M6 FLANGE 		0-91180-106-0 04 1 0603-
570 RELAY; EXH SHUTTER
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0106-
573 RELAY; ELEC GOV
ELECTRONIC GOV RED4(Q4F) 24V 12.5A JIDECO 		8-97062-815-1 02 1 0106-0111
573 RELAY; ELEC GOV
ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA 		8-97262-933-0 02 1 0112-0212
573 RELAY; ELEC GOV
ELECTRONIC GOV RED4(Q4F) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0301-
606 BRACKET; CONT UNIT
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		1-75558-598-3 01 1 0106-
606 BRACKET; CONT UNIT
6WA1 TC-C(55L) 		1-75558-598-3 01 1 0106-
613 CONTROL UNIT; ENG
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A) 		1-80110-480-0 01 1 0106-
613 CONTROL UNIT; ENG
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-80110-666-0 01 1 0106-
613 CONTROL UNIT; ENG
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) 		1-80110-440-0 01 1 0106-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-80110-759-1 01 1 0106-
613 CONTROL UNIT; ENG
6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A) 		1-80110-761-1 01 1 0106-
613 CONTROL UNIT; ENG
6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET STD(T1B) (A) 		1-80110-622-0 01 1 0106-
639 BRACKET; QOS GLOW TIMER 1-73908-161-0 01 1 0210-
640 BOLT; BRKT,QOS GLOW TIMER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0210-
696 CONTROL UNIT
6WF1 TC-C(1B8) AIR CONDITIONER MANUAL CONTROL(C60) KD ENGINE<KDA> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,GENERATOR NIKKO 24V-60A 1.5KW(SC8),STRG VARIABLE CONTROL<TFY> 		1-80110-759-1 01 1 0411-
826 SEAL; NOISE INSULATION
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 30X30 		8-97866-626-0 03 1 0106-0309
826 SEAL; NOISE INSULATION
6WA1 TC-C(55L) 30X30 		8-97866-626-0 03 1 0106-0309
826 SEAL; NOISE INSULATION
6WF1 TC-C(1B8),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 30X30 		1-74998-128-0 03 1 0310-
826 SEAL; NOISE INSULATION
6WA1 TC-C(55L) 30X30 		1-74998-128-0 03 1 0310-

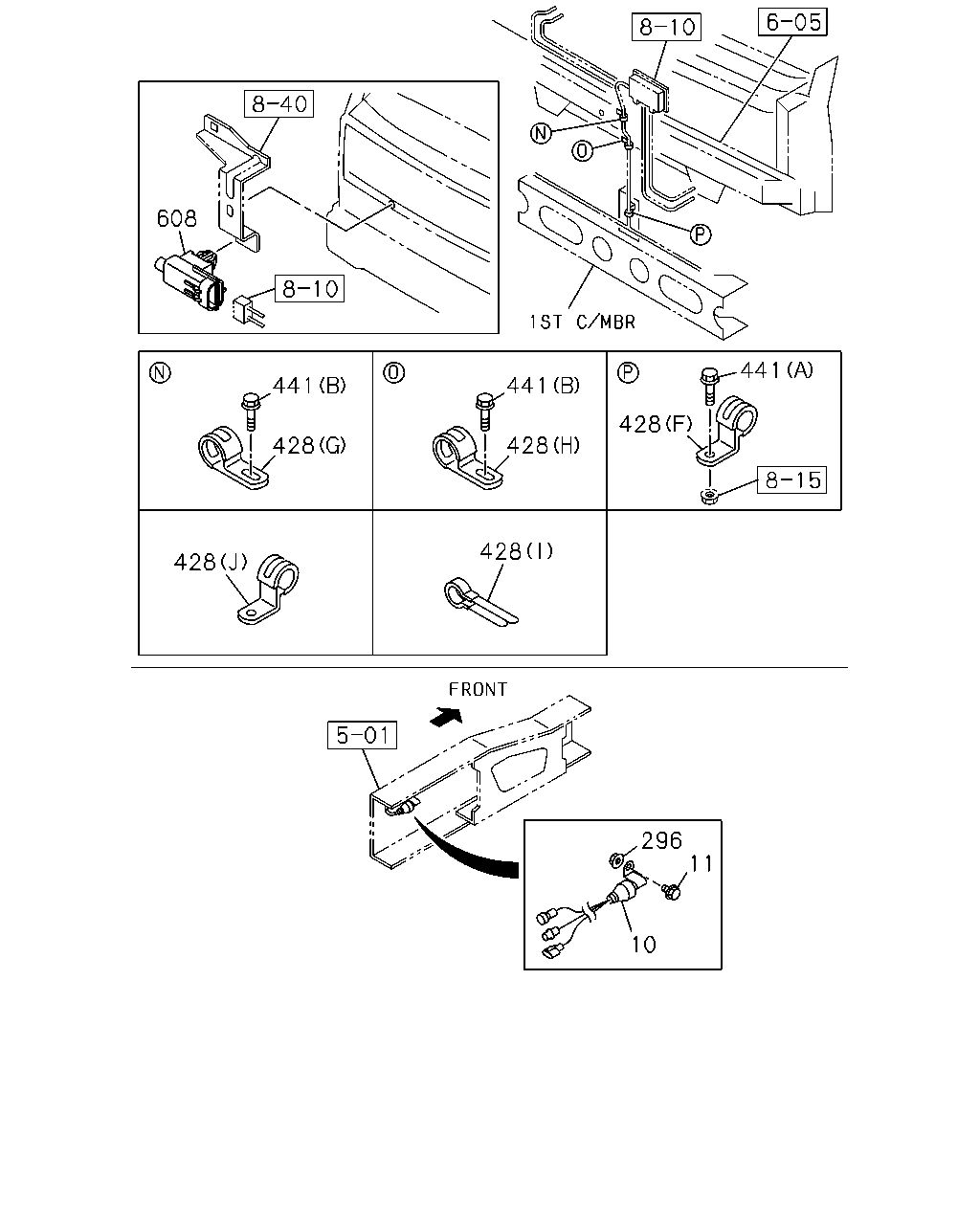

çizim 76914
608 441 441 441 428 428 428 428 428 296 11 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
HITACHI 		1-81171-087-0 01 1 0106-
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28680-825-0 02 1 0106-0512
11 BOLT; RELAY STARTER
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0106-0602
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603-
428 CLIP; HARNESS
(J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-
428 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0106-
428 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0106-
428 CLIP; HARNESS
(H) ID=32 L=35 		1-09701-244-0 01 1 0106-
428 CLIP; HARNESS
(A) L=250 		5-09707-030-1 02 1 0106-
428 CLIP; HARNESS
(B) L=140 		5-09707-031-1 05 1 0106-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0106-
428 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0106-
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0106-
428 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=100 		5-09707-036-1 01 1 0106-
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0112
441 BOLT; HARNESS TO FRAME
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0106-0112
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201-0512
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201-0512
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
441 BOLT; HARNESS TO FRAME
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
441 BOLT; HARNESS TO FRAME
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0106-
608 SENSOR; AIR TEMP
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 		8-97177-549-0 01 1 0106-

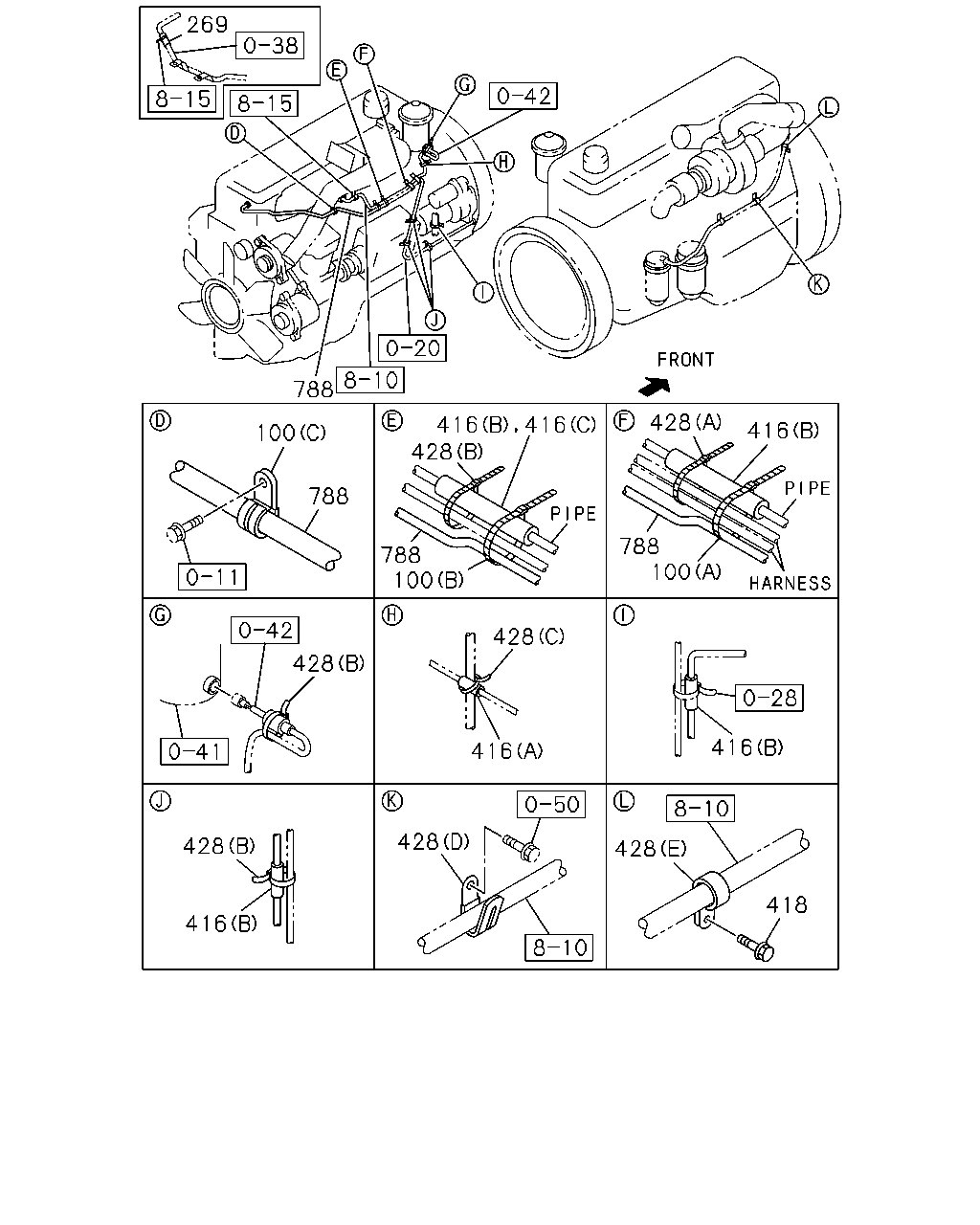

çizim 76950
269 788 428 428 416 100 788 788 100 788 100 428 428 416 416 428 428 428 418 416 416 416
BalonParca AdiParca NoAdetTipApplied Date
100 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0106-
100 CLIP; HARNESS
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (C) ID=11 L=30 		1-09700-511-0 01 1 0106-
100 CLIP; HARNESS
6WG1 TC-C(72L) (C) ID=11 L=30 		1-09700-511-0 01 1 0106-
100 CLIP; HARNESS
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) L=140 		5-09707-031-1 01 1 0106-
100 CLIP; HARNESS
6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) L=140 		5-09707-031-1 01 1 0106-
100 CLIP; HARNESS
6WF1 TC-C(1B8) (C) ID=11 L=20 		9-09525-035-0 01 1 0106-0606
100 CLIP; HARNESS
6WF1 TC-C(1B8) (C) ID=11 L=20 		0-95235-035-0 01 1 0607-
269 SLEEVE; RUBBER,CABLE
ID=18 OD=22 L=25 		8-94412-773-0 01 1 0111-
416 SLEEVE; RUBBER
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0106-
416 SLEEVE; RUBBER
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) ID=10 OD=14 L=30 		9-09956-682-0 06 1 0106-
416 SLEEVE; RUBBER
6WF1 TC-C(1B8) (A) ID=6 L=30 		5-09360-352-0 01 1 0106-
416 SLEEVE; RUBBER
6WF1 TC-C(1B8) (B) ID=10 OD=14 L=30 		9-09956-682-0 07 1 0106-
416 SLEEVE; RUBBER
6WG1 TC-C(72L) (C) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0106-
418 BOLT; CLIP
M10X16 FLANGE 		0-28181-016-0 01 1 0106-0512
418 BOLT; CLIP
M10X16 FLANGE 		0-28151-016-0 01 1 0601-
428 CLIP; HARNESS
(J) ID=20 H=23 L=27 		1-09700-861-0 01 1 0106-
428 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0106-
428 CLIP; HARNESS
(G) ID=26 L=26 		1-09701-236-0 01 1 0106-
428 CLIP; HARNESS
(H) ID=32 L=35 		1-09701-244-0 01 1 0106-
428 CLIP; HARNESS
(A) L=250 		5-09707-030-1 02 1 0106-
428 CLIP; HARNESS
(B) L=140 		5-09707-031-1 05 1 0106-
428 CLIP; HARNESS
(D) L=36 		8-94224-891-1 01 1 0106-
428 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0106-
428 CLIP; HARNESS
(E) ID=11 L=28 		9-09917-544-0 01 1 0106-
428 CLIP; HARNESS
6WF1 TC-C(1B8) (C) L=100 		5-09707-036-1 01 1 0106-
788 HARNESS; EXT,WATER TEMP SENSOR
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) 		1-82641-186-0 02 1 0106-0303
788 HARNESS; EXT,WATER TEMP SENSOR
6WG1 TC-C(72L) 		1-82641-186-0 02 1 0106-0303
788 HARNESS; EXT,WATER TEMP SENSOR
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-82641-186-0 02 1 0304-
788 HARNESS; EXT,WATER TEMP SENSOR
6WF1 TC-C(1B8) 		1-82641-183-0 01 1 0106-

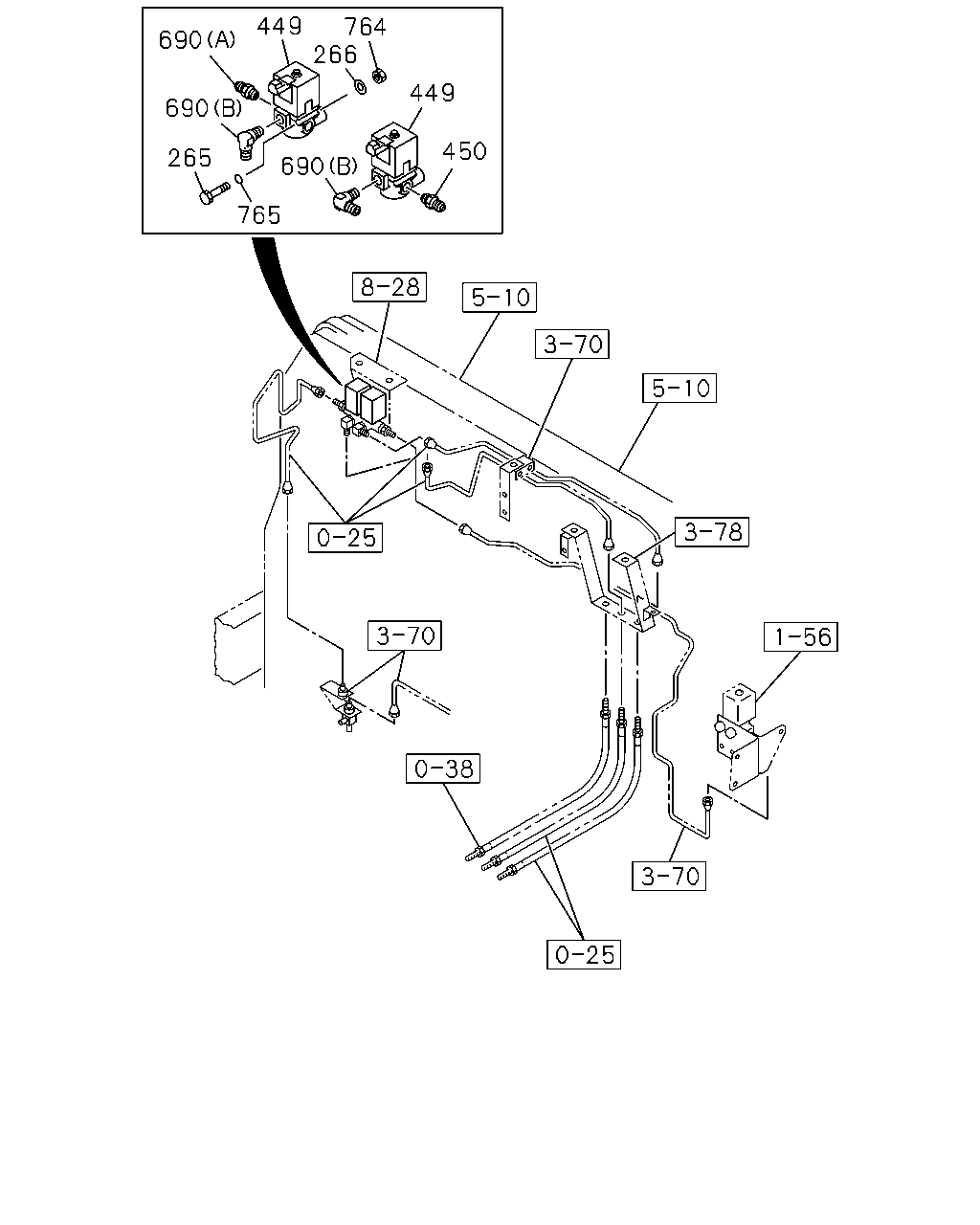

çizim 76988
449 764 266 690 449 690 450 265 690 765
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; MAG VLV FIX
6WG1 TC-C(72L) M6X50 FLANGE 		0-28080-650-0 01 1 0106-0512
265 BOLT; MAG VLV FIX
6WG1 TC-C(72L) M6X50 FLANGE 		0-28050-650-0 01 1 0601-
266 WASHER; PL,MAG VLV FIX
6WG1 TC-C(72L) 		1-82569-266-0 02 1 0106-
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WA1 TC-C(55L) 		1-82563-871-2 01 1 0106-
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
6WG1 TC-C(72L) 		1-82563-871-2 02 1 0106-
450 CONNECTOR; MAG VLV,INL PORT
6WA1 TC-C(55L),6WG1 TC-C(72L) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0106-
690 CONNECTOR
6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0106-
690 CONNECTOR
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0106-
690 CONNECTOR
6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0106-
764 NUT; MAG VLV
6WG1 TC-C(72L) M6 FLANGE 		0-91150-106-0 01 1 0106-0602
764 NUT; MAG VLV
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 01 1 0603-
765 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 01 1 0106-

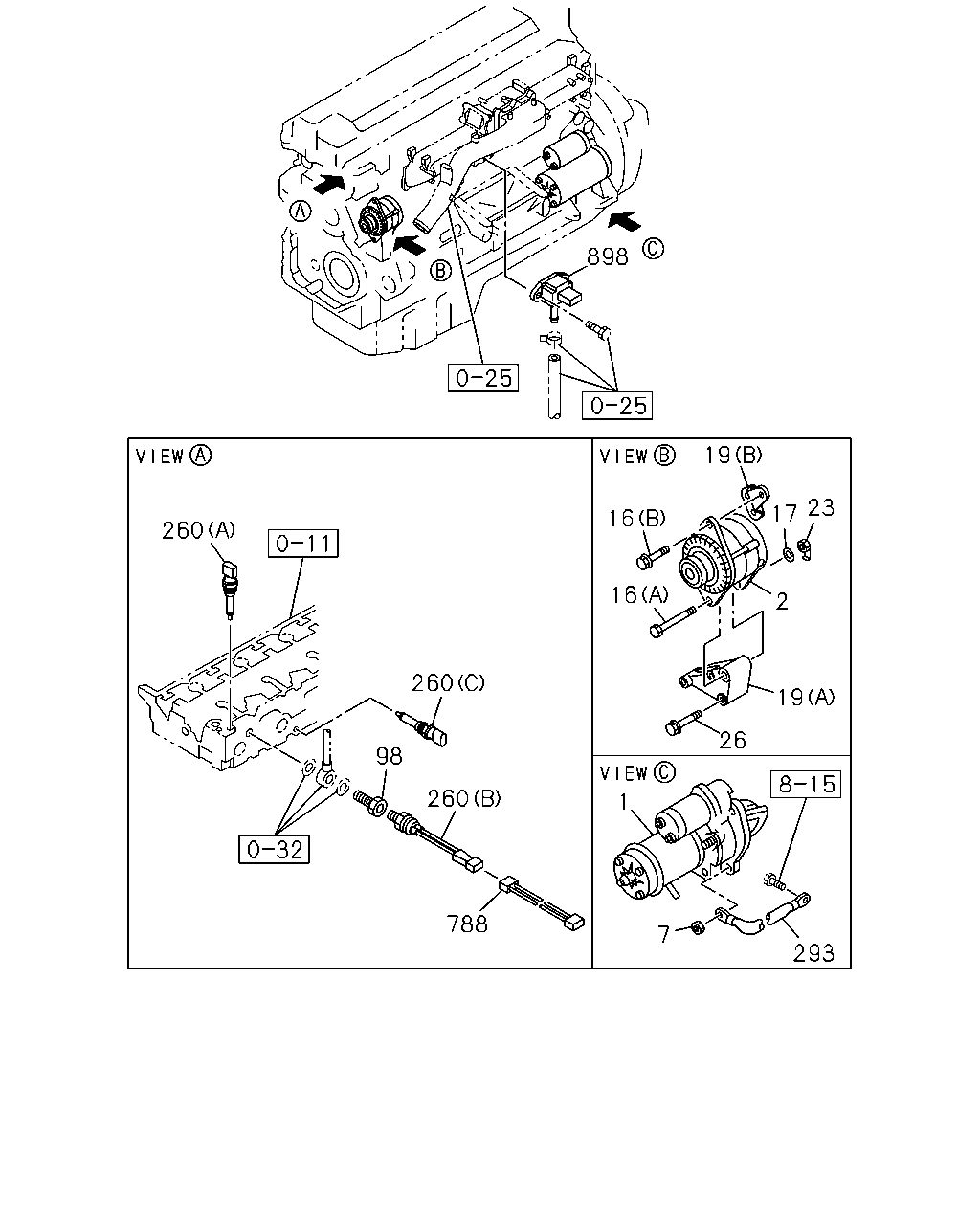

çizim 77017
898 19 17 23 2 16 16 26 19 1 7 293 260 260 98 788 260
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI 		1-81100-341-3 01 1 0106-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) 24V 50A MITSUBISHI 		1-81200-517-2 01 1 0106-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) 24V 50A MITSUBISHI 		1-81200-484-7 01 1 0106-
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 03 1 0106-
16 BOLT; GEN
(A) M14X123 		1-09040-105-0 01 1 0106-
16 BOLT; GEN
EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) M12X40 FLANGE 		0-28081-240-0 01 1 0106-0107
16 BOLT; GEN
6WA1 TC-C(55L) TROPICAL ZONE KIT<WB6> (B) M12X40 FLANGE 		0-28081-240-0 01 1 0108-0512
16 BOLT; GEN
6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) M12X40 FLANGE 		0-28081-240-0 01 1 0108-0512
16 BOLT; GEN
6WA1 TC-C(55L) TROPICAL ZONE KIT<WB6> (B) M12X40 FLANGE 		0-28051-240-0 01 1 0601-
16 BOLT; GEN
6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) M12X40 FLANGE 		0-28051-240-0 01 1 0601-
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0106-0605
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606-
19 BRACKET; GEN
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) 		1-19711-144-0 01 1 0106-
19 BRACKET; GEN
6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) 		1-19711-082-0 01 1 0106-
19 BRACKET; GEN
6WF1 TC-C(1B8) (B) 		1-19711-101-0 01 1 0106-0502
19 BRACKET; GEN
6WF1 TC-C(1B8) (B) 		8-97606-317-0 01 1 0503-
19 BRACKET; GEN
6WF1 TC-C(1B8) (A) 		1-19711-143-0 01 1 0106-0502
19 BRACKET; GEN
6WF1 TC-C(1B8) (A) 		8-97604-177-0 01 1 0503-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0106-
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28181-060-0 02 1 0106-0512
26 BOLT; GEN BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0601-
98 ADAPTER; TEMP SENSOR 1-09675-236-0 01 1 0106-
260 SENSOR; WATER TEMP
6WA1 TC-C(55L),6WG1 TC-C(72L) (A) 		1-80210-004-0 01 1 0106-
260 SENSOR; WATER TEMP
6WA1 TC-C(55L),6WG1 TC-C(72L) (B) 		1-83161-038-0 01 1 0106-
260 SENSOR; WATER TEMP
6WF1 TC-C(1B8) (C) 		1-80210-005-1 01 1 0106-
260 SENSOR; WATER TEMP
6WF1 TC-C(1B8) (B) 		1-83161-040-0 01 1 0106-
293 CABLE; STARTER EARTH
L=350 		1-82650-235-0 01 1 0106-
788 HARNESS; EXT,WATER TEMP SENSOR
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) 		1-82641-186-0 02 1 0106-0303
788 HARNESS; EXT,WATER TEMP SENSOR
6WG1 TC-C(72L) 		1-82641-186-0 02 1 0106-0303
788 HARNESS; EXT,WATER TEMP SENSOR
6WA1 TC-C(55L),6WG1 TC-C(72L) 		1-82641-186-0 02 1 0304-
788 HARNESS; EXT,WATER TEMP SENSOR
6WF1 TC-C(1B8) 		1-82641-183-0 01 1 0106-
898 SENSOR; BOOST
6WF1 TC-C(1B8) 		1-80220-014-0 01 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
