0-42 — FUEL PUMP AND PIPE (#8954) — 95 parça

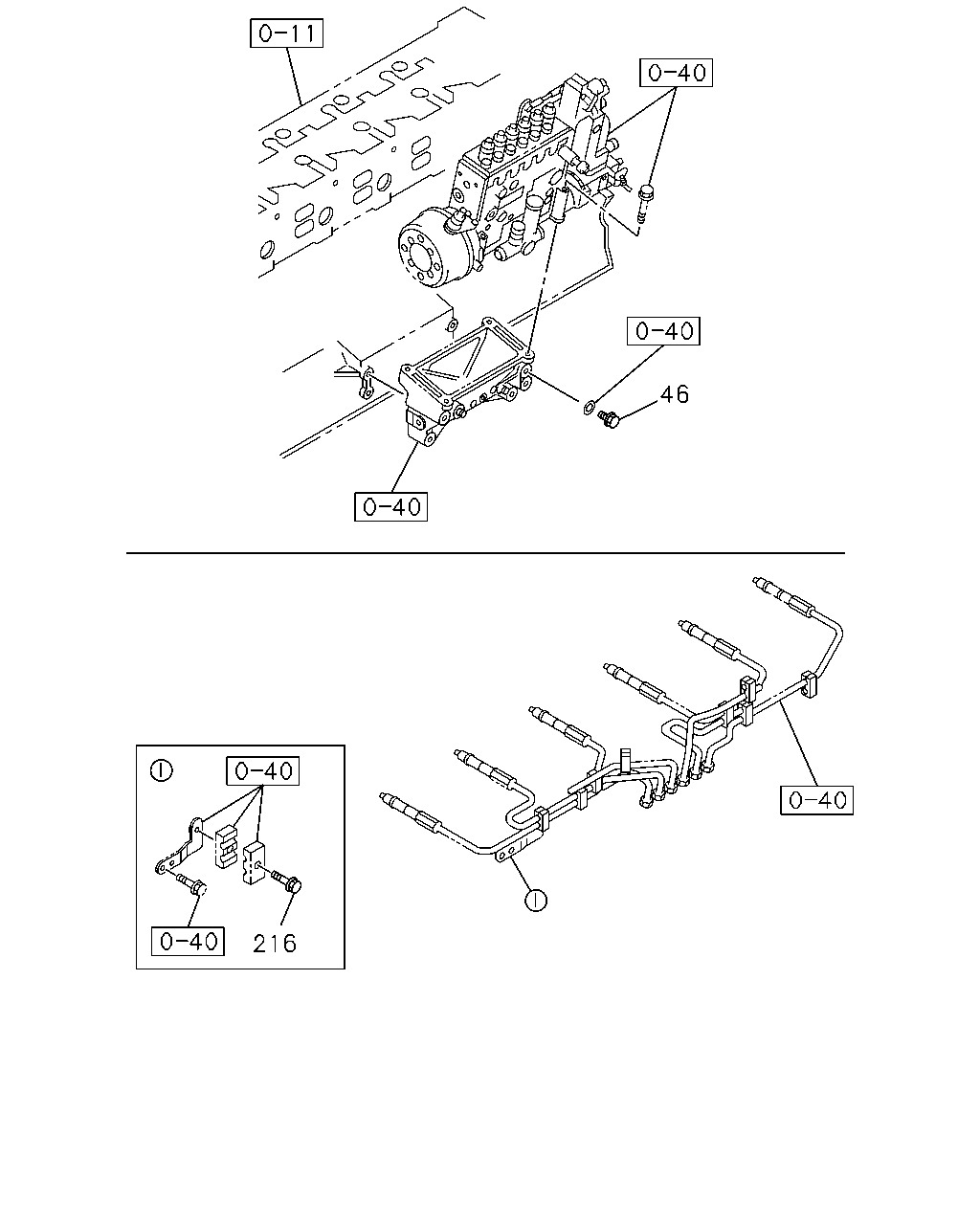

çizim 19262
46 216
BalonParca AdiParca NoAdetTipApplied Date A B C
46 PLUG
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M14X9 		9-99202-314-0 01 1 0106- ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0106-0512 ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 01 1 0601- ● ●

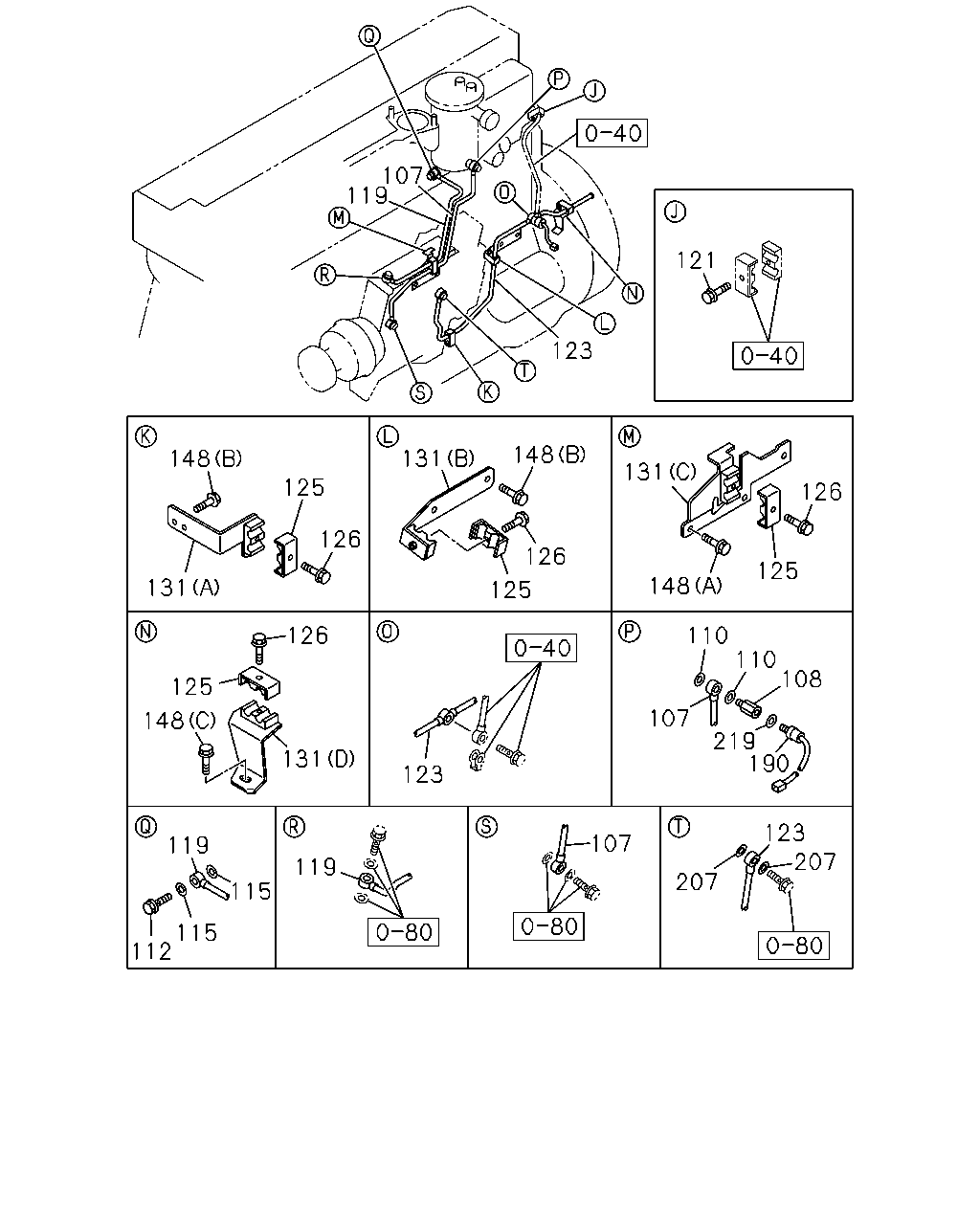

çizim 19263
107 119 121 123 148 131 148 131 125 126 126 126 125 148 131 125 126 110 110 108 125 107 148 219 190 131 123 123 107 119 207 119 207 115 115 112
BalonParca AdiParca NoAdetTipApplied Date A B C
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 0106- ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-430-0 01 1 0106- ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0106- ● ●
108 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 0106- ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 0106- ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0106-0410 ●
112 BOLT; JOINT,FUEL FILTER
RLD GOVERNOR(SD7) M14X27 FLANGE 		1-09675-086-0 01 1 0411- ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0411- ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 0106- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 0106- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-241-0 01 1 0106- ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0106-0512 ● ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 0601- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF 1-15416-242-1 01 1 0106- ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-3 06 1 0106- ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-3 04 1 0106- ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0106-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 06 1 0601- ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 04 1 0106-0512 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 04 1 0601- ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 0106- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 0106- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 0106- ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-473-1 01 1 0106- ●
131 BRACKET; FUEL PIPE CLIP
(D) 		1-15419-577-0 01 1 0106- ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0106-0512 ● ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 0106-0512 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 05 1 0601- ● ●
148 BOLT; BRKT
(C) M10X16 FLANGE 		0-28181-016-0 02 1 0106-0512 ●
148 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 03 1 0106-0512 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ●
190 SENSOR; FUEL TEMP 1-81535-035-3 01 1 0311- ●
190 SENSOR; FUEL TEMP 1-81535-036-6 01 1 0106-0310 ● ● ●
190 SENSOR; FUEL TEMP 1-81535-036-7 01 1 0311- ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0106- ● ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2 		1-09630-084-0 01 1 0106- ●

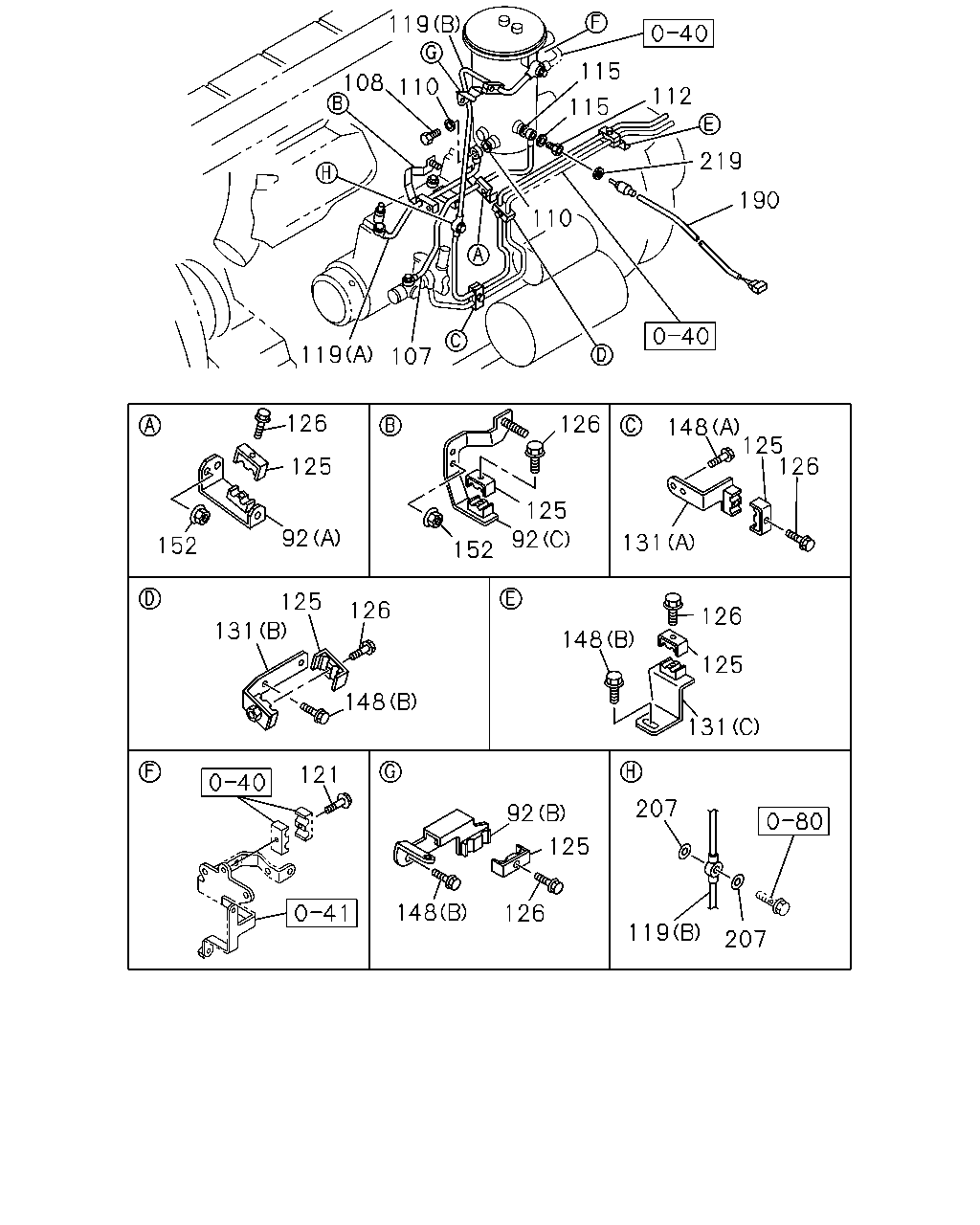

çizim 19264
119 115 108 110 112 115 219 190 110 119 107 126 126 148 125 126 125 125 92 92 131 152 152 125 126 126 131 148 125 148 131 121 207 92 125 148 126 119 207
BalonParca AdiParca NoAdetTipApplied Date A B C
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 0106- ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 0106- ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 0106- ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 0106- ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-430-0 01 1 0106- ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0106- ● ●
108 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 0106- ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 0106- ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0106-0410 ●
112 BOLT; JOINT,FUEL FILTER
RLD GOVERNOR(SD7) M14X27 FLANGE 		1-09675-086-0 01 1 0411- ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0411- ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 0106- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 0106- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-241-0 01 1 0106- ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0106-0512 ● ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 0601- ● ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-3 06 1 0106- ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-3 04 1 0106- ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0106-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 06 1 0601- ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 04 1 0106-0512 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 04 1 0601- ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 0106- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 0106- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 0106- ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-473-1 01 1 0106- ●
131 BRACKET; FUEL PIPE CLIP
(D) 		1-15419-577-0 01 1 0106- ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0106-0512 ● ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 0106-0512 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 05 1 0601- ● ●
148 BOLT; BRKT
(C) M10X16 FLANGE 		0-28181-016-0 02 1 0106-0512 ●
148 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 03 1 0106-0512 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0106-0602 ● ●
152 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
190 SENSOR; FUEL TEMP 1-81535-035-3 01 1 0311- ●
190 SENSOR; FUEL TEMP 1-81535-036-6 01 1 0106-0310 ● ● ●
190 SENSOR; FUEL TEMP 1-81535-036-7 01 1 0311- ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 02 1 0106- ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0106- ● ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2 		1-09630-084-0 01 1 0106- ●
