Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#8952) — 253 parça

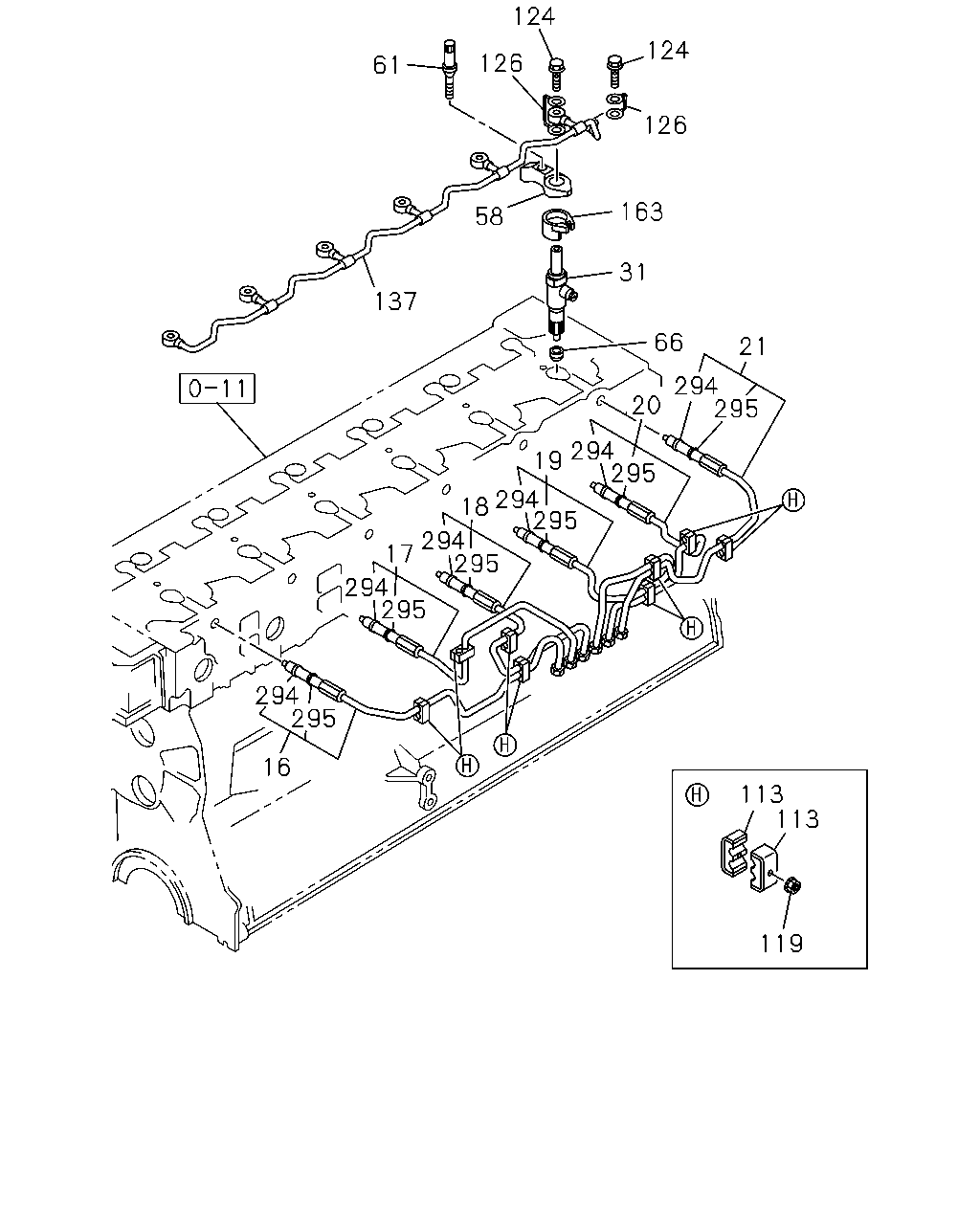

124 124 126 61 126 163 58 31 137 66 21 294 295 20 294 19 295 294 18 295 294 17 295 294 295 294 295 16 113 113 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15415-072-7	01	1	0106-	●	●
16	PIPE; INJ NO.1	1-15416-343-1	01	1	0106-0201			●
16	PIPE; INJ NO.1	1-15416-792-1	01	1	0202-			●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	0106-	●	●
17	PIPE; INJ NO.2	1-15416-344-1	01	1	0106-0201			●
17	PIPE; INJ NO.2	1-15416-793-1	01	1	0202-			●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	0106-	●	●
18	PIPE; INJ NO.3	1-15416-345-1	01	1	0106-0201			●
18	PIPE; INJ NO.3	1-15416-794-1	01	1	0202-			●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	0106-	●	●
19	PIPE; INJ NO.4	1-15416-346-1	01	1	0106-0201			●
19	PIPE; INJ NO.4	1-15416-795-1	01	1	0202-			●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	0106-	●	●
20	PIPE; INJ NO.5	1-15416-347-1	01	1	0106-0201			●
20	PIPE; INJ NO.5	1-15416-796-1	01	1	0202-			●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	0106-	●	●
21	PIPE; INJ NO.6	1-15416-681-0	01	1	0106-0201			●
21	PIPE; INJ NO.6	1-15416-797-1	01	1	0202-			●
31	NOZZLE ASM; INJ	1-15300-358-1	06	1	0106-	●
31	NOZZLE ASM; INJ	1-15300-372-4	06	1	0106-0201			●
31	NOZZLE ASM; INJ	1-15300-427-0	06	1	0202-			●
31	NOZZLE ASM; INJ	1-15300-355-1	06	1	0106-		●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	0106-0304	●	●	●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-029-0	06	1	0305-	●	●	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	0106-	●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	0106-	●	●	●
113	CLIP; INJ PIPE	1-09701-132-1	14	1	0106-	●	●
113	CLIP; INJ PIPE	1-09701-132-1	16	1	0106-			●
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28080-630-0	08	1	0106-0512			●
119	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28050-630-0	08	1	0601-			●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0106-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	09	1	0106-			●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	0106-	●	●	●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	0106-	●	●	●
294	SEAL; OIL,SLEEVE NUT	1-09625-544-0	06	1	0106-			●
295	GASKET; SLEEVE NUT	1-09623-564-0	06	1	0106-			●

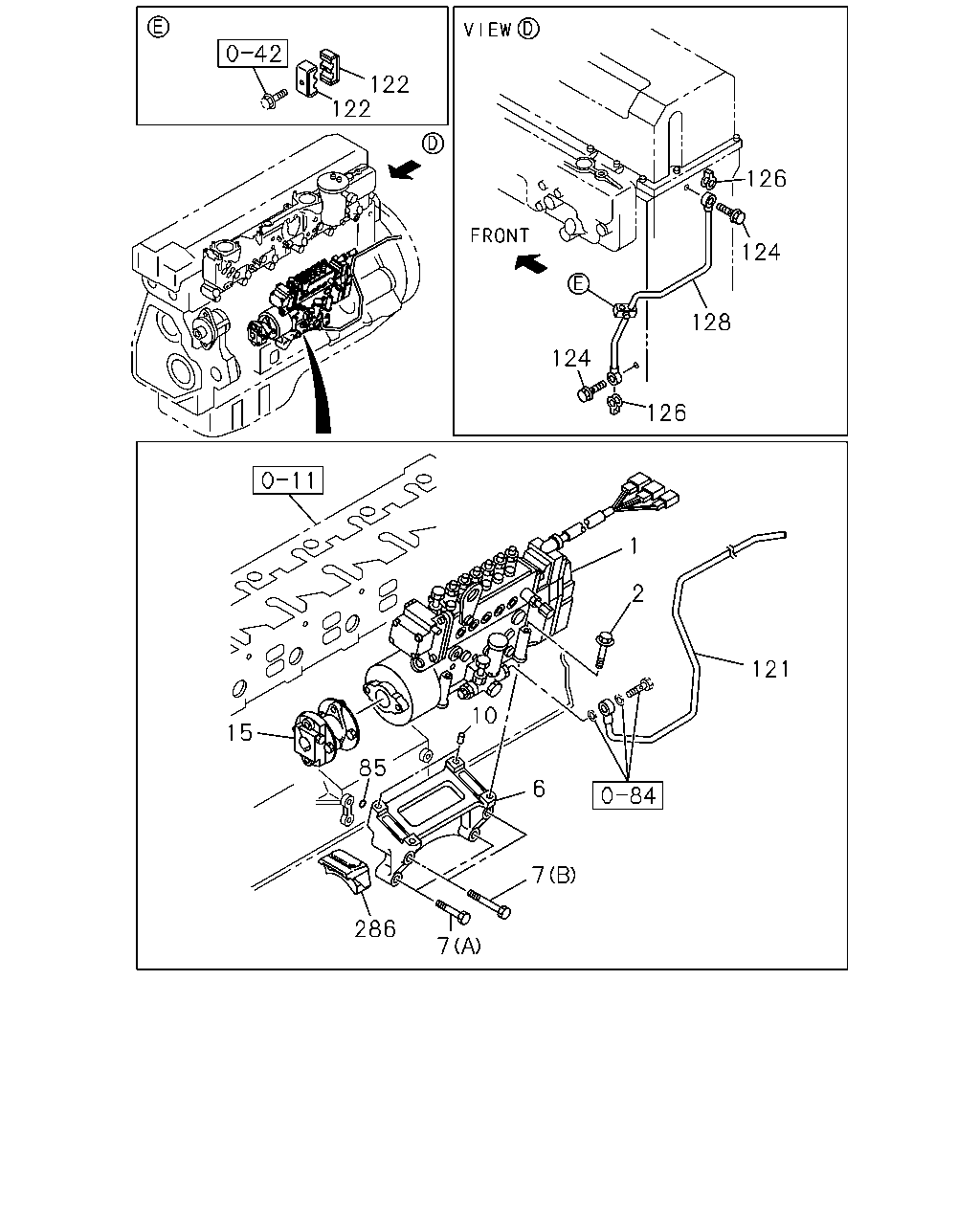

122 122 126 124 128 124 126 1 2 121 10 15 85 6 7 286 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-15603-265-5	01	1	0106-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-15603-290-6	01	1	0106-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-420-3	01	1	0106-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-065-9	01	1	0106-		●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	0106-	●	●
2	BOLT; INJ PUMP M10X90 FLANGE	0-28181-090-0	04	1	0106-0512			●
2	BOLT; INJ PUMP M10X90 FLANGE	0-28151-090-0	04	1	0601-			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	0106-0408	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-160-3	01	1	0106-			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0106-0408		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0409-	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	0106-0512	●	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0601-	●	●	●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	0106-	●	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28986-412-0	02	1	0106-0512			●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0601-			●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0106-	●	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	0106-	●	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0106-	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	0106-	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	01	1	0106-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	0106-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-429-0	01	1	0106-			●
122	CLIP; LEAK OFF PIPE	1-09701-132-1	04	1	0106-	●	●
122	CLIP; LEAK OFF PIPE	1-09701-132-1	02	1	0106-			●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0106-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	09	1	0106-			●
128	PIPE ASM; INJ	1-15415-543-1	01	1	0106-	●	●
128	PIPE ASM; INJ	1-15416-391-0	01	1	0106-			●
286	INSULATOR; BRKT	1-19389-222-1	01	1	0106-			●

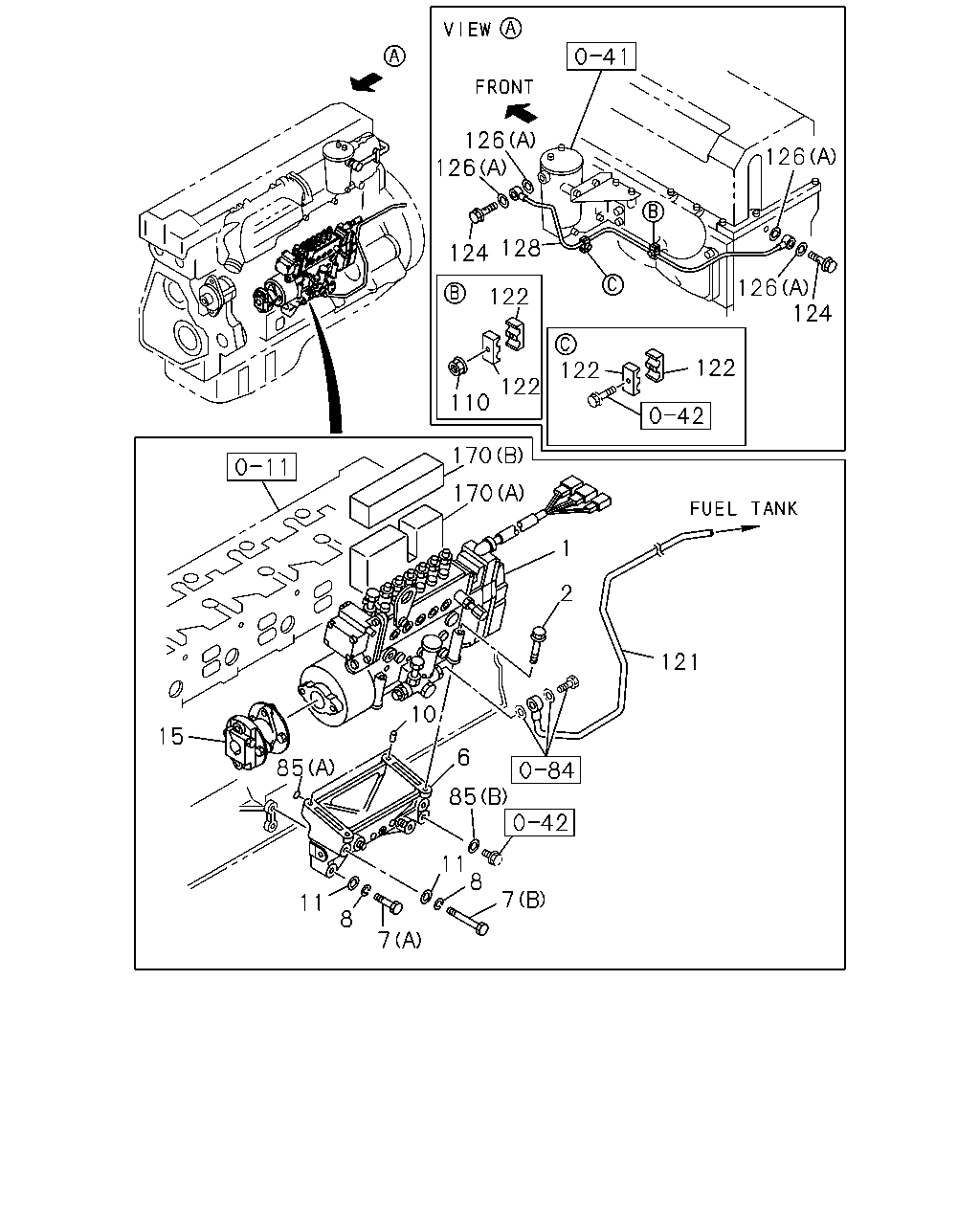

126 126 126 128 124 126 124 122 122 122 122 110 170 170 1 2 121 10 15 6 85 85 11 8 7 11 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-15603-265-5	01	1	0106-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-15603-290-6	01	1	0106-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-420-3	01	1	0106-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-065-9	01	1	0106-		●
2	BOLT; INJ PUMP M10X85 FLANGE	8-94397-359-1	04	1	0106-	●	●
2	BOLT; INJ PUMP M10X90 FLANGE	0-28181-090-0	04	1	0106-0512			●
2	BOLT; INJ PUMP M10X90 FLANGE	0-28151-090-0	04	1	0601-			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	0106-0408	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-160-3	01	1	0106-			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0106-0408		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0409-	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28981-490-0	02	1	0106-0512	●	●	●
7	BOLT; INJ PUMP BRKT (A) M14X90 FLANGE	0-28951-490-0	02	1	0601-	●	●	●
7	BOLT; INJ PUMP BRKT (B) M14X117	9-09804-193-1	02	1	0106-	●	●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28986-412-0	02	1	0106-0512			●
7	BOLT; INJ PUMP BRKT (B) M14X120 FLANGE	0-28956-412-0	02	1	0601-			●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	9-09150-514-0	04	1	0106-0603	●	●
8	WASHER; LK,INJ PUMP BRKT ID=14.2	0-91510-514-0	04	1	0604-	●	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0106-	●	●	●
11	WASHER; INJ PUMP BRKT ID=15	9-09160-514-0	04	1	0106-0605	●	●
11	WASHER; INJ PUMP BRKT ID=15	0-91610-514-0	04	1	0606-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-143-1	01	1	0106-	●	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	0106-	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	03	1	0106-	●	●
85	GASKET; BRKT,INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.8	1-09623-478-0	01	1	0106-			●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0106-0602	●	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-595-1	01	1	0106-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-429-0	01	1	0106-			●
122	CLIP; LEAK OFF PIPE	1-09701-132-1	04	1	0106-	●	●
122	CLIP; LEAK OFF PIPE	1-09701-132-1	02	1	0106-			●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0106-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	09	1	0106-			●
128	PIPE ASM; INJ	1-15415-543-1	01	1	0106-	●	●
128	PIPE ASM; INJ	1-15416-391-0	01	1	0106-			●
170	INSULATOR; INJ PUMP (A)	1-19389-160-0	01	1	0106-		●
170	INSULATOR; INJ PUMP (B)	1-19389-188-1	01	1	0106-		●

31 32 42 140 44 43 47 45 138 140 43 272 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	1-15300-358-1	06	1	0106-	●
31	NOZZLE ASM; INJ	1-15300-372-4	06	1	0106-0201			●
31	NOZZLE ASM; INJ	1-15300-427-0	06	1	0202-			●
31	NOZZLE ASM; INJ	1-15300-355-1	06	1	0106-		●
32	HOLDER ASM; NOZZLE	1-15330-114-0	06	1	0106-	●
32	HOLDER ASM; NOZZLE	1-15330-122-3	06	1	0106-0201			●
32	HOLDER ASM; NOZZLE	1-15330-135-0	06	1	0202-			●
32	HOLDER ASM; NOZZLE	1-15330-117-1	06	1	0106-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-016-1	06	1	0106-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-152-0	06	1	0106-			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-137-1	06	1	0106-		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	0106-	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-141-0	06	1	0106-			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	1-15342-002-0	06	1	0106-			●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	1-15342-003-0	06	1	0106-			●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0106-	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0106-			●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	0106-	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15349-129-0	06	1	0106-			●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	0106-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-128-0	06	1	0106-0109			●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-157-0	06	1	0110-			●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-006-0	06	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0106-			●
272	NOZZLE KIT; INJ	1-15319-007-2	12	1	0106-			●

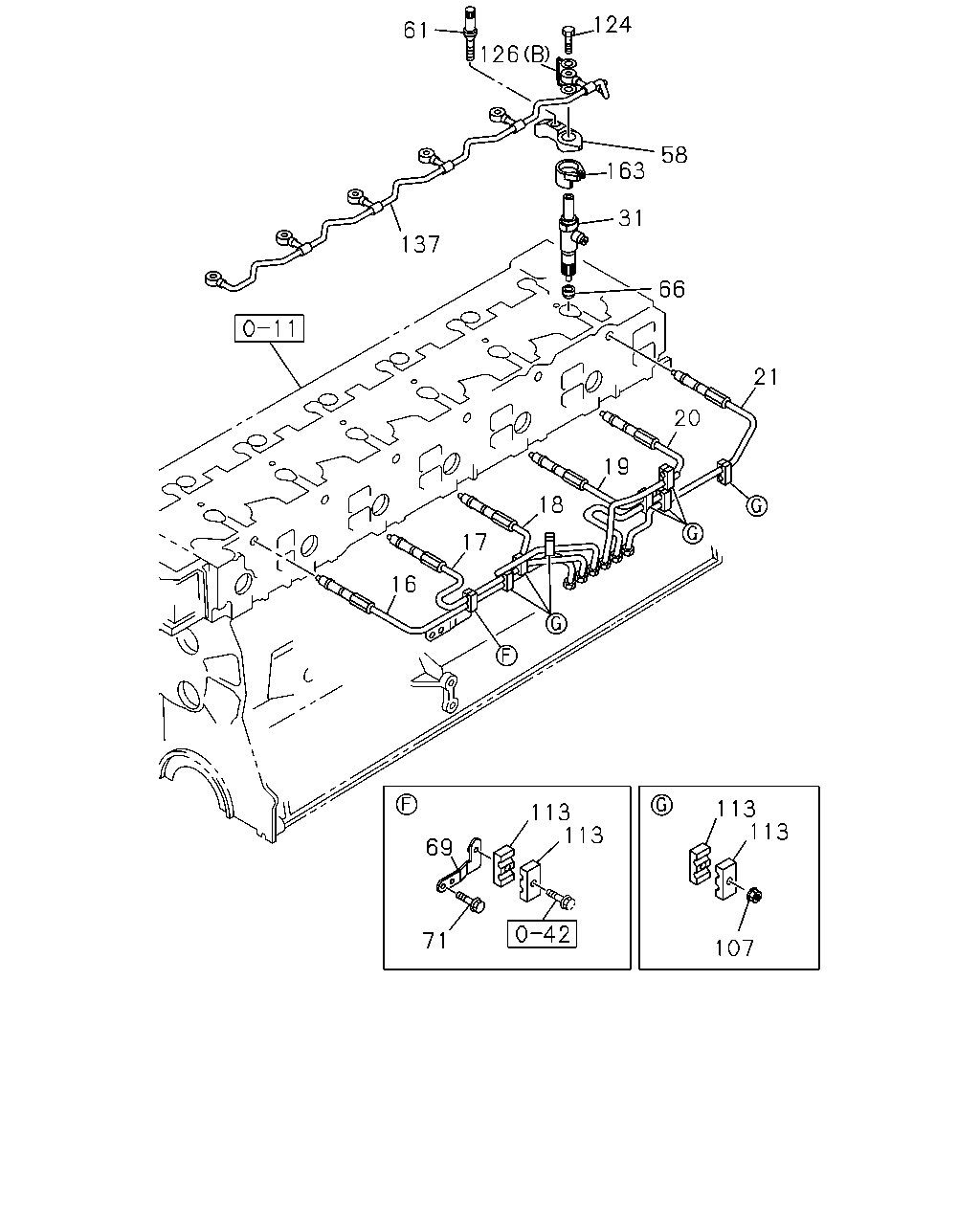

124 61 126 58 163 31 137 66 21 20 19 18 17 16 113 113 113 113 69 71 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15415-072-7	01	1	0106-	●	●
16	PIPE; INJ NO.1	1-15416-343-1	01	1	0106-0201			●
16	PIPE; INJ NO.1	1-15416-792-1	01	1	0202-			●
17	PIPE; INJ NO.2	1-15415-073-6	01	1	0106-	●	●
17	PIPE; INJ NO.2	1-15416-344-1	01	1	0106-0201			●
17	PIPE; INJ NO.2	1-15416-793-1	01	1	0202-			●
18	PIPE; INJ NO.3	1-15415-074-6	01	1	0106-	●	●
18	PIPE; INJ NO.3	1-15416-345-1	01	1	0106-0201			●
18	PIPE; INJ NO.3	1-15416-794-1	01	1	0202-			●
19	PIPE; INJ NO.4	1-15415-525-1	01	1	0106-	●	●
19	PIPE; INJ NO.4	1-15416-346-1	01	1	0106-0201			●
19	PIPE; INJ NO.4	1-15416-795-1	01	1	0202-			●
20	PIPE; INJ NO.5	1-15415-076-6	01	1	0106-	●	●
20	PIPE; INJ NO.5	1-15416-347-1	01	1	0106-0201			●
20	PIPE; INJ NO.5	1-15416-796-1	01	1	0202-			●
21	PIPE; INJ NO.6	1-15415-077-6	01	1	0106-	●	●
21	PIPE; INJ NO.6	1-15416-681-0	01	1	0106-0201			●
21	PIPE; INJ NO.6	1-15416-797-1	01	1	0202-			●
31	NOZZLE ASM; INJ	1-15300-358-1	06	1	0106-	●
31	NOZZLE ASM; INJ	1-15300-372-4	06	1	0106-0201			●
31	NOZZLE ASM; INJ	1-15300-427-0	06	1	0202-			●
31	NOZZLE ASM; INJ	1-15300-355-1	06	1	0106-		●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-022-0	06	1	0106-0304	●	●	●
58	FLANGE; INJ,NOZZLE HOLDER	1-15337-029-0	06	1	0305-	●	●	●
61	BOLT; CLAMP NOZZLE HOLDER	1-09070-121-0	06	1	0106-	●	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=15	1-15315-011-0	06	1	0106-	●	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-334-0	01	1	0106-	●	●
71	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0106-0512	●	●
71	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0106-0602	●	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	06	1	0603-	●	●
113	CLIP; INJ PIPE	1-09701-132-1	14	1	0106-	●	●
113	CLIP; INJ PIPE	1-09701-132-1	16	1	0106-			●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	09	1	0106-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	04	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.6	8-94395-214-0	07	1	0106-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6	8-94395-214-0	09	1	0106-			●
137	PIPE ASM; LEAK OFF	1-15416-139-0	01	1	0106-	●	●	●
163	CAP; INJ NOZZLE	1-15319-002-0	06	1	0106-	●	●	●

6 31 31 32 32 42 42 46 140 140 44 44 45 45 46 46 47 146 46 33 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	BRACKET; INJ PUMP TO C/BL	1-19751-155-0	01	1	0106-0408	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-160-3	01	1	0106-			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0106-0408		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-156-0	01	1	0409-	●	●
31	NOZZLE ASM; INJ	1-15300-358-1	06	1	0106-	●
31	NOZZLE ASM; INJ	1-15300-372-4	06	1	0106-0201			●
31	NOZZLE ASM; INJ	1-15300-427-0	06	1	0202-			●
31	NOZZLE ASM; INJ	1-15300-355-1	06	1	0106-		●
32	HOLDER ASM; NOZZLE	1-15330-114-0	06	1	0106-	●
32	HOLDER ASM; NOZZLE	1-15330-122-3	06	1	0106-0201			●
32	HOLDER ASM; NOZZLE	1-15330-135-0	06	1	0202-			●
32	HOLDER ASM; NOZZLE	1-15330-117-1	06	1	0106-		●
33	NOZZLE; INJ	1-15311-278-0	06	1	0106-	●
33	NOZZLE; INJ	1-15311-267-0	06	1	0106-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-016-1	06	1	0106-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-152-0	06	1	0106-			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-137-1	06	1	0106-		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-050-0	06	1	0106-	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	1-15349-141-0	06	1	0106-			●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0106-	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0106-			●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-093-0	06	1	0106-	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15349-129-0	06	1	0106-			●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	0106-	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	1-15347-001-0	12	1	0106-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-098-0	06	1	0106-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-128-0	06	1	0106-0109			●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-157-0	06	1	0110-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.500	1-15349-051-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.550	1-15349-053-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.600	1-15349-055-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.650	1-15349-057-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.700	1-15349-059-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.750	1-15349-061-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.800	1-15349-063-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.850	1-15349-065-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.900	1-15349-067-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.950	1-15349-069-0	AR	1	0106-	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0106-			●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0106-			●
146	SPACER; NOZZLE	1-15339-098-0	06	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
