0-33 — FAN AND FAN BELT (#8946) — 119 parça

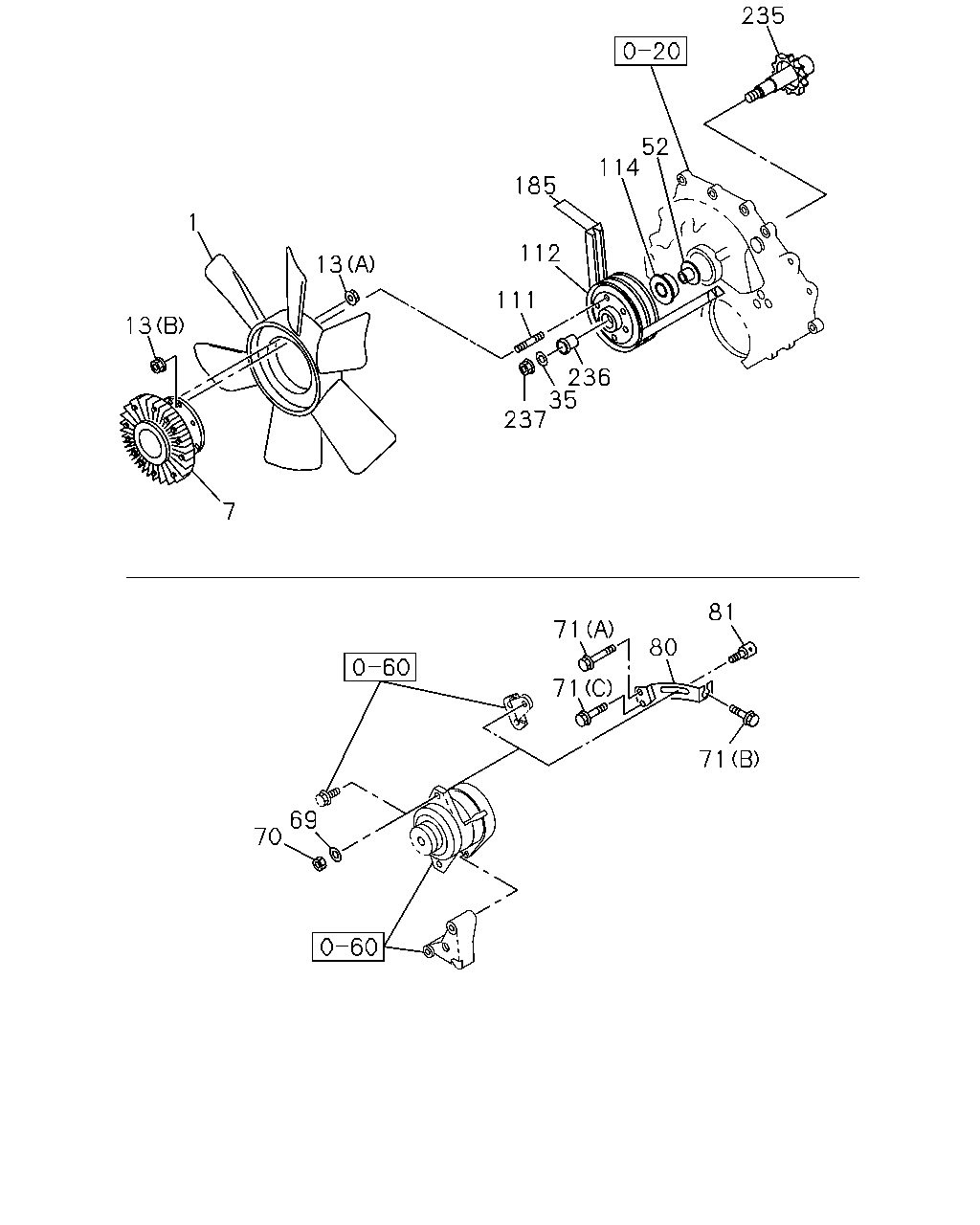

çizim 73404
235 52 114 185 1 112 13 111 13 236 35 237 7 81 71 80 71 71 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
TROPICAL ZONE KIT<WB6> 		1-13660-286-1 01 1 0106- ●
1 FAN; COOLING 1-13660-286-1 01 1 0106- ● ●
1 FAN; COOLING
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-224-0 01 1 0106- ●
7 COUPLING; FAN
TROPICAL ZONE KIT<WB6> 		1-21650-188-1 01 1 0106- ●
7 COUPLING; FAN 1-21650-188-1 01 1 0106- ●
7 COUPLING; FAN
EXC. TROPICAL ZONE KIT<WB6> 		1-21650-178-1 01 1 0106- ●
7 COUPLING; FAN 1-21650-204-1 01 1 0106- ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (A) M8 FLANGE 		0-91150-208-0 06 1 0106-0602 ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (A) M8 FLANGE 		0-91180-208-0 06 1 0603- ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0106-0602 ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0106-0312 ● ● ●
35 WASHER; PL 1-09503-242-0 01 1 0401- ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0106- ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> ID=10.5 OD=18 		9-09160-510-0 01 1 0106-0605 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 0106-0605 ● ●
69 WASHER; PL,ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> ID=10.5 		0-91610-510-0 01 1 0606- ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 		0-91610-510-0 01 1 0606- ● ●
69 WASHER; PL,ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> ID=12.5 OD=32 		9-09160-712-0 01 1 0106- ●
70 NUT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> M12 FLANGE 		0-91150-112-0 01 1 0106-0602 ●
70 NUT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> M12 FLANGE 		0-91180-112-0 01 1 0603- ●
71 BOLT; ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> (B) M10X140 		1-09000-104-1 01 1 0106- ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0106- ● ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (B) M10X135 		1-09009-113-1 01 1 0106- ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0106-0512 ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0601- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0106-0512 ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28156-011-0 01 1 0601- ● ● ●
80 PLATE; ADJ
EXC. TROPICAL ZONE KIT<WB6> 		1-13674-241-0 01 1 0106- ●
81 PIECE; SLIDING
EXC. TROPICAL ZONE KIT<WB6> M12X45 		1-13674-160-0 01 1 0106- ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0106-0604 ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		0-43211-025-0 06 1 0605- ● ● ●
112 PULLEY; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13663-124-1 01 1 0106- ●
112 PULLEY; FAN CENTER 1-13663-124-1 01 1 0106- ● ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-123-2 01 1 0106- ●
114 SEAL; OIL 1-09625-570-0 01 1 0106- ● ● ●
185 BELT; GEN DRIVE
EXC. TROPICAL ZONE KIT<WB6> 1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 0106- ●
235 SHAFT; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13660-314-0 01 1 0106- ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-3 01 1 0106- ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 0106- ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0106- ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0106- ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0106- ● ● ●

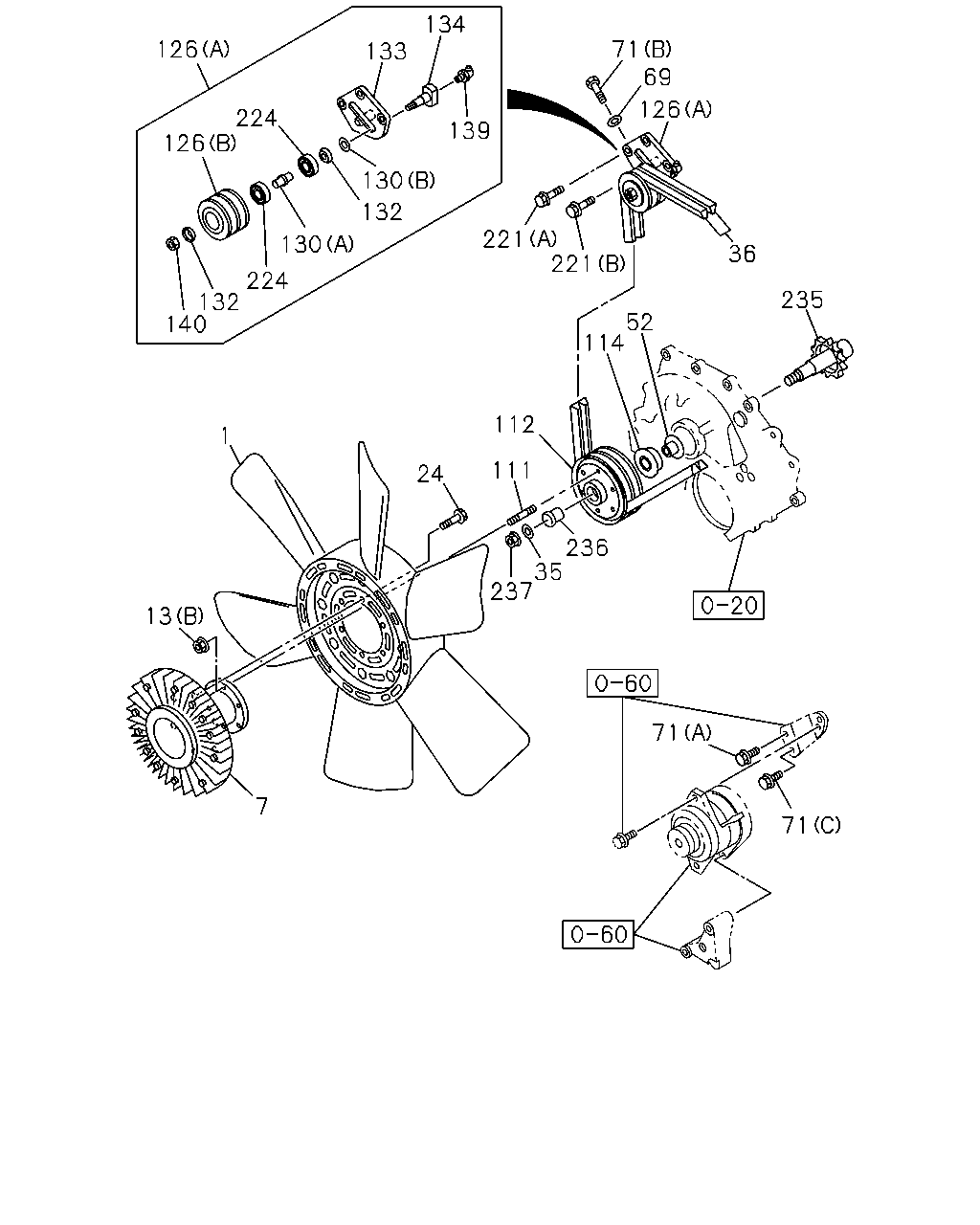

çizim 73513
134 71 69 126 133 126 224 126 139 130 132 221 221 130 36 224 132 140 235 52 114 112 1 111 24 236 35 237 13 71 7 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
TROPICAL ZONE KIT<WB6> 		1-13660-286-1 01 1 0106- ●
1 FAN; COOLING 1-13660-286-1 01 1 0106- ● ●
1 FAN; COOLING
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-224-0 01 1 0106- ●
7 COUPLING; FAN
TROPICAL ZONE KIT<WB6> 		1-21650-188-1 01 1 0106- ●
7 COUPLING; FAN 1-21650-188-1 01 1 0106- ●
7 COUPLING; FAN
EXC. TROPICAL ZONE KIT<WB6> 		1-21650-178-1 01 1 0106- ●
7 COUPLING; FAN 1-21650-204-1 01 1 0106- ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (A) M8 FLANGE 		0-91150-208-0 06 1 0106-0602 ●
13 NUT; COOLING FAN
EXC. TROPICAL ZONE KIT<WB6> (A) M8 FLANGE 		0-91180-208-0 06 1 0603- ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 0106-0602 ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91180-210-0 06 1 0603- ● ● ●
24 BOLT; FAN
TROPICAL ZONE KIT<WB6> M10X40 FLANGE 		0-28791-040-0 06 1 0106-0512 ●
24 BOLT; FAN
M10X40 FLANGE 		0-28791-040-0 06 1 0106-0512 ● ●
24 BOLT; FAN
TROPICAL ZONE KIT<WB6> M10X40 FLANGE 		0-28761-040-0 06 1 0601- ●
24 BOLT; FAN
M10X40 FLANGE 		0-28761-040-0 06 1 0601- ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 0106-0312 ● ● ●
35 WASHER; PL 1-09503-242-0 01 1 0401- ● ● ●
36 BELT; COOLING FAN
TROPICAL ZONE KIT<WB6> 1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0106- ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 0106- ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 0106- ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> ID=10.5 OD=18 		9-09160-510-0 01 1 0106-0605 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 0106-0605 ● ●
69 WASHER; PL,ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> ID=10.5 		0-91610-510-0 01 1 0606- ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 		0-91610-510-0 01 1 0606- ● ●
69 WASHER; PL,ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> ID=12.5 OD=32 		9-09160-712-0 01 1 0106- ●
71 BOLT; ADJ PLATE,GEN
TROPICAL ZONE KIT<WB6> (B) M10X140 		1-09000-104-1 01 1 0106- ●
71 BOLT; ADJ PLATE,GEN
(B) M10X140 		1-09000-104-1 01 1 0106- ● ●
71 BOLT; ADJ PLATE,GEN
EXC. TROPICAL ZONE KIT<WB6> (B) M10X135 		1-09009-113-1 01 1 0106- ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28181-025-0 01 1 0106-0512 ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X25 FLANGE 		0-28151-025-0 01 1 0601- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28186-011-0 01 1 0106-0512 ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X110 FLANGE 		0-28156-011-0 01 1 0601- ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 0106-0604 ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		0-43211-025-0 06 1 0605- ● ● ●
112 PULLEY; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13663-124-1 01 1 0106- ●
112 PULLEY; FAN CENTER 1-13663-124-1 01 1 0106- ● ●
112 PULLEY; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13663-123-2 01 1 0106- ●
114 SEAL; OIL 1-09625-570-0 01 1 0106- ● ● ●
126 PULLEY; IDLE
TROPICAL ZONE KIT<WB6> (A) 		1-13660-358-2 01 1 0106- ●
126 PULLEY; IDLE
(A) 		1-13660-358-2 01 1 0106- ● ●
126 PULLEY; IDLE
TROPICAL ZONE KIT<WB6> (B) 		1-13663-111-2 01 1 0106- ●
126 PULLEY; IDLE
(B) 		1-13663-111-2 01 1 0106- ● ●
130 SPACER; IDLE PULLEY BRG
TROPICAL ZONE KIT<WB6> (A) 		1-13666-007-0 01 1 0106- ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0106- ● ●
130 SPACER; IDLE PULLEY BRG
TROPICAL ZONE KIT<WB6> (B) 		1-13666-032-0 01 1 0106- ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0106- ● ●
132 COVER; DUST
TROPICAL ZONE KIT<WB6> 		1-13664-009-2 02 1 0106- ●
132 COVER; DUST 1-13664-009-2 02 1 0106- ● ●
133 BRACKET; IDLE PULLEY
TROPICAL ZONE KIT<WB6> 		1-13669-150-1 01 1 0106- ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 0106- ● ●
134 SPINDLE; IDLE PULLEY
TROPICAL ZONE KIT<WB6> 		1-13665-035-0 01 1 0106- ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 0106- ● ●
139 NIPPLE; GREASE,IDLE PULLEY
TROPICAL ZONE KIT<WB6> PT1/8 ELBOW 		9-09031-210-0 01 1 0106-0512 ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 0106-0512 ● ●
139 NIPPLE; GREASE,IDLE PULLEY
TROPICAL ZONE KIT<WB6> PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
140 NUT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> M18 		9-99111-518-0 01 1 0106-0512 ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 0106-0512 ● ●
140 NUT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> M18 		0-91111-518-0 01 1 0601- ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0601- ● ●
221 BOLT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> (B) M10X80 FLANGE 		0-28181-080-0 01 1 0106-0512 ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0106-0512 ● ●
221 BOLT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> (B) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ● ●
221 BOLT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> (A) M10X90 FLANGE 		0-28181-090-0 03 1 0106-0512 ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 0106-0512 ● ●
221 BOLT; IDLE PULLEY
TROPICAL ZONE KIT<WB6> (A) M10X90 FLANGE 		0-28151-090-0 03 1 0601- ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28151-090-0 03 1 0601- ● ●
224 BEARING; IDLE PULLEY
TROPICAL ZONE KIT<WB6> 		1-09800-176-0 02 1 0106- ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0106- ● ●
235 SHAFT; FAN CENTER
TROPICAL ZONE KIT<WB6> 		1-13660-314-0 01 1 0106- ●
235 SHAFT; FAN CENTER
EXC. TROPICAL ZONE KIT<WB6> 		1-13660-279-3 01 1 0106- ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 0106- ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 0106- ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 0106- ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 0106- ● ● ●
