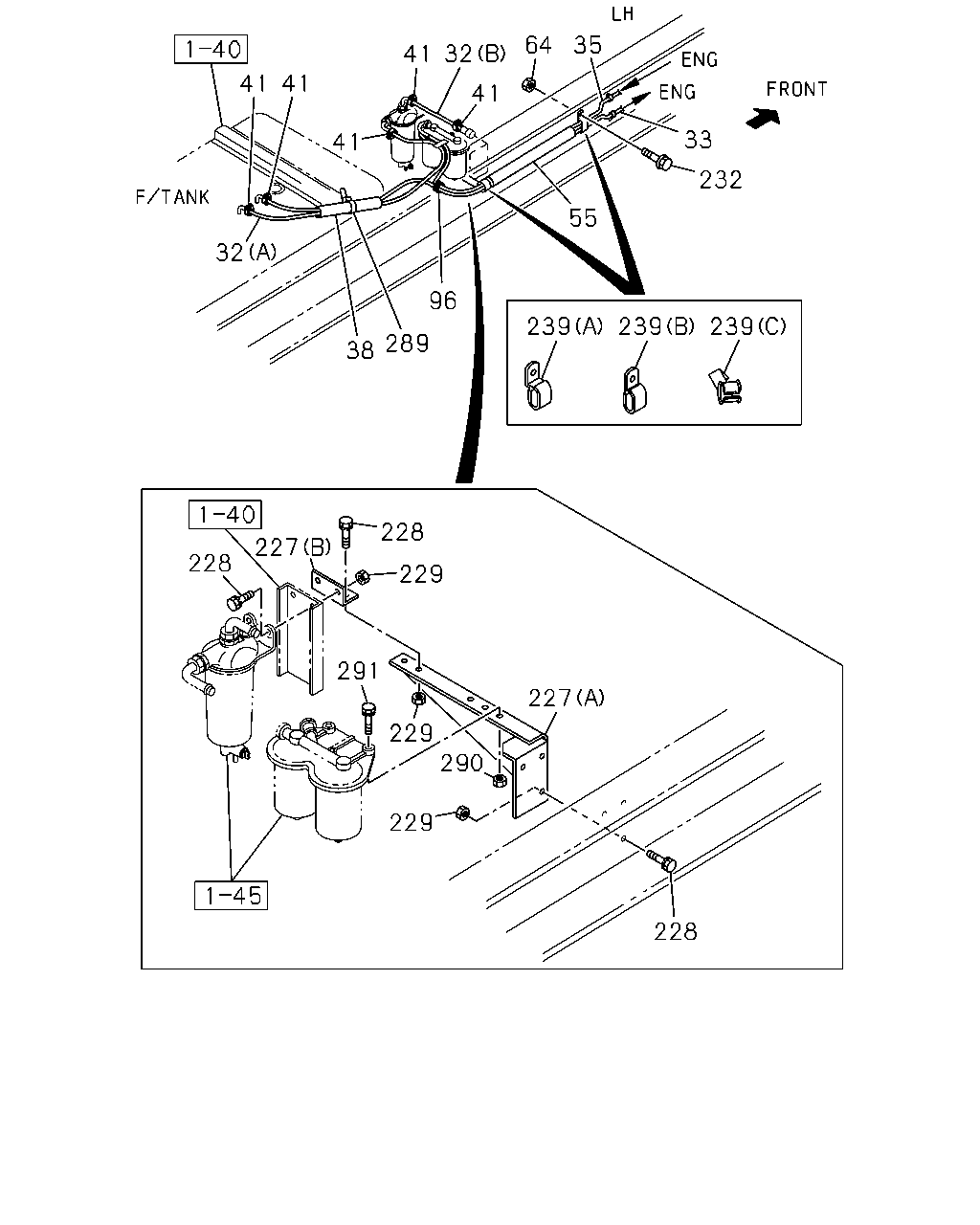

1-41 — FUEL PIPING; CHASSIS (#894) — 26 parça
çizim 95777
64 35 32 41 41 41 41 33 41 232 55 32 96 239 239 239 289 38 228 227 228 229 291 227 229 290 229 228
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
(A) L=1000 SERVICED BY L=10000 		9-09914-701-0 01 1 9202- ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=280 SERVICED BY L=10000 		9-09914-701-0 01 1 9202- ● ●
33 PIPE; VINYL,DELIVERY,PRE FILTER
L=900 SERVICED BY L=10000 		9-09914-701-0 01 1 9202- ● ●
35 PIPE; FUEL TANK,RETURN
L=1300 SERVICED BY L=10000 		1-09366-161-0 01 1 9202- ● ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 		1-09369-006-1 01 1 9202- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
ID=15 		9-09715-098-0 08 1 9202- ● ●
55 COVER; PIPE,FUEL TANK
L=400 		1-09360-183-1 01 1 9202- ● ●
64 NUT; CLIP
M8 		9-09110-408-0 01 1 9202- ● ●
96 GROMMET; PIPE,FUEL TANK
WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9202- ● ●
96 GROMMET; PIPE,FUEL TANK
WHEEL BASE 5500MM(55W) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9411- ● ●
227 BRACKET; FUEL SEDIMENTER
(A) 		1-22518-124-1 01 1 9202- ● ●
227 BRACKET; FUEL SEDIMENTER
(B) 		1-19755-108-1 01 1 9202- ● ●
228 BOLT; BRKT,SEDIMENTER
M10X30 W/LK WASHER 		0-50041-030-0 05 1 9202- ● ●
228 BOLT; BRKT,SEDIMENTER
M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9202- ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 05 1 9202- ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 02 1 9202- ● ●
232 BOLT; CLIP,PIPE
M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
232 BOLT; CLIP,PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28010-825-0 01 1 9202-9204 ● ●
232 BOLT; CLIP,PIPE
M8X25 FLANGE 		0-28080-825-0 01 1 9205- ● ●
239 CLIP; FUEL PIPE
(A) 		1-09700-744-0 01 1 9202-9209 ● ●
239 CLIP; FUEL PIPE
(B) 		9-09535-536-0 01 1 9210- ● ●
239 CLIP; FUEL PIPE
(C) 		1-15419-291-0 01 1 9202- ● ●
289 CLIP; BAND,HOSE
L=250 		5-09707-030-0 01 1 9202- ● ●
290 NUT; FILTER TO BRKT
M10 		9-09110-510-0 02 1 9202- ● ●
291 BOLT; FILER TO BRKT
M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9202- ● ●
