9-01 — TOOLS (#8930) — 138 parça

50 47 17 49 57 51 54 63 70 61 81 73 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HAMMER (B)	1-85220-021-0	01	1	0105-
17	HAMMER TOOL B KIT<SL1> (A)	9-85121-406-0	01	1	0105-
47	WRENCH ASM; UNIVERSAL,INJ PUMP	1-85220-018-0	01	1	0105-
49	REPLACER ASM; VALVE	1-85235-001-0	01	1	0105-
50	REPLACER; NOZZLE HOLDER L=500	1-85230-007-0	01	1	0105-
51	PULLER ASM; WATER PUMP	1-85210-028-0	01	1	0105-
54	PULLER; THERMOSTAT SEAL	1-85210-029-0	01	1	0105-
57	TOOL; SETTING CRANK GEAR OD=175	1-85221-028-0	01	1	0105-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	0105-
63	PULLER; NOZZLE SLEEVE	1-85210-026-0	01	1	0105-
70	TOOL; SETTING,OIL SEAL FOR OIL SEAL	1-85220-051-0	01	1	0105-
70	TOOL; SETTING,OIL SEAL FOR OIL THROWER	1-85220-053-0	01	1	0105-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0105-
74	TOOL; SETTING,INJ PUMP BRG (A)	1-85220-019-0	01	1	0105-
74	TOOL; SETTING,INJ PUMP BRG (B)	1-85220-020-1	01	1	0105-
81	PULLER; BRG CAP	1-85210-015-0	01	1	0105-

120 119 75 122 163 163 123 166 163 167 414 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL	1-85221-096-0	01	1	0105-
119	PULLER ASM; TOP GEAR BRG L=235	9-85210-190-0	01	1	0105-
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0105-
122	PULLER ASM; COUNTER FRT	9-85210-129-1	01	1	0105-
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	0105-
163	TOOL; SETTING (A) L=195	1-85221-162-1	01	1	0105-
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	0105-
163	TOOL; SETTING MAL5 M/T<X9F> (C) OD=150	1-85221-167-0	01	1	0105-
166	ALIGNER; CLU RELEASE LEVER L=550 H=17.5	1-85253-010-0	01	1	0105-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0105-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-85221-268-0	01	1	0105-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-85221-269-0	01	1	0105-
414	PULLER; REV IDLE SHAFT	9-85210-095-0	01	1	0105-

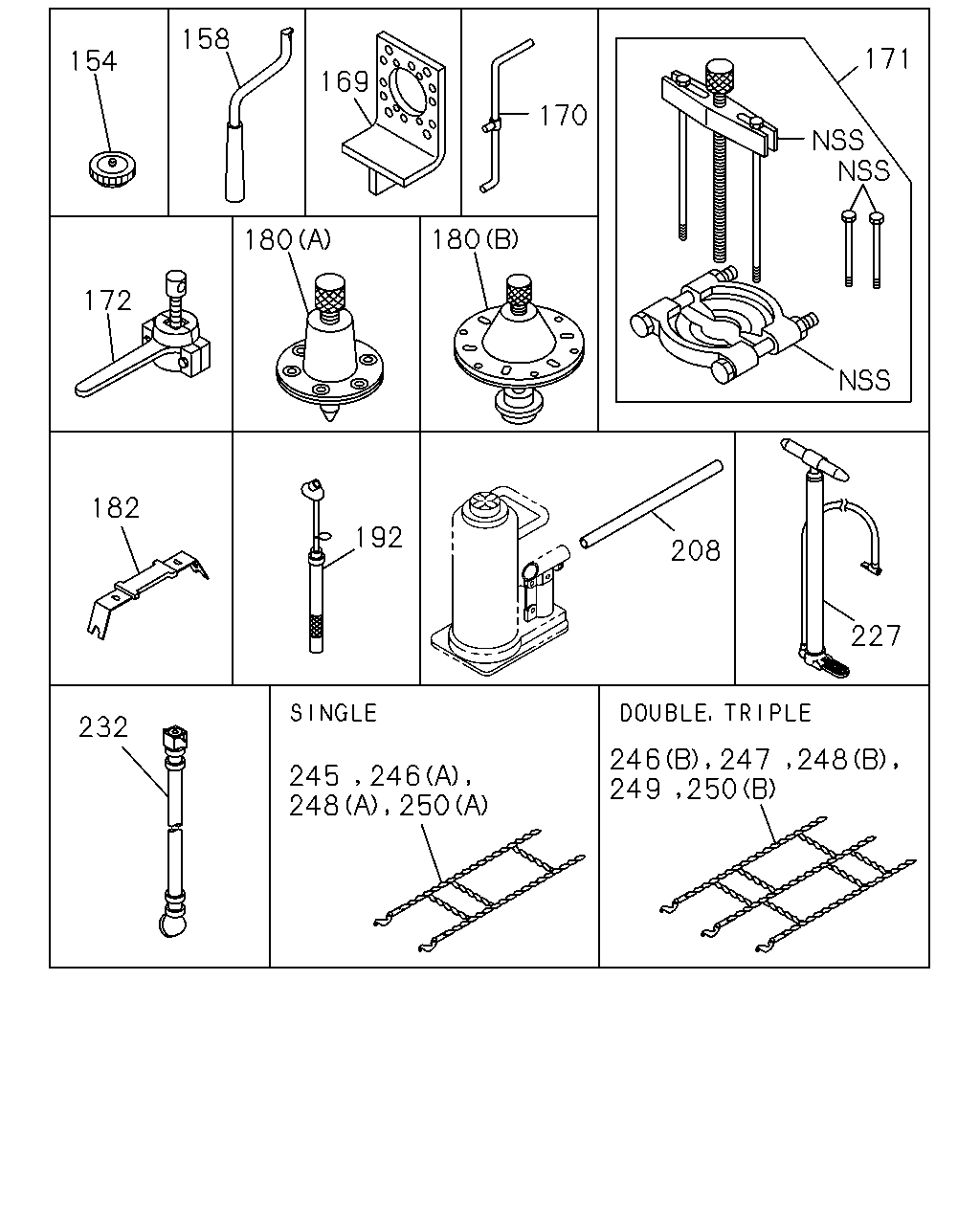

158 169 171 154 170 180 180 172 182 192 208 227 232 246 247 248 250 249 246 245 248 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0105-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0105-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0105-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0105-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0105-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0105-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0105-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0105-
182	REMOVER ASM	1-85239-008-0	01	1	0105-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0105-
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-008-0	01	1	0105-0105
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	0106-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0105-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0105-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0105-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0105-
248	CHAIN; TIRE,1000-20,DOUBLE (A) 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0105-
248	CHAIN; TIRE,1000-20,DOUBLE (B) 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0105-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0105-

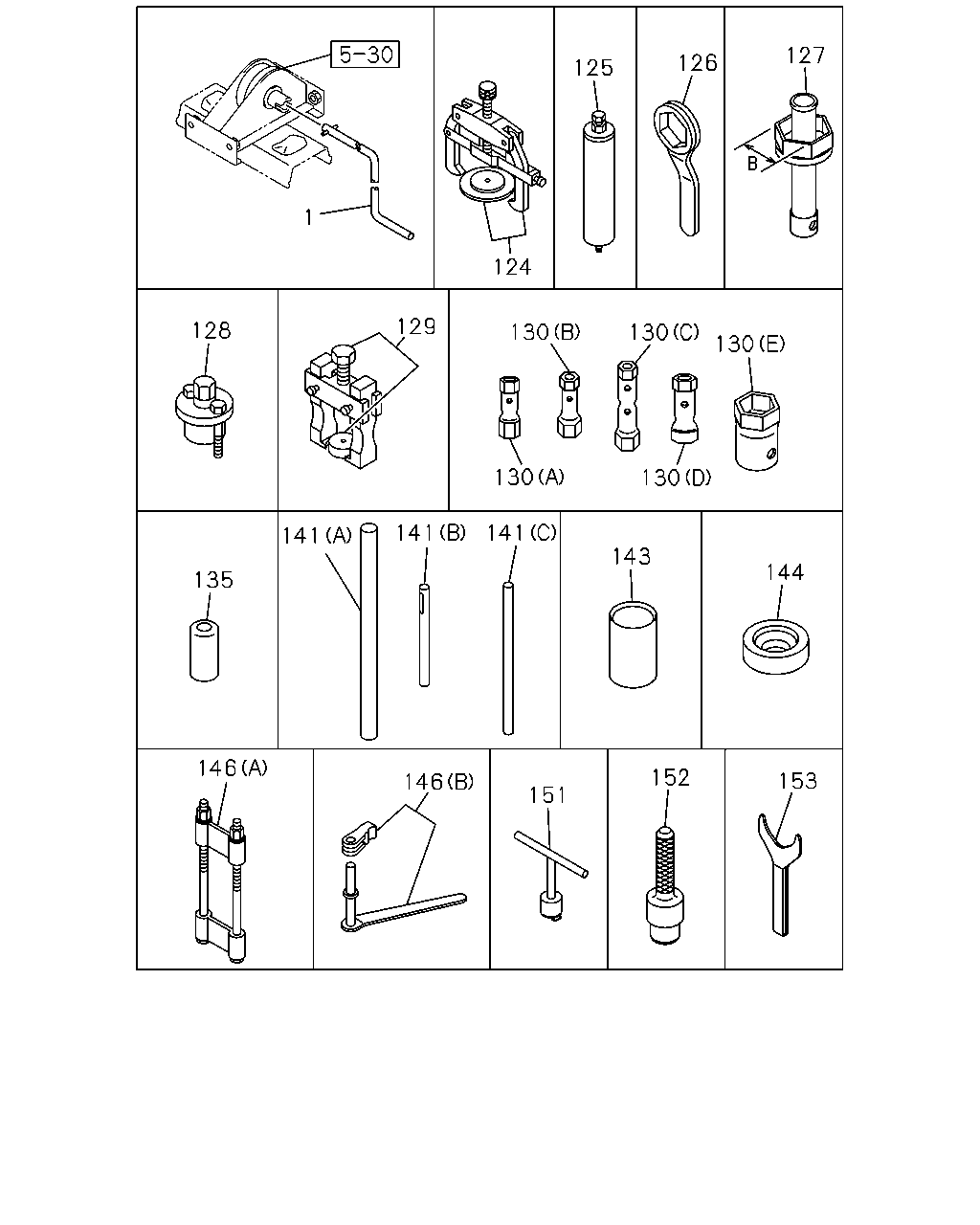

127 126 125 1 124 129 128 130 130 130 130 130 141 141 141 143 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0105-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0105-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0105-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	0105-
127	WRENCH ASM; HUB BRG NUT B=116	9-85113-524-0	01	1	0105-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0105-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0105-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0105-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0105-
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0105-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0105-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0105-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0105-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0105-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0105-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	0105-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0105-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0105-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0105-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	0105-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0105-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0105-

82 87 86 89 90 88 99 114 93 106 133 329 191 218 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	PULLER ASM; CR/SHF GEAR	9-85211-139-0	01	1	0105-
86	REPLACER; FLYWHEEL	1-85230-006-0	01	1	0105-
87	TOOL; PISTON	1-85220-082-0	01	1	0105-
88	TOOL; CONNROD BUSHING	1-85220-002-0	01	1	0105-
89	TOOL; PISTON RING	1-85221-029-0	01	1	0105-
90	PULLER; INJ PUMP BRG	1-85210-039-0	01	1	0105-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0105-
99	WRENCH; CYL HD BOLT	1-85115-013-0	01	1	0105-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0105-
114	WRENCH; INJ PUMP	1-85220-027-0	01	1	0105-
133	WRENCH; NUT STARTER	1-85221-030-0	02	1	0105-
191	ADAPTER	1-85317-002-0	01	1	0105-
218	PLUG	1-15629-043-0	01	1	0105-
219	GASKET	9-09720-555-0	01	1	0105-
329	PULLER ASM; SLINGER ID=124	1-85220-052-0	01	1	0105-

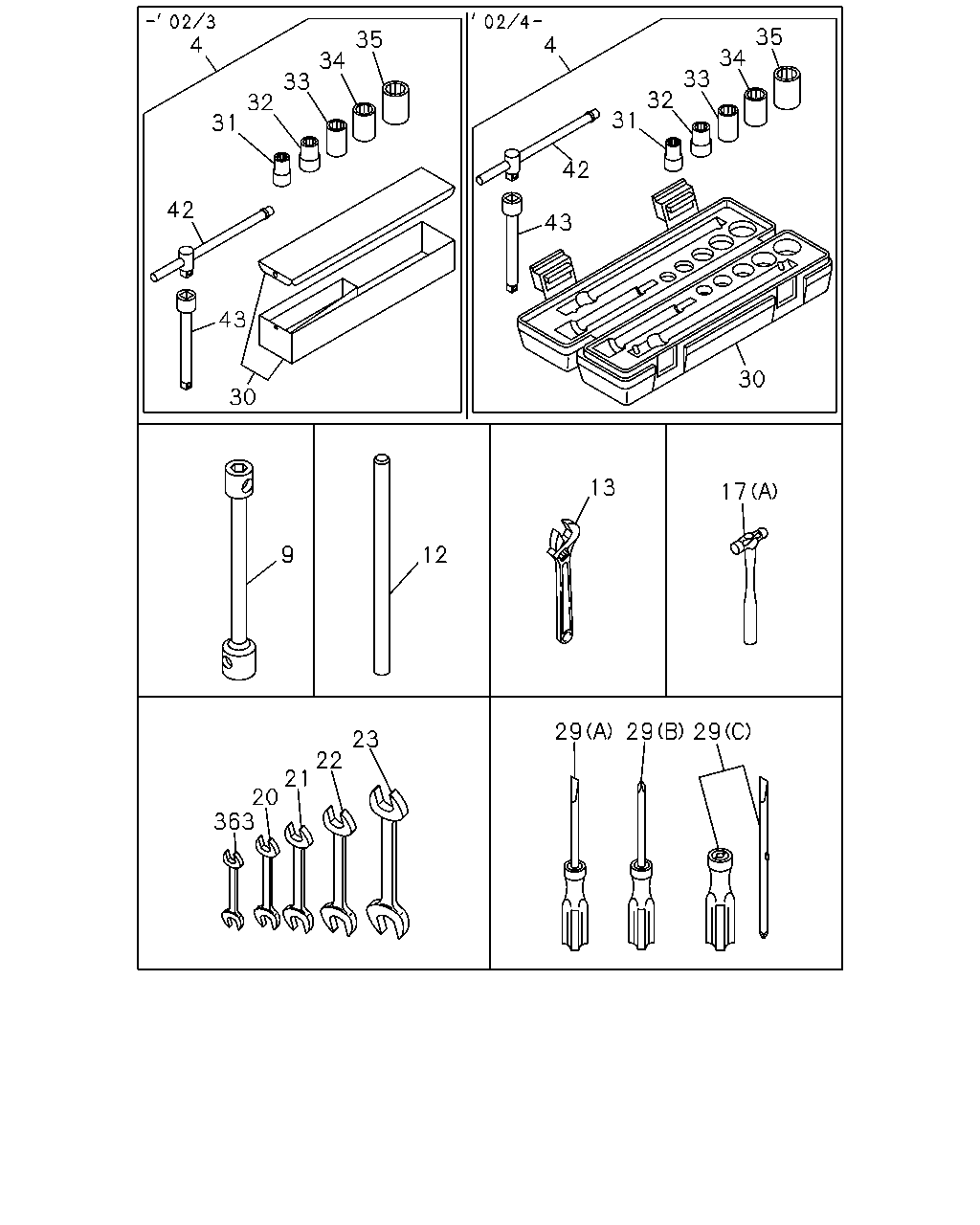

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	9-85110-012-0	01	1	0105-0203
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> 33X30 L=450	1-85111-033-1	01	1	0105-
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0105-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0105-
17	HAMMER (B)	1-85220-021-0	01	1	0105-
17	HAMMER TOOL B KIT<SL1> (A)	9-85121-406-0	01	1	0105-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0105-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0105-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0105-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0105-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0105-
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0105-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0105-
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	9-85581-260-0	01	1	0105-0203
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0204-
31	WRENCH; 12 TOOL B KIT<SL1>	9-09590-012-0	01	1	0105-0203
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0204-
32	WRENCH; 14 TOOL B KIT<SL1>	9-09590-014-0	01	1	0105-0203
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0204-
33	WRENCH; 17 TOOL B KIT<SL1>	9-09590-017-0	01	1	0105-0203
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0204-
34	WRENCH; 19 TOOL B KIT<SL1>	9-09590-019-0	01	1	0105-0203
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0204-
35	WRENCH; 22 TOOL B KIT<SL1>	9-09590-022-0	01	1	0105-0203
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING TOOL B KIT<SL1>	9-09590-512-0	01	1	0105-0203
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	9-09590-812-0	01	1	0105-0203
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0105-0607
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	0608-

40 39 38 37 115 36 189 193 230 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	0105-
37	WRENCH; 27	9-85111-375-0	01	1	0105-
38	WRENCH; 32	9-85111-358-0	01	1	0105-
39	WRENCH; 36	9-85111-374-0	01	1	0105-
40	WRENCH; 41	9-85111-356-0	01	1	0105-
115	PLIER TOOL B KIT<SL1>	5-85171-001-0	01	1	0105-0212
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0301-
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0105-
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-1	01	1	0105-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-3	01	1	0105-
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-0	01	1	0105-
