Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

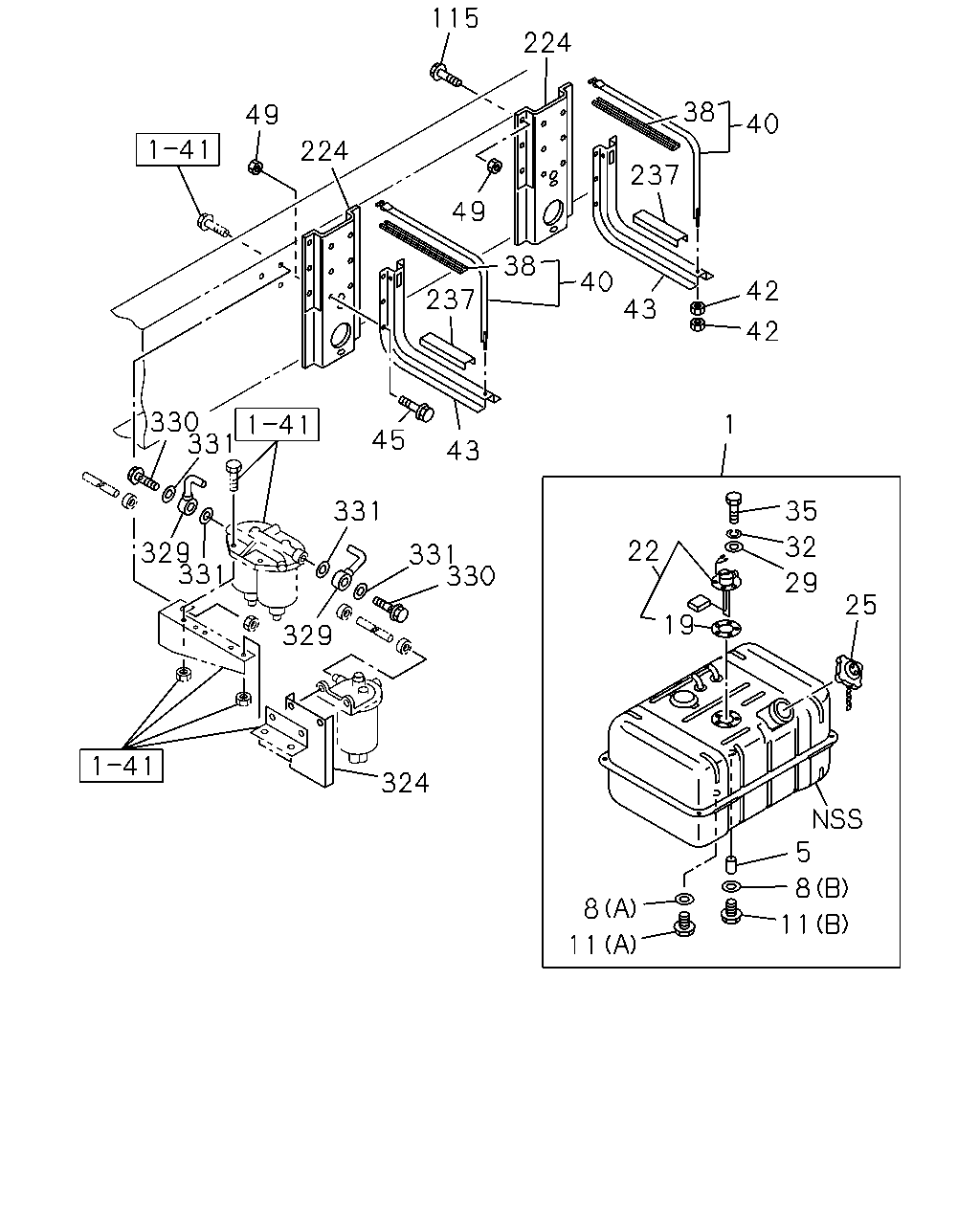

1-40 — FUEL TANK
(#893) — 31 parça
Tümü
A - 6HE1 STD ENG
B - 6HE1 N ENG
115
224
38
49
40
224
237
49
38
40
43
42
237
42
330
331
1
45
43
35
331
32
22
329
331
331
330
29
329
25
19
324
5
8
8
11
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
720X610X496 200L
1-22400-571-4
01
1
9202-
●
●
5
STRAINER; FUEL TANK
1-22460-001-1
01
1
9202-9402
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(A) T=1.60
1-22416-001-0
01
1
9202-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(B) T=2.0
9-09923-030-0
01
1
9202-
●
●
11
PLUG; DRAIN,FUEL TANK
(B)
1-09604-052-0
01
1
9202-
●
●
11
PLUG; DRAIN,FUEL TANK
(A) M18X12
1-09604-081-0
01
1
9202-
●
●
19
GASKET; FUEL TANK UNIT
9-83135-003-0
01
1
9202-
●
●
22
UNIT; FUEL TANK
1-83141-056-0
01
1
9202-
●
●
25
CAP; FILLER,FUEL TANK
1-22440-033-2
01
1
9202-
●
●
29
WASHER; PL,FUEL TANK UNIT
ID=5.3
9-09160-505-0
01
1
9202-
●
●
32
WASHER; LK,FUEL TANK UNIT
ID=5.1
9-09150-505-0
05
1
9202-
●
●
35
SCREW; FUEL TANK UNIT
M5X10
9-93497-510-0
05
1
9202-
●
●
38
INSULATION; SUPPORT BELT
L=650
1-22553-022-1
02
1
9202-
●
●
40
BELT; SUPPORT,FUEL TANK
L=1030
1-22550-204-1
02
1
9202-9404
●
●
40
BELT; SUPPORT,FUEL TANK
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=1030
1-22550-204-1
02
1
9405-
●
●
40
BELT; SUPPORT,FUEL TANK
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=1040
1-22550-194-2
02
1
9405-
●
●
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
9202-
●
●
43
BRACKET; FUEL TANK
1-53461-309-1
02
1
9202-
●
●
45
BOLT; BRKT,FUEL TANK
M12X35 W/LK WASHER
0-50041-235-0
12
1
9202-9307
●
●
45
BOLT; BRKT,FUEL TANK
M12X35 FLANGE
0-28081-235-0
12
1
9308-9412
●
●
45
BOLT; BRKT,FUEL TANK
M12X35 W/LK WASHER
0-50041-235-0
12
1
9501-9504
●
●
45
BOLT; BRKT,FUEL TANK
M12X40 W/LK WASHER
0-50041-240-0
12
1
9505-
●
●
49
NUT; BRKT
M12
9-99110-512-0
12
1
9202-9405
●
●
115
BOLT; BRKT
M12X35 W/LK WASHER
0-50041-235-0
12
1
9202-9307
●
●
115
BOLT; BRKT
M12X35 FLANGE
0-28081-235-0
12
1
9308-
●
●
224
BRACKET; FUEL TANK BRKT TO FRAME
1-53461-383-1
02
1
9202-
●
●
237
GASKET; BRKT TO FUEL TANK
L=580
1-22553-003-0
02
1
9202-
●
●
324
PROTECTOR; FUEL SEDIMENTER
1-19759-012-0
01
1
9202-
●
●
329
JOINT ASM; EYE,FUEL PIPE
5-15411-472-0
02
1
9202-
●
●
330
BOLT; EYE,JOINT
M14X27 FLANGE
1-09675-086-0
02
1
9202-
●
●
331
GASKET; EYE JOINT
ID=14.2 OD=19.2
1-09630-085-0
04
1
9202-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
