Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

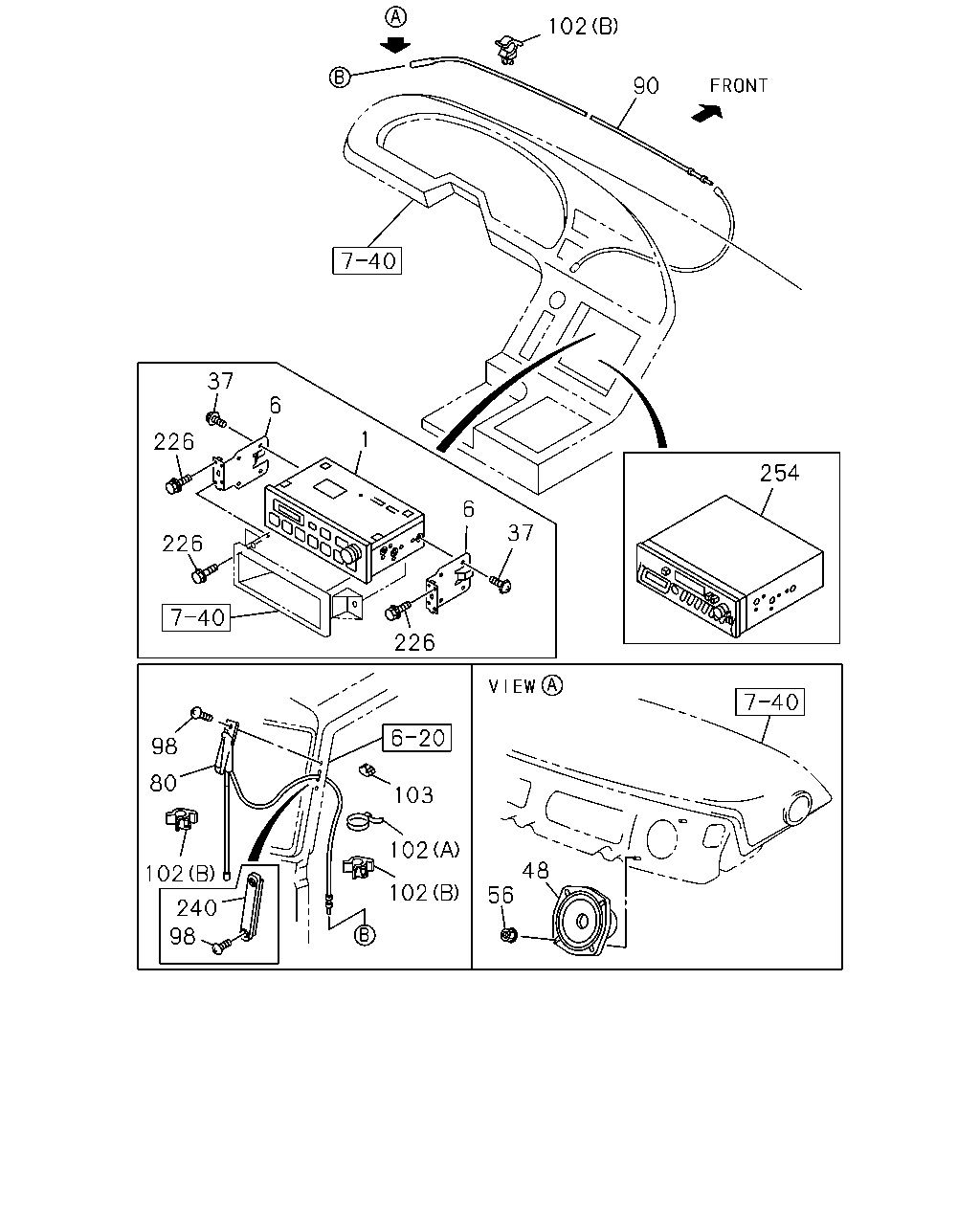

8-90 — RADIO AND TV
(#8929) — 23 parça
102
90
37
6
1
226
254
6
37
226
226
98
80
103
102
48
56
102
102
240
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO CLARION(SK2)
1-84112-063-0
01
1
0105-
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
0105-0612
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
0701-
37
SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0105-0604
37
SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-050-0
02
1
0105-0308
48
SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-050-0
02
1
0105-0308
48
SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-073-0
02
1
0309-
48
SPEAKER; AUDIO
RADIO AM/FM STEREO & TAPE PLAYER(UN3)
1-84114-073-0
02
1
0309-
48
SPEAKER; AUDIO
SPEAKER SYSTEM 1 SPEAKER<NBU>
1-84114-050-0
01
1
0105-0308
48
SPEAKER; AUDIO
SPEAKER SYSTEM 1 SPEAKER<NBU>
1-84114-073-0
01
1
0309-
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE
1-09984-170-0
02
1
0105-
56
NUT; SPEAKER,RADIO OR STEREO
EXC. SPEAKER SYSTEM 1 SPEAKER<NBU> M5 FLANGE
1-09984-170-0
04
1
0105-
80
ANTENNA
ANTENNA RADIO<U73>
1-84115-055-2
01
1
0105-
90
CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73>
1-84113-011-2
01
1
0105-
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
0105-
102
CLIP; CABLE
ANTENNA RADIO<U73> (B) W/PACKING ID=4.8
1-73907-618-0
05
1
0105-
102
CLIP; CABLE
ANTENNA RADIO<U73> (B) WO/PACKING ID=4.8
8-94128-483-0
02
1
0105-
102
CLIP; CABLE
ANTENNA RADIO<U73> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140
5-09707-031-1
01
1
0105-
103
GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73>
8-97027-381-0
01
1
0105-
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0105-
240
COVER; ANTENNA
EXC. ANTENNA RADIO<U73>
1-79996-296-0
01
1
0105-
254
RADIO CONTROL ASM; STEREO,AM-FM
RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION
1-84122-032-3
01
1
0105-
