◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#8922) — 153 parça

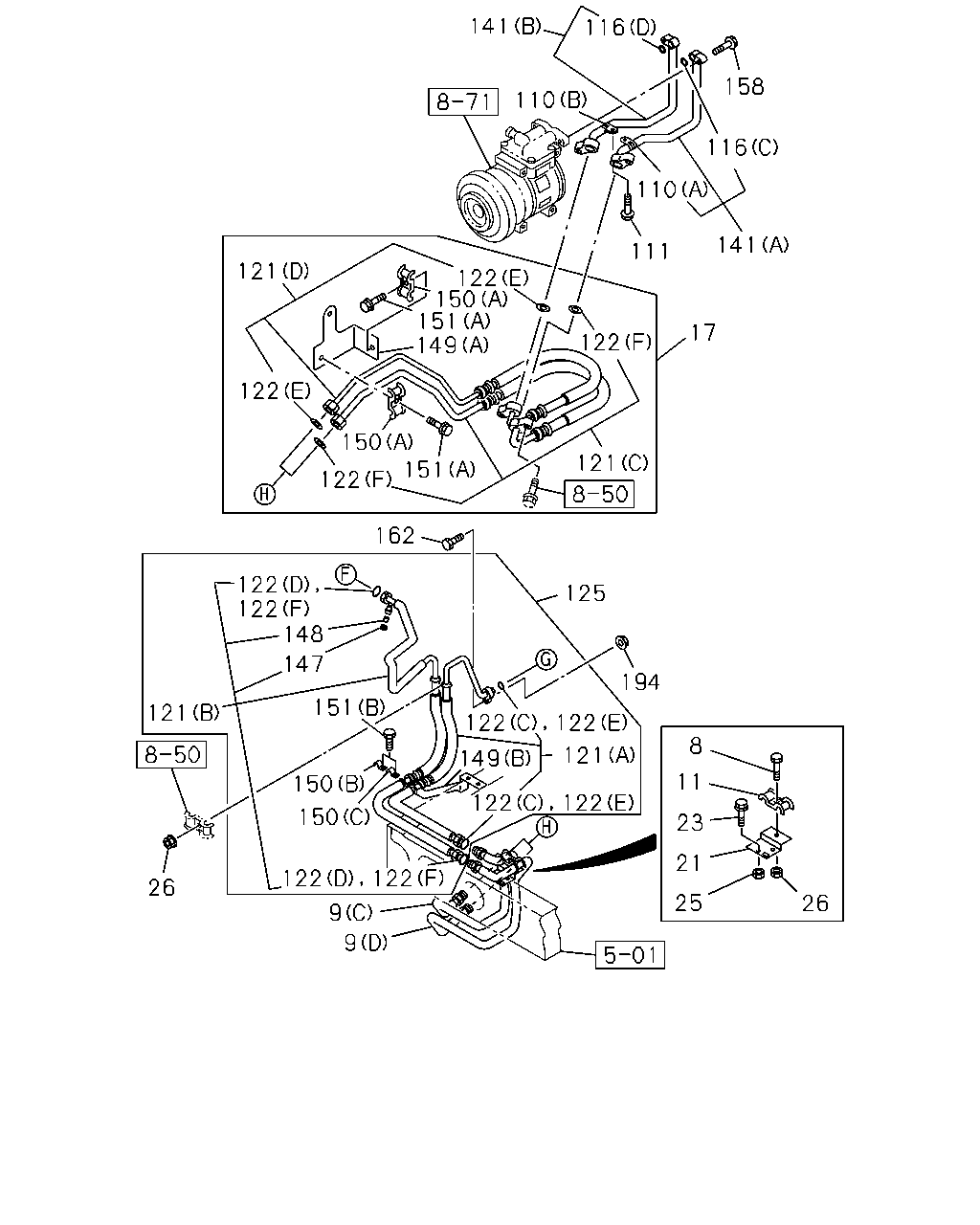

çizim 19237
141 116 158 110 116 110 141 111 121 122 150 151 149 17 122 122 150 151 121 122 162 122 122 148 125 147 194 151 121 122 122 8 121 149 122 11 150 122 150 23 21 122 122 26 2 26 9 9
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-0209
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0105-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 0105-0209
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-921-0 01 1 0210-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 0105-0209
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-922-0 01 1 0210-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 0105-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-0 01 1 0105-0209
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-695-0 01 1 0210-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-930-1 01 1 0105-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603-
110 CLAMP; PIPE TO MTG BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-243-0 01 1 0210-
110 CLAMP; PIPE TO MTG BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-244-0 01 1 0210-
111 BOLT; CLAMP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		1-83539-326-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-97178-772-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7 		1-83539-317-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5 		1-83539-324-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97161-776-0 02 1 0105-0209
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4 		8-97095-906-0 02 1 0210-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-795-0 01 1 0210-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-801-1 01 1 0210-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-043-0 01 1 0510-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-802-1 01 1 0210-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-044-0 01 1 0510-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-835-0 01 1 0210-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-836-0 01 1 0210-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.7 		8-97095-907-0 02 1 0210-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.7 		8-97095-907-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.7 		8-97095-907-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.5 		8-97095-908-0 02 1 0210-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.5 		8-97095-908-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.5 		8-97095-908-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7 		1-83539-317-0 02 1 0210-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5 		1-83539-324-0 02 1 0210-0509
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-545-0 01 1 0105-0209
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-704-1 01 1 0210-0509
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-969-0 01 1 0510-
141 PIPE; COOLER,CMPR HOSE TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-843-0 01 1 0210-
141 PIPE; COOLER,CMPR HOSE TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-844-0 01 1 0210-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97095-910-0 01 1 0510-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 0105-0209
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0510-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 0105-0209
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-023-0 01 1 0210-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-206-0 01 1 0210-0509
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-227-0 01 1 0510-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 02 1 0210-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-254-0 01 1 0210-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-255-0 01 1 0210-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 02 1 0210-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0210-
158 BOLT; PIPE FIX
AIR CONDITIONER MANUAL CONTROL(C60) M6X30 FLANGE 		1-83539-325-0 02 1 0210-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0210-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
194 NUT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91150-106-0 01 1 0210-0602
194 NUT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		0-91180-106-0 01 1 0603-0610
çizim 19694
189 15
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-411-0 01 1 0105-0105
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0106-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83572-412-0 01 1 0105-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 0105-

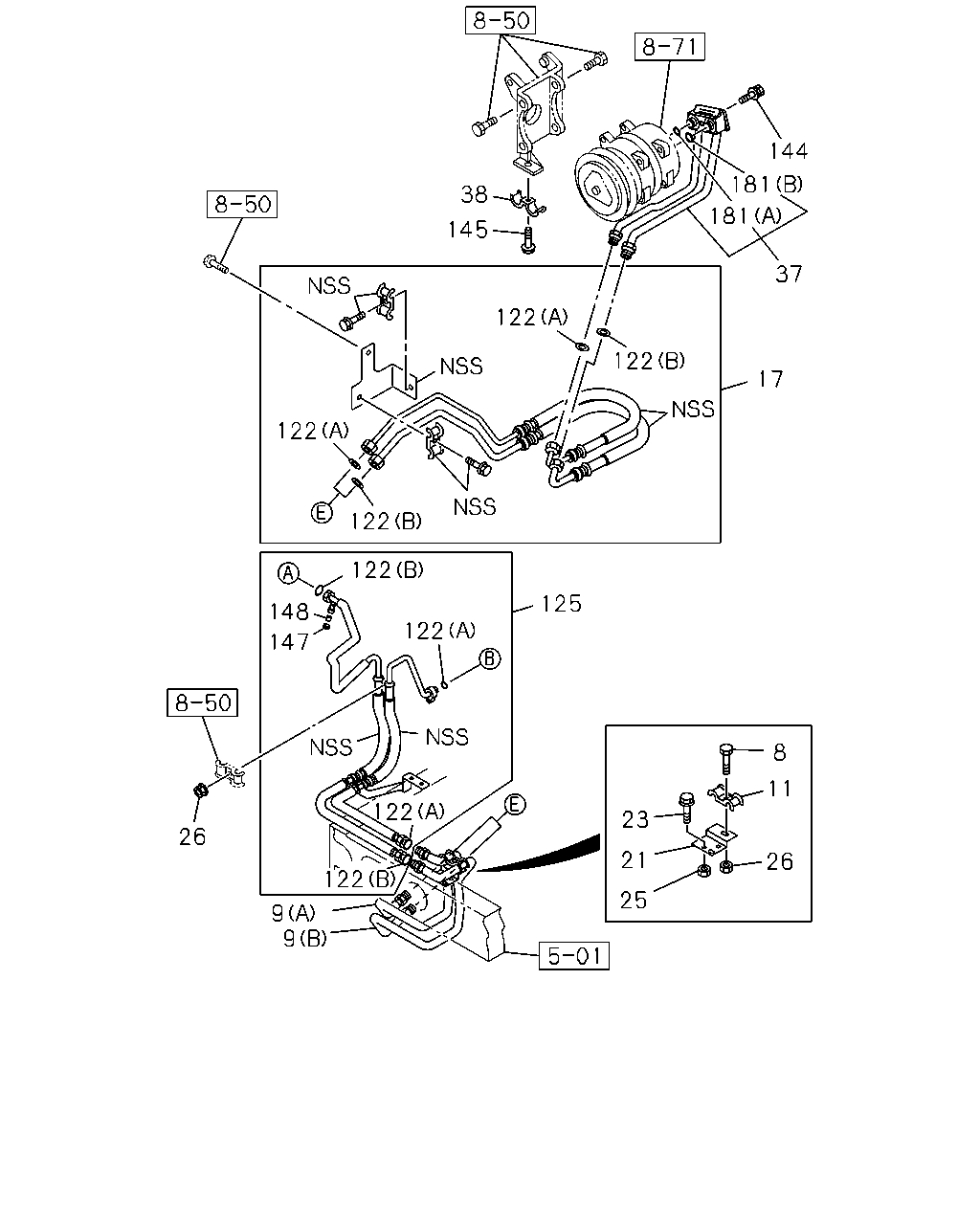

çizim 74983
144 181 38 181 145 37 122 122 17 122 122 122 125 148 122 147 8 122 11 23 26 21 26 122 25 9 9
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0105-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-550-0 01 1 0105-0209
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-921-0 01 1 0210-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-554-0 01 1 0105-0209
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-922-0 01 1 0210-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 0105-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-646-0 01 1 0105-0209
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-695-0 01 1 0210-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-930-1 01 1 0105-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 0105-0512
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		0-91110-508-0 02 1 0601-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 0105-0602
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603-
37 CONNECTOR; CMPR TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83563-173-0 01 1 0105-0209
38 CLIP; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-177-0 01 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.7 		8-97095-907-0 02 1 0210-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.7 		8-97095-907-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=11.7 		8-97095-907-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.5 		8-97095-908-0 02 1 0210-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.5 		8-97095-908-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (F) ID=14.5 		8-97095-908-0 02 1 0510-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7 		1-83539-317-0 02 1 0210-0509
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 02 1 0105-0209
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5 		1-83539-324-0 02 1 0210-0509
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-545-0 01 1 0105-0209
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-704-1 01 1 0210-0509
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-969-0 01 1 0510-
144 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01961-045-0 01 1 0105-0209
145 BOLT; CLIP,CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER 		9-01900-816-0 01 1 0105-0209
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97095-910-0 01 1 0510-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 0105-0209
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0510-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 0105-0209
181 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 0105-0209
181 GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3 		8-97161-778-0 01 1 0105-0209

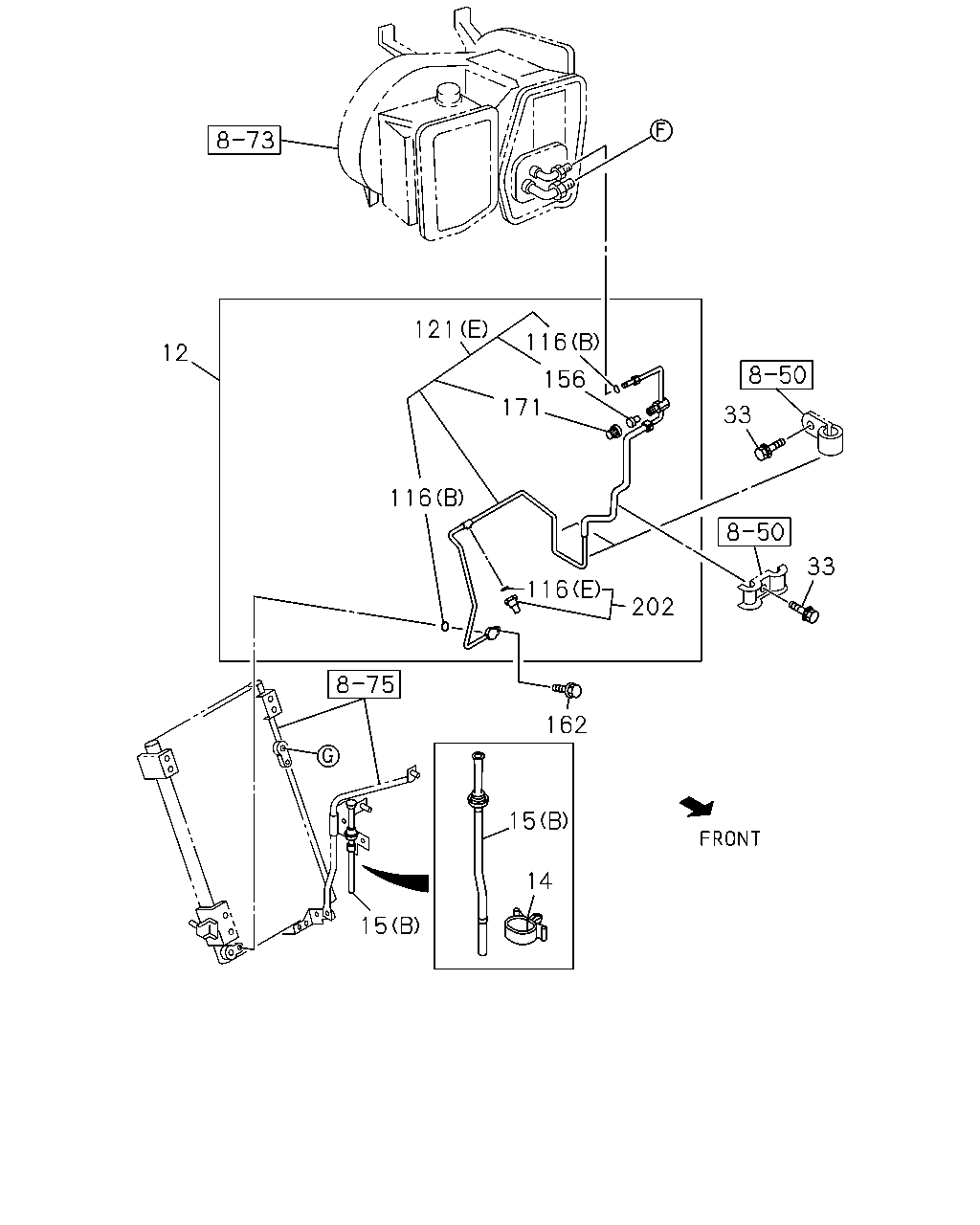

çizim 76212
121 116 12 156 171 33 116 33 116 202 162 15 14 15
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-538-0 01 1 0105-0209
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-718-3 01 1 0210-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 0105-0105
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0106-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-411-0 01 1 0105-0105
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0106-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83572-412-0 01 1 0105-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-97178-772-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7 		1-83539-317-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5 		1-83539-324-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97161-776-0 02 1 0105-0209
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4 		8-97095-906-0 02 1 0210-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83567-795-0 01 1 0210-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-801-1 01 1 0210-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-043-0 01 1 0510-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83572-802-1 01 1 0210-0509
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-044-0 01 1 0510-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-835-0 01 1 0210-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-836-0 01 1 0210-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0210-
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0210-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0512
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0601-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97080-101-0 01 1 0105-0209
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0210-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0210-

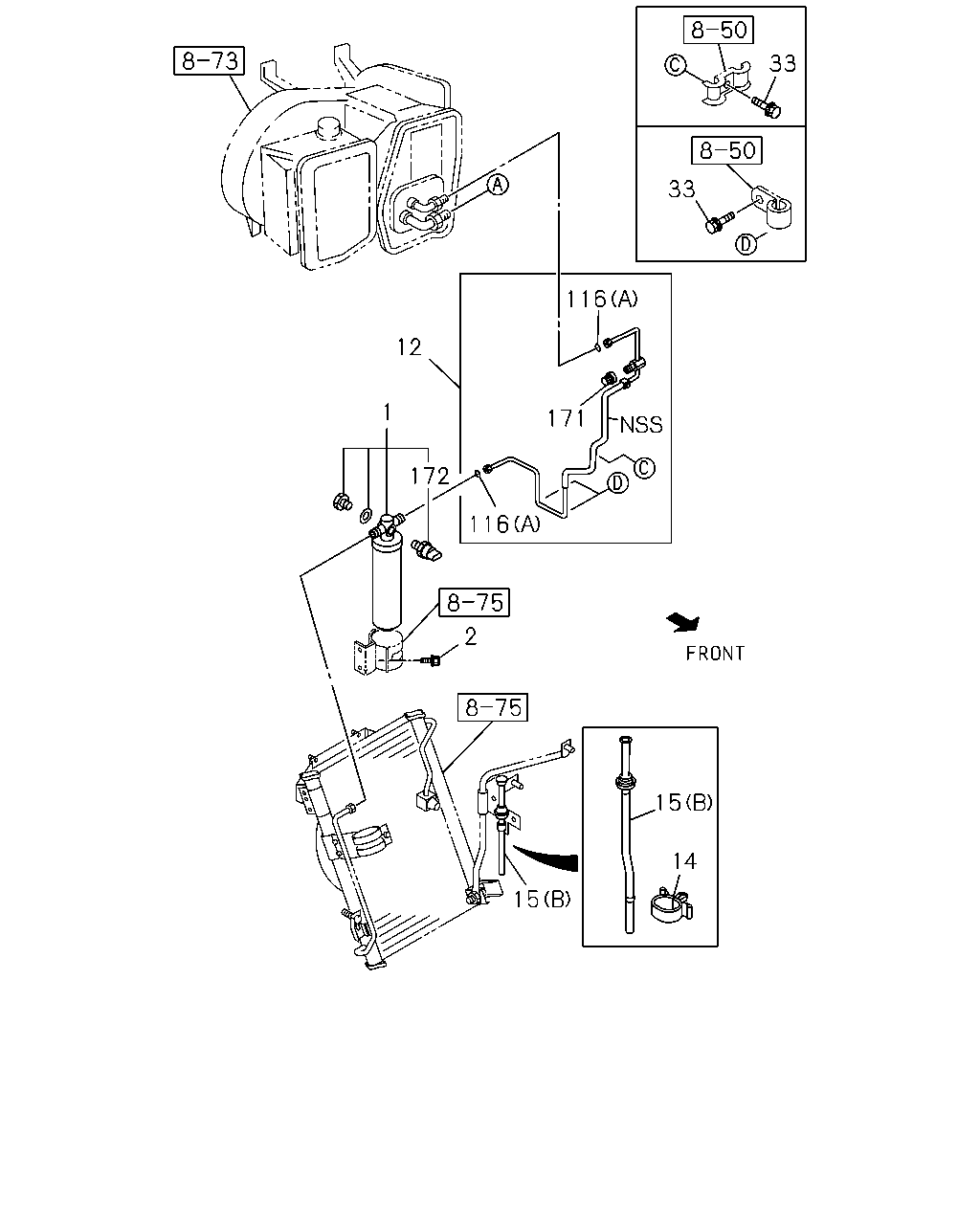

çizim 77046
33 33 116 12 1 171 172 116 2 15 14 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-087-0 01 1 0105-0209
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105-0209
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-538-0 01 1 0105-0209
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-718-3 01 1 0210-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 0105-0105
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0106-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-411-0 01 1 0105-0105
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0106-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83572-412-0 01 1 0105-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		8-97178-772-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7 		1-83539-317-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5 		1-83539-324-0 01 1 0210-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97161-776-0 02 1 0105-0209
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4 		8-97095-906-0 02 1 0210-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97080-101-0 01 1 0105-0209
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0210-
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-044-0 01 1 0105-0209
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
