◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#892) — 36 parça

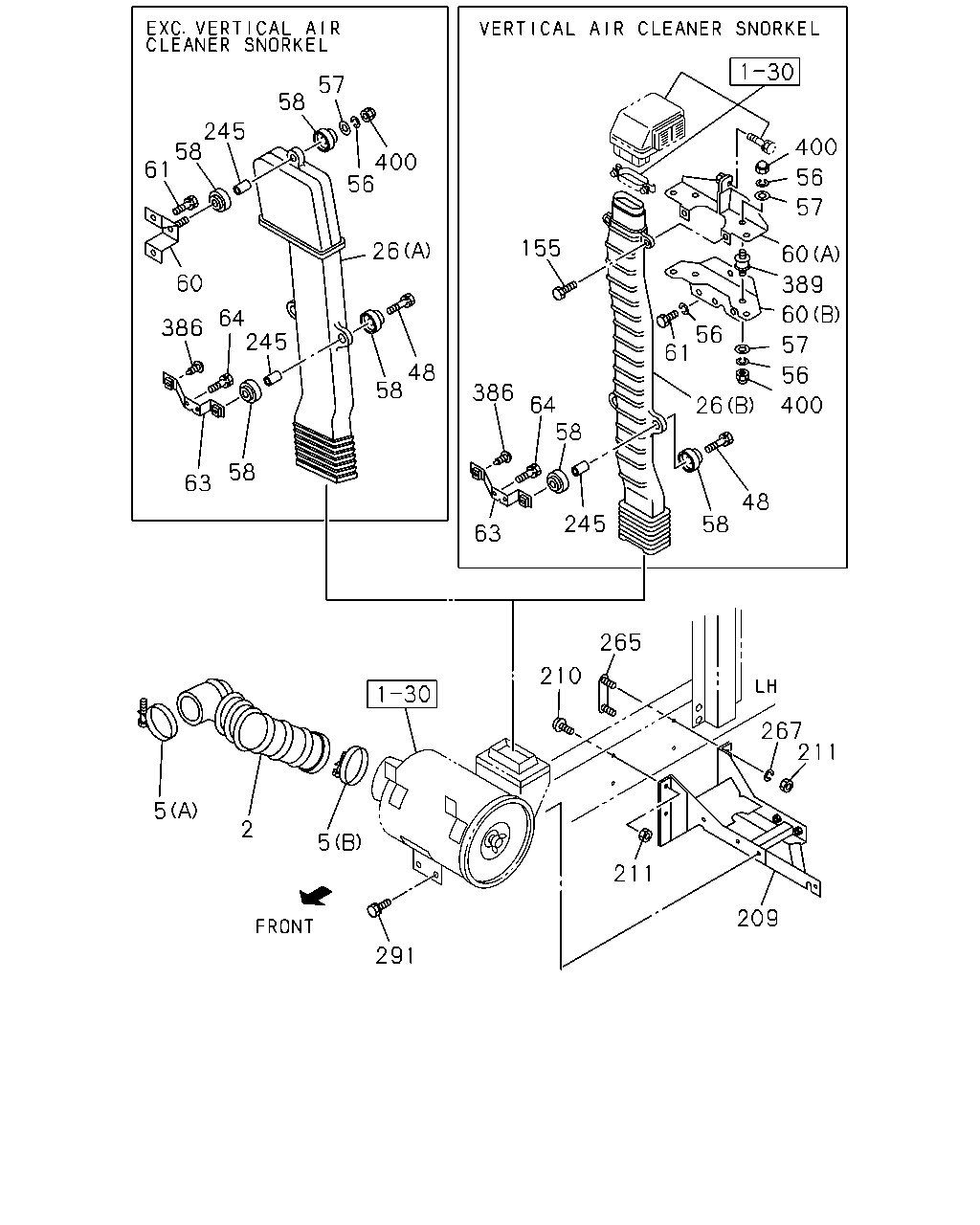

çizim 27316
57 58 245 58 61 400 400 56 56 57 155 26 60 60 389 60 56 61 64 245 386 57 48 58 56 386 64 58 400 26 58 63 48 245 58 63 265 210 267 211 5 2 5 211 209 291
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 1-14231-809-0 01 1 9202- ● ●
5 CLIP; AIR DUCT
(A) ID=87-116 		1-09707-144-0 01 1 9202- ● ●
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 01 1 9202- ● ●
26 DUCT; AIR INT
VERTICAL AIR CLEANER SNORKEL<PP3> (B) 		1-14230-110-0 01 1 9202-9501 ● ●
26 DUCT; AIR INT
VERTICAL AIR CLEANER SNORKEL<PP3> (B) 		1-14230-143-0 01 1 9502- ● ●
26 DUCT; AIR INT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A) 		1-79998-676-0 01 1 9202-9501 ● ●
26 DUCT; AIR INT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A) 		1-14230-141-0 01 1 9502- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 9202- ● ●
56 WASHER; LK,AIR INT DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-09985-180-0 08 1 9202- ● ●
56 WASHER; LK,AIR INT DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10 		1-09500-046-0 01 1 9202- ● ●
57 WASHER; PL,AIR INT DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=18 		1-09985-173-0 08 1 9202- ● ●
57 WASHER; PL,AIR INT DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9202- ● ●
58 SUPPORT; AIR INL DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5 		1-14119-267-0 04 1 9202- ● ●
58 SUPPORT; AIR INL DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5 		1-14119-267-0 06 1 9202- ● ●
60 BRACKET; AIR DUCT,UPR
VERTICAL AIR CLEANER SNORKEL<PP3> (A) 		1-79998-600-0 01 1 9202- ● ●
60 BRACKET; AIR DUCT,UPR
VERTICAL AIR CLEANER SNORKEL<PP3> (B) 		1-79998-665-0 01 1 9202- ● ●
60 BRACKET; AIR DUCT,UPR
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-79998-571-2 01 1 9202- ● ●
61 BOLT; BRKT,AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9202- ● ●
61 BOLT; BRKT,AIR DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9202- ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-572-2 01 1 9202- ● ●
64 BOLT; BRKT,AIR DUCT
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9202- ● ●
155 BOLT; BRKT
VERTICAL AIR CLEANER SNORKEL<PP3> M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9202- ● ●
209 BRACKET; ACL 1-53497-398-0 01 1 9202- ● ●
210 BOLT; ACL BRKT
M12X40 W/LK WASHER 		0-50041-240-0 02 1 9202-9307 ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28081-240-0 02 1 9308-9503 ● ●
210 BOLT; ACL BRKT
M12X35 FLANGE 		0-28081-235-0 02 1 9504- ● ●
211 NUT; BRKT
M12 		9-99110-512-0 02 1 9202- ● ●
245 PIECE; DIST,AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-79998-228-0 02 1 9202- ● ●
245 PIECE; DIST,AIR DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-79998-228-0 03 1 9202- ● ●
265 BRACKET; STUD,ACL 1-53497-454-1 01 1 9202- ● ●
267 WASHER; LK,ACL
ID=12.2 		9-09150-512-0 02 1 9202- ● ●
291 BOLT; ACL
M8X25 FLANGE 		0-28080-825-0 04 1 9202- ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 02 1 9202- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-14119-189-0 04 1 9202- ● ●
400 NUT; CAP,AIR DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> M10 		1-09984-121-0 08 1 9202- ● ●
400 NUT; CAP,AIR DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10 		1-09984-145-0 01 1 9202- ● ●
