◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#8913) — 304 parça

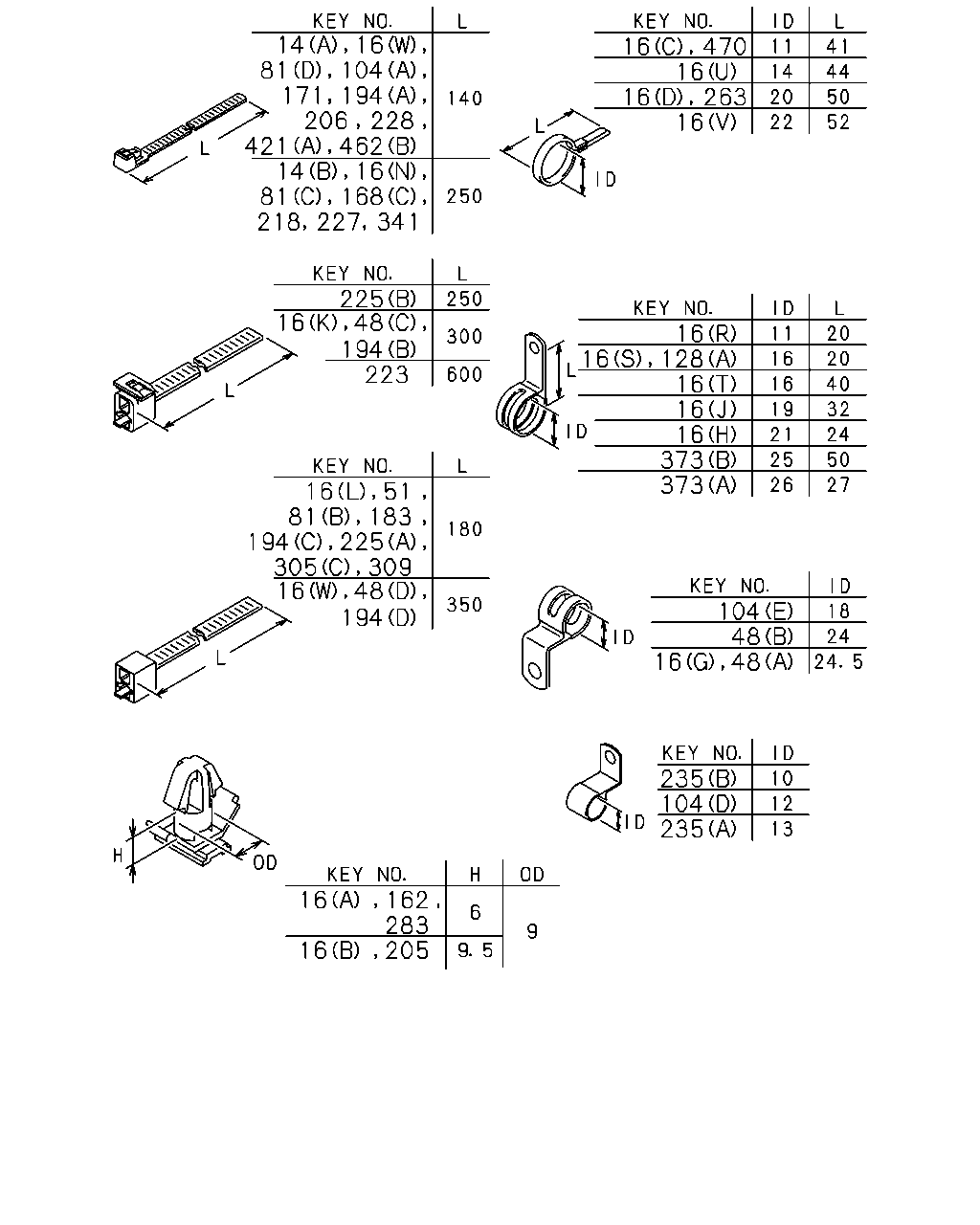

çizim 19148
14 16 81 104 171 194 206 228 421 462 14 16 81 168 218 227 341 16 225 48 194 223 16 51 81 183 194 225 305 309 16 48 194 16 162 283 16 205 235 104 235 16 48 48 104 373 373 16 16 16 16 16 128 16 263 16 16 470 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 0105-
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 04 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(E) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(F) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(H) ID=21 L=24 		1-09701-201-0 02 1 0105-
16 CLIP; HARNESS
(I) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
(K) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(L) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(M) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0107-0203
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 05 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) OD=9 H=6 		1-09709-178-0 04 1 0107-0203
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0105-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 0105-
16 CLIP; HARNESS
(P) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
(R) ID=11 L=20 		9-09525-035-0 01 1 0105-0606
16 CLIP; HARNESS
(R) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(S) ID=16 L=20 		9-09525-535-0 01 1 0105-0606
16 CLIP; HARNESS
(S) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0105-0606
16 CLIP; HARNESS
(T) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0105-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0105-
16 CLIP; HARNESS
(V) ID=22 L=52 		9-09917-431-0 02 1 0105-
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T> (A) OD=9 H=6 		1-09709-178-0 02 1 0105-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (C) ID=11 L=41 		1-09700-403-0 06 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 18 1 0105-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (C) ID=11 L=41 		1-09700-403-0 08 1 0105-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (D) ID=20 L=50 		9-09917-430-0 21 1 0105-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 06 1 0105-0106
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 03 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 03 1 0107-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 10 1 0105-0504
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 10 1 0505-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (B) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (D) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=250 		5-09707-030-1 01 1 0109-0109
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105-
183 CLIP; CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0105-
194 CLIP; BAND
(B) L=300 		1-09707-001-1 01 1 0105-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(B) L=300 		1-09707-001-1 03 1 0105-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 03 1 0505-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 02 1 0105-0106
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0107-
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=180 		1-09707-162-1 01 1 0107-
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 0105-
194 CLIP; BAND
INTAKE HEATER<SL2> (A) L=140 		5-09707-031-1 02 1 0105-
205 CLIP; BACK LAMP HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
218 CLIP; BAND,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=250 		5-09707-030-1 02 1 0208-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> L=700 		1-09707-190-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(B) L=250 		1-09707-126-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 03 1 0105-
225 CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (A) L=180 		1-09707-162-1 01 1 0105-
227 CLIP; FOG LAMP HARNESS
FOG LAMP REAR<NHD> L=250 		5-09707-030-1 01 1 0210-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 06 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13 H=29 L=30 		1-09700-001-0 01 1 0105-0106
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0105-0305
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
305 CLIP; ENG HARNESS
(A) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-
305 CLIP; ENG HARNESS
(C) L=180 		1-09707-162-1 01 1 0105-
305 CLIP; ENG HARNESS
(B) L=36 		8-94224-891-1 02 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105-
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 0105-
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0105-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-
çizim 76210
38 255 304 133 524 38 239 38 88 423 38 38 38 242 242 358 133 516 242 38 242 38 313 219 294 515 340 219 294
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0201-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 07 1 0110-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 07 1 0107-0107
38 BOLT; CLIP,HARNESS
(B) M5X8 		0-20800-508-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0105-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28680-616-0 02 1 0105-0512
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28650-616-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0106
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 10 1 0105-0106
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 03 1 0107-0107
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 10 1 0108-0109
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 03 1 0110-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 07 1 0601-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4> (A) M8X20 FLANGE 		0-28080-820-0 06 1 0105-0512
38 BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4> (A) M8X20 FLANGE 		0-28050-820-0 06 1 0601-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0107-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 13 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0105-0602
219 NUT
(B) M10X1.25 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
(B) M10X1.5 FLANGE 		0-91250-210-0 01 1 0105-0110
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(A) M8X18 FLANGE 		0-28080-818-0 04 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512
242 BOLT; BRKT,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(D) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0105-0602
294 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
MAL5 M/T<X9F>,MAG6 M/T<X9T> (A) M10 FLANGE 		0-91150-210-0 01 1 0105-0602
294 NUT
MAL5 M/T<X9F>,MAG6 M/T<X9T> (A) M10 FLANGE 		0-91180-210-0 01 1 0603-
304 BOLT; ENG HARNESS CLIP
M10X16 W/LK WASHER 		1-09033-012-0 06 1 0105-
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512
313 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0105-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603-
çizim 76380
1 185 178 178 178 503 503 178 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 L=30 		5-09360-352-0 01 1 0105-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> (B) 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 		1-82690-666-0 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0105-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0105-
çizim 76381
312 342 53 312 53 335 334 375 342 375
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) 		1-82699-826-0 01 1 0105-
53 BRACKET; HARNESS
(B) 		1-82699-916-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(A) 		1-82699-348-0 01 1 0105-
334 BRACKET 1-53458-706-2 01 1 0105-
335 BRACKET; CONNECTOR
MAL5 M/T<X9F>,MAG6 M/T<X9T> 		1-82699-425-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82698-358-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47476-393-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82699-199-0 01 1 0105-

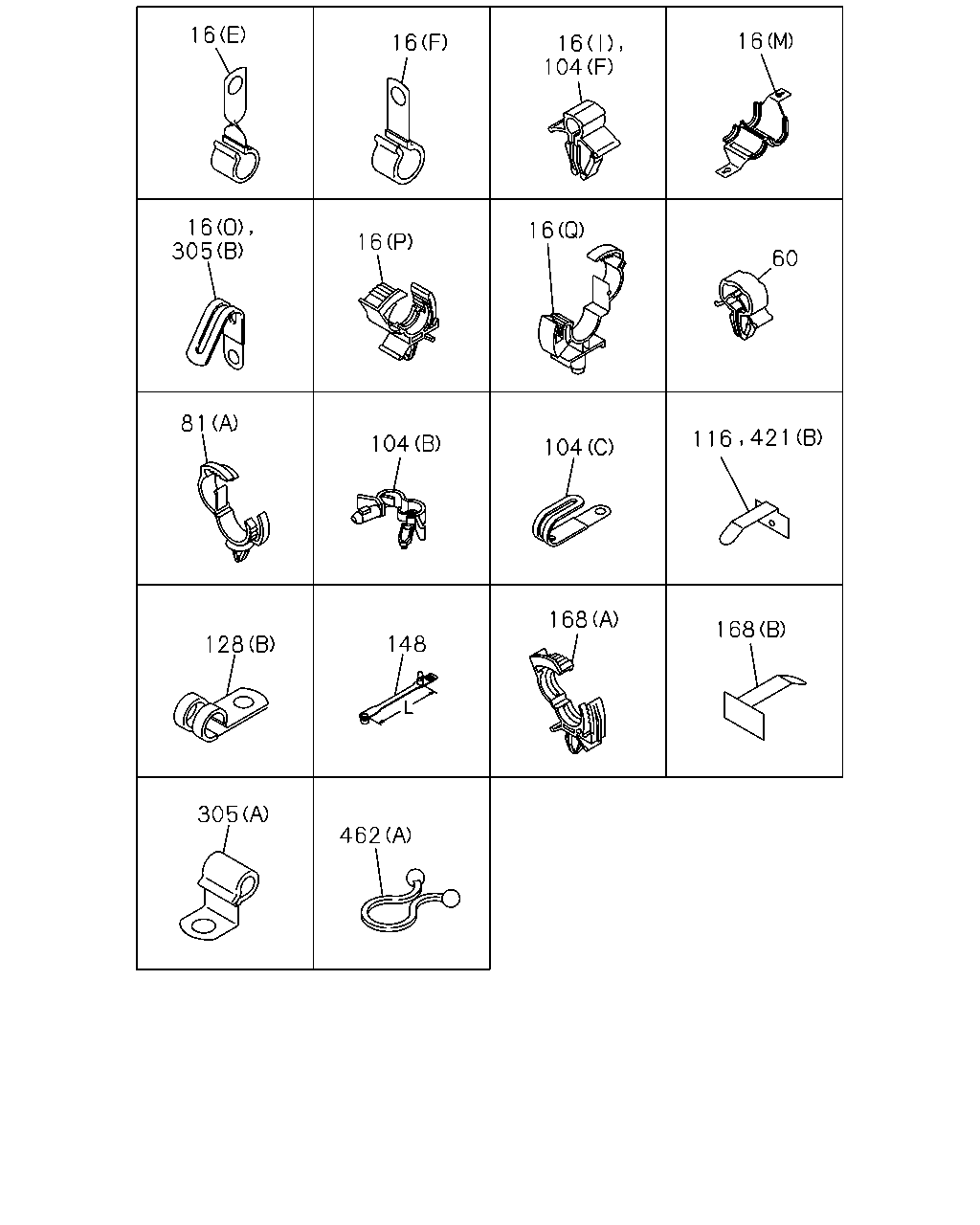

çizim 76711
16 16 16 16 104 16 305 16 16 60 81 104 104 168 168 148 128 305 462 116 421
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(E) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(F) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(G) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-
16 CLIP; HARNESS
(H) ID=21 L=24 		1-09701-201-0 02 1 0105-
16 CLIP; HARNESS
(I) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
(K) L=300 		1-09707-001-1 03 1 0105-0504
16 CLIP; HARNESS
(W) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(L) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(M) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0107-0203
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 05 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) OD=9 H=6 		1-09709-178-0 04 1 0107-0203
16 CLIP; HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0105-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(W) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 0105-
16 CLIP; HARNESS
(P) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
(R) ID=11 L=20 		9-09525-035-0 01 1 0105-0606
16 CLIP; HARNESS
(R) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(S) ID=16 L=20 		9-09525-535-0 01 1 0105-0606
16 CLIP; HARNESS
(S) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0105-0606
16 CLIP; HARNESS
(T) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 01 1 0105-
16 CLIP; HARNESS
(U) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0105-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0105-
16 CLIP; HARNESS
(V) ID=22 L=52 		9-09917-431-0 02 1 0105-
16 CLIP; HARNESS
MAL5 M/T<X9F>,MAG6 M/T<X9T> (A) OD=9 H=6 		1-09709-178-0 02 1 0105-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (C) ID=11 L=41 		1-09700-403-0 06 1 0105-
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 18 1 0105-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (C) ID=11 L=41 		1-09700-403-0 08 1 0105-
16 CLIP; HARNESS
WHEEL BASE 5400MM(54W) (D) ID=20 L=50 		9-09917-430-0 21 1 0105-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0306-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (B) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (D) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0202-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 		1-09987-246-2 05 1 0201-0201
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0201-0201
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0202-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 		1-09987-246-2 06 1 0202-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=250 		5-09707-030-1 01 1 0109-0109
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
305 CLIP; ENG HARNESS
(A) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-
305 CLIP; ENG HARNESS
(C) L=180 		1-09707-162-1 01 1 0105-
305 CLIP; ENG HARNESS
(B) L=36 		8-94224-891-1 02 1 0105-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 0105-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
