◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#891) — 20 parça

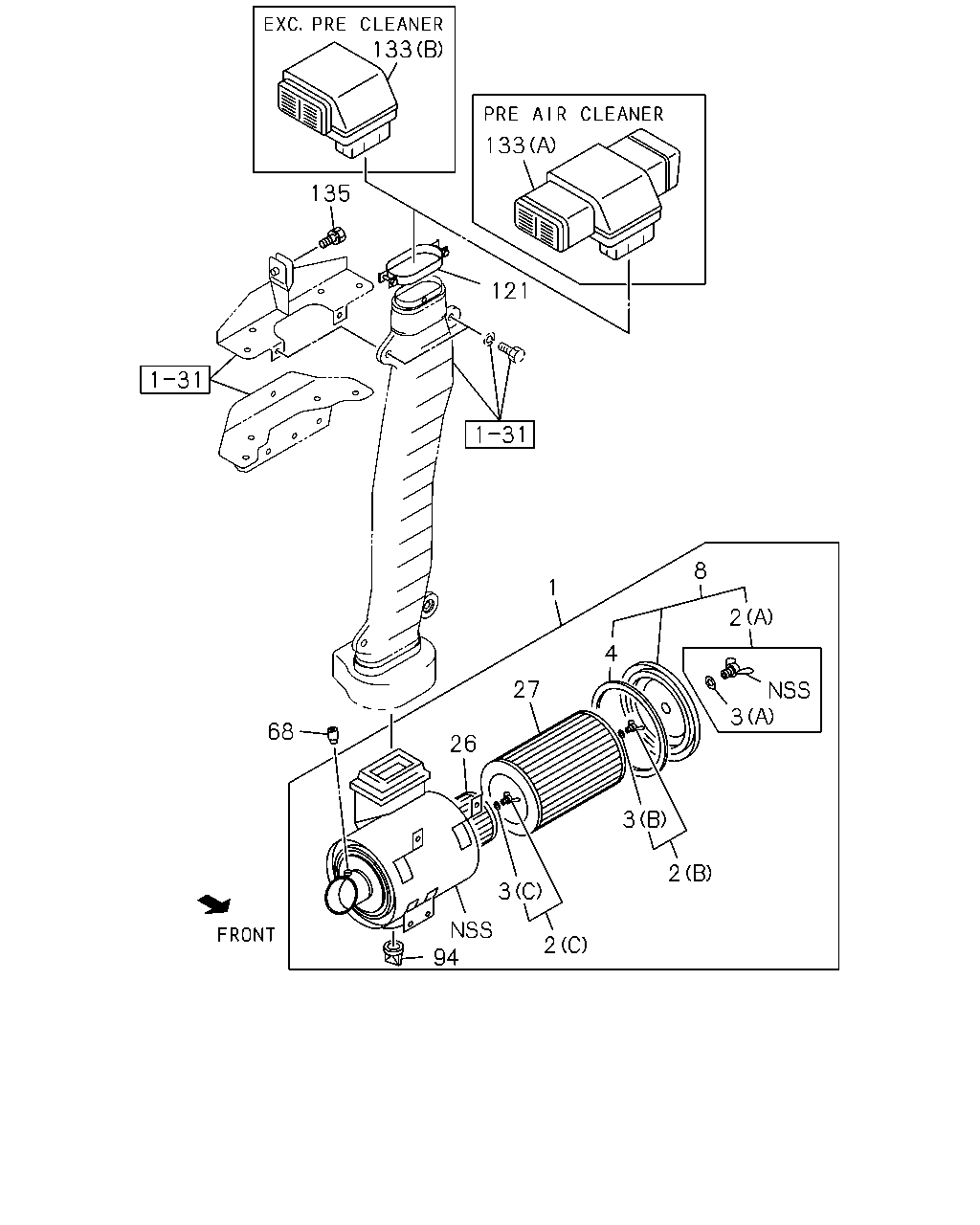

çizim 95794
133 133 135 121 8 1 2 4 27 3 68 26 3 2 3 94 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14210-722-1 01 1 9202- ● ●
1 CLEANER ASM; AIR
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14210-707-1 01 1 9202- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9202- ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9202- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9202- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9202- ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-156-0 01 1 9202- ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9202- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9202- ● ●
8 COVER ASM; ACL 1-14212-086-0 01 1 9202- ● ●
26 FILTER; ACL,INNER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-111-0 01 1 9202- ● ●
26 FILTER; ACL,INNER
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-145-0 01 1 9202- ● ●
27 FILTER; ACL,OUTER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-172-0 01 1 9202- ● ●
27 FILTER; ACL,OUTER
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-14215-171-0 01 1 9202- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9202- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 9202- ● ●
121 CLAMP; INL HOOD,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-09707-160-0 01 1 9202- ● ●
133 HOOD ASM; INL,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17> (A) 		1-14210-660-0 01 1 9202- ● ●
133 HOOD ASM; INL,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) 		1-14210-661-0 01 1 9202- ● ●
135 BOLT; AIR INL HOOD
VERTICAL AIR CLEANER SNORKEL<PP3> M8X25 		1-09980-511-0 01 1 9202- ● ●
