7-43 — SUN VISOR AND ASSIST GRIP (#8904) — 159 parça

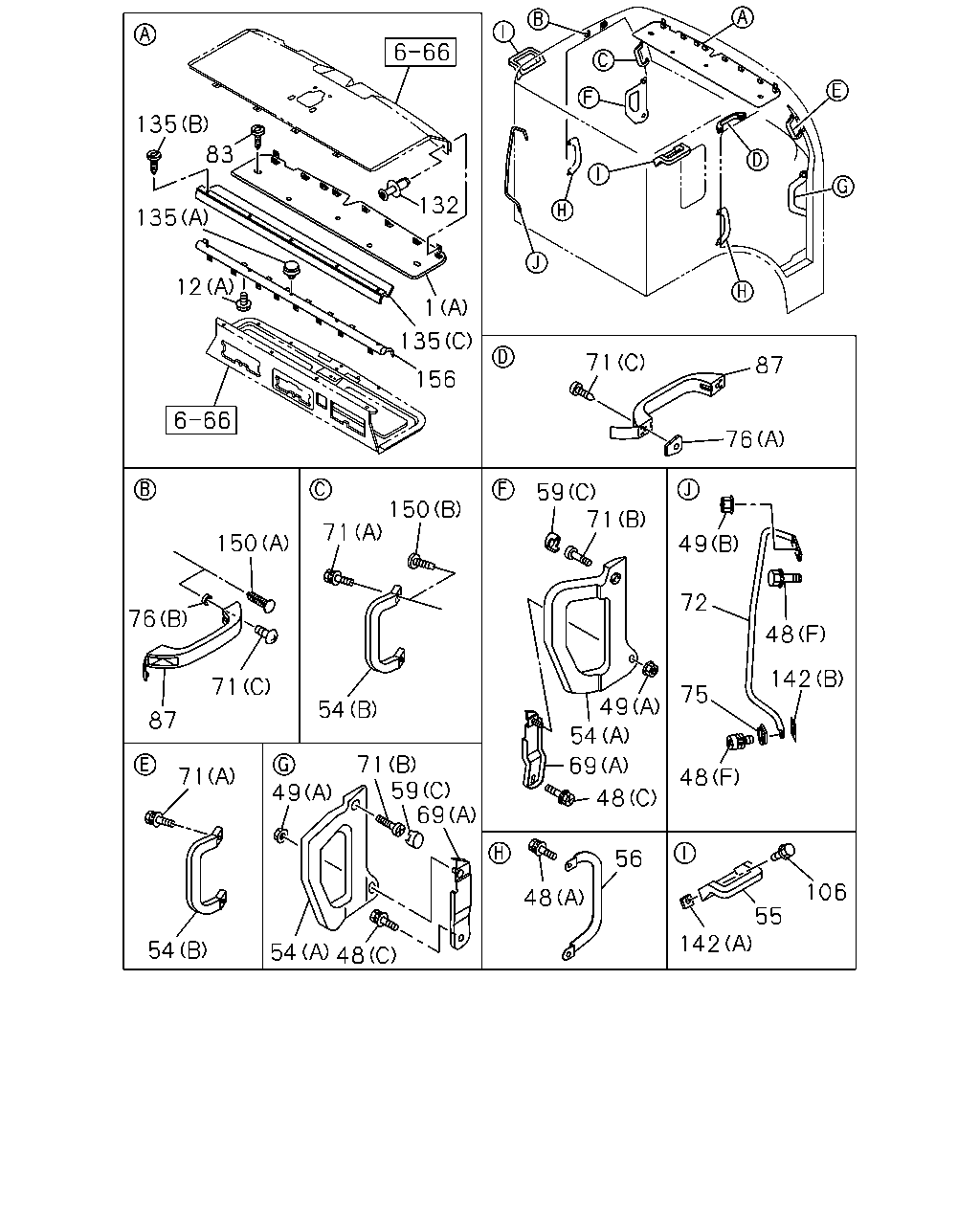

135 83 132 135 12 1 135 71 87 156 76 59 71 150 71 150 49 72 76 48 142 71 75 49 54 87 54 71 59 69 69 71 48 49 48 56 106 48 55 48 142 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72447-886-7	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M6X16 W/LK&PL WASHER	8-94279-214-0	01	1	0703-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-0411
48	BOLT; ASSIST GRIP BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-0504
48	BOLT; ASSIST GRIP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-0504
48	BOLT; ASSIST GRIP EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0505-
48	BOLT; ASSIST GRIP BUMPER W/HEADLAMPS<SLB> (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0505-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	02	1	0105-0602
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	02	1	0603-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0105-0110
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0105-0207
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	02	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0208-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	01	1	0105-0207
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-73618-185-0	01	1	0208-0208
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0208-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0105-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0105-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0105-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0207
71	SCREW ASSIST GRIP A POST<NBK> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0208-0208
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0208-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-0207
71	SCREW EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0208-0208
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0208-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	0105-0110
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	0105-0110
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0105-0110
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0105-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F> (A)	1-73618-180-0	02	1	0105-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-885-4	01	1	0105-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	02	1	0105-0110
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-0207
150	CLIP; ASSIST GRIP HOLE CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0208-0208
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0208-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0105-

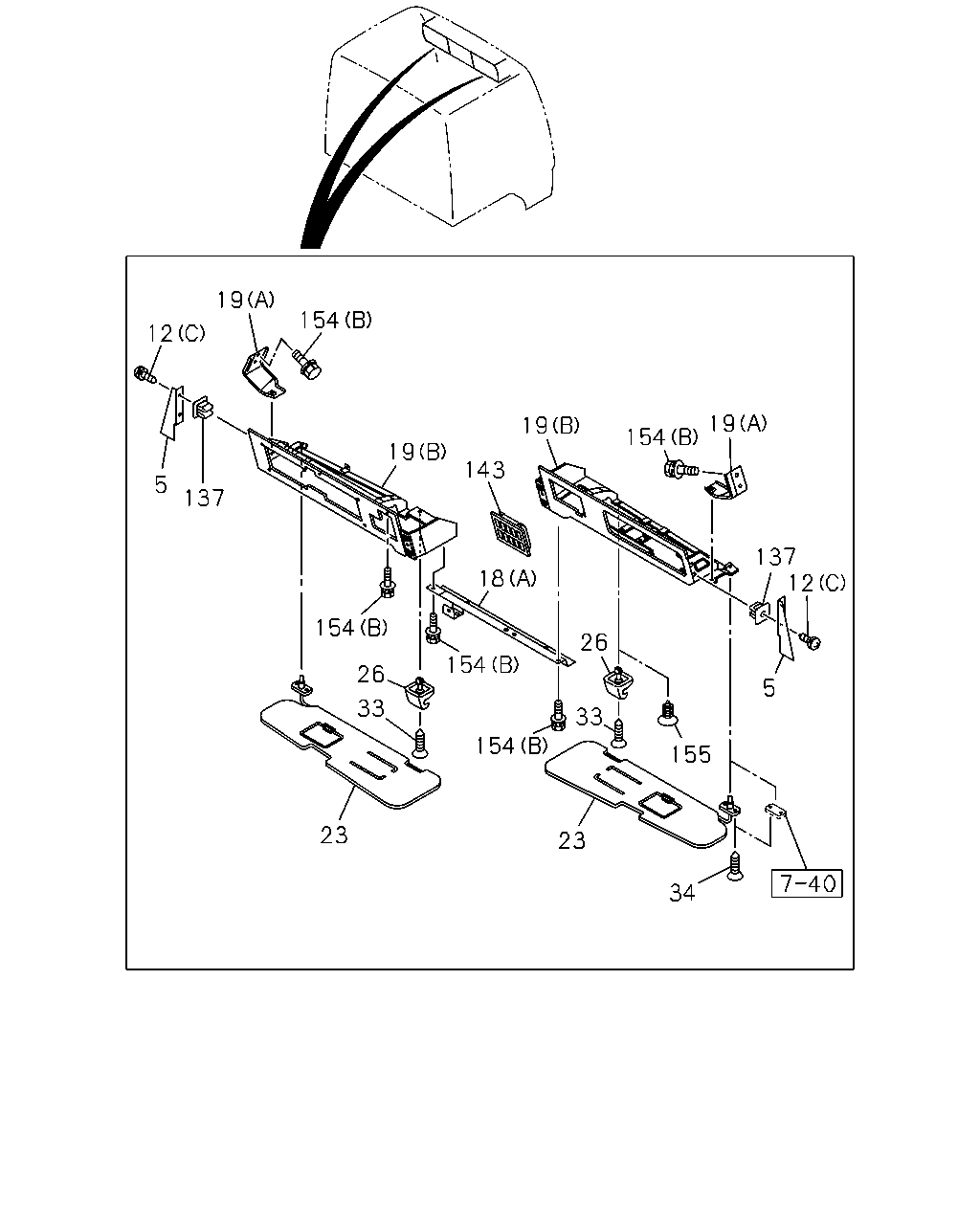

19 154 12 19 19 154 19 143 5 137 137 12 18 154 26 154 26 5 33 33 154 155 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0105-
23	SUN VISOR	1-73138-157-1	01	1	0105-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0105-0701
34	SCREW; SUN VISOR M6X20	1-09981-310-0	04	1	0702-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8X8 L=7.5 M5	8-94279-078-0	04	1	0105-
143	BEZEL	1-72447-768-2	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0105-

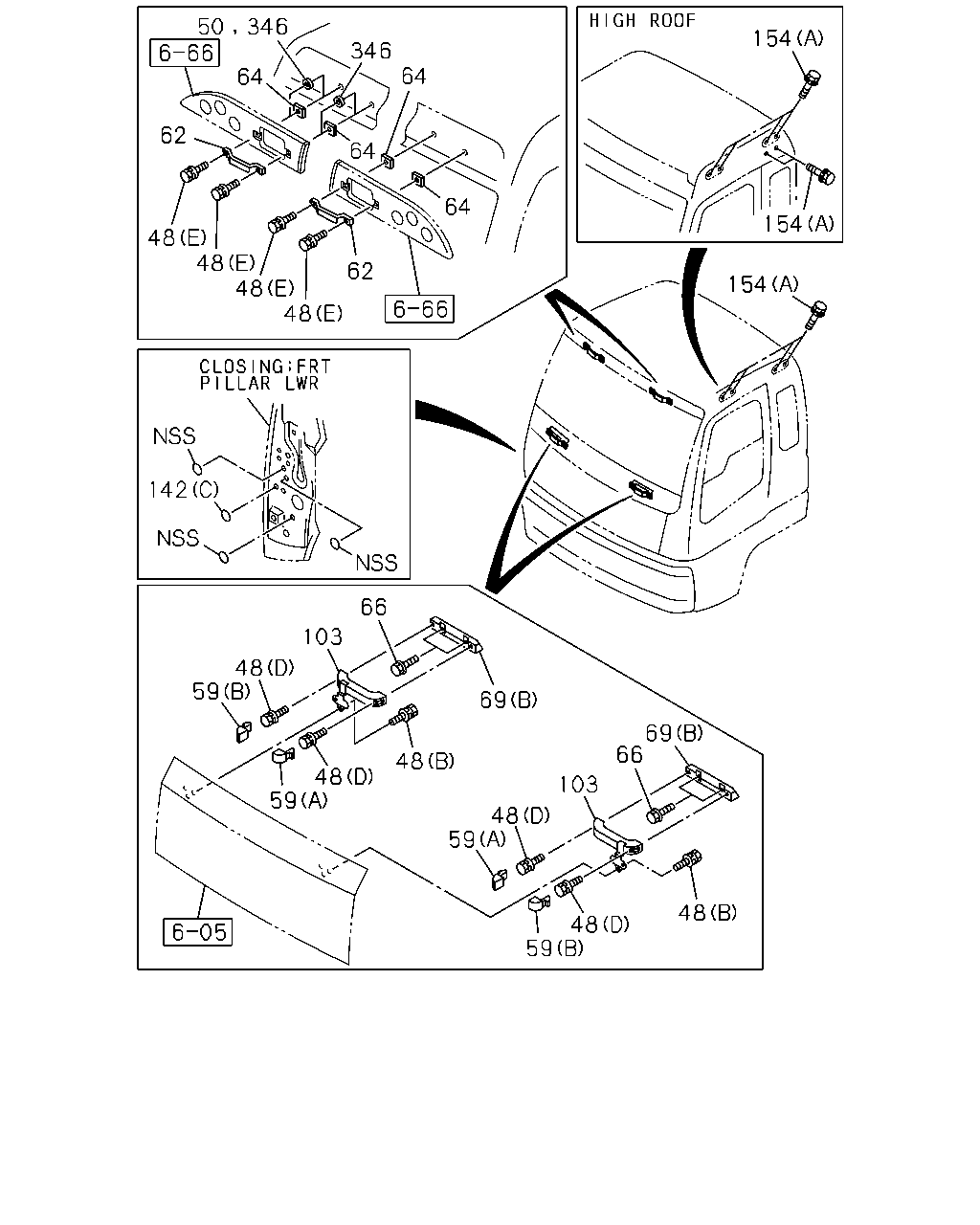

154 346 64 64 62 64 154 64 48 48 48 48 62 154 142 66 103 48 59 69 69 66 48 48 59 103 48 59 48 48 59 50 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M6X16 W/LK&PL WASHER	8-94279-214-0	01	1	0703-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0105-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-0411
48	BOLT; ASSIST GRIP BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-0504
48	BOLT; ASSIST GRIP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0412-0504
48	BOLT; ASSIST GRIP EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0505-
48	BOLT; ASSIST GRIP BUMPER W/HEADLAMPS<SLB> (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0505-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0105-
48	BOLT; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0105-
48	BOLT; ASSIST GRIP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0105-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0105-
50	WASHER; PL,ASSIST GRIP HIGH ROOF<S2F> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=8.4 OD=22	1-09985-188-0	01	1	0703-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0105-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0105-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0105-
64	SHEET; ASSIST GRIP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0105-
64	SHEET; ASSIST GRIP EXC. HIGH ROOF<S2F>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0105-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0105-0105
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0105-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0105-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0105-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0105-0411
103	GRIP; ASSIST,FRT PNL BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71998-940-3	01	1	0412-0504
103	GRIP; ASSIST,FRT PNL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71998-940-3	01	1	0412-0504
103	GRIP; ASSIST,FRT PNL EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71998-940-3	01	1	0505-
103	GRIP; ASSIST,FRT PNL BUMPER W/HEADLAMPS<SLB>	1-71998-940-3	01	1	0505-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0105-0411
103	GRIP; ASSIST,FRT PNL BUMPER W/HEADLAMPS<SLB> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71998-939-3	01	1	0412-0504
103	GRIP; ASSIST,FRT PNL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-71998-939-3	01	1	0412-0504
103	GRIP; ASSIST,FRT PNL EXC. BUMPER W/HEADLAMPS<SLB>,CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-71998-939-3	01	1	0505-
103	GRIP; ASSIST,FRT PNL BUMPER W/HEADLAMPS<SLB>	1-71998-939-3	01	1	0505-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	0105-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	02	1	0105-0110
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
346	WASHER; WATER SEAL HIGH ROOF<S2F> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-09985-344-0	02	1	0105-0702

18 12 154 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72447-886-7	01	1	0105-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0105-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0105-
158	LOCK; HEADER SHELF	1-72538-180-0	01	1	0105-
