◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#8903) — 116 parça

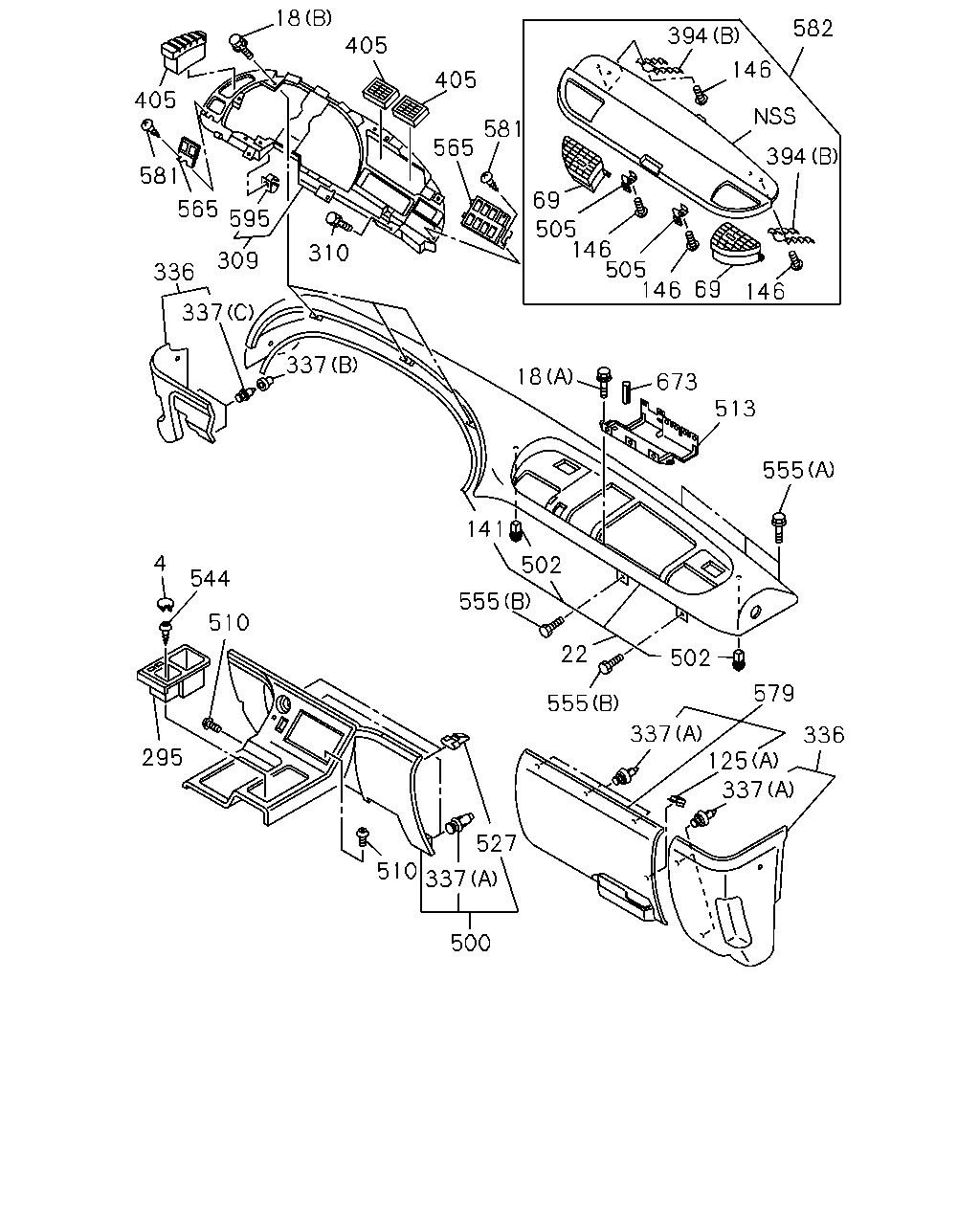

çizim 18997
18 582 394 405 146 405 405 581 565 394 581 69 565 595 505 146 505 146 310 309 336 69 146 337 337 18 673 513 555 141 4 502 544 555 510 22 502 579 555 337 125 336 295 337 527 510 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
22 PAD; INST 1-72317-351-2 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0105-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0105-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0406-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0105-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0105-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0105-
309 PANEL; SW,INST 1-72418-018-3 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0105-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0105-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 0105-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 0105-
500 CLUSTER; INST CENTER
INTAKE HEATER<SL2> 		1-72437-651-0 01 1 0105-
500 CLUSTER; INST CENTER
EXC. INTAKE HEATER<SL2> 		1-72437-642-1 01 1 0105-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0105-
505 LOCK; LID 1-72558-024-2 02 1 0105-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0105-
513 BRACKET; RELAY 8-97865-168-3 01 1 0105-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0105-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0105-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
565 BEZEL; SW PANEL 1-72418-021-1 01 1 0105-
565 BEZEL; SW PANEL 1-72418-020-1 01 1 0105-
579 COVER; INST PNL 1-72438-195-1 01 1 0105-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0105-
595 NUT; HOOK 1-72418-013-0 10 1 0105-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0105-

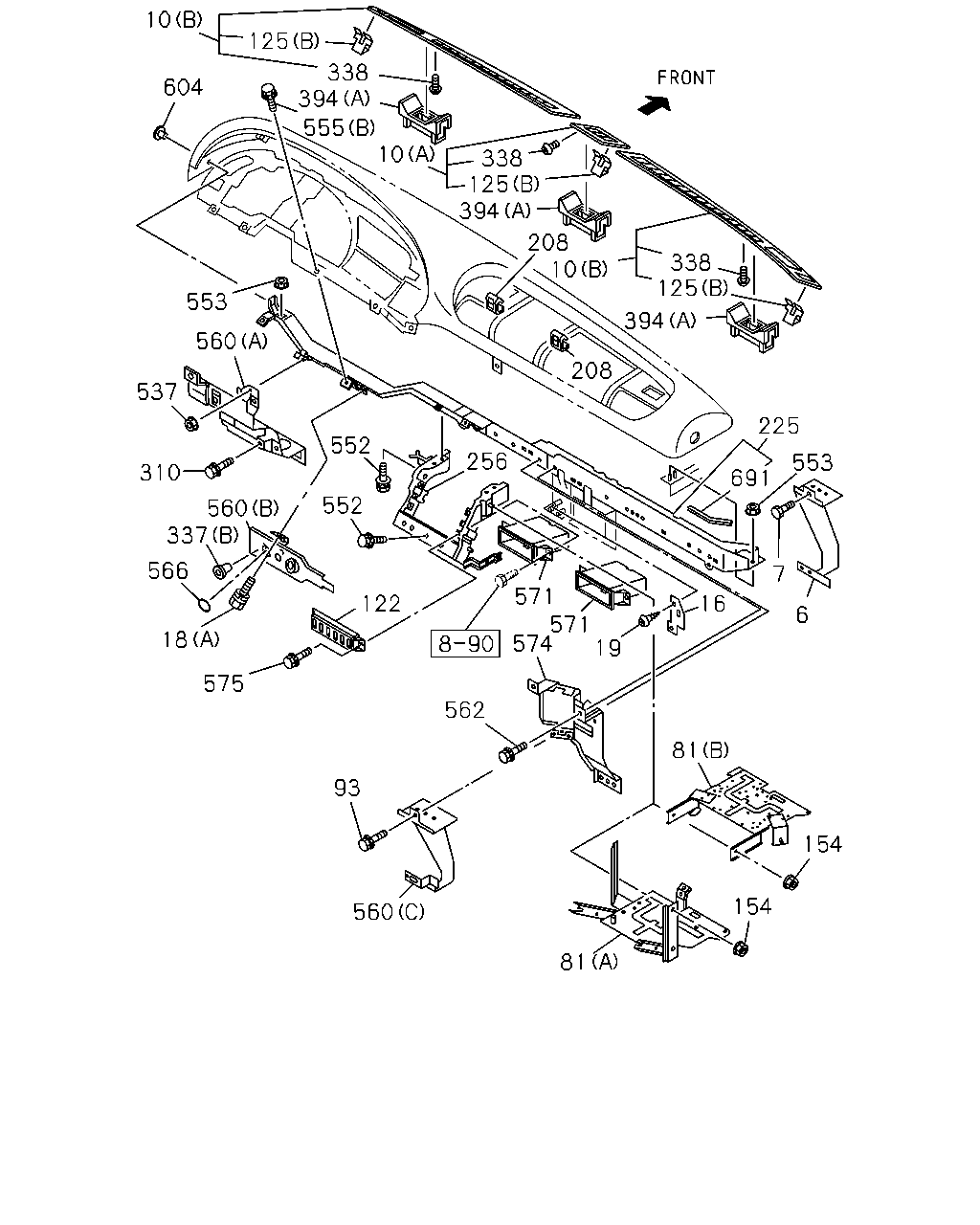

çizim 19528
10 125 338 394 604 555 10 338 125 394 208 10 338 125 553 394 560 208 537 225 552 256 553 310 691 552 560 337 566 7 571 16 122 6 571 574 18 19 575 562 81 93 154 154 560 81
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-062-2 01 1 0105-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-061-2 01 1 0105-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 0105-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 0105-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 0105-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 0105-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0105-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72437-600-6 01 1 0105-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 0105-
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> (A) 		1-73907-416-8 01 1 0105-
81 BRACKET; ELEC CONT UNIT
EXC. INTAKE HEATER<SL2> (B) 		1-73907-648-4 01 1 0105-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0105-
125 CLIP; INST PANEL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0105-
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0105-0309
125 CLIP; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		8-97217-066-0 10 1 0310-0405
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 0406-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0105-
225 FRAME; FACIA 1-65671-727-5 01 1 0105-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0105-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0105-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0105-0208
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 0406-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
560 BRACKET
INTAKE HEATER<SL2> (B) 		1-65671-742-1 01 1 0107-
560 BRACKET
(A) 		1-65681-045-6 01 1 0105-
560 BRACKET
(B) 		1-65681-043-2 01 1 0105-0106
560 BRACKET
EXC. INTAKE HEATER<SL2> (B) 		1-65681-043-2 01 1 0107-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-749-0 01 1 0105-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0105-0208
566 PLUG; HOLE
EXC. INTAKE HEATER<SL2> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0209-
571 BEZEL; POCKET 1-72438-151-3 01 1 0105-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0105-
574 PANEL; RELAY BOX 1-73907-407-3 01 1 0105-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
604 CLIP; INST PAD 1-09983-123-0 01 1 0105-
691 FINISHER; HARNESS PROTECTOR
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0105-

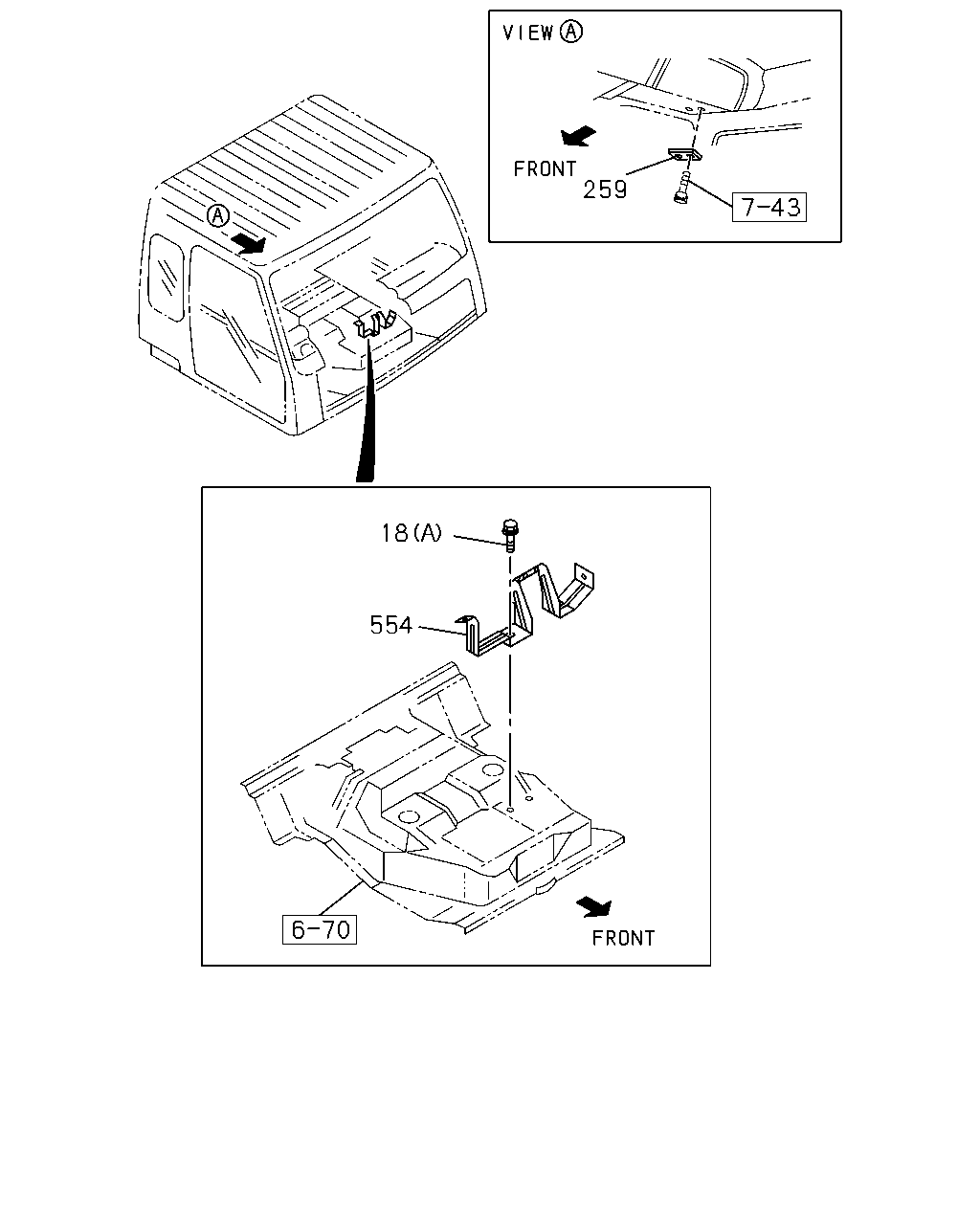

çizim 20059
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0105-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0105-
