6-76 — FLOOR EQUIPMENT AND SEALING (#89) — 61 parça

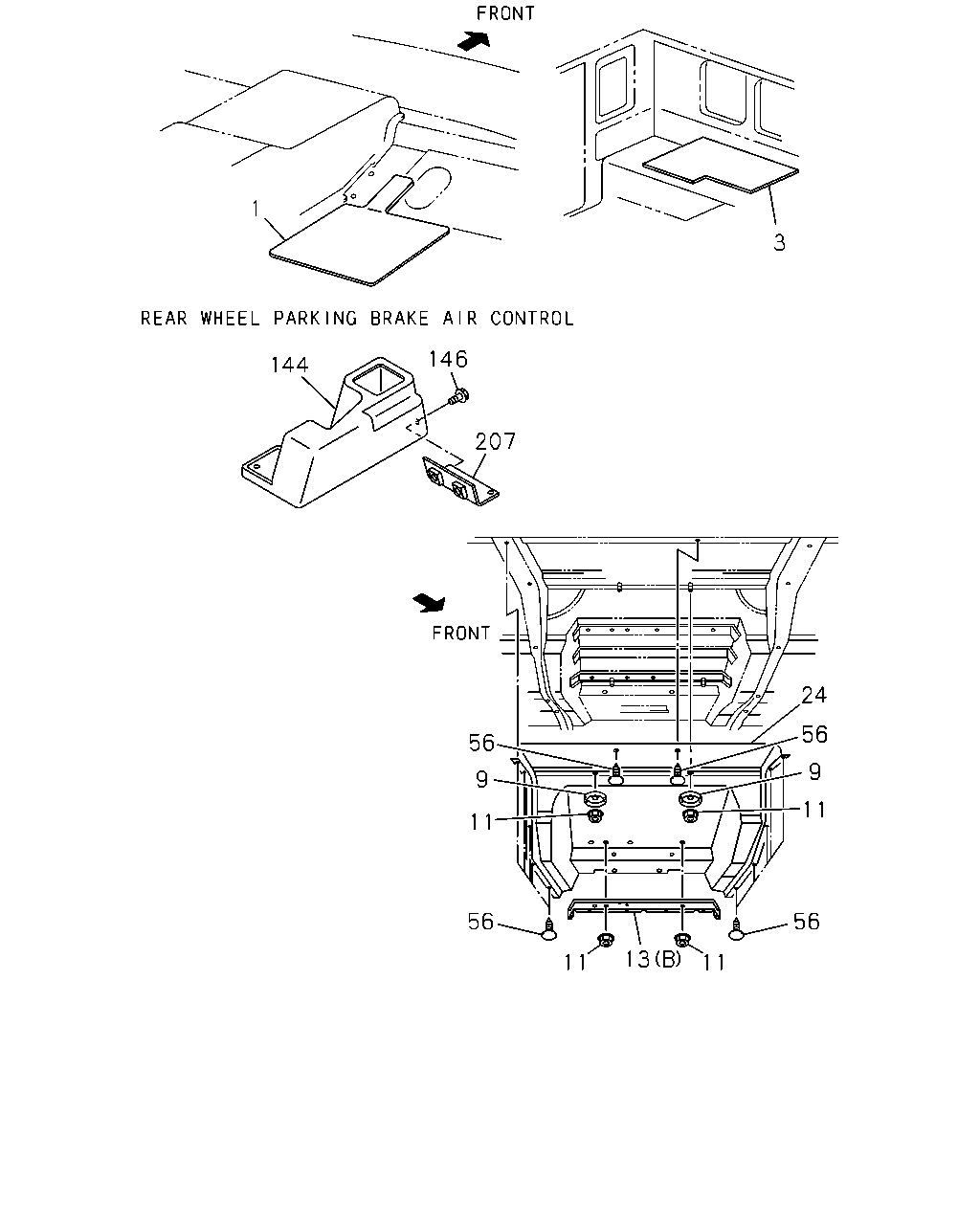

1 3 146 144 207 24 56 56 9 9 11 11 56 56 13 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	9202-	●	●
3	SHEET; MELTING,BED PAN DELUXE CAB(W14) CUT BULK SHEET 900X1000	1-61970-039-0	02	1	9202-	●
9	WASHER; HEAT INSULATOR	1-73377-052-1	02	1	9202-	●	●
11	NUT; HEAT INSULATOR M6 FLANGE	1-09984-141-0	04	1	9202-	●
11	NUT; HEAT INSULATOR M6 FLANGE	1-09984-141-0	06	1	9202-		●
13	PLATE; HEAT INSULATOR (B)	1-71998-159-5	01	1	9202-	●	●
13	PLATE; HEAT INSULATOR (A)	1-71998-324-2	01	1	9202-		●
24	INSULATOR; HEAT,FRT ANTI NOISE EQUIPMENT ECE<SLK> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-843-0	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-844-1	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-325-7	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-325-7	01	1	9405-	●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-181-7	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-181-7	01	1	9405-	●
24	INSULATOR; HEAT,FRT ANTI NOISE EQUIPMENT ECE<SLK> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-845-0	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-846-1	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-370-7	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-370-7	01	1	9405-		●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-183-8	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-183-8	01	1	9405-		●
56	CLIP; HEAT INSULATOR,ENG HOOD D6X23 BLACK	1-09987-114-0	12	1	9202-	●
56	CLIP; HEAT INSULATOR,ENG HOOD D6X23 BLACK	1-09987-114-0	24	1	9202-		●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PASSENGER SEAT MULTI USED<WX9>	1-73998-870-0	01	1	9303-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73998-818-0	01	1	9202-9302	●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PASSENGER SEAT MULTI USED<WX9>	1-73998-818-0	01	1	9303-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73998-818-0	01	1	9303-		●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/WASHER	9-03900-616-0	06	1	9202-	●	●
207	BRACKET ASM; HAND BRAKE VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73998-575-0	01	1	9202-	●	●

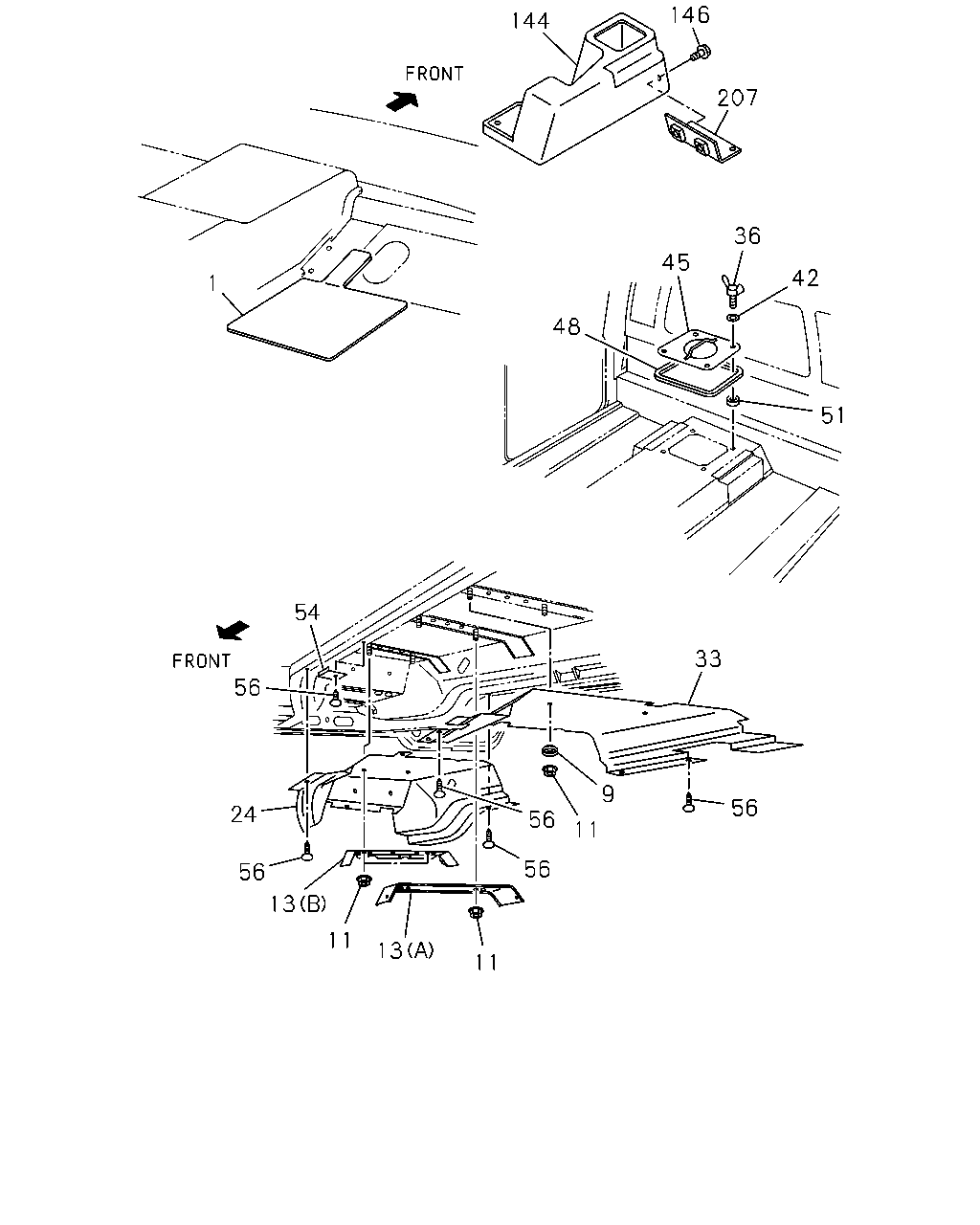

146 144 207 36 45 42 1 48 51 54 33 56 9 56 24 56 11 56 56 13 11 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	9202-	●	●
9	WASHER; HEAT INSULATOR	1-73377-052-1	02	1	9202-	●	●
11	NUT; HEAT INSULATOR M6 FLANGE	1-09984-141-0	04	1	9202-	●
11	NUT; HEAT INSULATOR M6 FLANGE	1-09984-141-0	06	1	9202-		●
13	PLATE; HEAT INSULATOR (B)	1-71998-159-5	01	1	9202-	●	●
13	PLATE; HEAT INSULATOR (A)	1-71998-324-2	01	1	9202-		●
24	INSULATOR; HEAT,FRT ANTI NOISE EQUIPMENT ECE<SLK> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-843-0	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-844-1	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-325-7	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-325-7	01	1	9405-	●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-181-7	01	1	9202-9404	●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-181-7	01	1	9405-	●
24	INSULATOR; HEAT,FRT ANTI NOISE EQUIPMENT ECE<SLK> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-845-0	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-846-1	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-370-7	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-370-7	01	1	9405-		●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI NOISE EQUIPMENT ECE<SLK>	1-71998-183-8	01	1	9202-9404		●
24	INSULATOR; HEAT,FRT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-183-8	01	1	9405-		●
33	INSULATOR; HEAT,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-371-5	01	1	9202-		●
33	INSULATOR; HEAT,RR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-519-1	01	1	9202-		●
36	BOLT; WING,COVER	9-61405-010-0	04	1	9202-		●
42	WASHER; PL,COVER ID=10.5 OD=18	9-09160-510-0	04	1	9202-		●
45	COVER; CENTER,CHECK HOLE	1-65380-056-0	01	1	9202-		●
48	SEAL; CHECK HOLE LID,CENTER	1-65380-091-0	01	1	9202-		●
51	SEAL; LID,CHECK HOLE	1-65380-121-0	04	1	9202-		●
54	BRACKET; HEAT INSULATOR	1-71998-323-0	02	1	9202-		●
56	CLIP; HEAT INSULATOR,ENG HOOD D6X23 BLACK	1-09987-114-0	12	1	9202-	●
56	CLIP; HEAT INSULATOR,ENG HOOD D6X23 BLACK	1-09987-114-0	24	1	9202-		●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PASSENGER SEAT MULTI USED<WX9>	1-73998-870-0	01	1	9303-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73998-818-0	01	1	9202-9302	●	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PASSENGER SEAT MULTI USED<WX9>	1-73998-818-0	01	1	9303-	●
144	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73998-818-0	01	1	9303-		●
146	BOLT; COVER BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/WASHER	9-03900-616-0	06	1	9202-	●	●
207	BRACKET ASM; HAND BRAKE VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-73998-575-0	01	1	9202-	●	●
