Isuzu WW
▶
TRUCKS
▶
CVR
▶
10860 - CVR LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

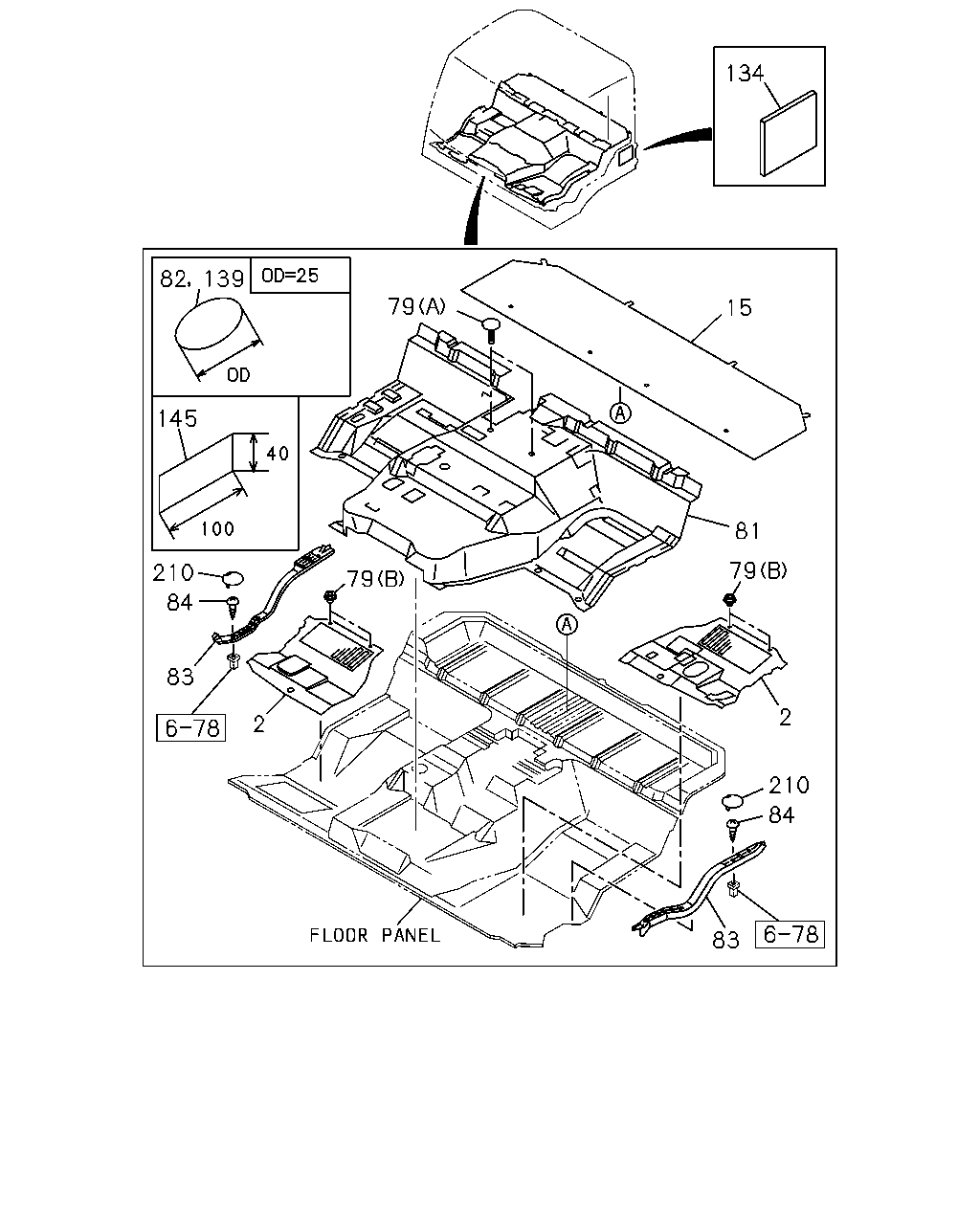

6-75 — MAT AND CARPET
(#8891) — 20 parça
134
82
139
79
15
145
81
79
79
210
84
83
2
2
210
84
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
1-73237-655-0
01
1
0105-0112
2
MAT; FLOOR
1-73237-787-1
01
1
0201-
2
MAT; FLOOR
1-73237-654-0
01
1
0105-0112
2
MAT; FLOOR
1-73237-785-1
01
1
0201-
15
MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>
1-73237-757-1
01
1
0105-0112
15
MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>
1-73237-783-1
01
1
0201-
79
HOOK; MALE
(A) D6X23 BLACK
1-09987-114-0
02
1
0105-0207
79
HOOK; MALE
(A) D6X23 BLACK
1-09987-114-0
01
1
0208-
79
HOOK; MALE
(B) BLACK
8-94279-089-0
08
1
0105-
81
MAT; FLOOR,CENTER
1-73237-733-1
01
1
0105-0112
81
MAT; FLOOR,CENTER
1-73237-813-3
01
1
0201-
82
SEAL; BED PAN
OD=25 BLACK
1-76798-019-0
03
1
0105-0312
82
SEAL; BED PAN
OD=25 BLACK
1-76798-019-0
01
1
0401-
83
PLATE; KICKING,FLOOR MAT
1-76798-046-0
01
1
0105-
83
PLATE; KICKING,FLOOR MAT
1-76798-045-0
01
1
0105-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
0105-
134
SILENCER; RR FLOOR,SIDE
1-73367-016-2
01
1
0105-
139
SEAL; FLOOR
OD=25 BLACK
1-76798-019-0
01
1
0105-
145
SEAL; FLOOR PANEL
100X40
1-72498-022-0
01
1
0105-
210
COVER; KICKING PLATE
1-76337-461-0
09
1
0105-
