◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10860 - CVR LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#8890) — 20 parça

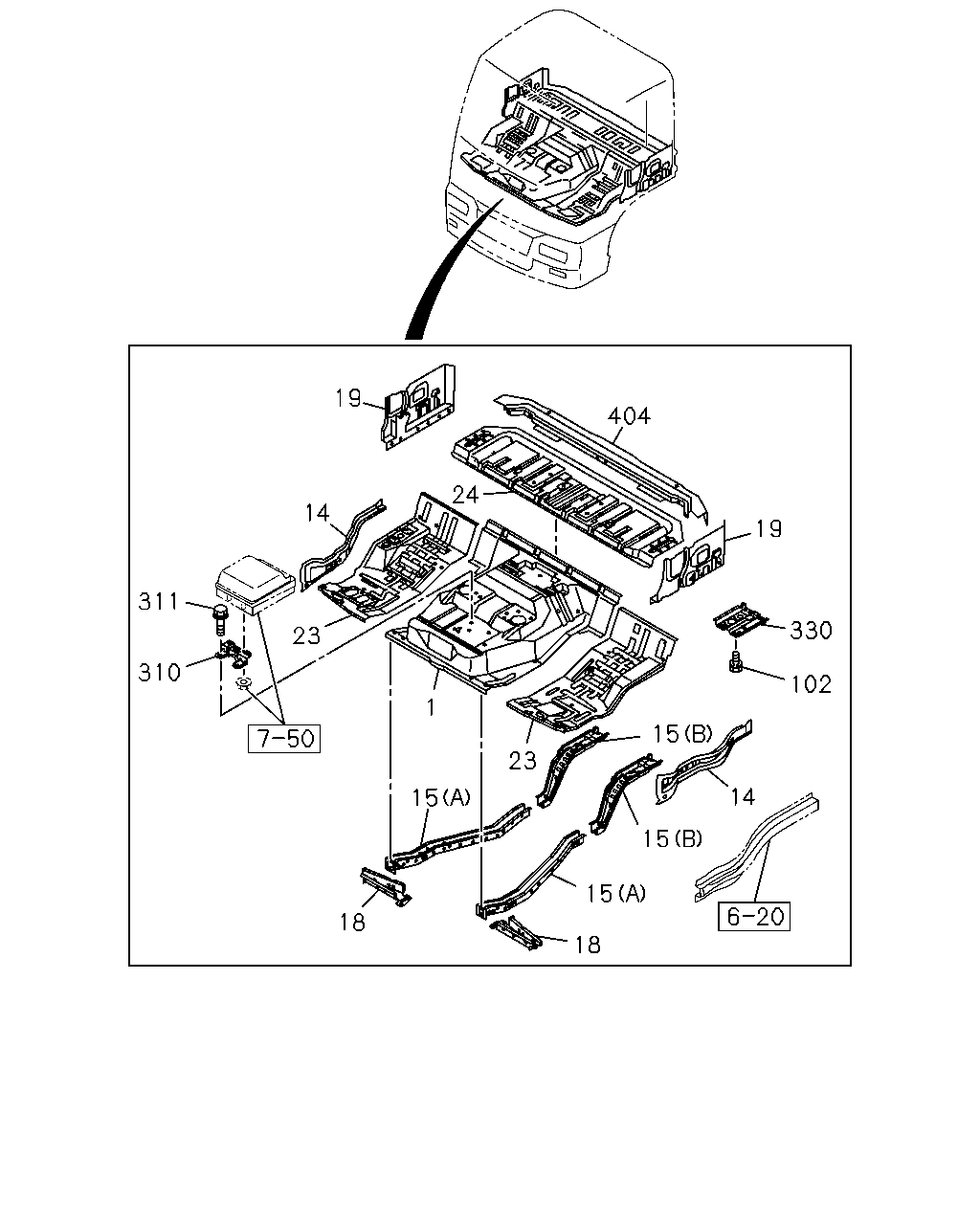

çizim 74959
19 404 24 14 19 311 330 23 310 102 1 15 23 14 15 15 15 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62172-614-5 01 1 0105-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0105-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0105-
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 0105-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0105-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0105-
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 0105-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0105-
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 0105-
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 0105-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0105-
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0105-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 0105-
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62172-805-0 01 1 0105-
24 PANEL; BED PAN 1-62172-540-9 01 1 0105-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0105-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0105-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0105-
