1-10 — RADIATOR (#889) — 103 parça

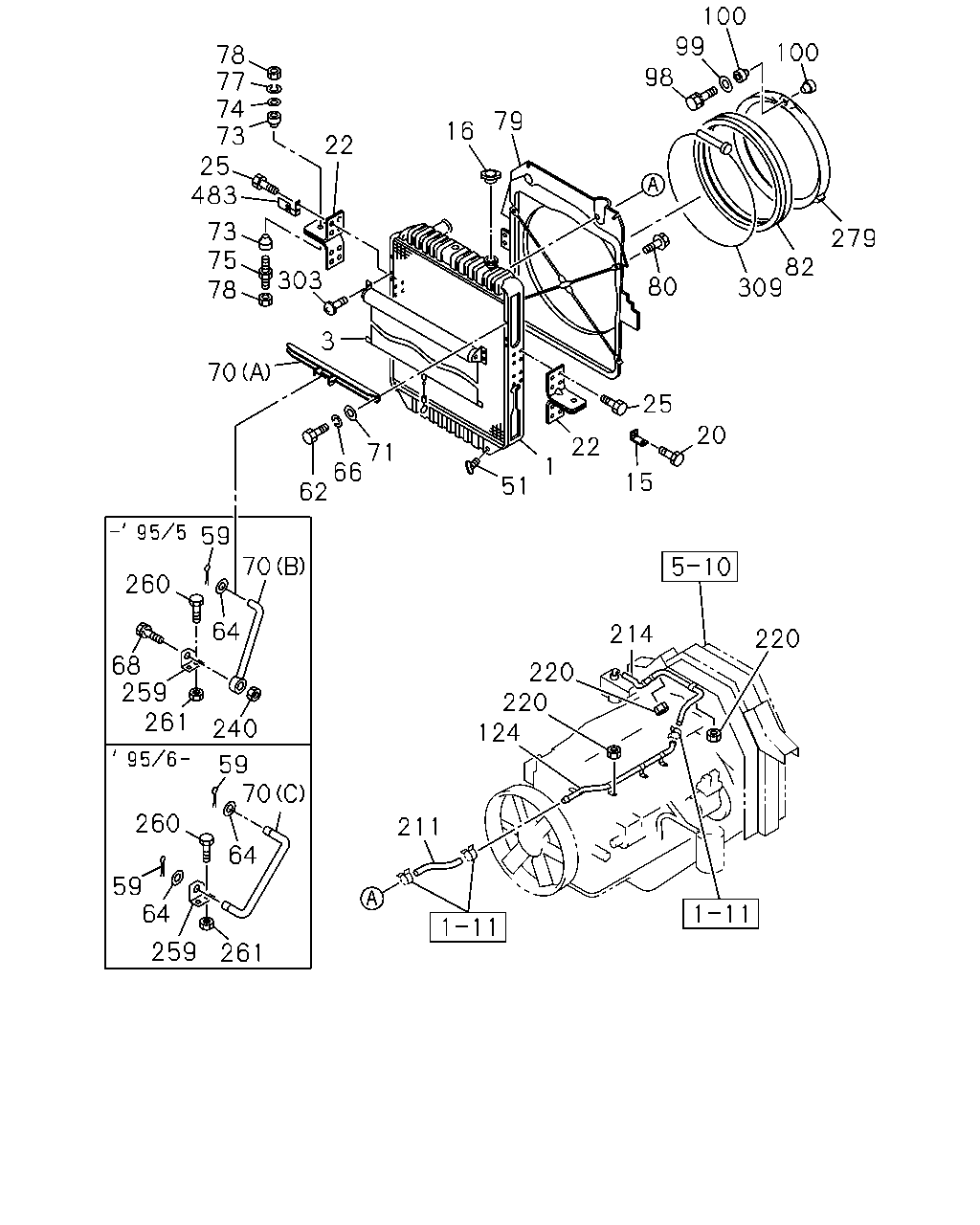

100 99 98 100 78 77 74 73 25 483 79 16 22 303 73 75 78 279 82 309 80 3 70 25 20 22 71 66 62 1 15 51 59 70 260 64 214 220 68 259 261 220 220 124 240 59 70 260 211 64 59 64 259 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM FIRE TRUCK<RA9>	1-21410-626-3	01	1	9202-	●	●
1	RADIATOR ASM EXC. FIRE TRUCK<RA9>	1-21410-677-1	01	1	9202-	●	●
3	COVER; RAD RADIATOR CURTAIN<SK7>	1-21511-085-2	01	1	9204-	●	●
15	BRACKET; PIPE,RAD FIRE TRUCK<RA9>	1-21464-266-0	01	1	9202-9208	●	●
16	CAP; RAD	1-21450-053-1	01	1	9202-	●	●
20	BOLT; PIPE BRKT,RAD FIRE TRUCK<RA9> M8X18 W/LK&PL WASHER	9-01960-818-0	01	1	9202-9208	●	●
22	BRACKET; RAD MTG FIRE TRUCK<RA9>	1-21464-308-0	01	1	9202-	●	●
22	BRACKET; RAD MTG FIRE TRUCK<RA9>	1-21464-307-0	01	1	9202-	●	●
22	BRACKET; RAD MTG EXC. FIRE TRUCK<RA9>	1-21464-131-2	01	1	9202-	●	●
22	BRACKET; RAD MTG EXC. FIRE TRUCK<RA9>	1-21464-130-2	01	1	9202-	●	●
25	BOLT; BRKT FIRE TRUCK<RA9> M8X16 W/LK&PL WASHER	9-01960-816-0	15	1	9202-9208	●	●
25	BOLT; BRKT FIRE TRUCK<RA9> M8X16 W/LK&PL WASHER	0-50140-816-0	15	1	9209-	●	●
25	BOLT; BRKT EXC. FIRE TRUCK<RA9> M8X16 W/LK WASHER	9-01900-816-0	16	1	9202-	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9202-	●	●
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9202-9505	●	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-	●	●
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9202-9208	●	●
62	BOLT; STAY EXC. FIRE TRUCK<RA9> M10X16	9-02041-016-0	02	1	9209-	●	●
62	BOLT; STAY FIRE TRUCK<RA9> M10X16	0-20801-016-0	02	1	9209-	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9202-9505	●	●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-	●	●
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9202-	●	●
68	BOLT; STAY TO BRKT M8X40 FLANGE	0-28080-840-0	01	1	9202-9505	●	●
70	STAY; RAD (B)	1-21522-053-0	01	1	9202-9505	●	●
70	STAY; RAD (C)	1-21522-069-0	01	1	9506-	●	●
70	STAY; RAD FIRE TRUCK<RA9> (A)	1-21522-044-0	01	1	9202-	●	●
70	STAY; RAD EXC. FIRE TRUCK<RA9> (A)	1-21522-040-1	01	1	9202-	●	●
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9202-	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	02	1	9202-	●	●
73	RUBBER; CUSHION,RAD MTG T=24	1-21467-011-1	02	1	9202-	●	●
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9202-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9202-	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9202-	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	5-09440-006-0	02	1	9202-	●	●
78	NUT; CUSHION RUBBER M12	9-99110-512-0	02	1	9202-	●	●
79	GUIDE; FAN,RAD	1-21551-341-2	01	1	9202-	●	●
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9202-9208	●	●
80	BOLT; FAN GUIDE EXC. RADIATOR CURTAIN<SK7> M6X14	8-94114-024-0	04	1	9209-	●	●
80	BOLT; FAN GUIDE RADIATOR CURTAIN<SK7> M6X14 FLANGE	0-28080-614-0	04	1	9209-	●	●
80	BOLT; FAN GUIDE FIRE TRUCK<RA9> M6X14 FLANGE	0-28080-614-0	04	1	9209-	●	●
82	COVER; FAN,RAD	1-21559-157-0	01	1	9202-	●	●
98	BOLT; RAD FAN GUIDE M8X28 FLANGE	0-28080-828-0	03	1	9202-9308	●	●
98	BOLT; RAD FAN GUIDE M8X25 FLANGE	0-28080-825-0	03	1	9309-	●	●
99	WASHER; PL ID=8.4 OD=18	9-09164-608-0	03	1	9202-9202	●	●
100	RUBBER; MTG	1-09337-006-0	06	1	9202-9307	●	●
100	RUBBER; MTG	1-09337-027-0	06	1	9308-	●	●
124	PIPE; WATER,TANK TO RAD	8-94396-222-1	01	1	9202-	●	●
211	HOSE; RAD TO PIPE L=200 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
214	HOSE; PIPE TO RESERVE TANK L=1050 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
220	NUT; CLIP M8	9-09110-408-0	03	1	9202-	●	●
240	NUT; STAY M8	9-09110-408-0	01	1	9202-9506	●	●
259	BRACKET; RAD STAY	1-21523-007-0	01	1	9202-9505	●	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9506-	●	●
260	BOLT; BRKT M8X18	0-28010-818-0	02	1	9202-9204	●	●
260	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●	●
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●
261	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●	●
279	BELL MOUTH	8-94397-008-1	01	1	9202-	●	●
303	SCREW; RAD COVER RADIATOR CURTAIN<SK7> M6X12 W/LK WASHER	9-03910-612-0	04	1	9204-	●	●
309	WIRE; FAN COVER	1-09704-088-0	01	1	9202-	●	●
483	BRACKET; SEAL FIRE TRUCK<RA9>	1-21559-343-0	01	1	9202-9202	●	●
483	BRACKET; SEAL	1-21559-343-0	01	1	9203-	●	●

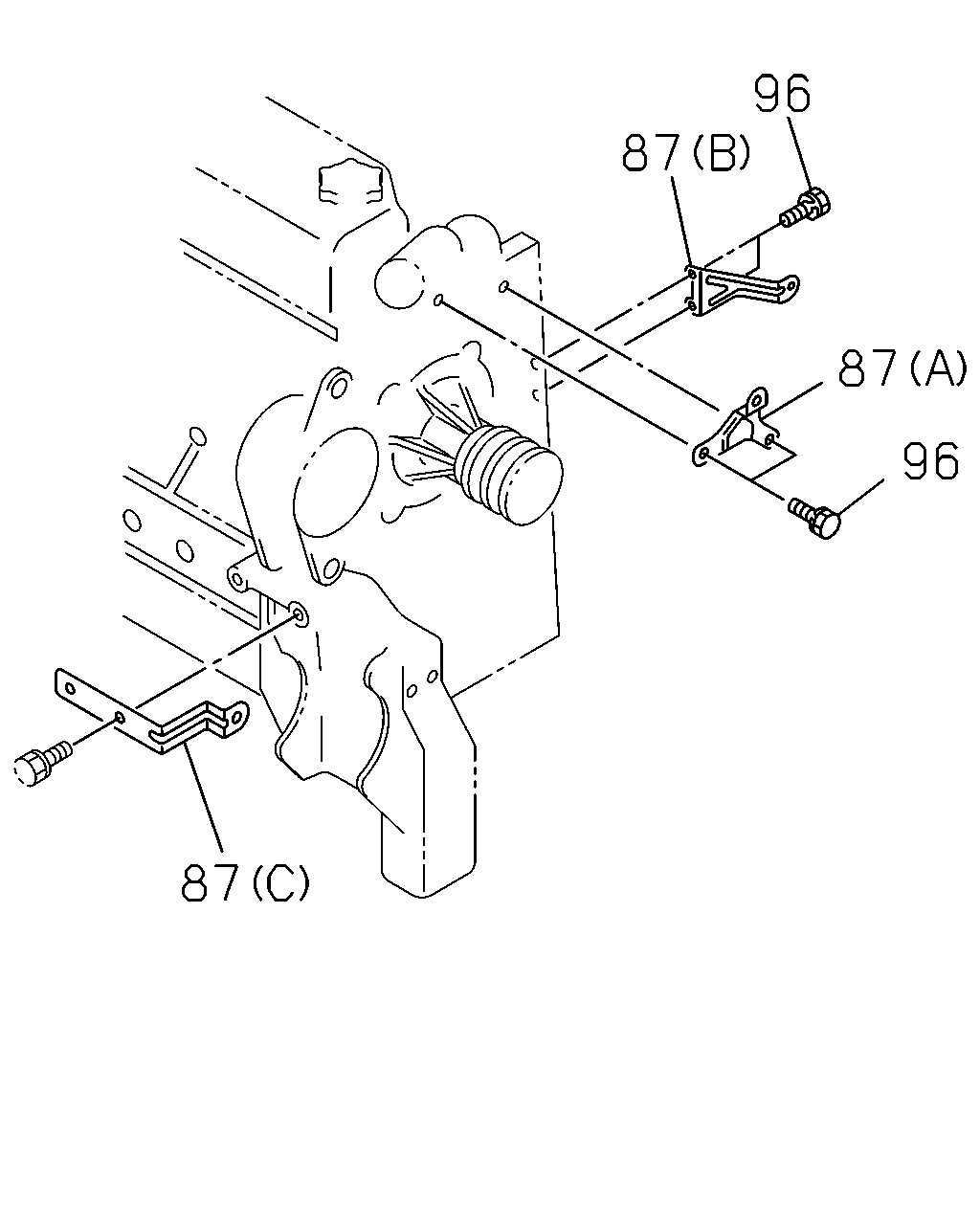

96 87 87 96 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	9202-	●	●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	9202-	●	●
87	STAY; FAN GUIDE (C)	8-94399-434-1	01	1	9202-9410	●	●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	9411-	●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	9202-	●	●

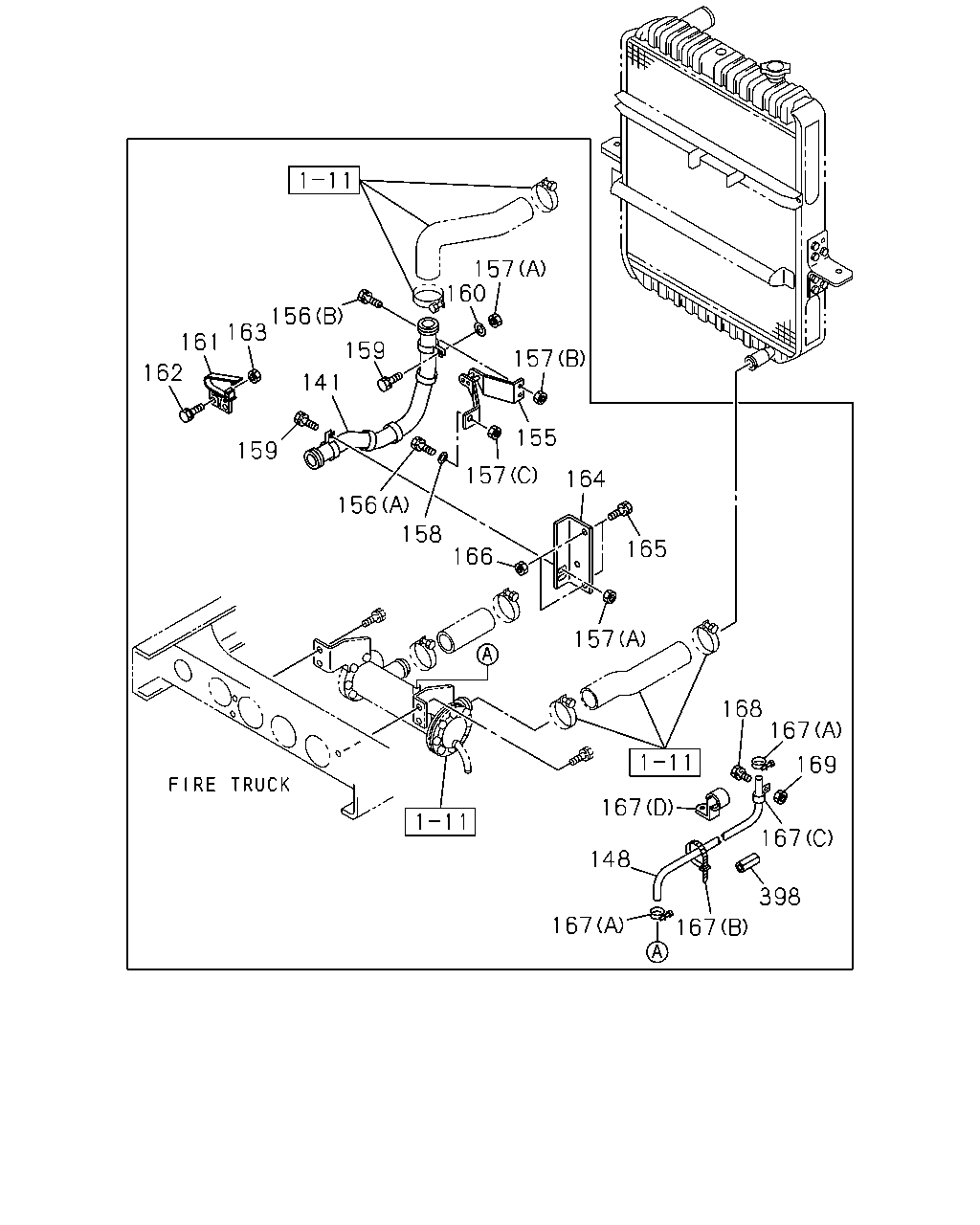

157 160 156 163 161 159 157 162 141 155 159 157 164 156 158 165 166 157 168 167 169 167 167 148 398 167 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
141	PIPE; RAD,INL FIRE TRUCK<RA9>	1-21431-448-1	01	1	9202-	●	●
148	HOSE; WATER,BYPASS,SUB RAD FIRE TRUCK<RA9> L=900 SERVICED BY L=3000	0-03257-300-0	01	1	9202-	●	●
155	BRACKET; RAD PIPE FIRE TRUCK<RA9>	1-21439-080-1	01	1	9202-	●	●
156	BOLT; BRKT TO RAD PIPE FIRE TRUCK<RA9> (A) M14X30	0-20801-430-0	01	1	9202-	●	●
156	BOLT; BRKT TO RAD PIPE FIRE TRUCK<RA9> (B) M10X25 W/LK WASHER	0-50041-025-0	02	1	9202-	●	●
157	NUT; BRKT TO PIPE FIRE TRUCK<RA9> (A) M8	9-09110-408-0	04	1	9202-	●	●
157	NUT; BRKT TO PIPE FIRE TRUCK<RA9> (B) M10	9-09110-510-0	02	1	9202-	●	●
157	NUT; BRKT TO PIPE FIRE TRUCK<RA9> (C)	9-99110-414-0	01	1	9202-	●	●
158	WASHER; LK,CLIP BRKT FIRE TRUCK<RA9> ID=14.2	9-09150-514-0	01	1	9202-	●	●
159	BOLT; BRKT TO PIPE FIRE TRUCK<RA9> M8X45 FLANGE	0-28080-845-0	04	1	9202-	●	●
160	WASHER; PL,BRKT TO PIPE FIRE TRUCK<RA9> ID=8.4 OD=18	9-09160-608-0	02	1	9202-9207	●	●
161	CLIP; CABLE FIRE TRUCK<RA9>	1-09700-780-1	01	1	9202-9207	●	●
162	BOLT; CABLE CLIP FIRE TRUCK<RA9> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9202-9204	●	●
162	BOLT; CABLE CLIP FIRE TRUCK<RA9> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9207	●	●
163	NUT; CABLE CLIP FIRE TRUCK<RA9> M8	9-09110-408-0	02	1	9202-9207	●	●
164	BRACKET; RAD PIPE TO C/MBR FIRE TRUCK<RA9>	1-21439-081-0	01	1	9202-	●	●
165	BOLT; BRKT TO C/MBR FIRE TRUCK<RA9> M8X22 FLANGE	0-28080-822-0	01	1	9202-9207	●	●
165	BOLT; BRKT TO C/MBR FIRE TRUCK<RA9> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
165	BOLT; BRKT TO C/MBR FIRE TRUCK<RA9> M10X25 W/LK WASHER	0-50041-025-0	02	1	9202-	●	●
166	NUT; BRKT TO C/MBR FIRE TRUCK<RA9> M10	9-09110-510-0	02	1	9202-	●	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (B) L=240	1-09707-117-0	01	1	9202-	●	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (A) ID=12	8-94238-610-0	02	1	9202-	●	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	02	1	9202-9207		●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (C) ID=13 L=20	9-09525-235-0	02	1	9202-9207		●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> (C) ID=13 L=20	9-09525-235-0	02	1	9208-	●	●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (D) ID=13 H=75 L=25	1-09700-601-0	01	1	9202-9207		●
167	CLIP; BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (C) ID=13 L=20	9-09525-235-0	01	1	9202-9207		●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8X18	0-28010-818-0	01	1	9202-9204	●	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8X18 FLANGE	0-28080-818-0	01	1	9205-9207	●	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8X20 FLANGE	0-28080-820-0	01	1	9208-	●	●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	9-01900-820-0	01	1	9202-9204		●
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-		●
169	NUT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9202-		●
169	NUT; CLIP,BYPASS HOSE FIRE TRUCK<RA9> M8	9-09110-408-0	01	1	9202-		●
398	SLEEVE; RUBBER,BYPASS FIRE TRUCK<RA9> ID=10 OD=14 L=30	9-09956-682-0	01	1	9202-9207	●	●
398	SLEEVE; RUBBER,BYPASS FIRE TRUCK<RA9> HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=10 OD=14 L=30	9-09956-682-0	01	1	9208-	●	●
